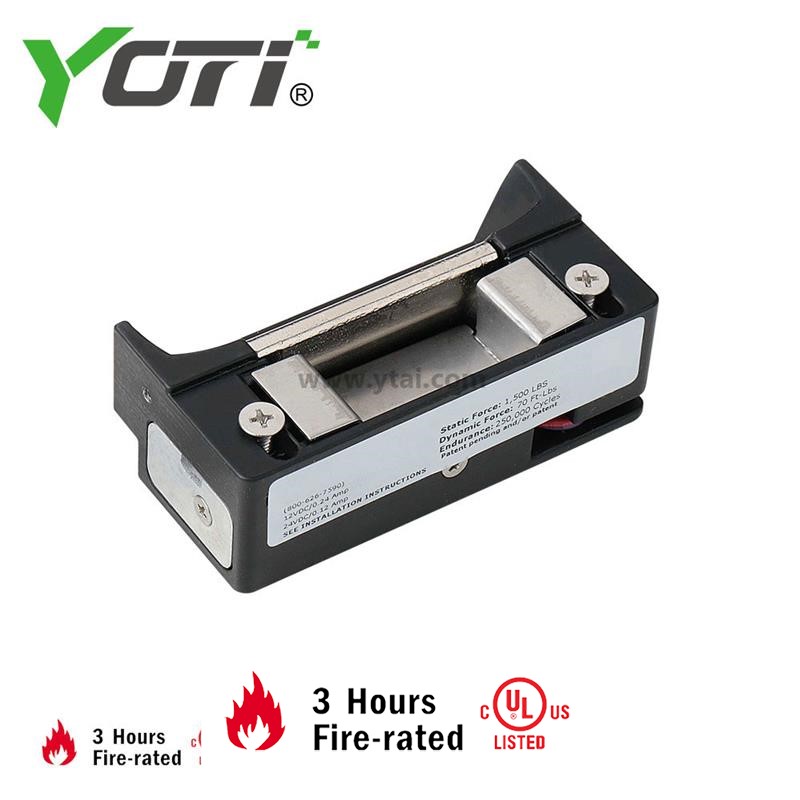

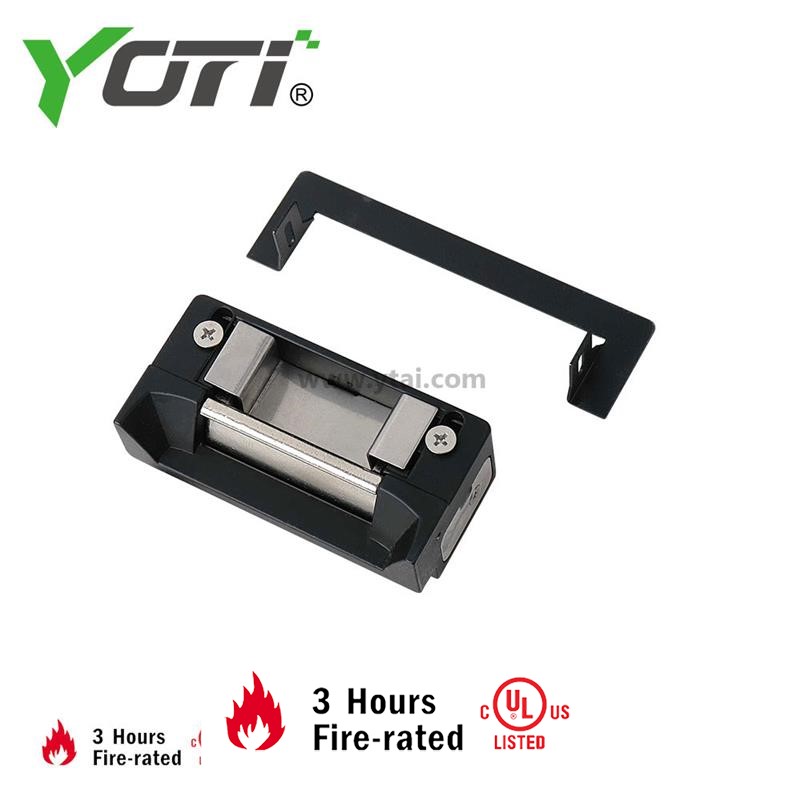

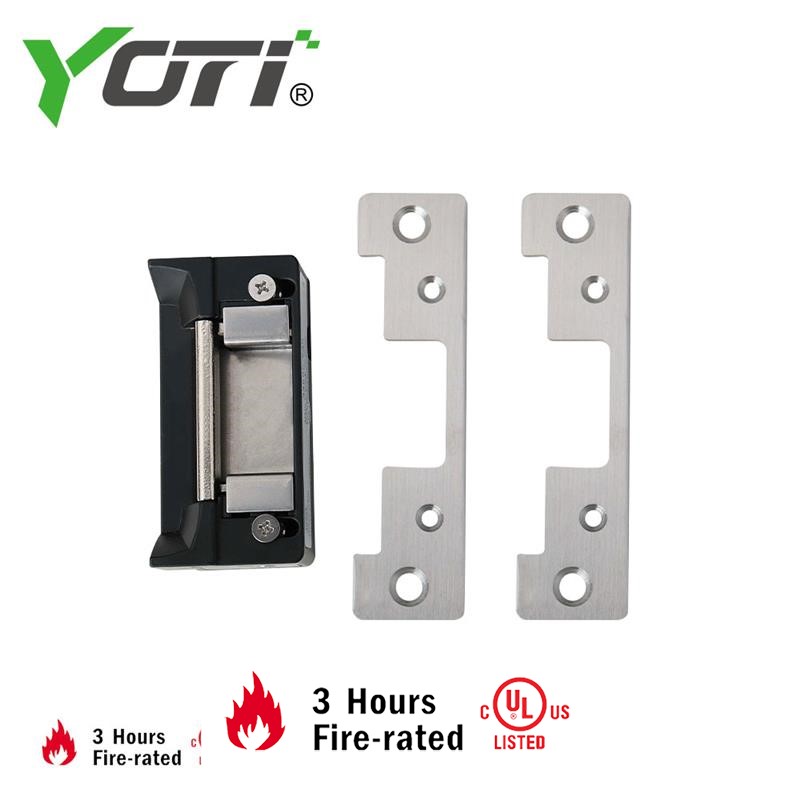

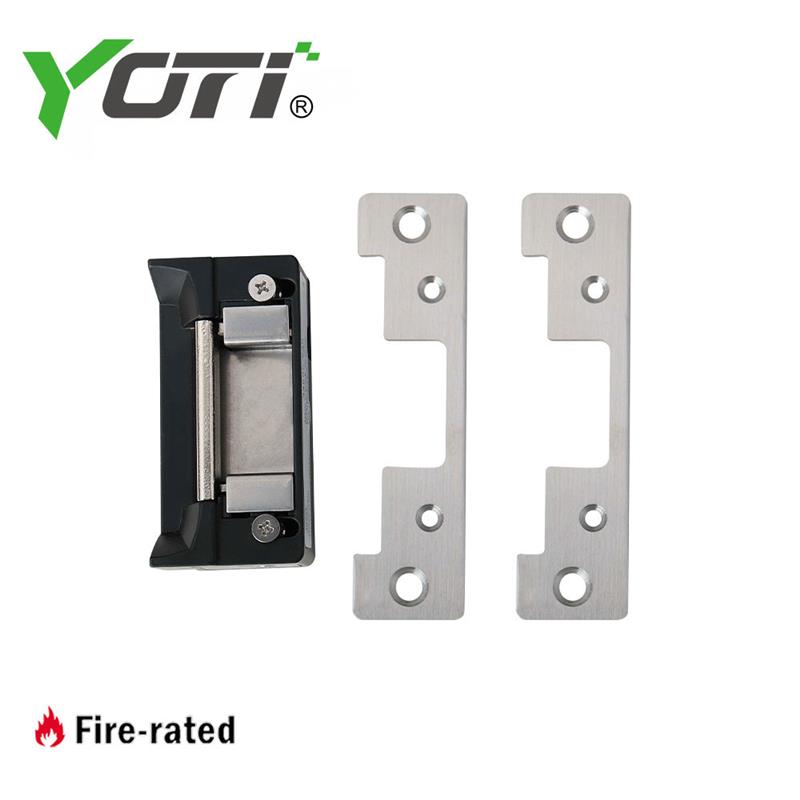

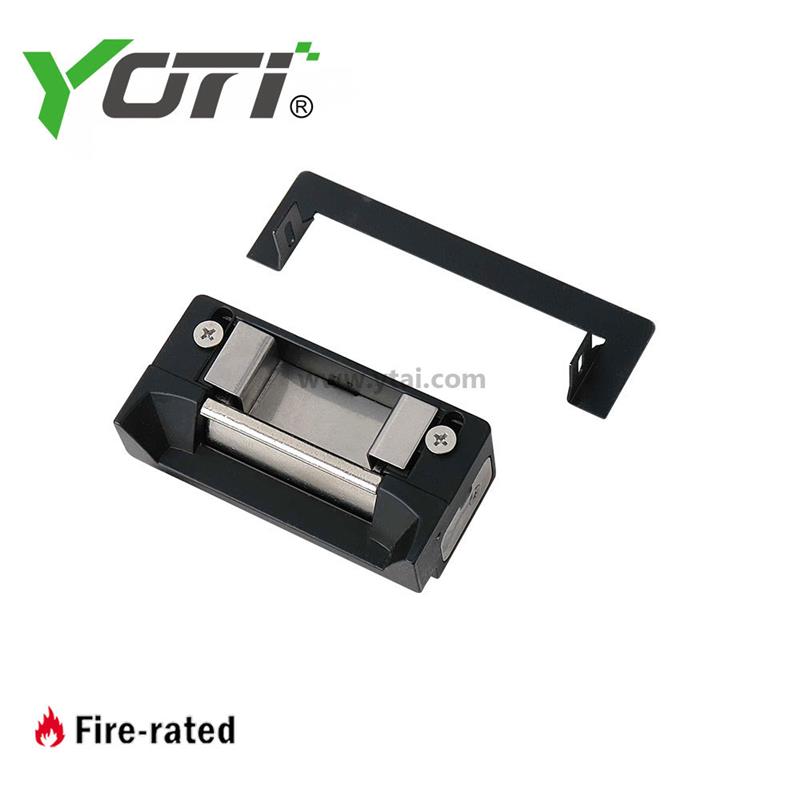

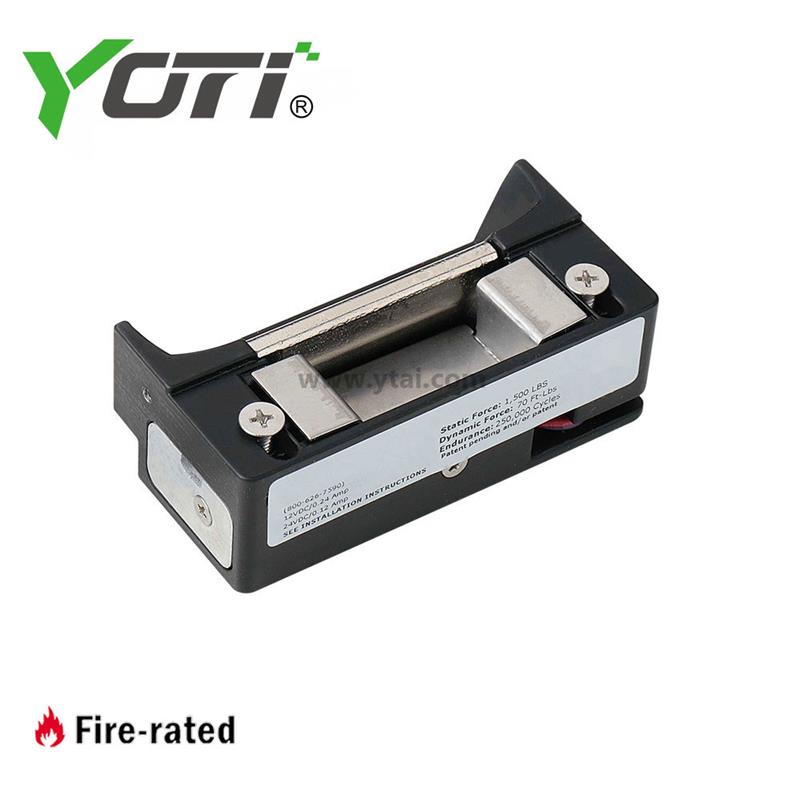

ES009 electric strike features an in-frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to a 3/4” throw. The ES009 is also available in a Complete Pac which pairs the strike body with the faceplates and mounting hardware all in one simple convenient package.
|
Features:
* Tamper resistant * Static strength 1,500 lbs. * Dynamic strength 70 ft-lbs. * Endurance 1,000,000 cycles * Field selectable fail secure/fail safe * In-frame horizontal adjustment * Non-handed * Internally mounted solenoid * Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap) * Strike body depth 1-3/16" * Plug-in connector * Trim enhancer included |
