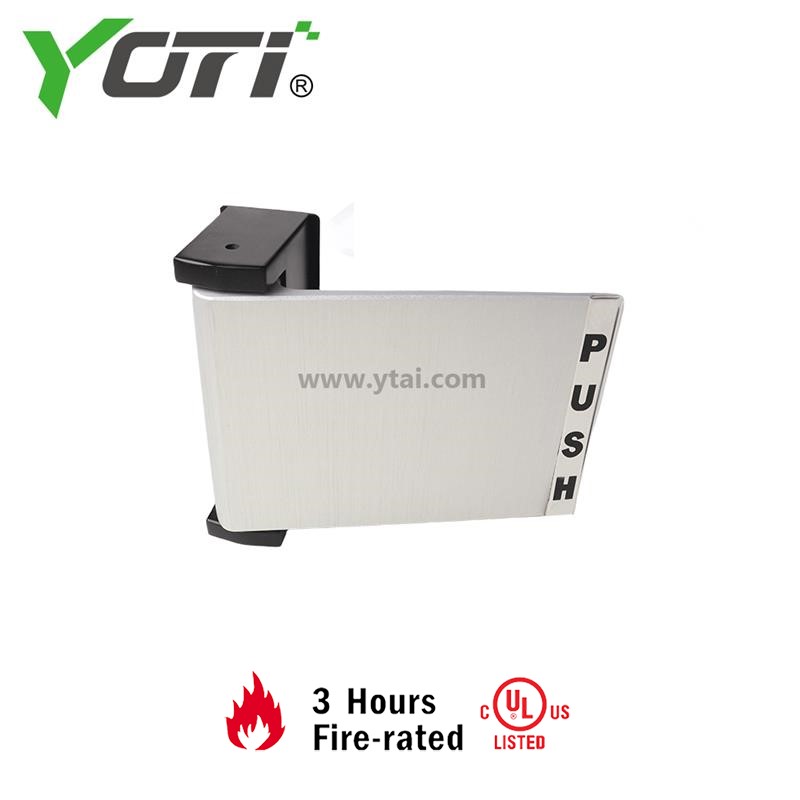

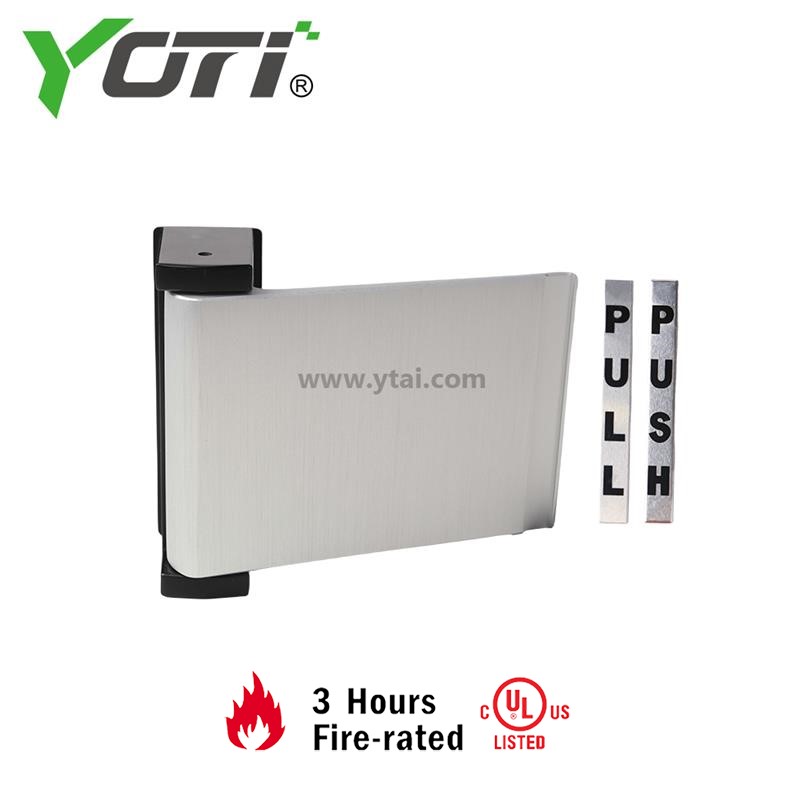

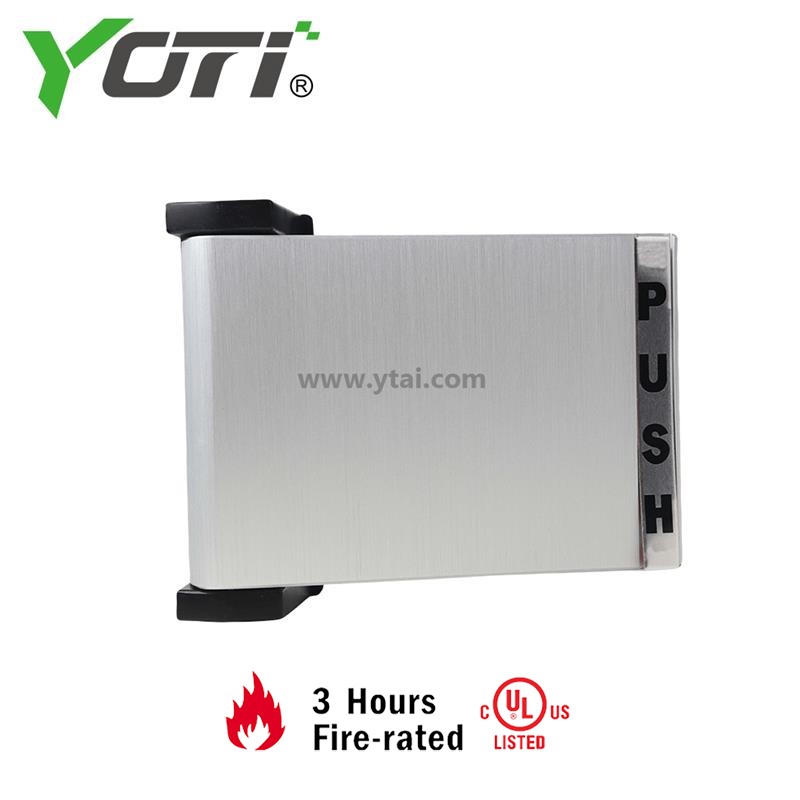

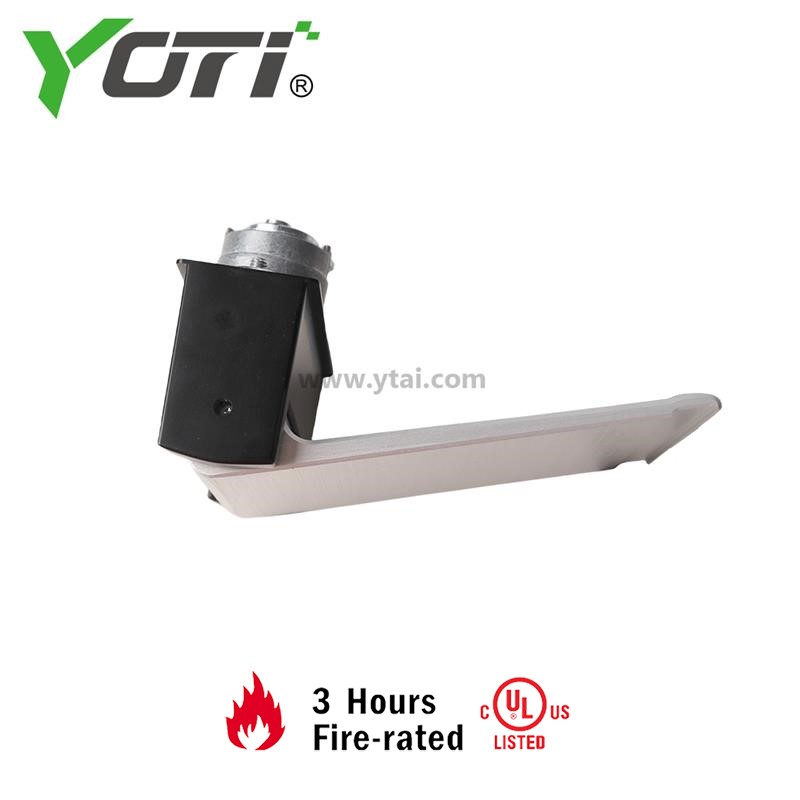

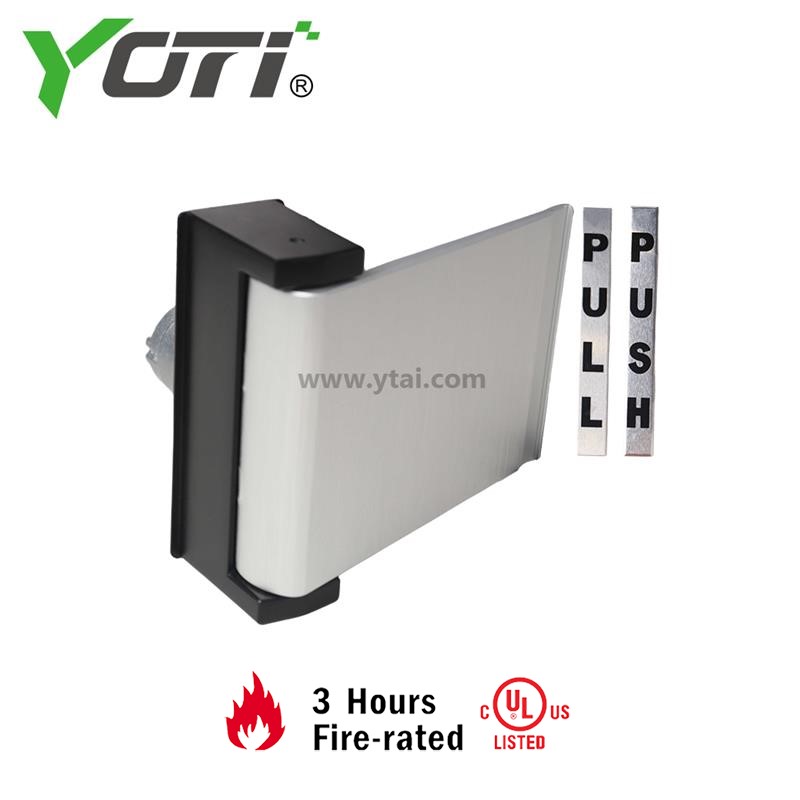

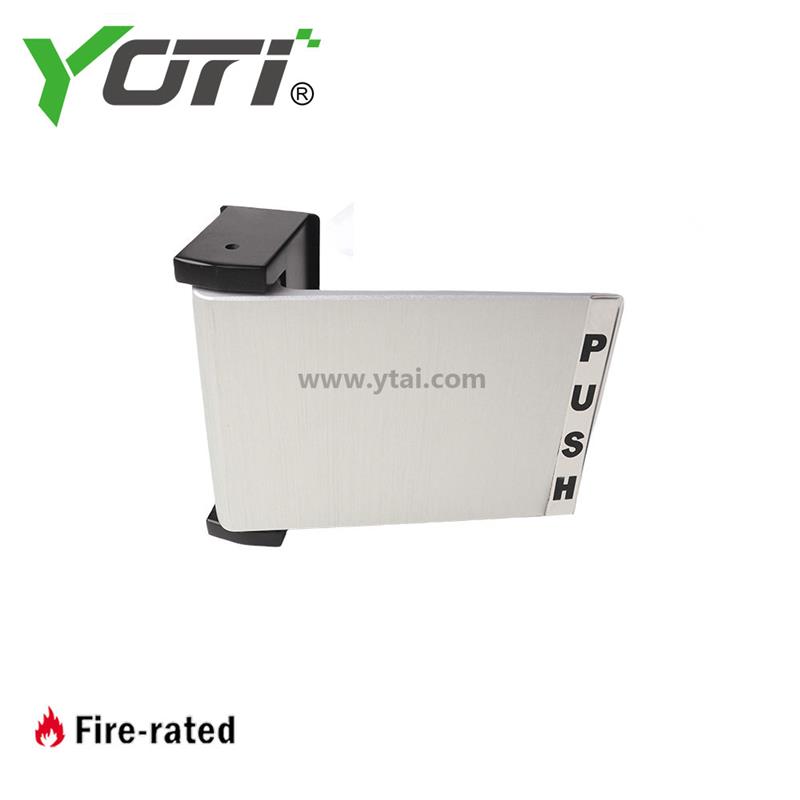

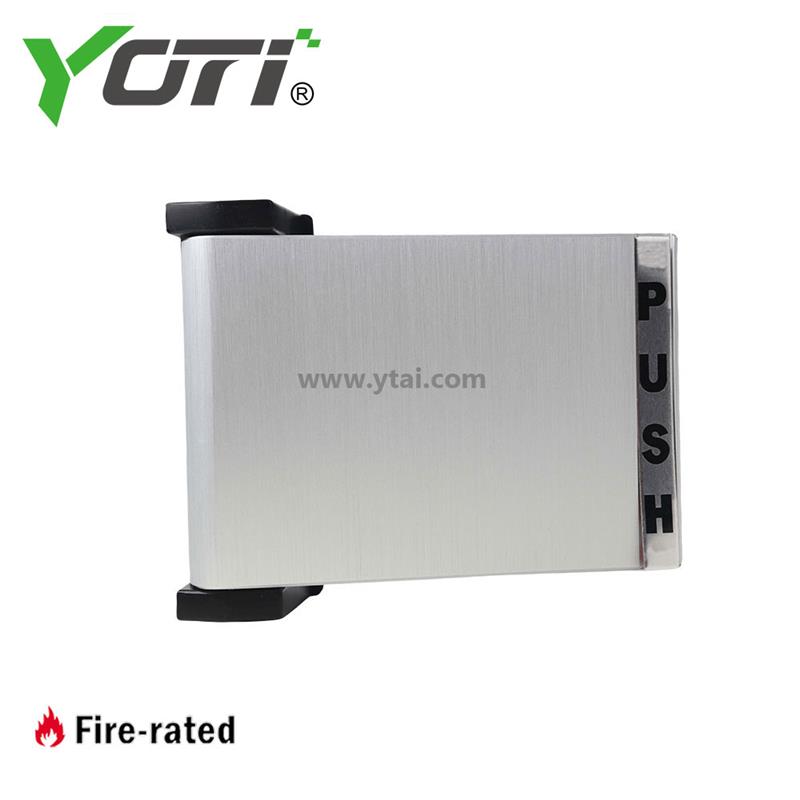

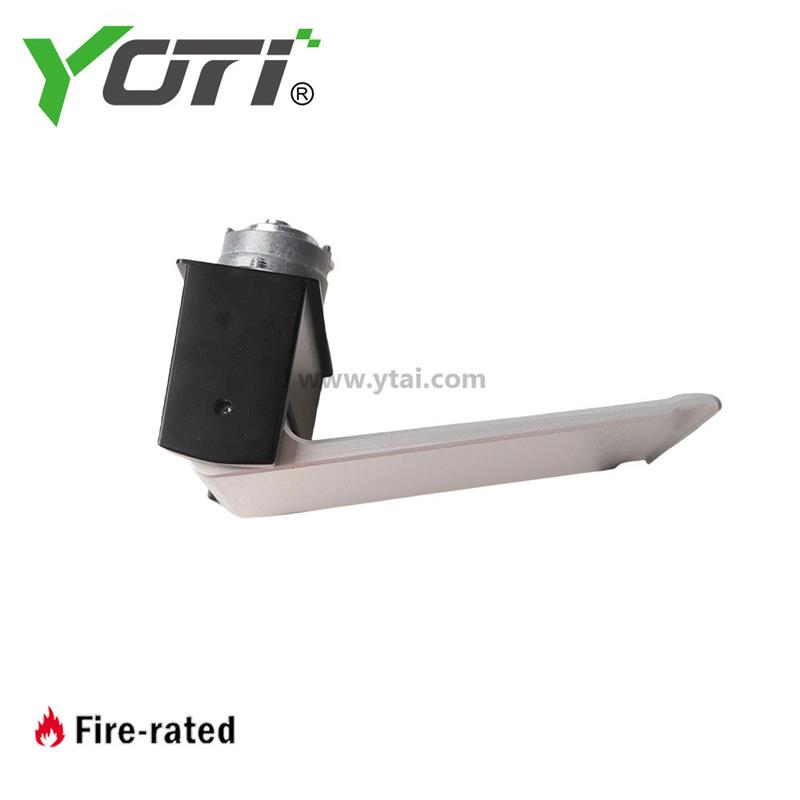

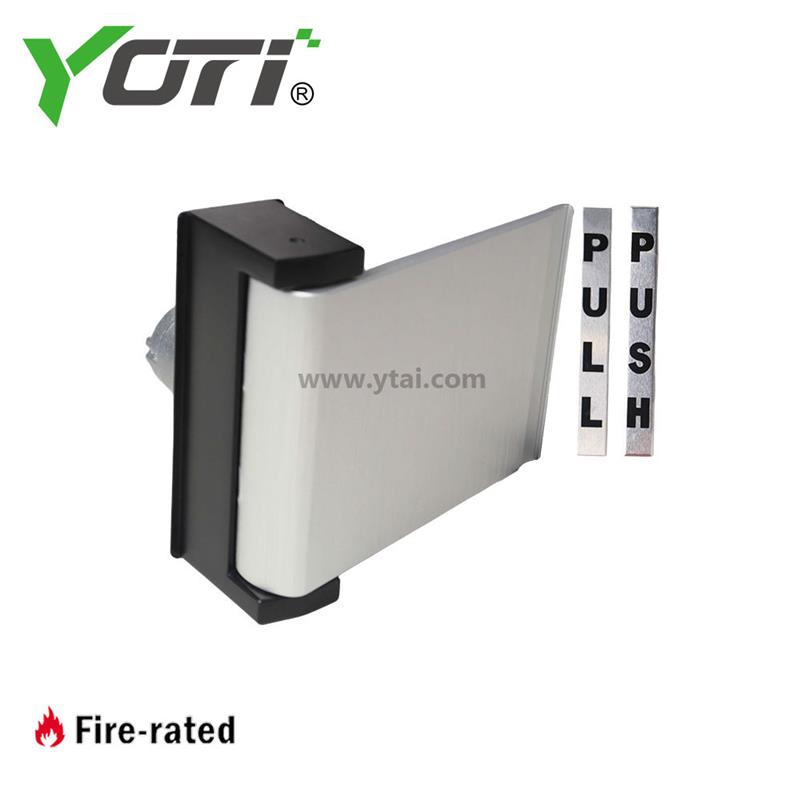

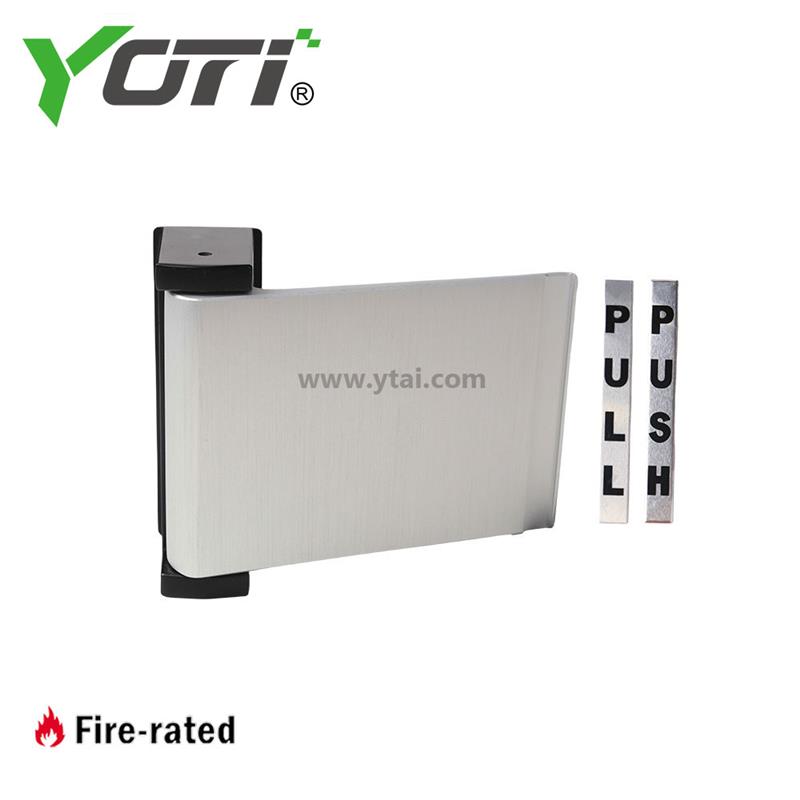

Function:
An alternative to knob or lever handles. For use with 4590 deadlatch or any other brand of narrow stile mortise deadlatch. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings. Also handing can be reversed on cam plug by removing C- clip and flipping the cam over and reinstalling C- clip.
Operation:
Available in four configurations: push left, push right, pull left, and pull right. Can be reconfigured to any mode in the
field.Dogging may not be utilized in pull configuration.
field.Dogging may not be utilized in pull configuration.
Specifications:
Housing: Zinc alloy, black hard coat finish
Operating assembly: Steel mechanism
Hand: Non-handed, cam plug included - reversible
Finish: C-Clear Anodized Aluminum, D-Dark Bronze Anodized Aluminum,BL- Black Anodized Aluminum.
Finish: C-Clear Anodized Aluminum, D-Dark Bronze Anodized Aluminum,BL- Black Anodized Aluminum.
|
Features:
|
||||
|
Paddle: Extruded aluminum.
|
||||
|
Escutcheons: Zinc alloy with black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
|
||||
|
Standard Package: Individually boxed with mounting hardware.
|
