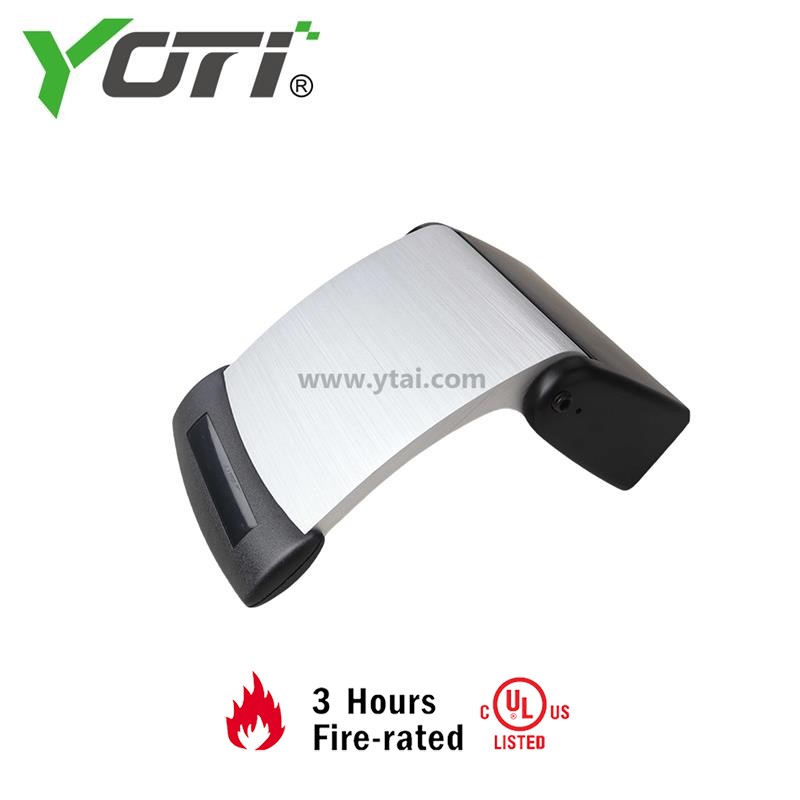

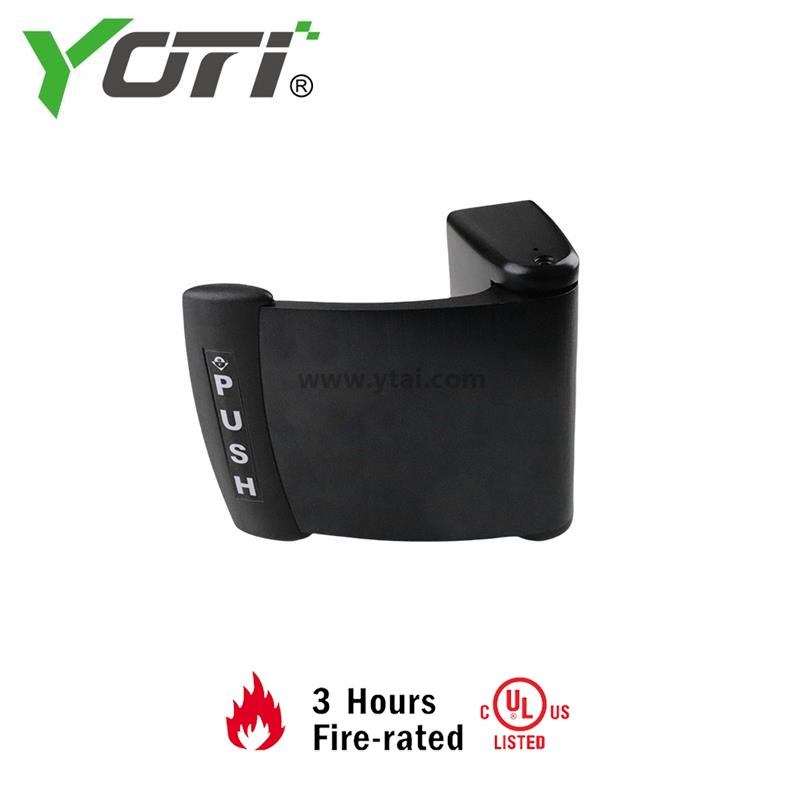

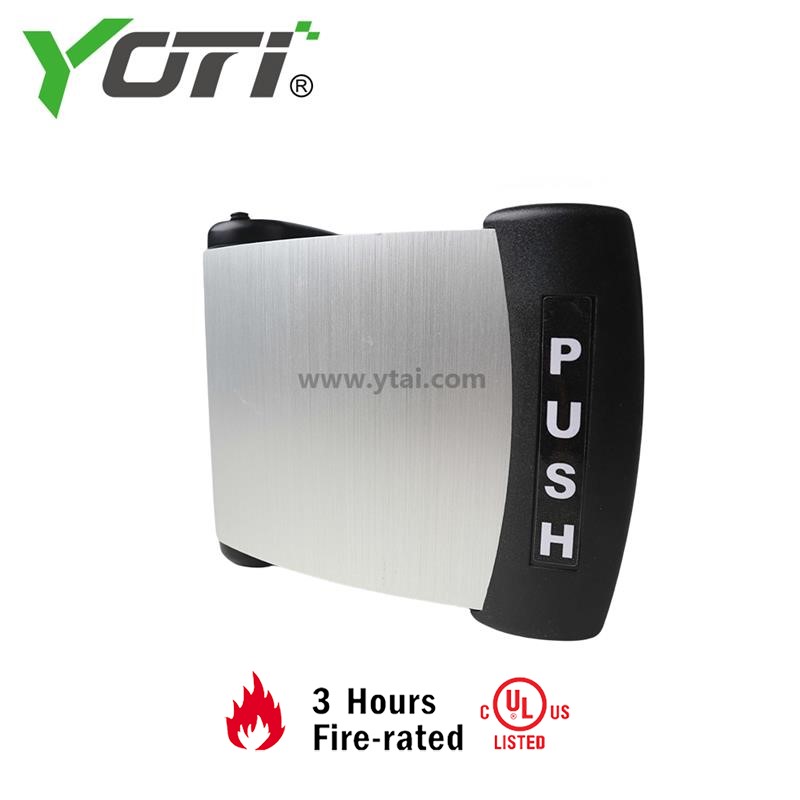

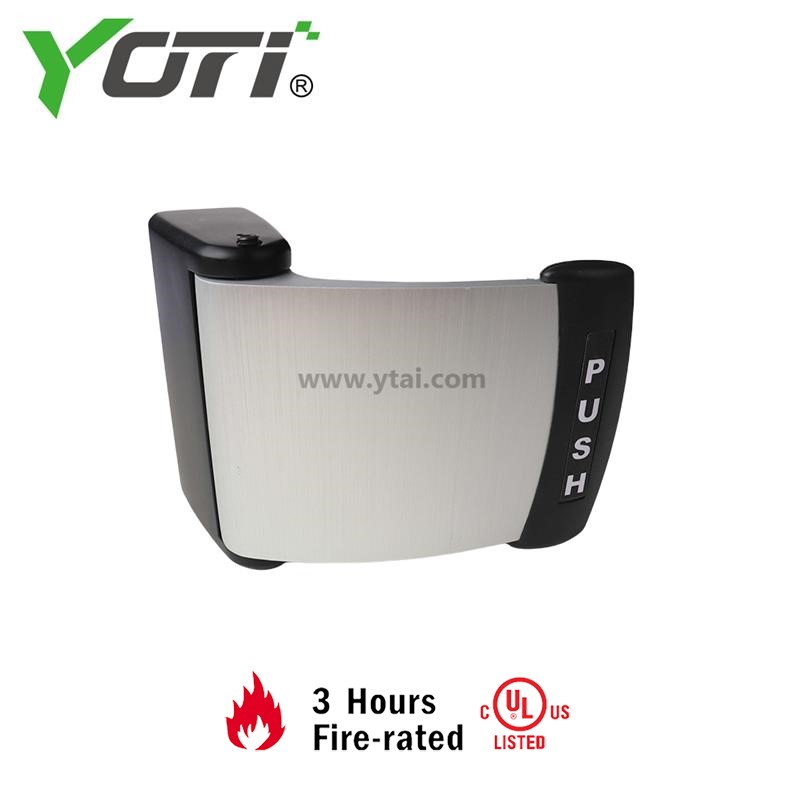

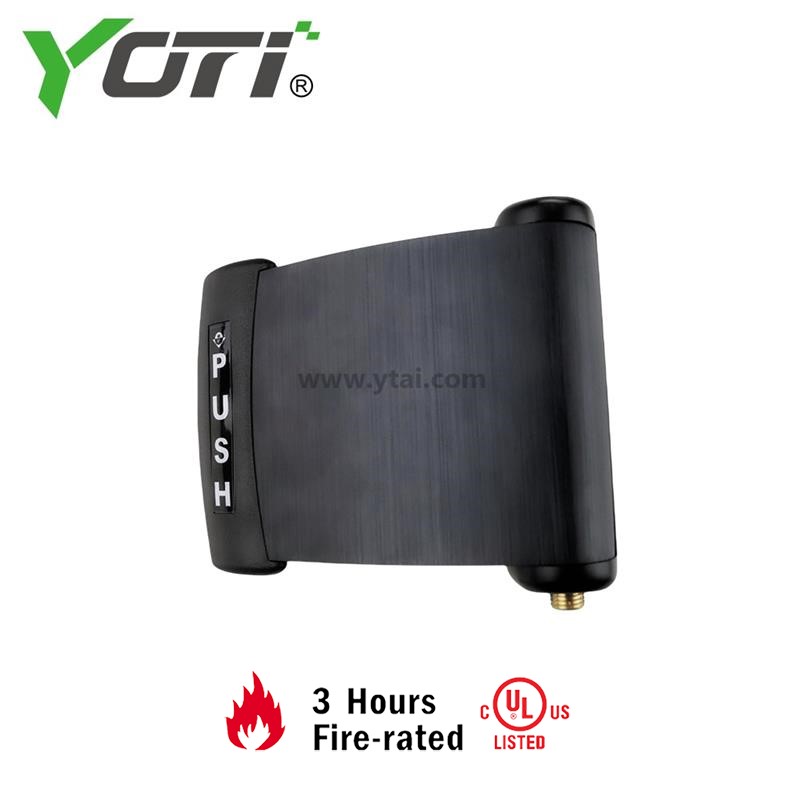

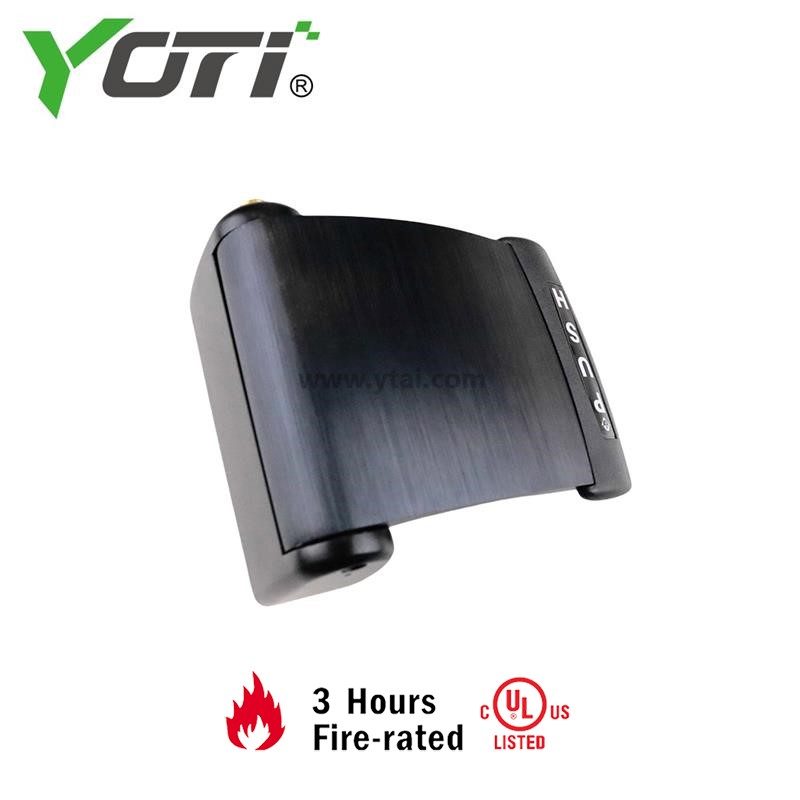

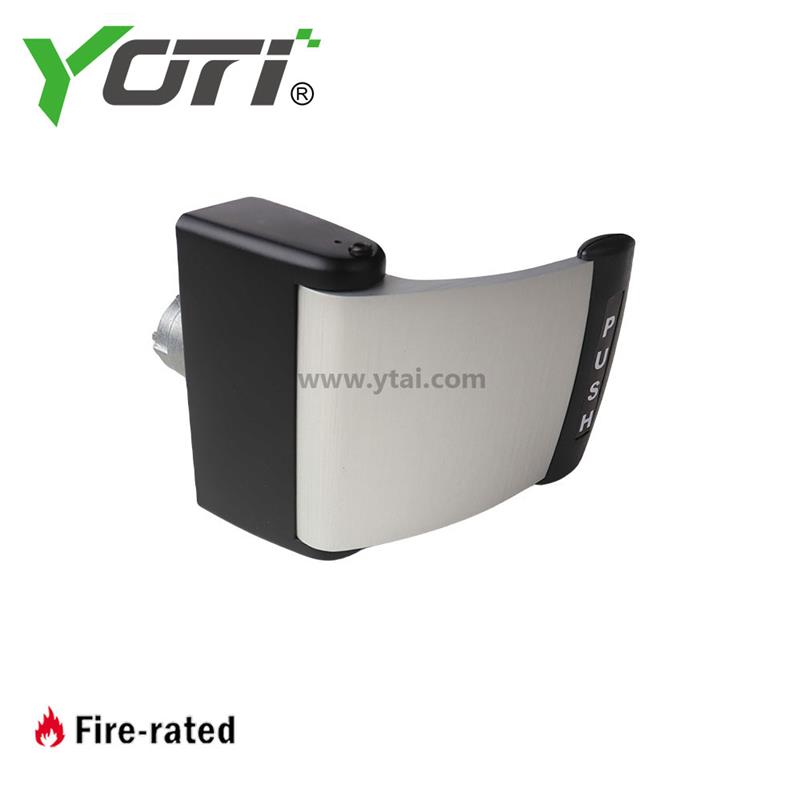

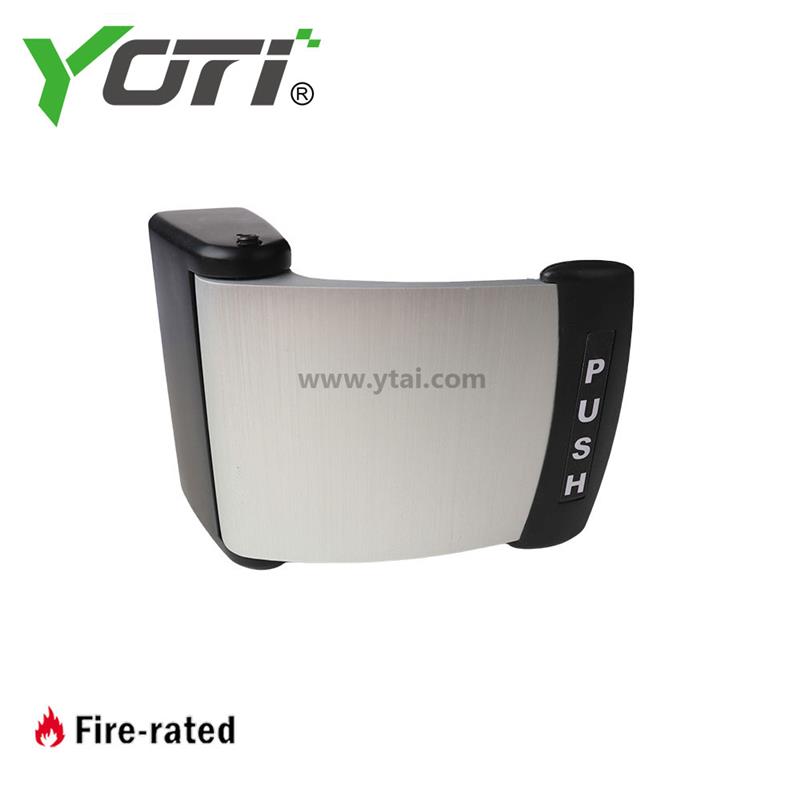

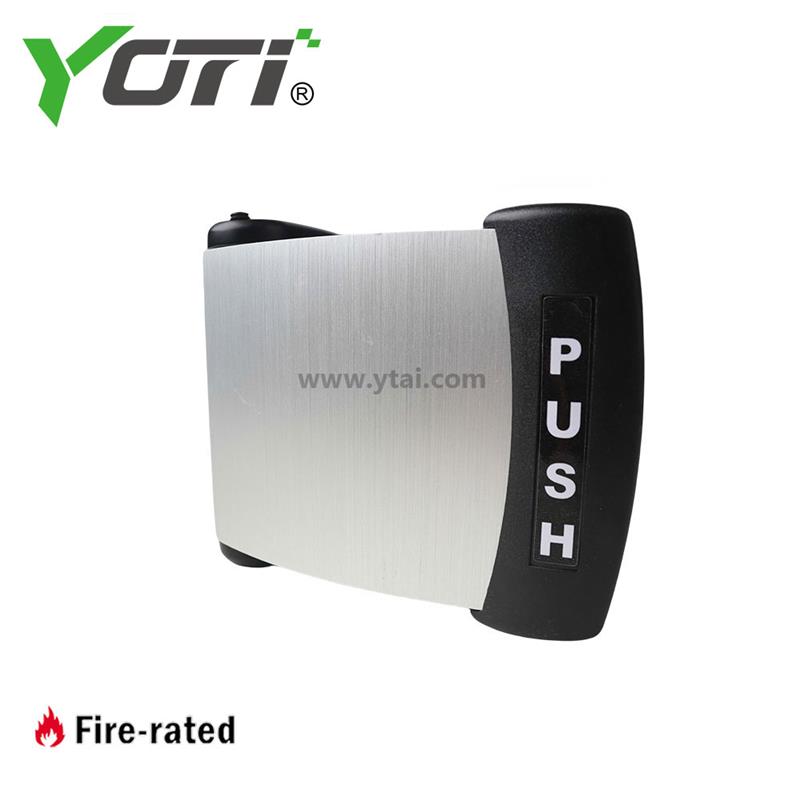

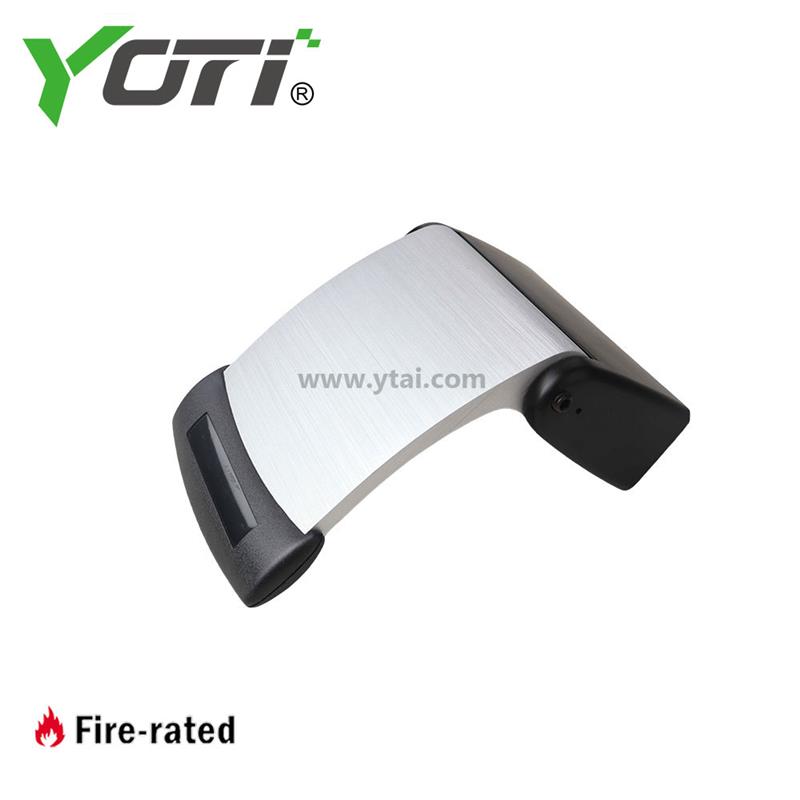

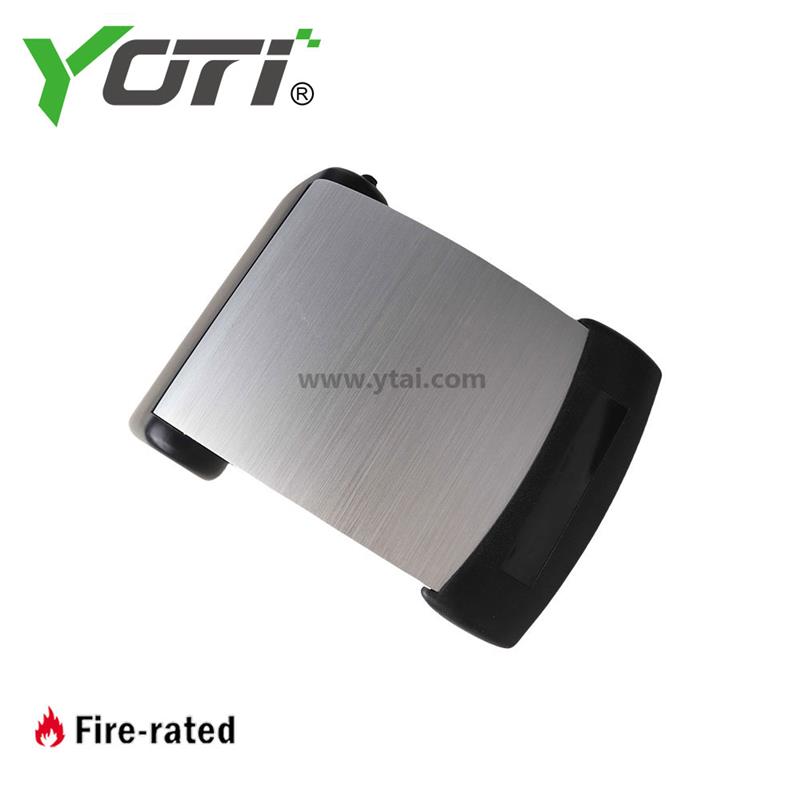

The 4591 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull.
Applications:

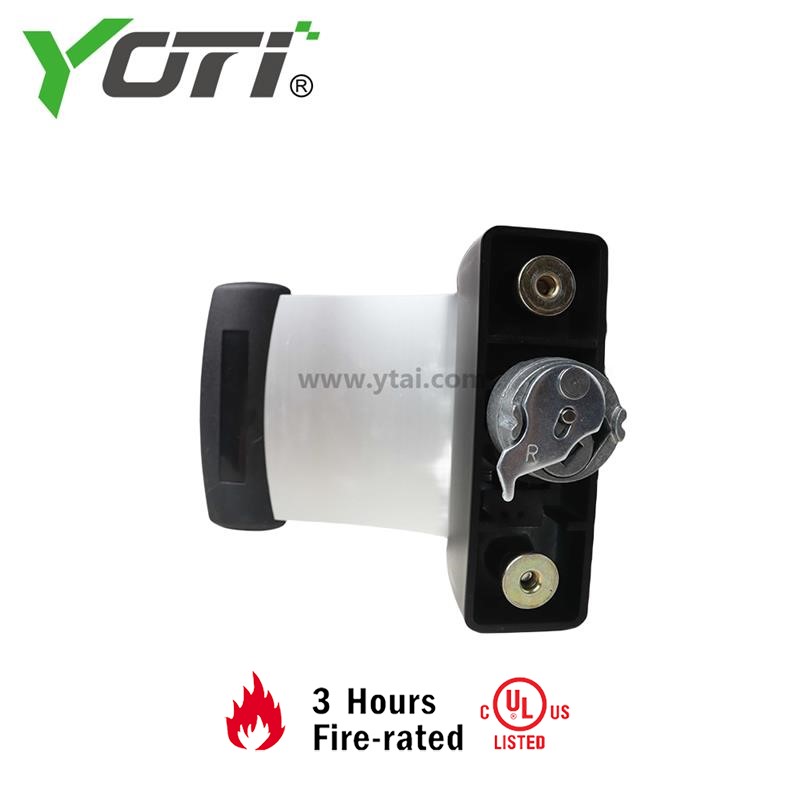

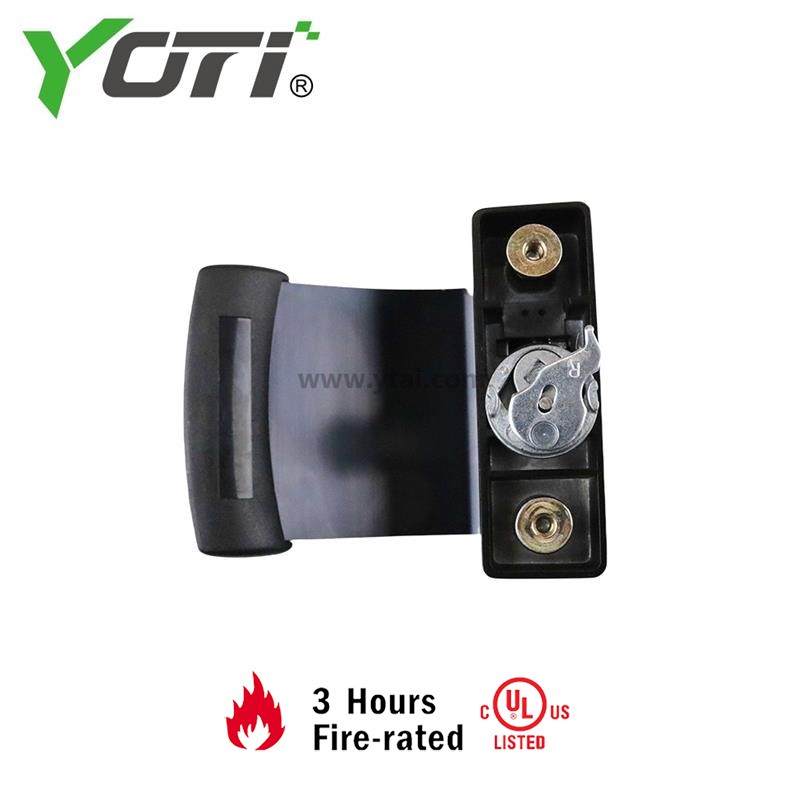

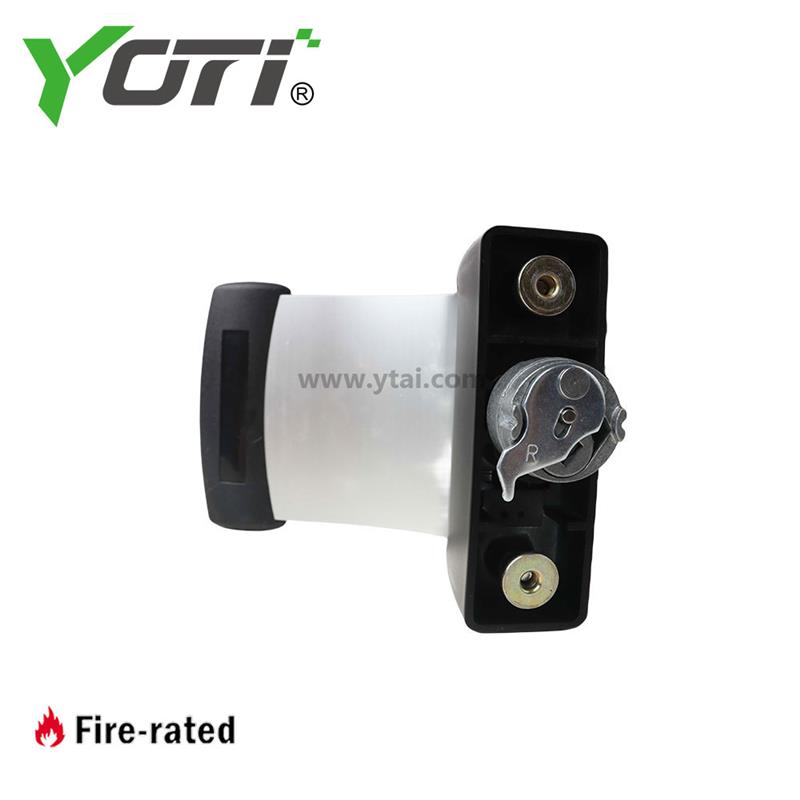

YOTI offers the 4591 Deadlatch Paddle. an ergonomically-friendly alternative to a knob or lever handle. For use with 4591 deadlatch or any other brand of narrow stile mortise deadlatch, an ergonomically-friendly alternative to a knob or lever handle. It makes opening a latched door as natural as opening an unlatched one- just push or pull in the direction in which the door swings.Handing can be reversed on cam plug by removing C- clip and flipping the cam over and reinstalling C- clip.
Function:
An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings.
Operation:
Available in four configurations: push left, push right, pull left, and pull right. Can be reconfigured to any mode in the field. Dogging may not be utilized in pull configuration.
Specifications:
Housing: Zinc alloy, black hard coat finish
Operating assembly: Steel mechanism
Hand: Non-handed, cam plug included - reversible
Finish: C-Clear Anodized Aluminum, D-Dark Bronze Anodized Aluminum,BL- Black Anodized Aluminum.
|
Features:
|
||||
|
Paddle: Extruded aluminum.
|
||||
|
Escutcheons: Zinc alloy with black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
|
||||
|
Standard Package: Individually boxed with mounting hardware.
|
