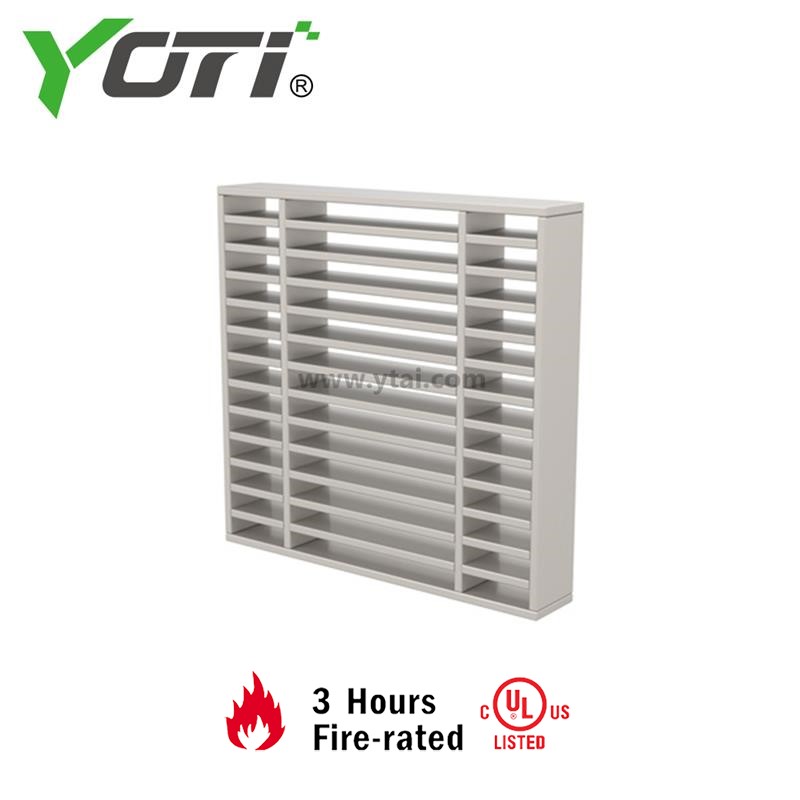

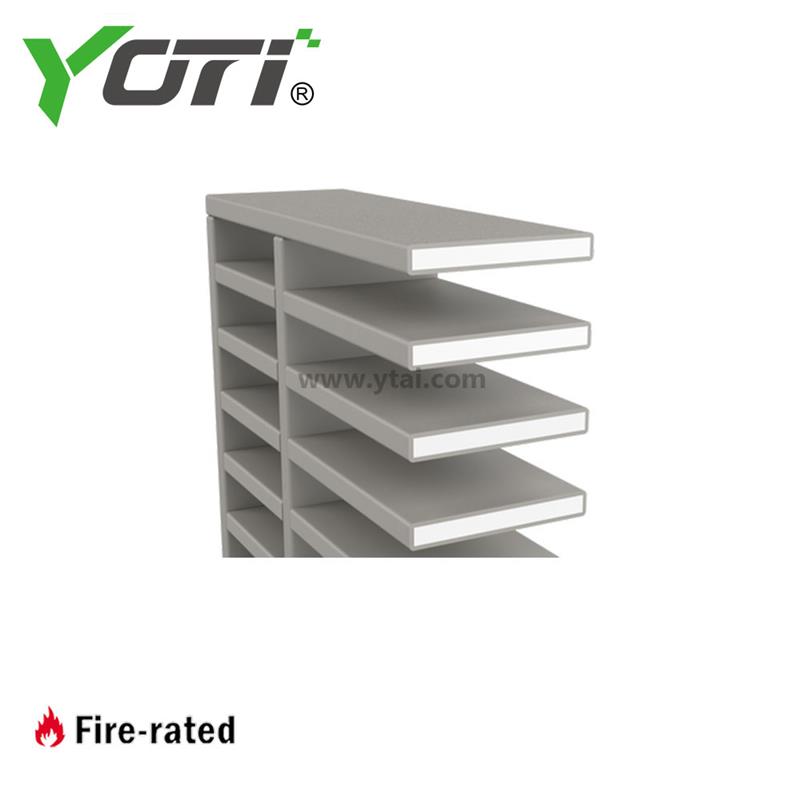

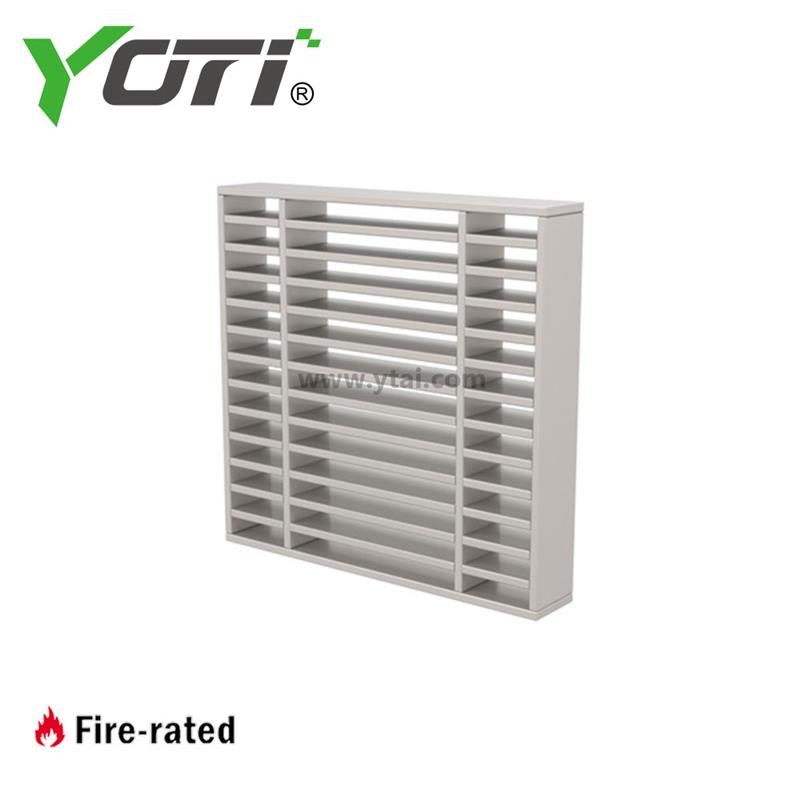

INTUMESCENT AIR TRANSFER GRILLE

HIGH PERFORMANCE VISION STYLE ATG

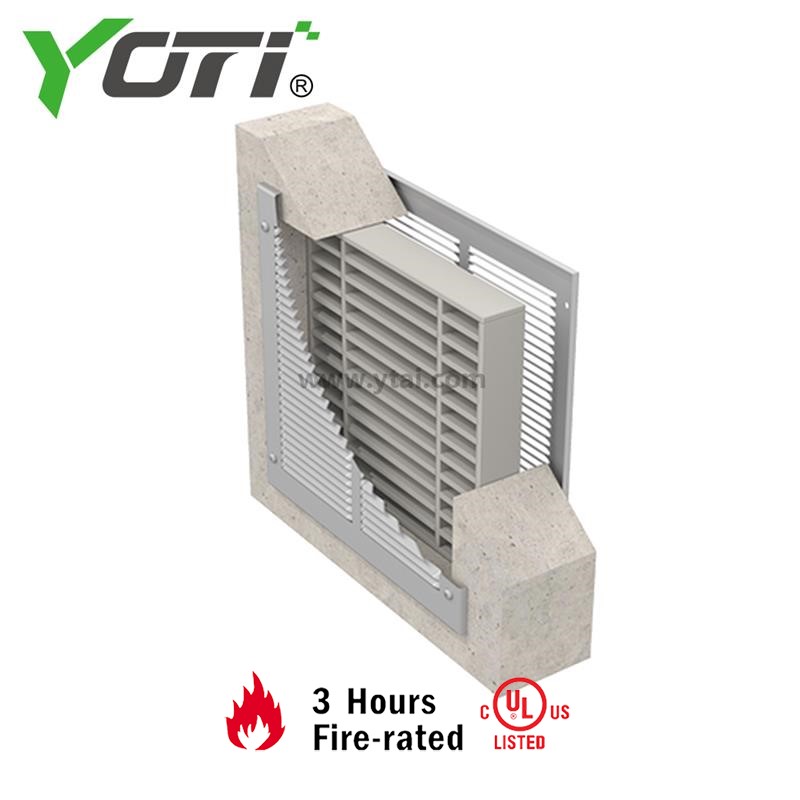

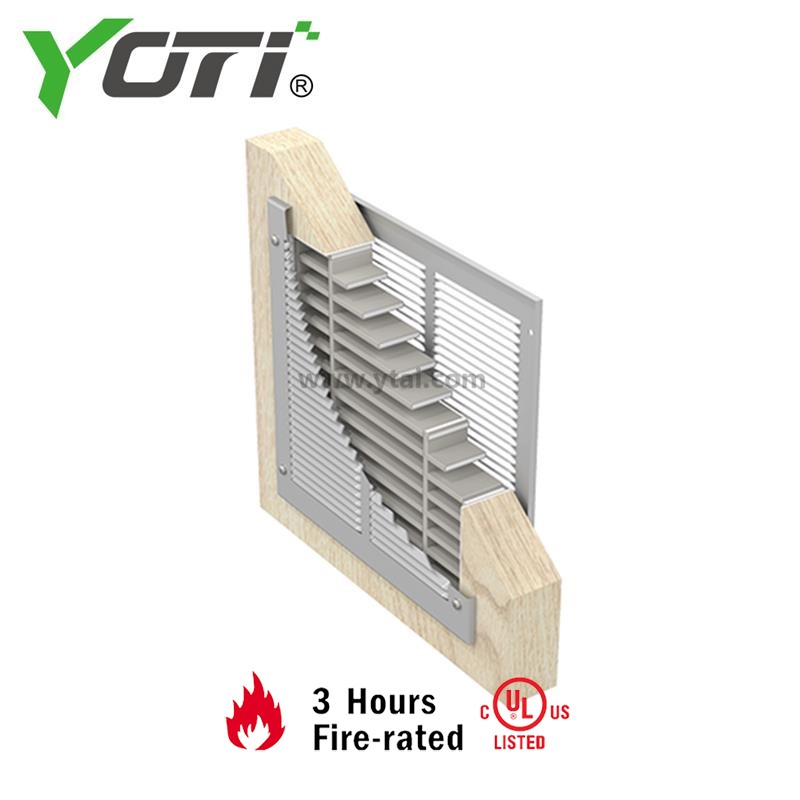

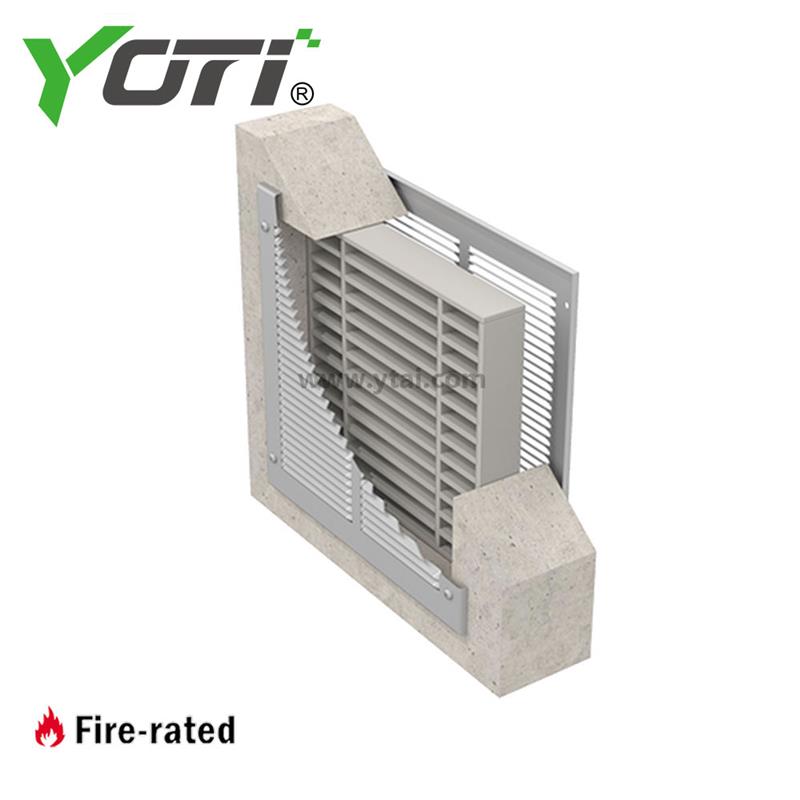

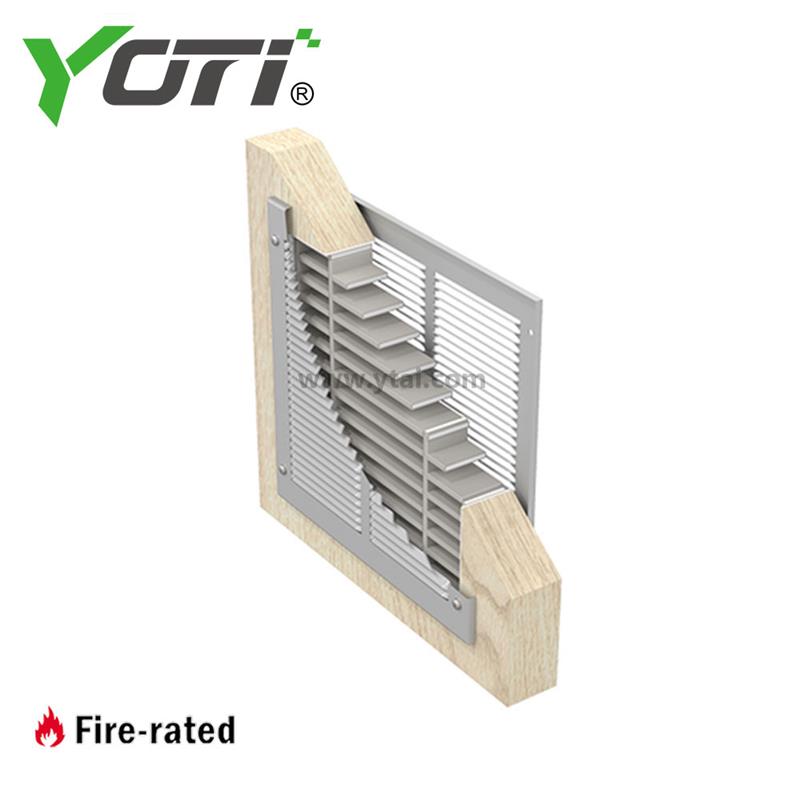

A high performance, standard vision intumescent air transfer grille for doors, walls ducts. Provides excellent airflow characteristics, which result in silent efficient operation in normal use.

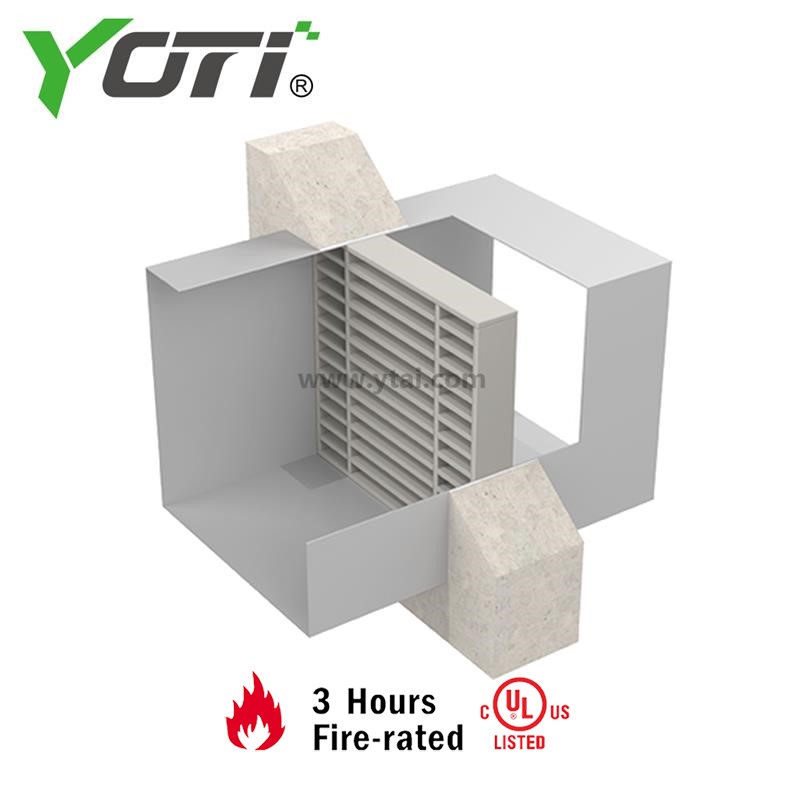

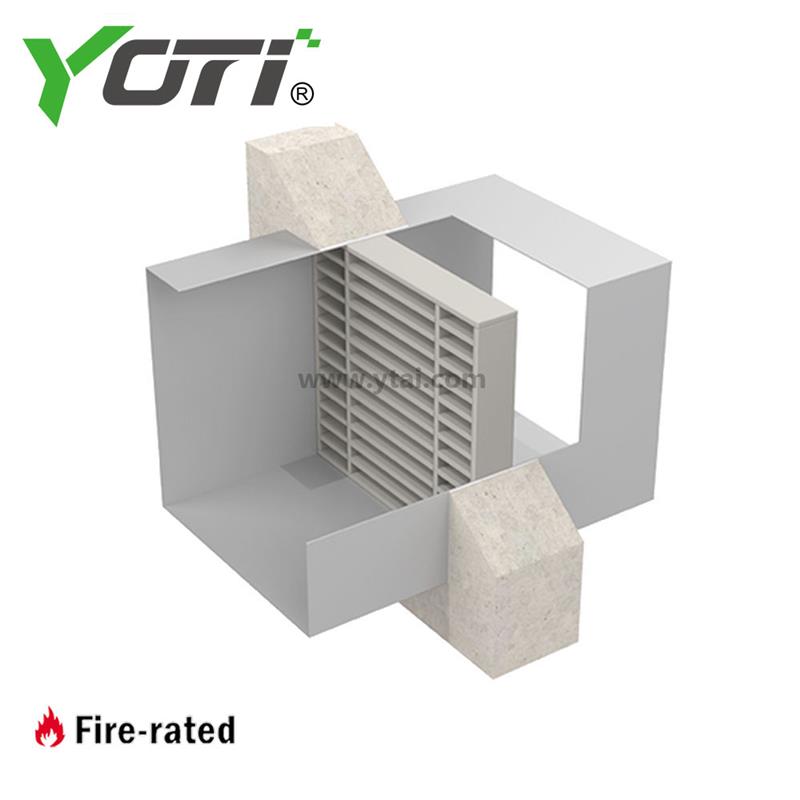

APPLICATION Suitable for doors, walls ducts. Note: in applications where high levels of humidity or wetness are anticipated, it is recommended that an LVH44 product should be employed
THICKNESS 40mm
FREE AREA Approx 60% free area

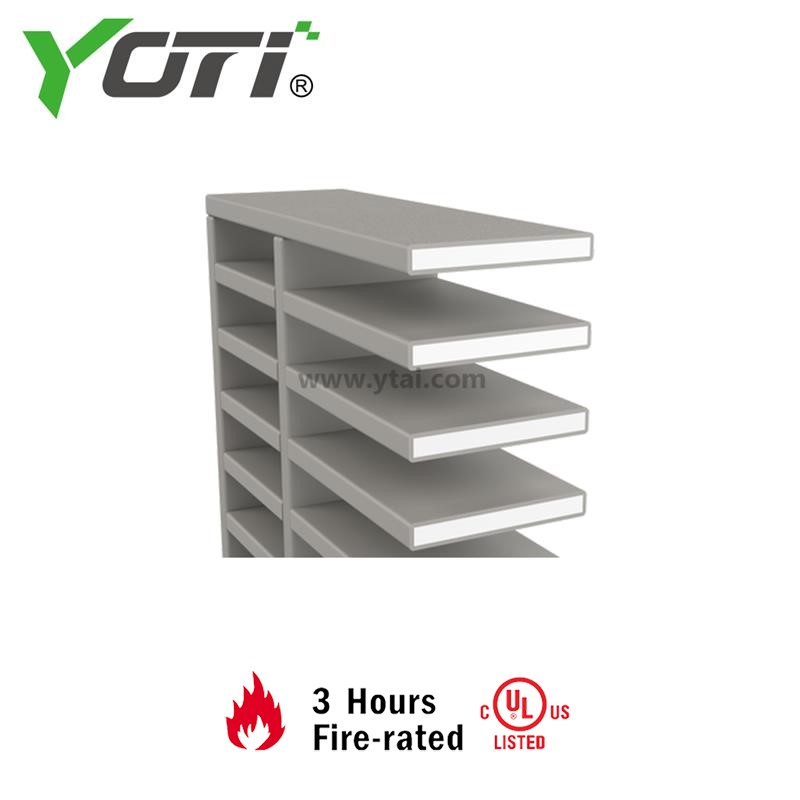

MATERIAL PVC slats with an intumescent core
FINISH Silver as standard
USE WITH Metal cover grille (optional)
PERFORMANCE Can be used to provide up to 60 minutes resistance to fire. EI rating of 120 minutes when used in conjunction with a cover grille. Please speak to our Technical Department for details
