CM-45

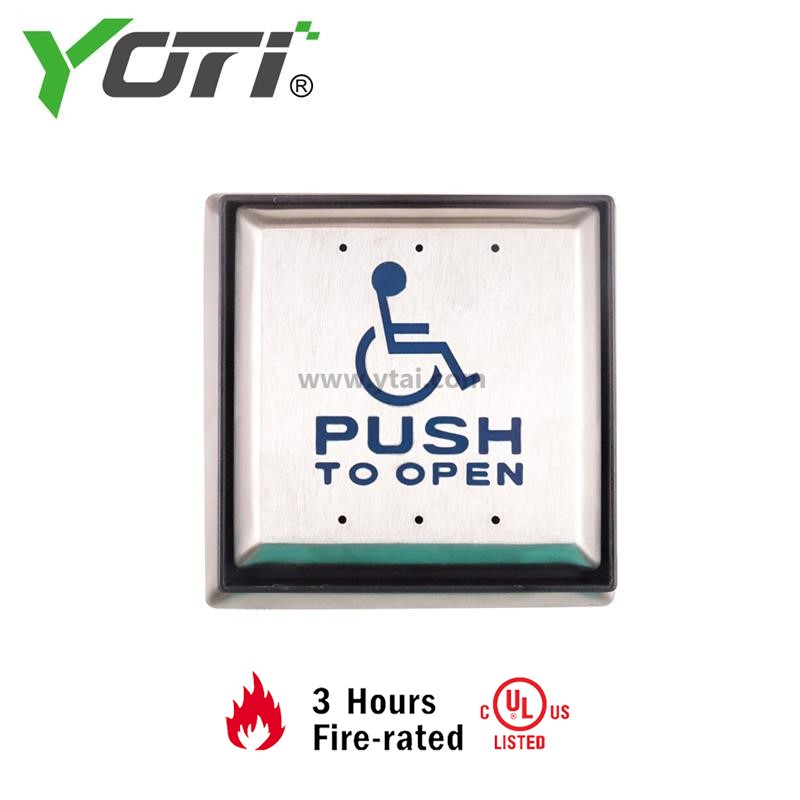

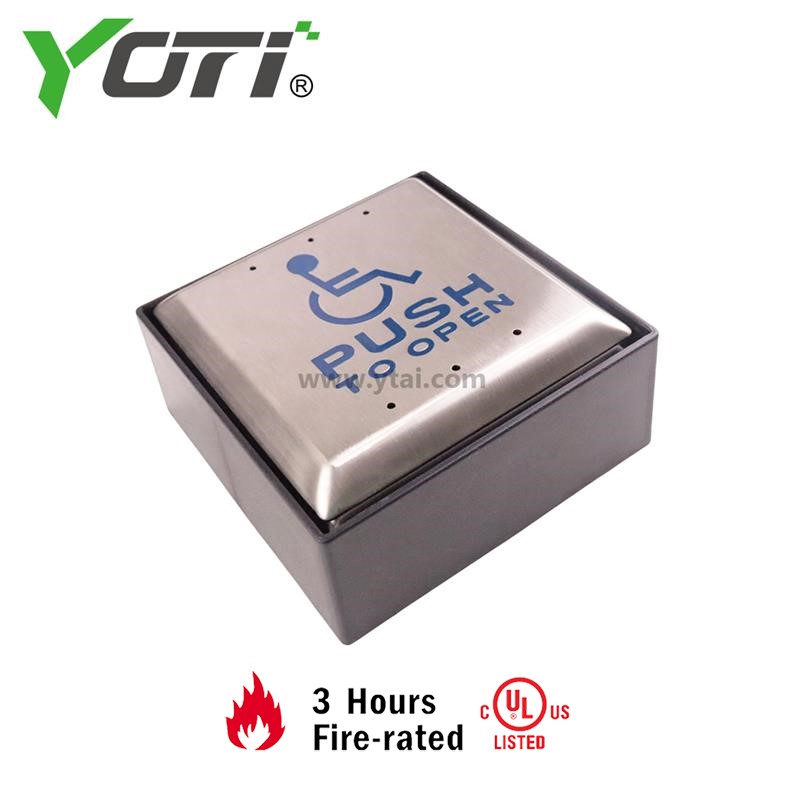

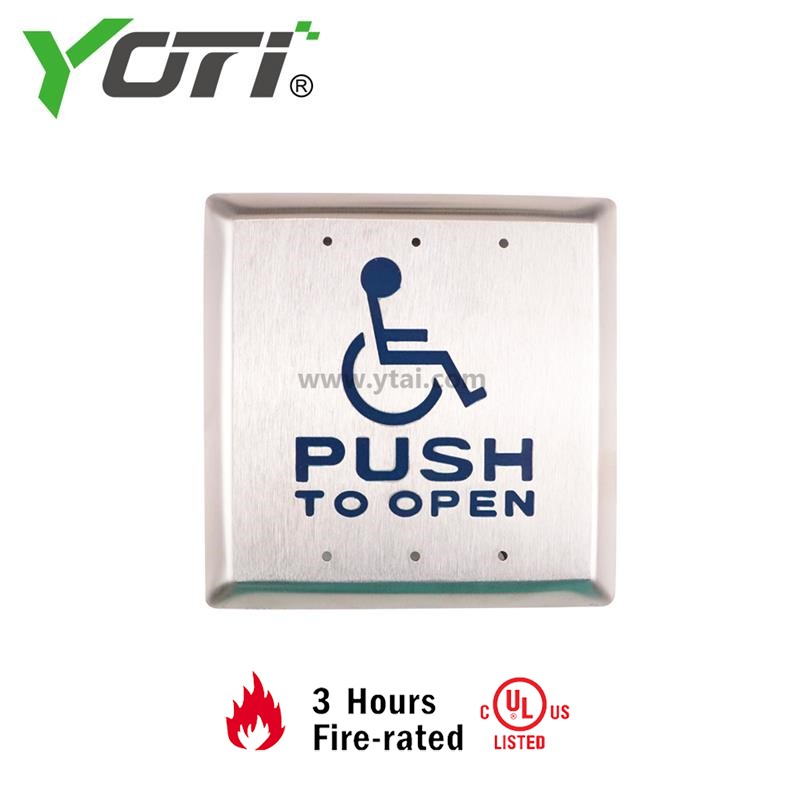

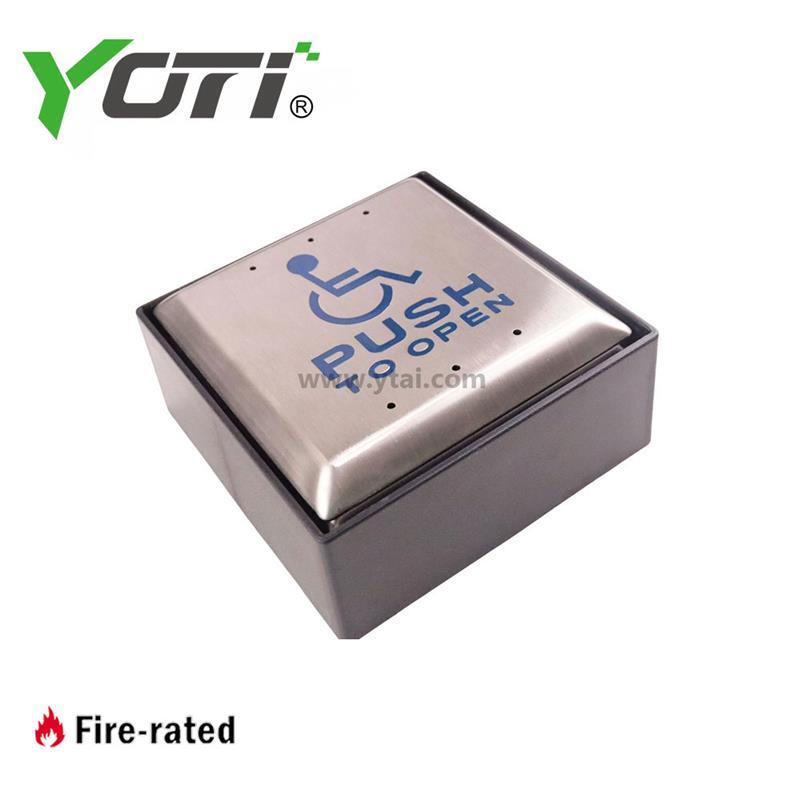

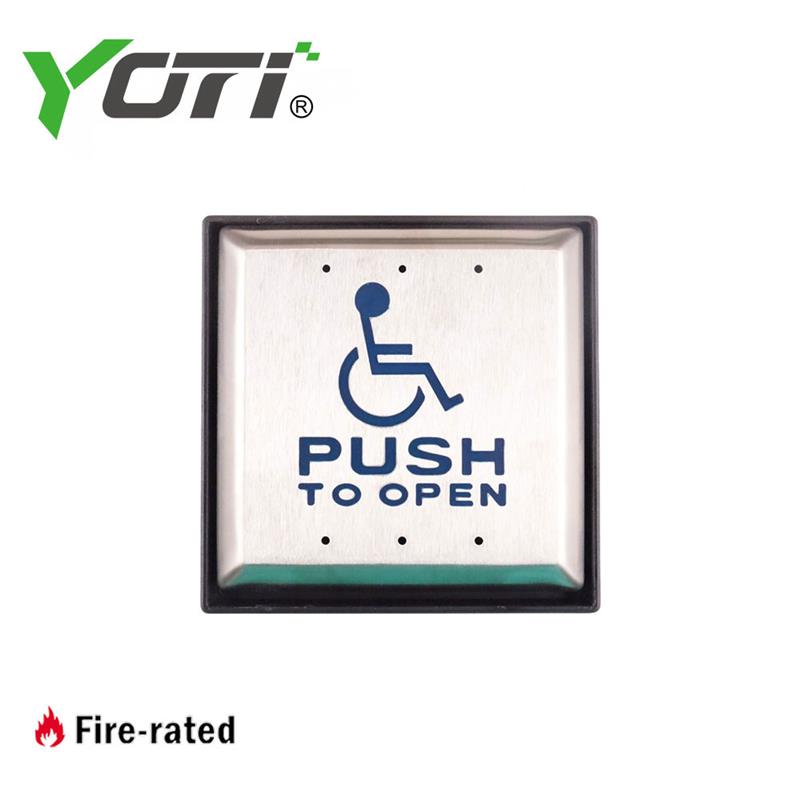

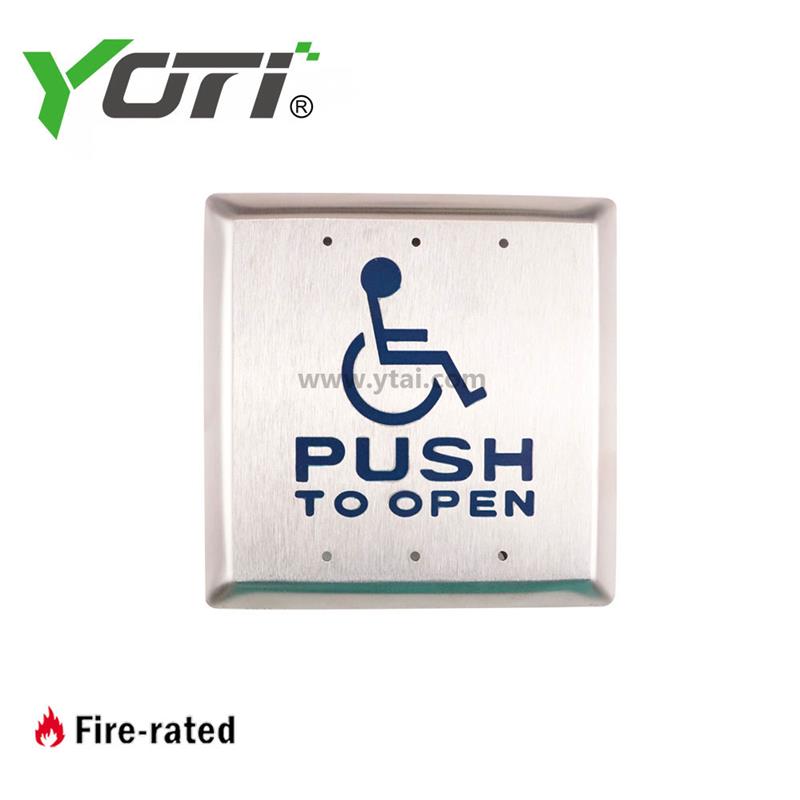

CM-45 (concealed screws) 4-1/2" square push plate switches mount to standard single/double gang electrical boxes. The SPDT (and optional DPDT) switches are rated 15 amps @ 30 VDC. Push switches are offered with different graphics in various architectural finishes. Weather resistant and water tight configurations also available.

 Feature

• ADA Compliant
• 3 year warranty
• 4 stud switch design and rubber dampers for quieter operation
• Hidden mounting screws
• Stainless steel construction

Specification:

Switch Type: Momentary

Contact Type: SPDT Form 'C'

Current Rating: 15 A @ 30 VDC

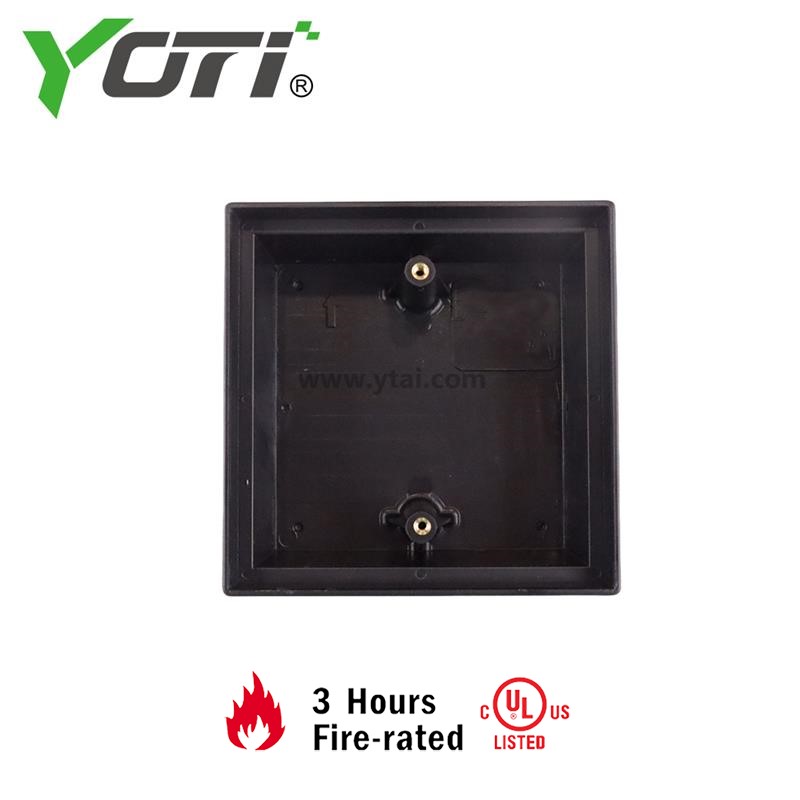

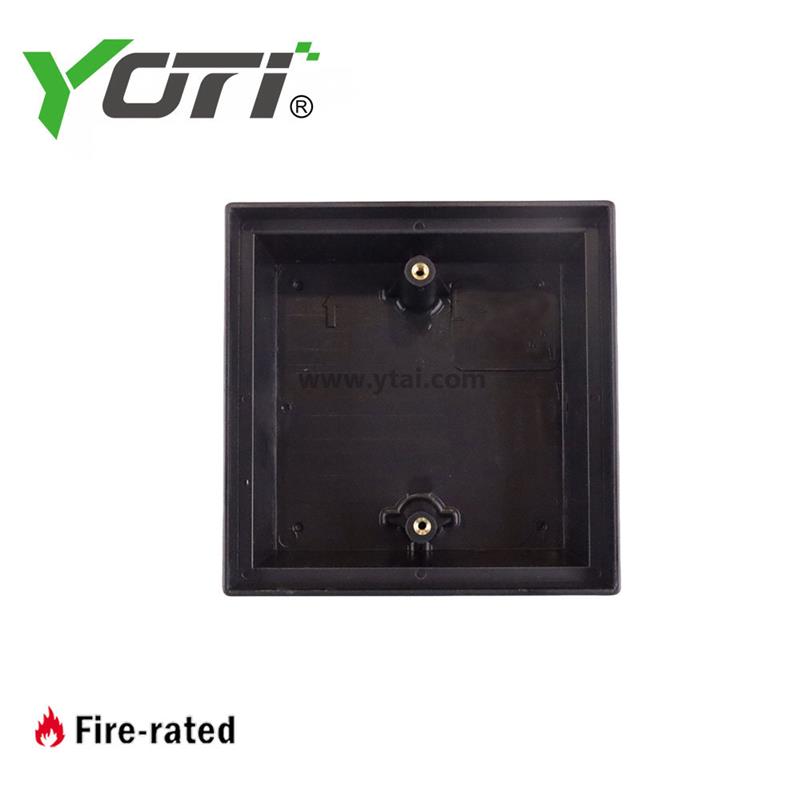

Mounting: Single or Double Gang

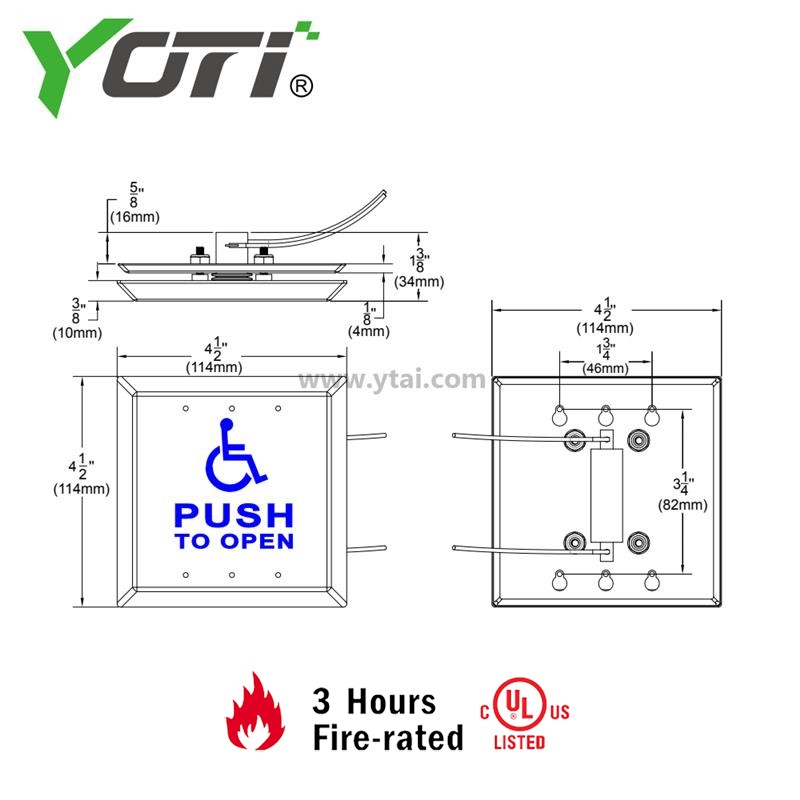

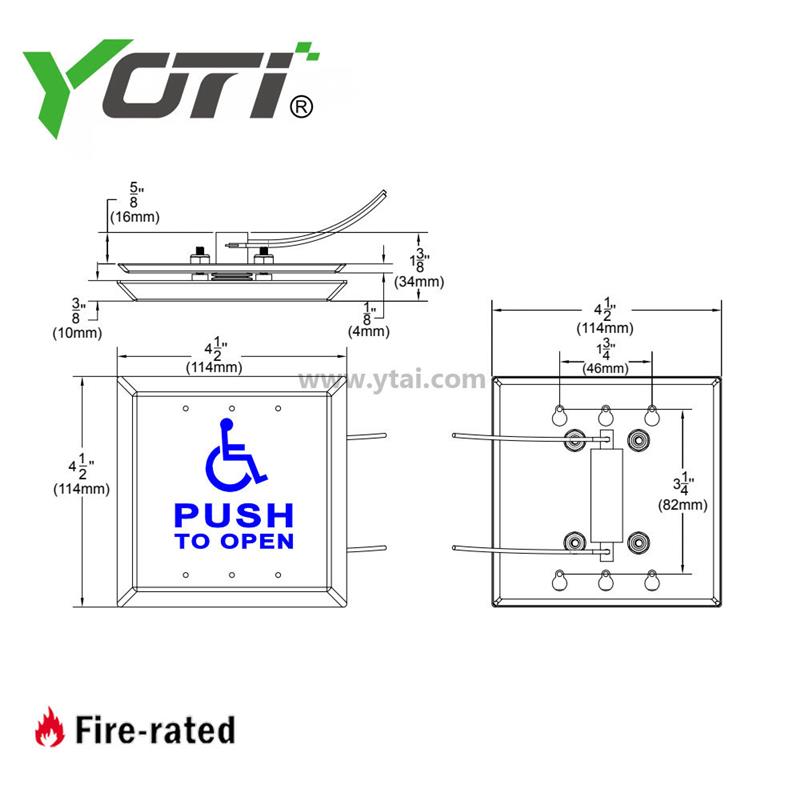

Dimensions:  4-1/2" x 4-1/2" x 1-1/4" (114mm x 114mm x 32mm)

Std. Finish:  US32 / 630
