IS3080si Door Sweeps Action Blade Seal Aluminium & Silicone Rubber Fin
IS3080si Door Sweeps Action Blade Seal Aluminium & Silicone Rubber Fin

IS3080si Door Sweeps Action Blade Seal Aluminium & Silicone Rubber Fin

Door Sweeps

- Available Finishes: A, C, BL, DB, G, PB, LB, PW
- Function:Prevent fire, smoke, sound, drafts and light
- Feature:Easy installation
- Length:1000mm, 2500mm, Customized

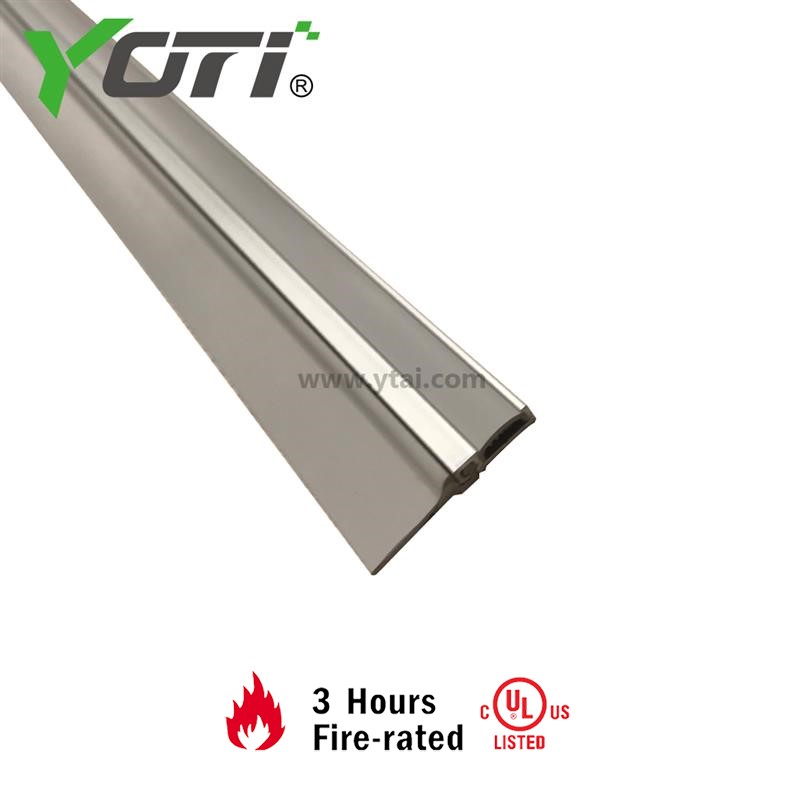

The IS3080si is a sweep action blade seal with a high performance silicone rubber fin, which can be fitted to door bottoms of outward opening doors. This seal can also be utilised as a meeting stile seal for pairs of doors. This seal can provide effective containment against ambient and medium temperature smoke, sound, dust, light, insects and weather.



Product Features
Ambient Temperature Smoke

Seals for this designation are designed to control smoke at ambient temperature conditions.

Anti-microbial version available

Seals are designed to safely reduce the growth of harmful organisms such as bacteria, mould and fungi.

Energy Efficient

Reducing air movement within buildings assists in improving the overall energy efficiency of the building.

Medium Temperature Smoke 200°C

Designed to contain smoke at 200°C for 30 minutes.

Type Door Bottom Sweeps
Material 6063-T5 Aluminum Alloy and Vinyl Insert
Mounting Surface Mounted
Lengths Standard 1000mm, 2500mm,
1000mm×2100mm, 1000mm×2750mm,
Custom Cut to Size

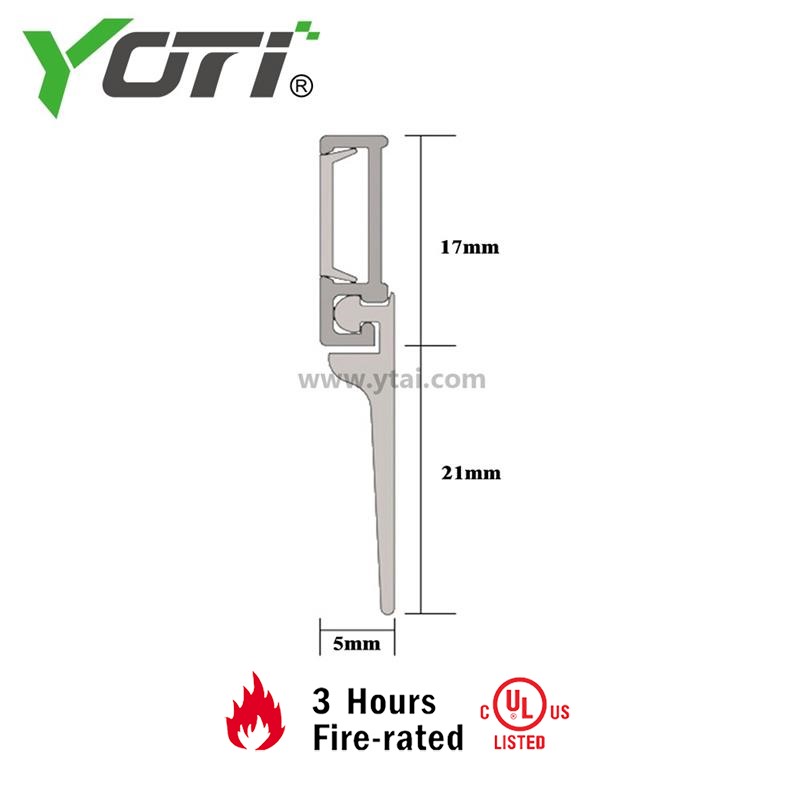

Total Width 38 mm
Height 5 mm
Finishes A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized)
Installation Drill holes are provided
