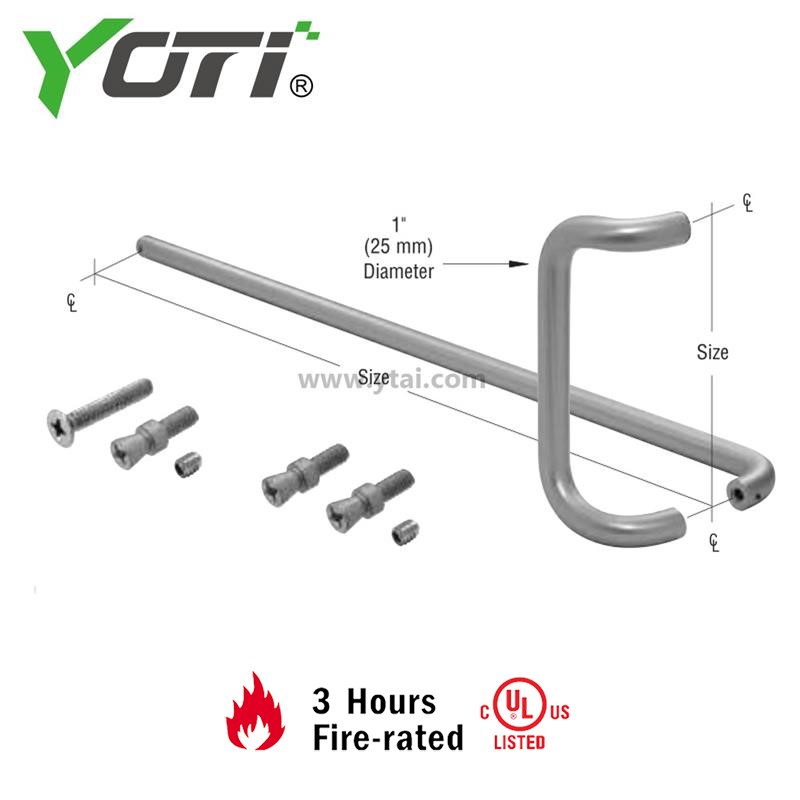

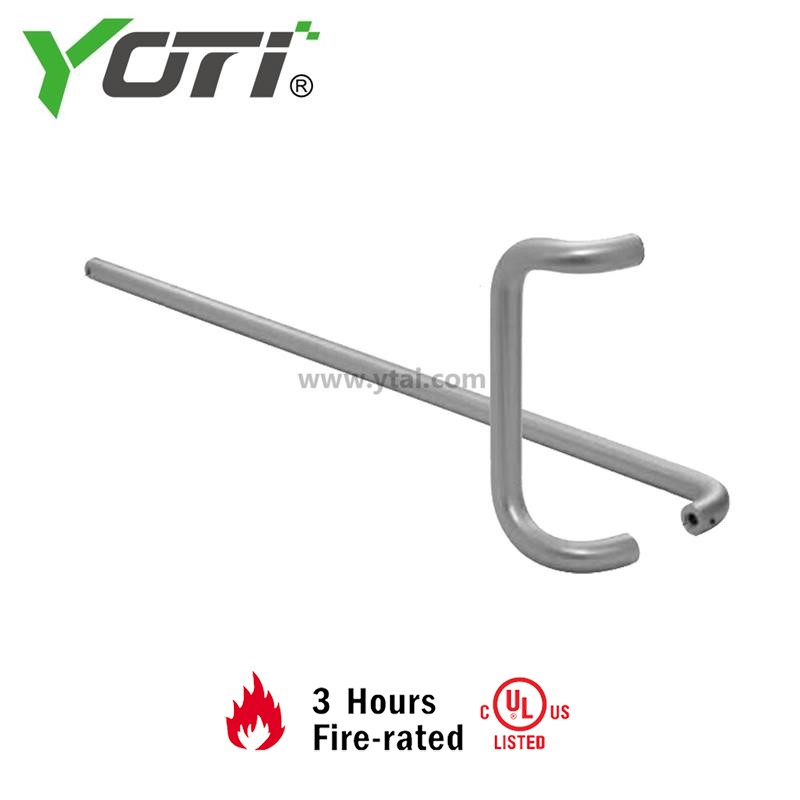

PH032&PB034 Push Bars and Pull Handles are made of 1" (25 mm) diameter solid extruded aluminum. The Pull Handles measure 9", 12", 14", or 16" (229, 305, 356, or 406 mm) lengths and the Push Bars are available for 36", 42", or 48" (914, 1067, or 1219 mm) doors. The projection height is 2-1/2" (63.5 mm) from the face of the door. NOTE: Push Bar and Pull Handle are ordered separately.
|
|
|
|
|
Push Bar Mounting One 1/4"-20 Phillips Head Machine Screw, One 1/4"-20 Threaded Shoulder Bolt and One Set Screw for Single MountApplication |
Pull Handle Mounting Two 1/4"-20 Threaded Shoulder Bolts and Four Set Screws for Single Mount Application |
PUSH BARS FOR SINGLE ACTING DOORS
|
Clear Aluminum Anodized |
Dark Bronze Anodized |
Size |
|
PB034C-33" |
PB034D-33" |
33" (838 mm) |
|
PB034C-39" |
PB034D-39" |
39" (991 mm) |
|
PB034C-45" |
PB034D-45" |
45" (1143 mm) |
PULL HANDLES
|
Clear Aluminum Anodized |
Dark Bronze Anodized |
Size |
|
PH032C-9" |
PH032D-9" |
9" (229 mm) |
|
PH032C-12" |
PH032D-12" |
12" (305 mm) |
|
PH032C-14" |
PH032D-14" |
14" (356 mm) |
|
PH032C-16" |
PH032D-16" |
16" (406 mm) |
