Features

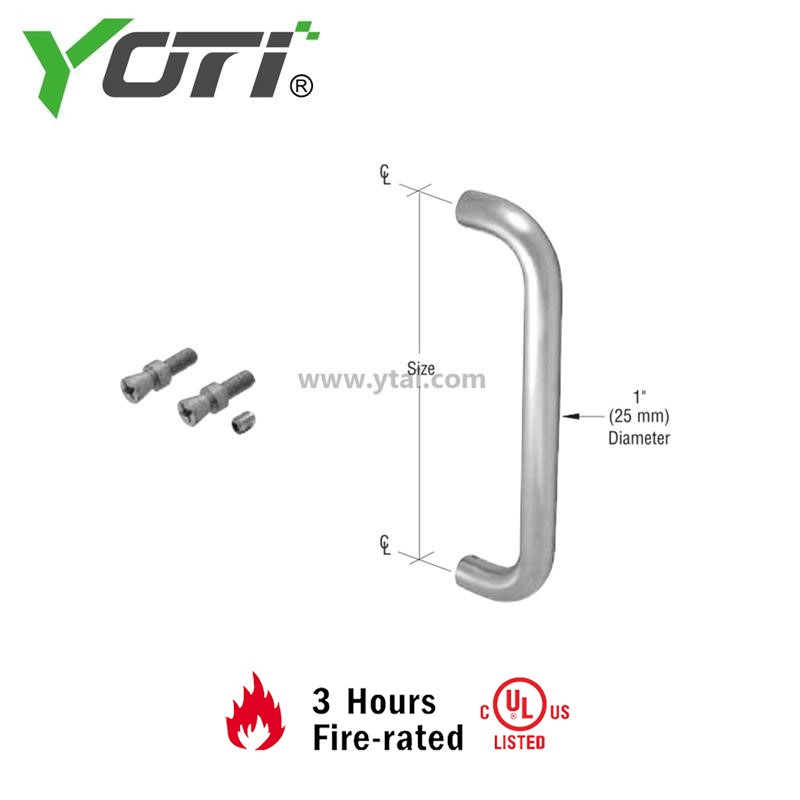

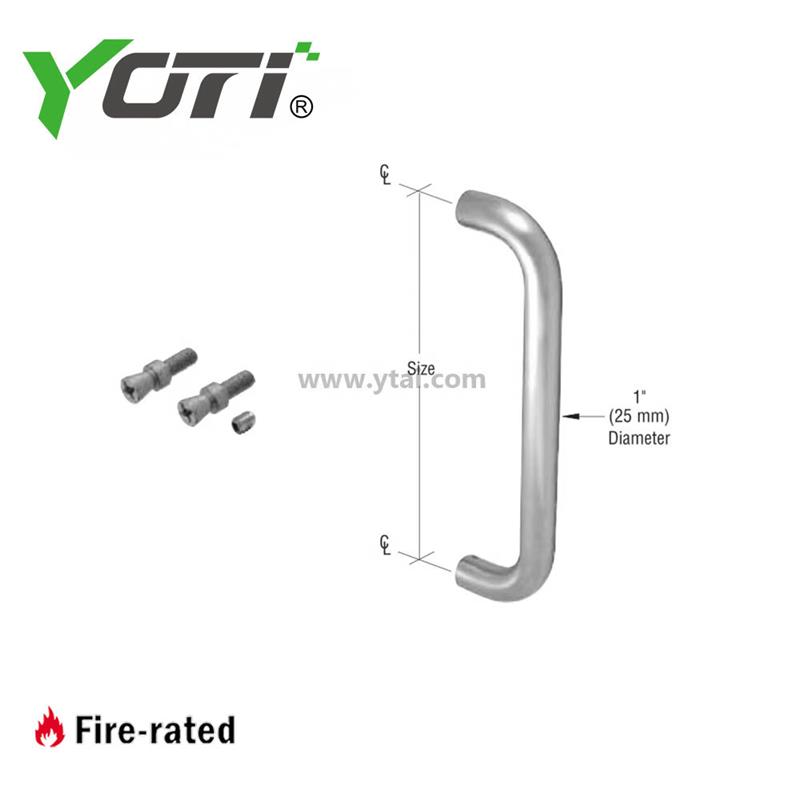

◇Standard 8",9", 10", or 12" Center To Center Straight Pull Handles Available, Customization available
◇For Use On 1-3/4" Thick Commercial Aluminum Storefront Doors
◇Straight Pull Handle Features 2-1/2" Projection.
◇ Mounting Hardware Included
◇1" Diameter Solid Aluminum
Finishes
-Standard Finished - Stocked:

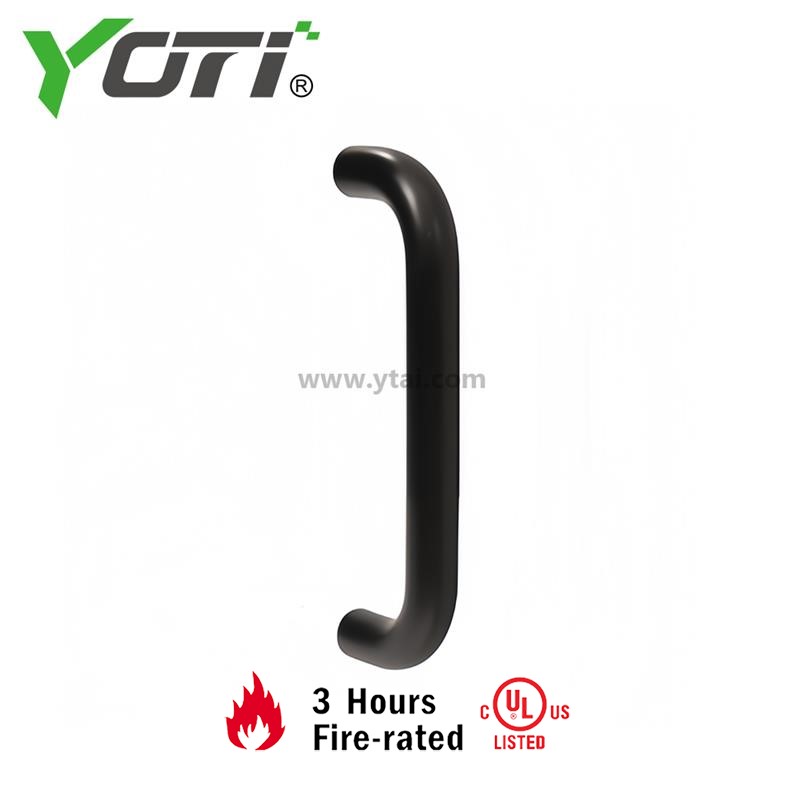

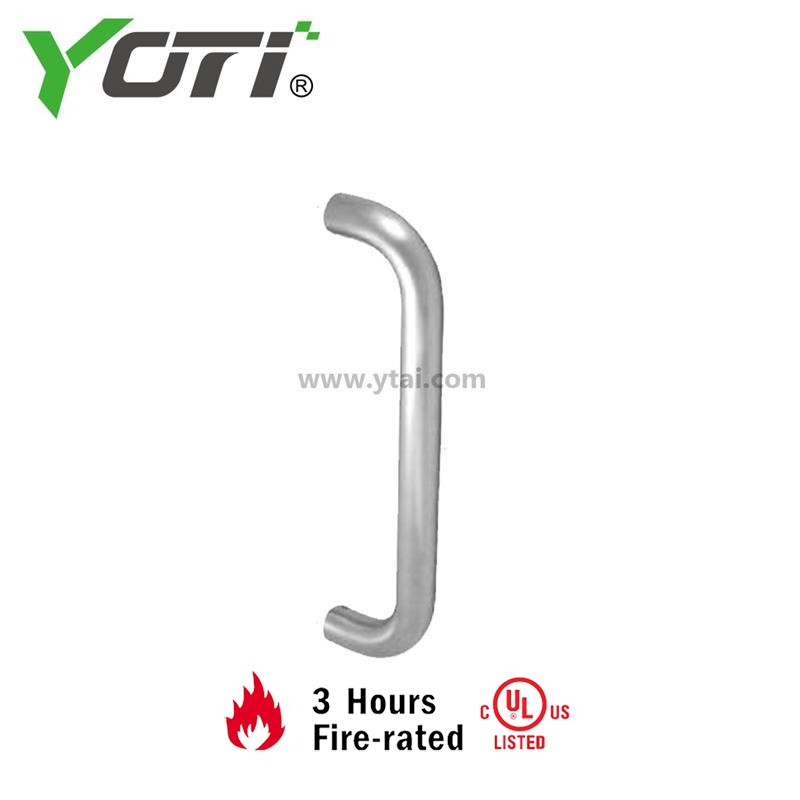

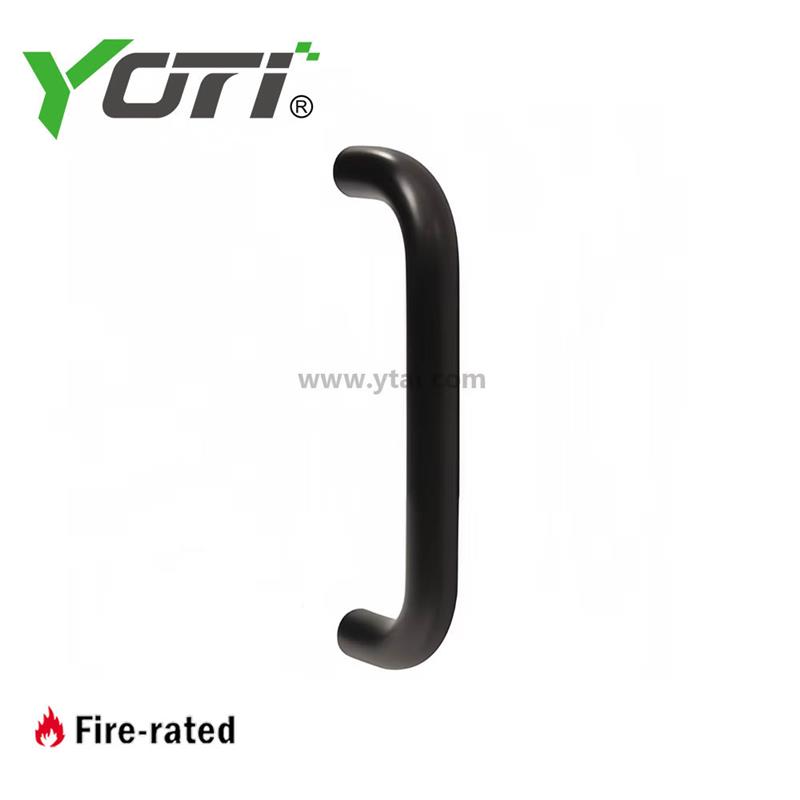

C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
-Optional Finished - Custom:

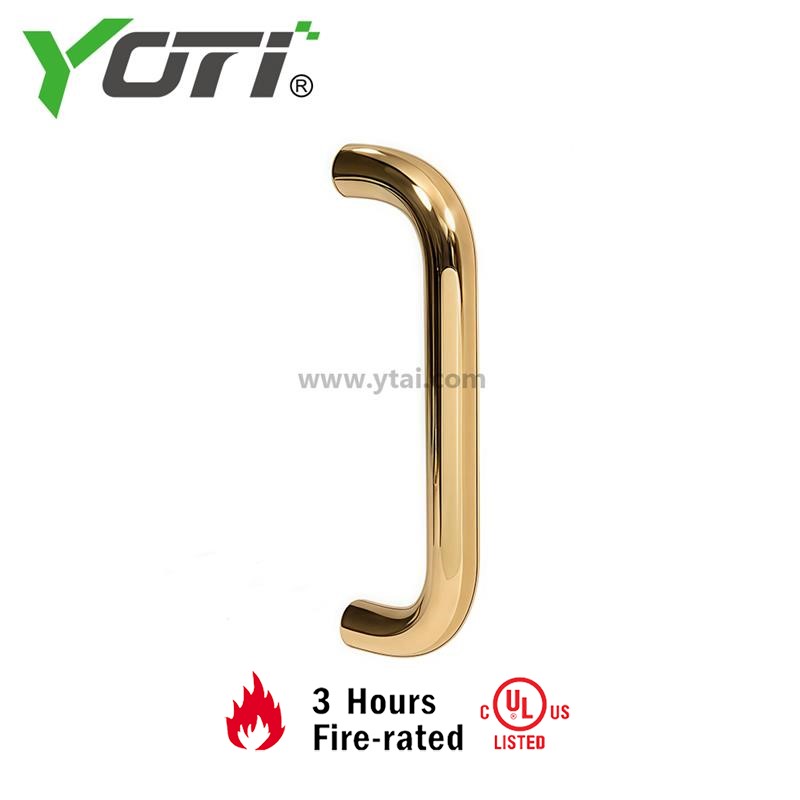

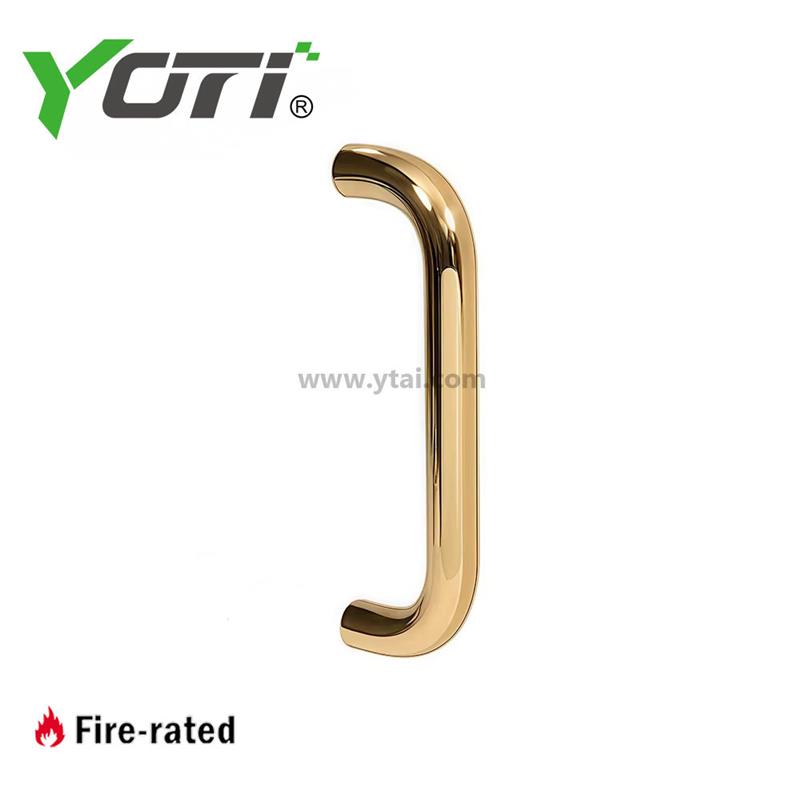

G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized
| Clear Aluminum Anodized Yoti P.N. |
Dark Bronze Anodized Yoti P.N. |
Size |
| PH165C-8" | PH165D-8" | 8" (203 mm) |
| PH165C-9" | PH165D-9" | 9" (229 mm) |
| PH165C-10" | PH165D-10" | 10" (254mm) |
| PH165C-12" | PH165D-12" | 12" (305 mm) |
