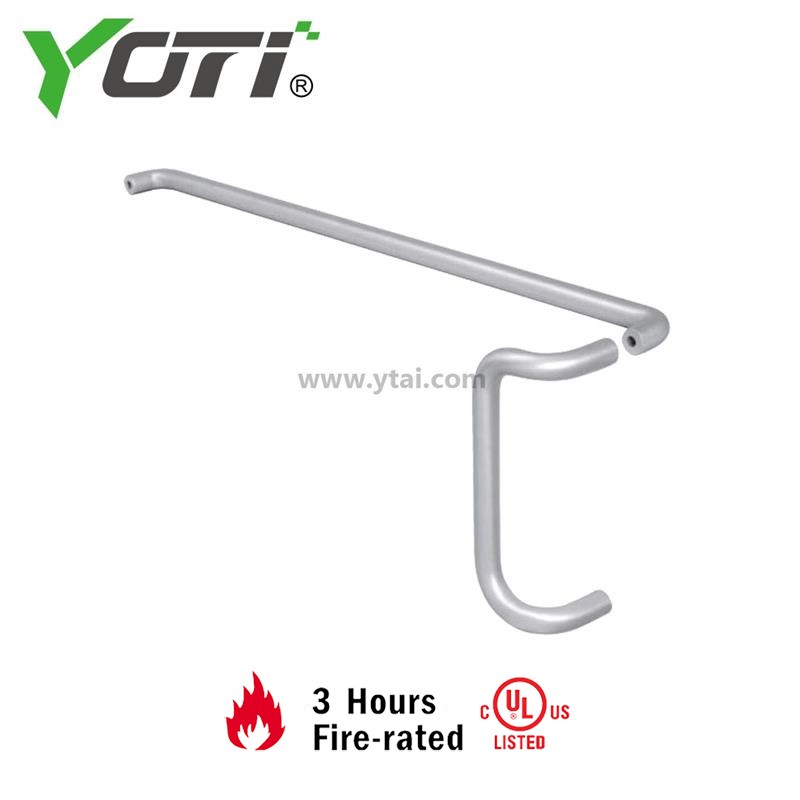

PH174+PB031 Offset Pull Handle Double Bend Push Bar Set
PH174+PB031 Offset Pull Handle Double Bend Push Bar Set

PH174+PB031 Offset Pull Handle Double Bend Push Bar Set

- Certification:ISO9001
- 1" Diameter Solid Aluminum Round
- Available Dimension:
- Push Bar: 33",39"45" and Specific
- Pull Handle:8",9",10",12" and Specific
Features

◇Standard 8",9", 10", or 12" Center To Center Offset Pull Handles Available, Customization available

◇Standard Push Bar Widths Available For 36" or 48" doors.

◇For Use On 1-3/4" Thick Commercial Aluminum Storefront Doors

◇Offset Pull Handle Features 1-1/2" Offset Clearance, 2-1/2" Projection.

◇Push Bar Features a 2-1/2" Projection

◇ Mounting Hardware Included

◇1" Diameter Solid Aluminum

Finishes

-Standard Finished - Stocked:

C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized

-Optional Finished - Custom:

G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized

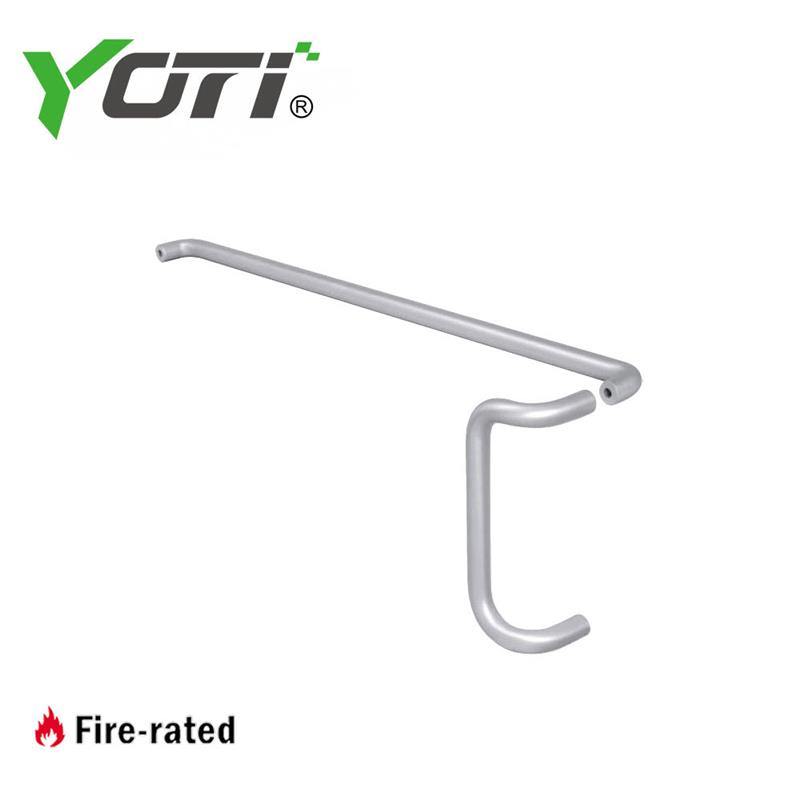

Clear Aluminum Anodized
Yoti P.N.

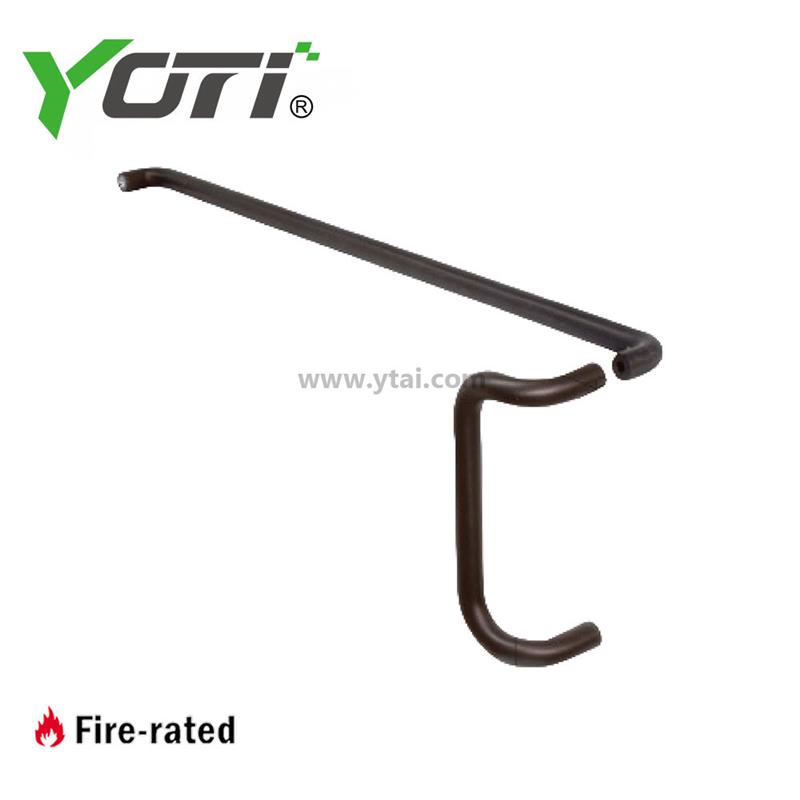

Dark Bronze Anodized
Yoti P.N.
Size

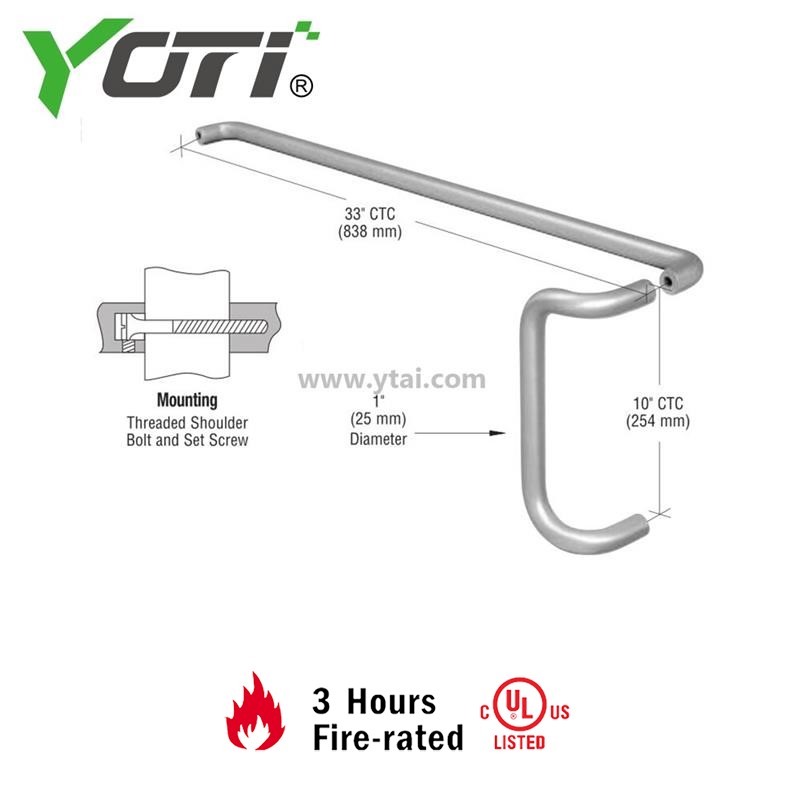

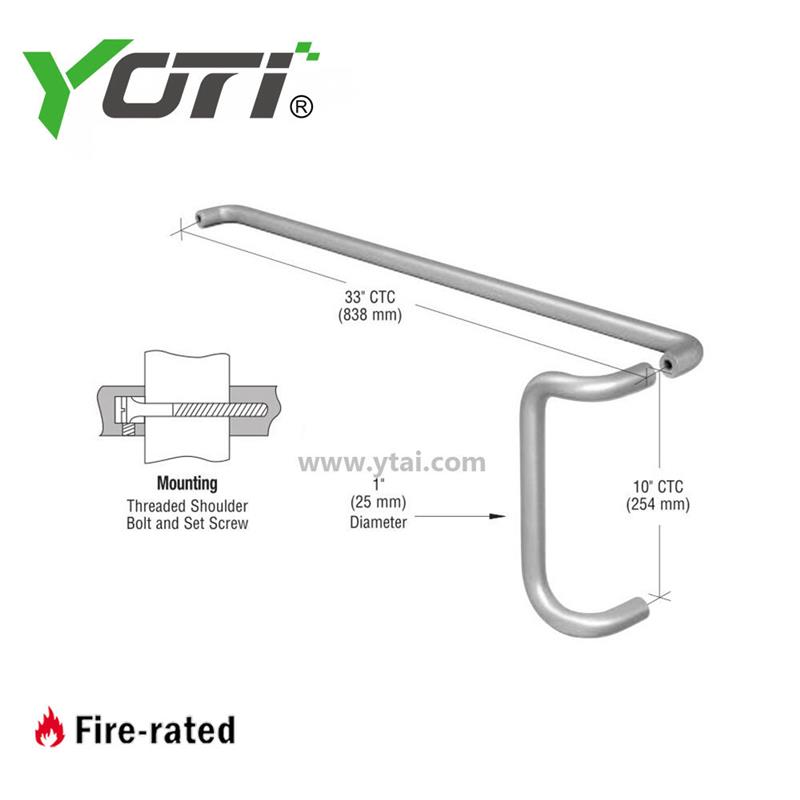

PH174 PB031-C PH174 PB031-D Push Bar: 33" (838 mm)
Pull Handle: 10"(254 mm)
