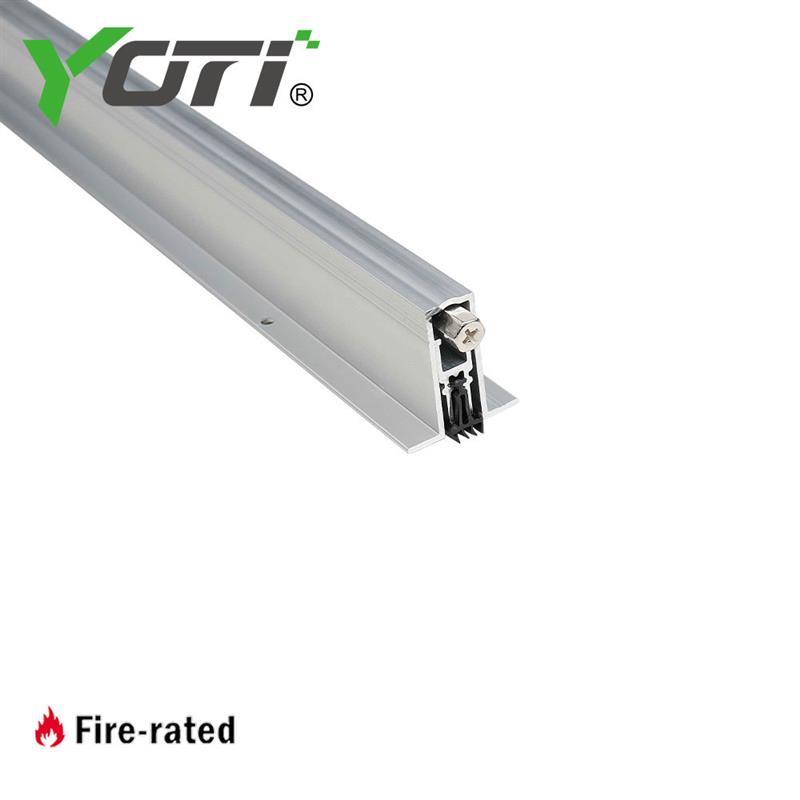

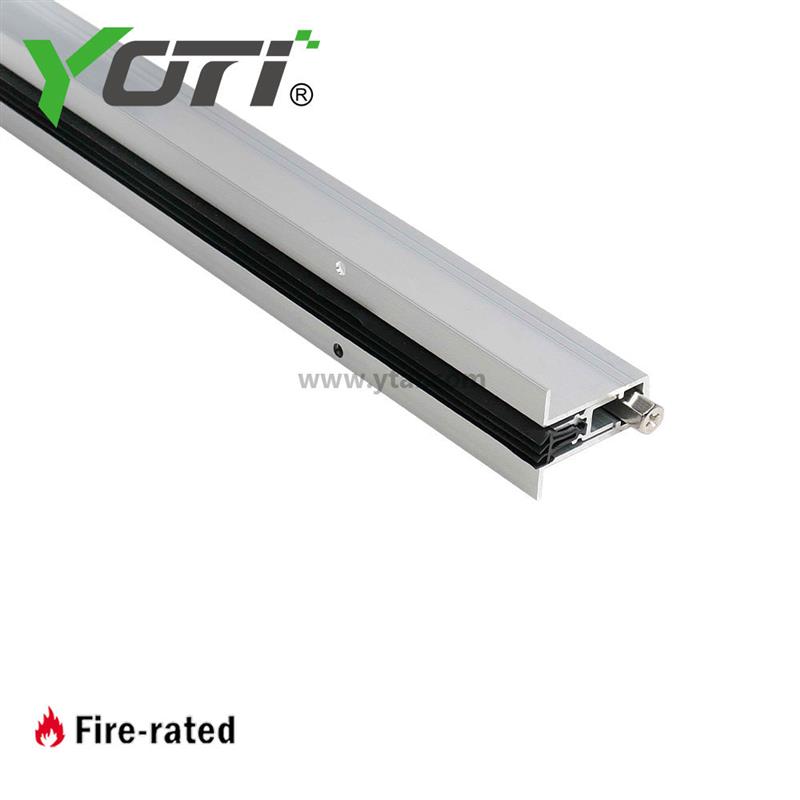

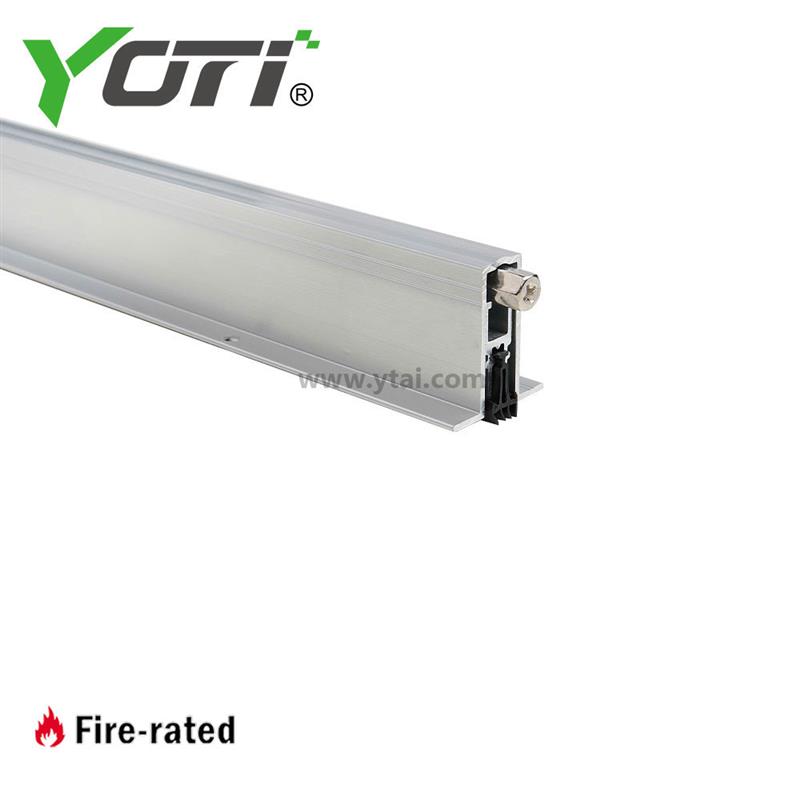

These Acoustic Full Mortise Automatic Door Bottom is designed for soundproofing doors. It automatically lowers a drop bar seal when the door is closed, providing a "sealed-in-place" performance. Made of aluminum, it can be fully mortised and works on both right and left handed doors. Custom sizes are available. Perfect for commercial buildings, hotels, and decorative doors.
|
Retainer Material
|
Aluminum
|
|
Finish
|
Mill Finish/Clear Anodized/Dark Bronze Anodized
|
|
Door Type
|
Wood Door/Metal Door
|
|
Seal Type
|
Vinyl Rubber Seal
|
|
Mounting Type
|
Fully Mortised
|
|
Maximum Drop Size
|
0.75"(19.05mm)
|
|
Door Thickness
|
1-3/4"(44.45mm), 1-22/50"(36.5mm)
|
|
Functions
|
Blocking penetration by: Sound,Air,Smoke,Flames
|
|
Length
|
Standard 36", 48"; Minimum 12", Maximum 72"
|
|
Accessories
|
End Caps and Screws are provided
|
|
Cross Reference
|
Pemko#STC411_
|
