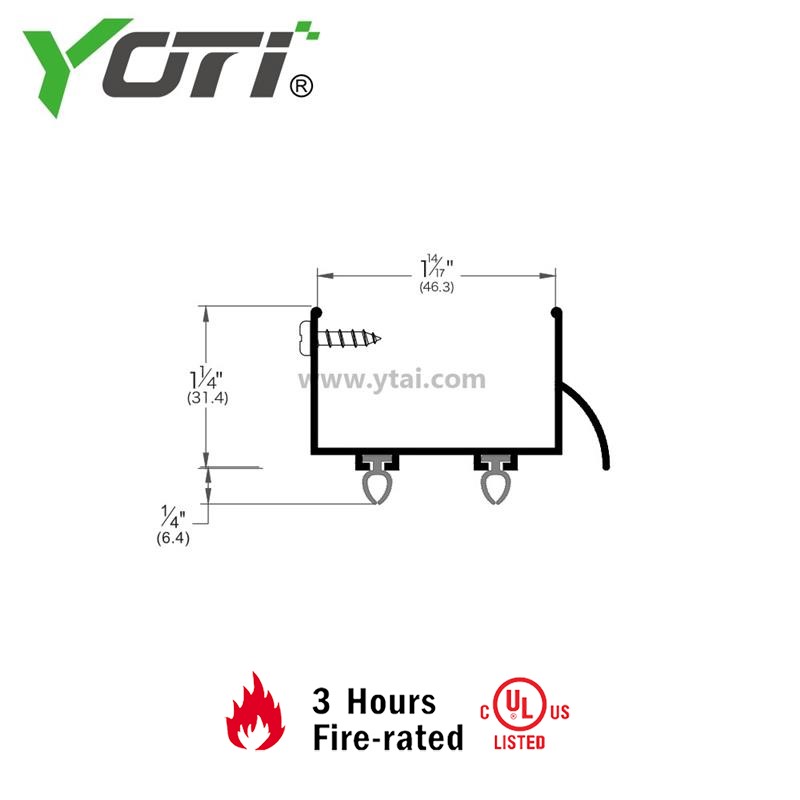

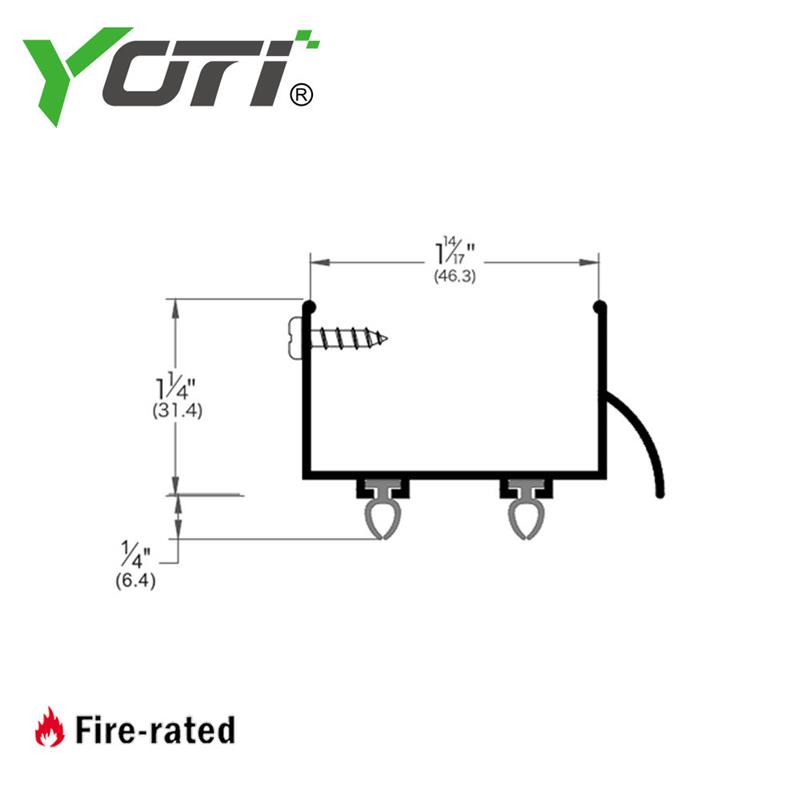

This kind of door bottom shoes is applied to the underside of the door to create a strong seal against smoke, fire, dust, drafts and light without compromising on the appearance of the door. The aluminum track is fitted with a 0.25" (H) fingered vinyl seal and can be applied to doors with a minimum thickness of 1.825". Available in various finishes to coordinate with door color and length is custom cut to size.
|
Retainer Material
|
Aluminum
|
|
Temperature Range
|
-4°F to 122°F
|
|
Door Type
|
Wooden Door, Metal Door
|
|
Seal Type
|
Vinyl Rubber Seal
|
|
Mounting
|
Door Shoe Mount
|
|
Seal Height
|
1/4" Height
|
|
Total Height
|
1-1/2" Height
|
|
Additional Dimensions
|
Door seal is 1-14/17" thick
|
|
Length
|
Standard 36", 48"; Custom Cut to Size
|
|
Installation
|
Drill holes are provided
|
|
Certificate
|
Fire Rated - UL 10B/10C
|
