YDT301

YDT301

Flat Saddle Thresholds

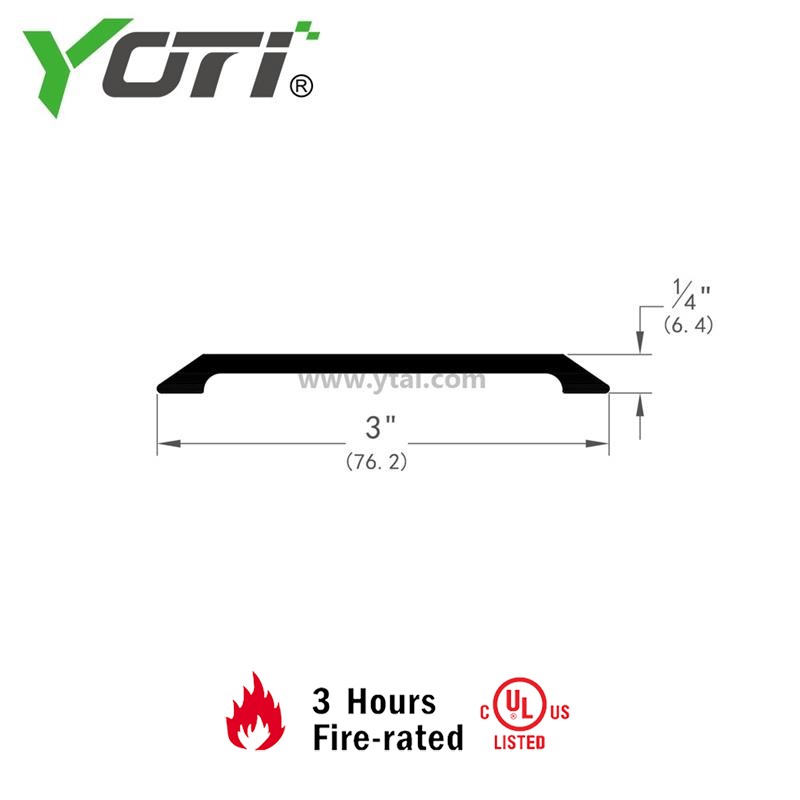

- AVAILABLE FINISHES: A, C, D
- WIDTH: 3” (76.2 mm)
- HEIGHT: 1/4” (6.4 mm)

Certificate:
- UL

A Saddle Threshold gets its name due to it's design. Like a horse saddle that wraps around the horse's back, a saddle threshold wraps around the threshold of the door. Saddle thresholds are symmetrical shapes designed to span a given area, usually under a door. In the closed position, the door butts up to bumper seal on threshold creating a seal against the elements.


This 3" Utility Threshold has a smooth top that prevents mud, ice, and snow from gathering in the grooves ensuring easy maintenance. It is fire rated and wheelchair accessible. Available in various different finishes and is custom cut to size.



Material
Aluminum

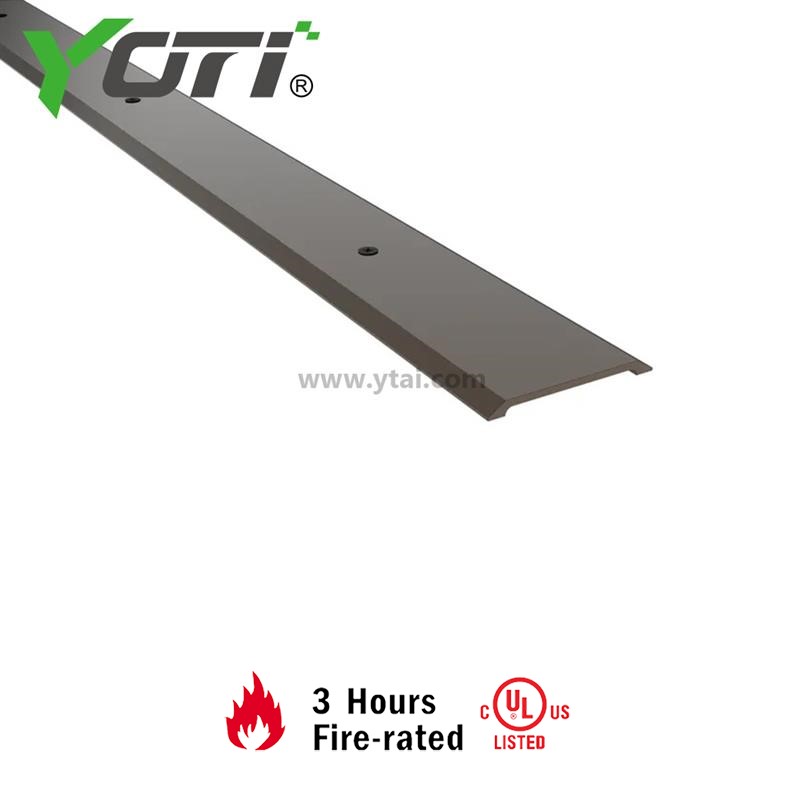

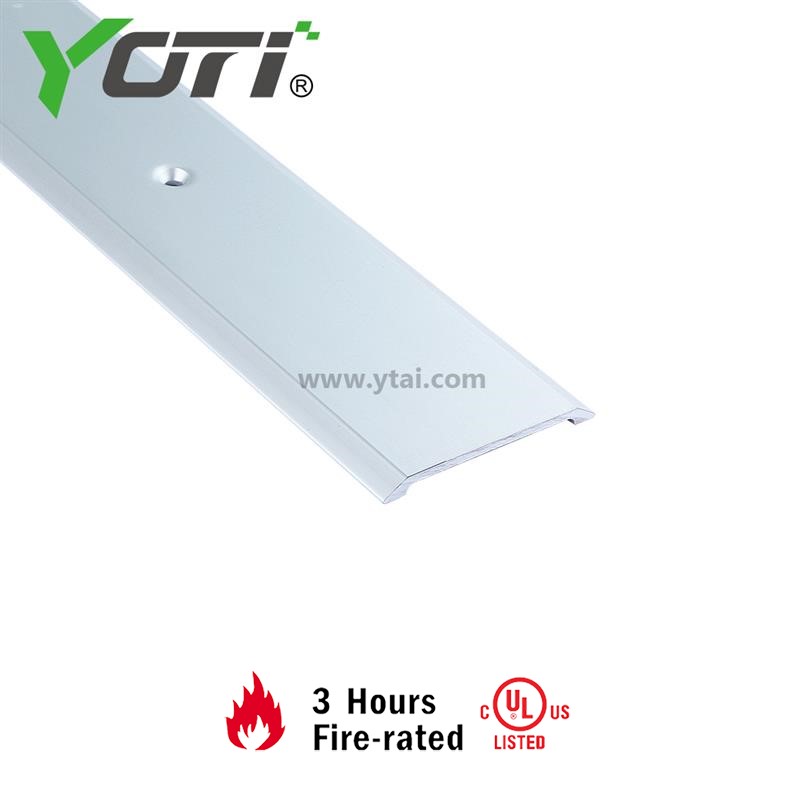

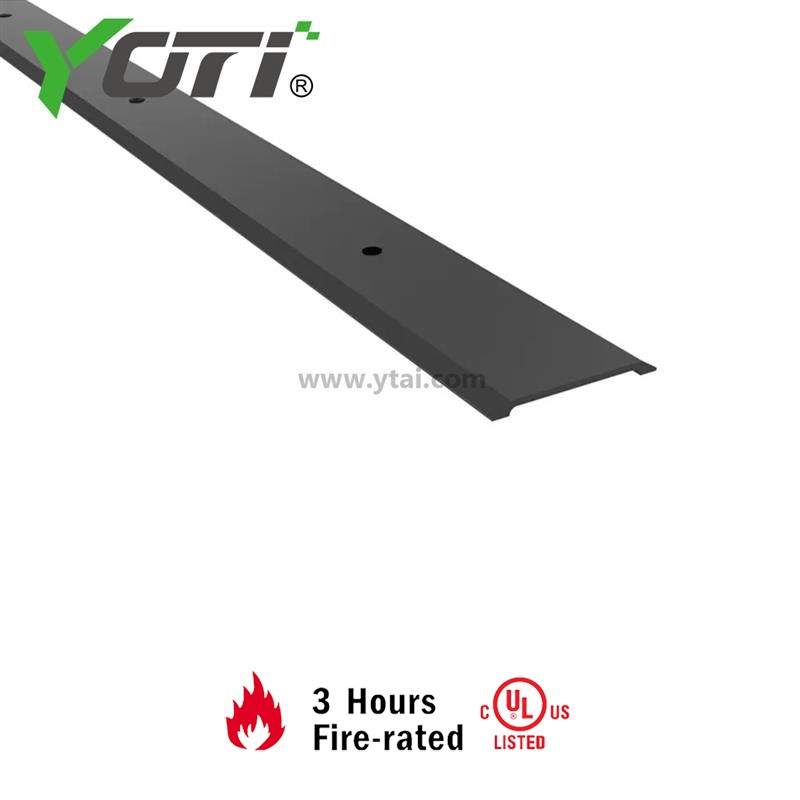

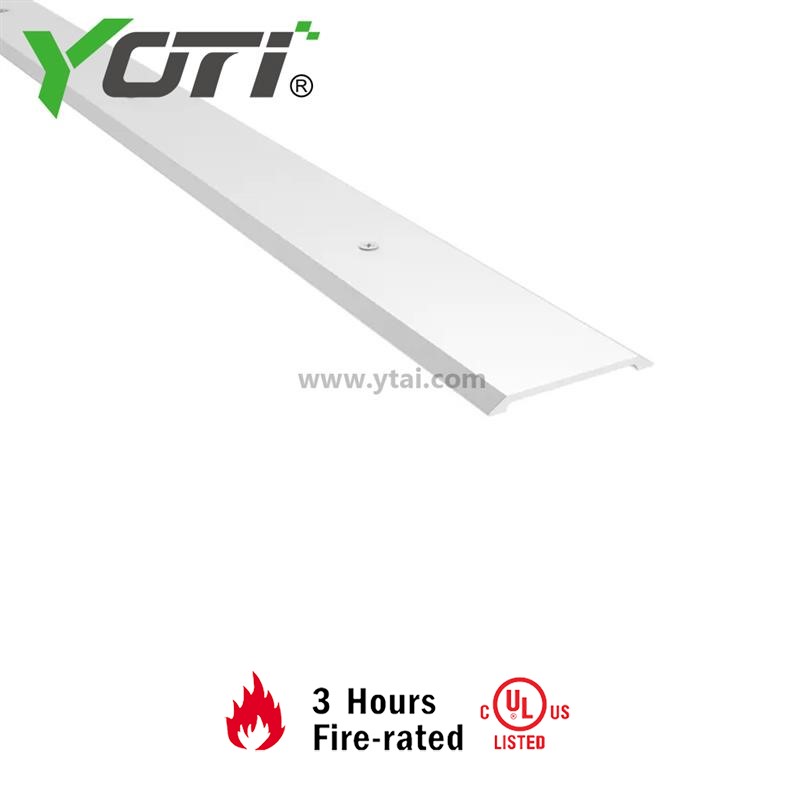

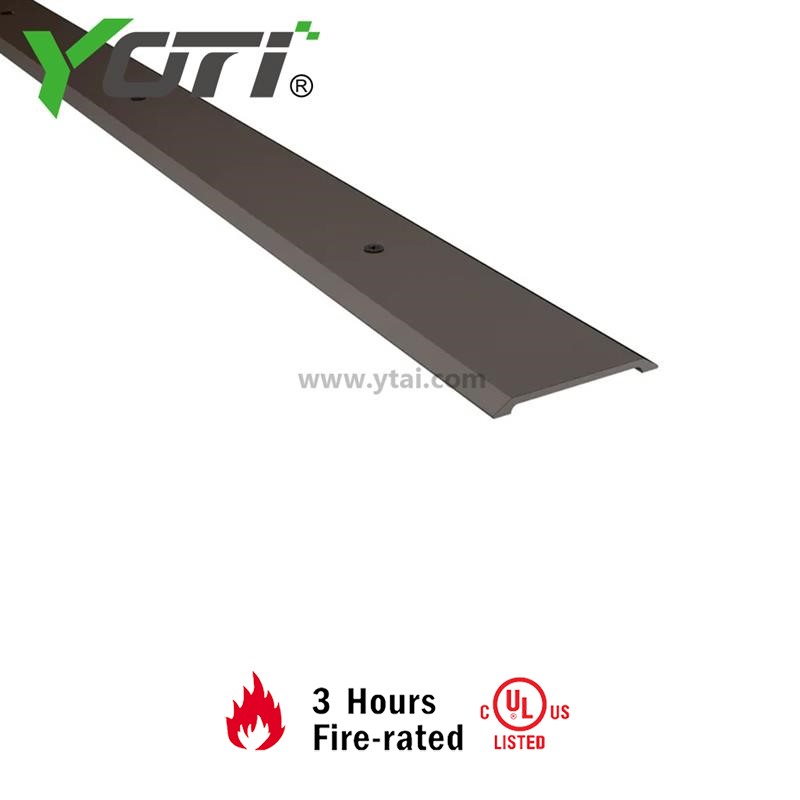

Finish
Mill Finish/Clear Anodized/Dark Bronze Anodized
Flat Saddle Design
Smooth Top Design
Threshold Type
Flat Utility Threshold
Overall Height
0.25" Height
 Overall Width
3" Width
Required Door Clearance
0.375" Height
Length
Standard 36", 48"; Custom Cut to Size
Installation
Drilling holes and Fasteners are provided
Certificate
Fire Rated - UL 10B/10C
