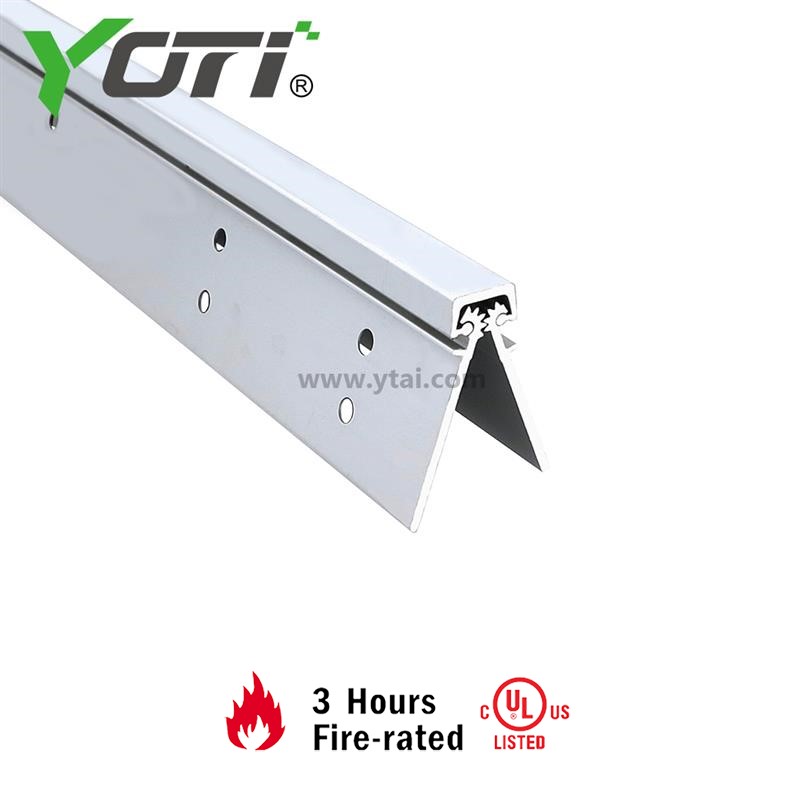

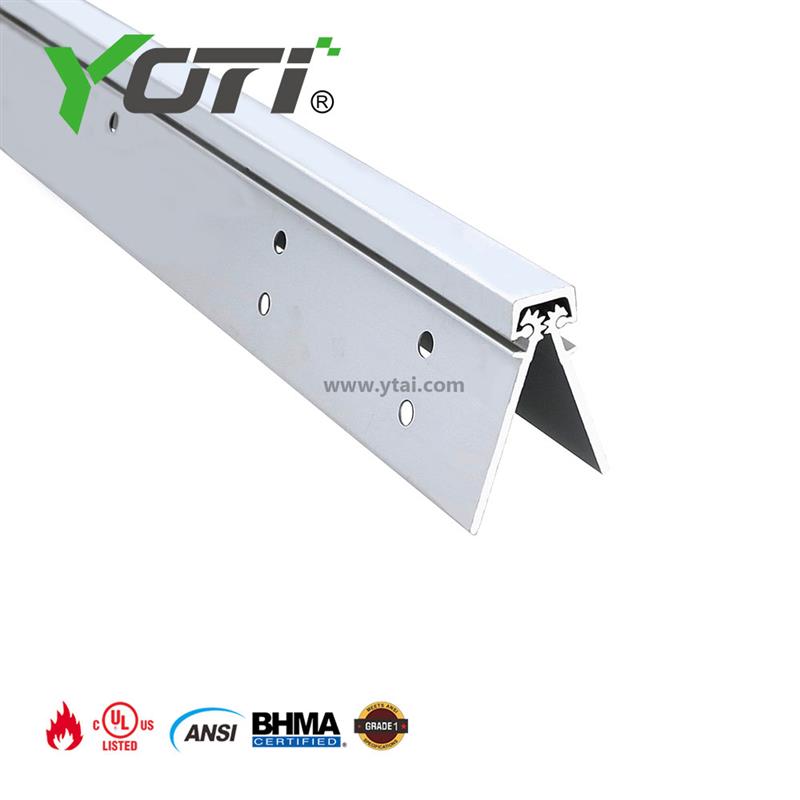

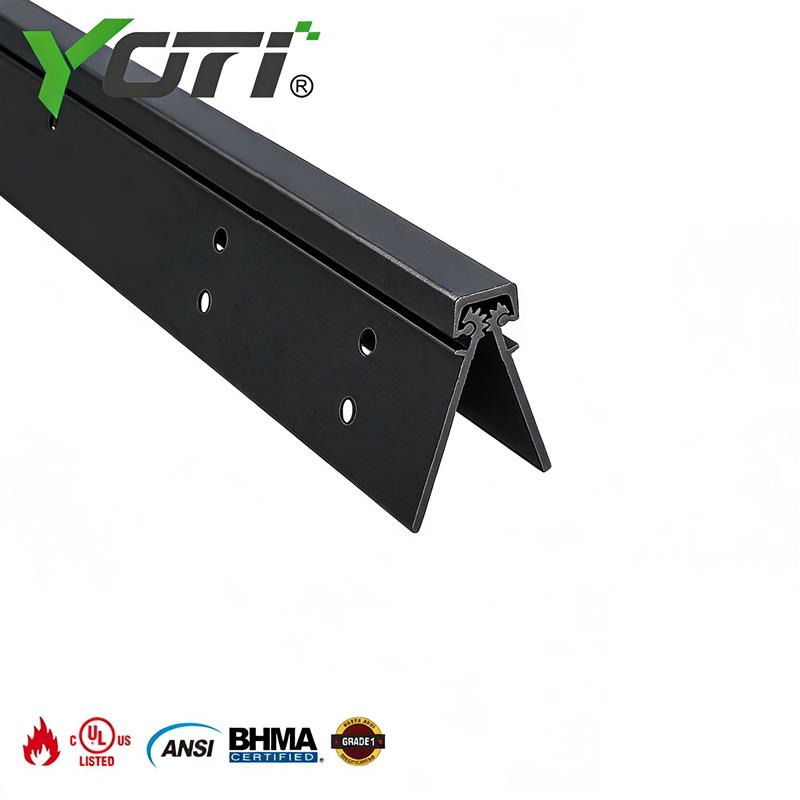

Yoti Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
|
Length (inches) |
Length (mm) |
Hole Count (Door) |
Hole Count (Jamb) |
|
83 |
2108 |
19 |
19 |
|
95 |
2413 |
20 |
20 |
|
119 |
3023 |
23 |
23 |

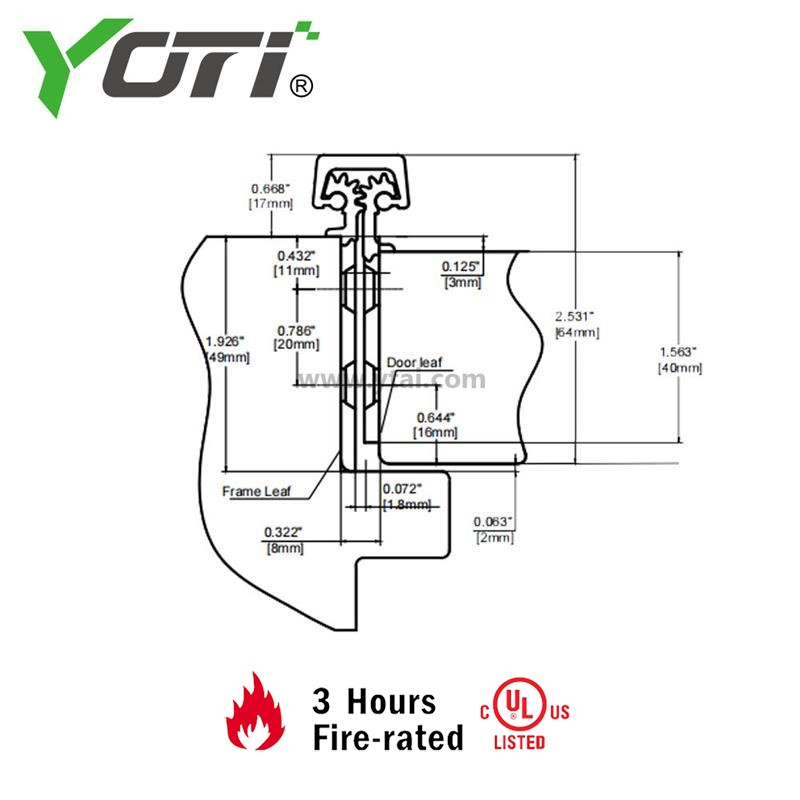

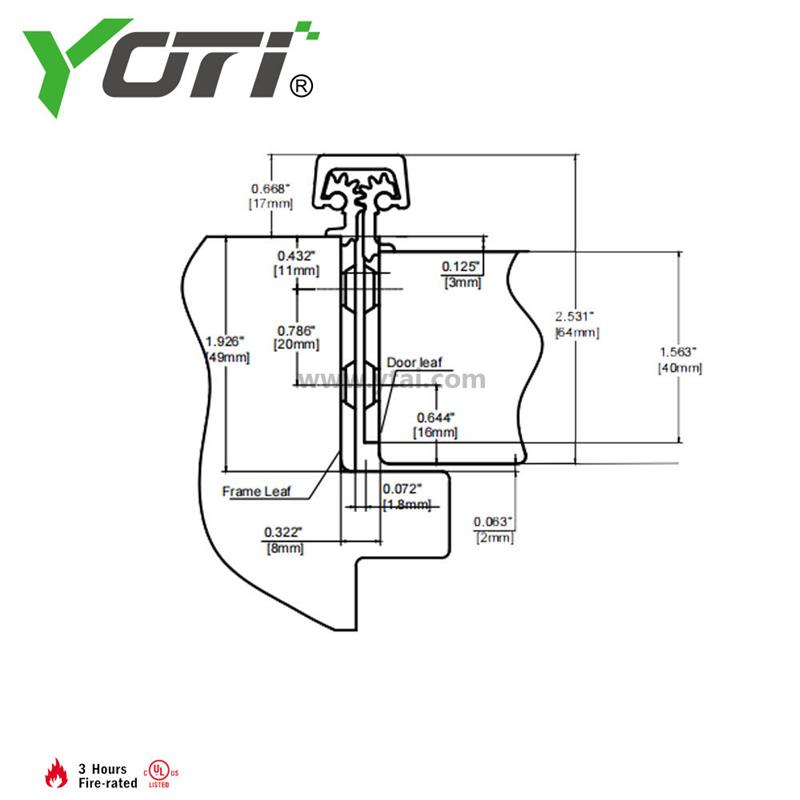

◇CLEARANCE: - 5/16" (8 mm) hinge side
- Plus standard lockside clearance
◇FASTENERS: - #12-24 X 11/16" Flat Head Self-Drill Screws
◇LENGTH OPITIONS: - 83" & 95" & 119“ & Custom
◇DOOR REINFORCEMENT: - None needed to 200 lbs
- Use 16 gauge channel over 200 lbs
◇FRAME REINFORCEMENT: - None needed to 200 lbs
- Use 16 gauge channel over 200 lbs
◇FIRE RATING: - Up to 3 Hours.
◇SPECIAL FEATURES: - For new construction
- For renovation with new door and / or frames
- No mortising of doors or frame required
- Will cover hinge cut outs in frames
- Flush mount no inset
- Frame and door leaf alignment ribs for proper hinge location
