YDS109

YDS109

Door Shoes and Sweeps

- AVAILABLE FINISHES: A, C, D
- WIDTH: 11/32” (8.7 mm)
- HEIGHT: 1-374/400” (49.2 mm)

Certificate:
- UL

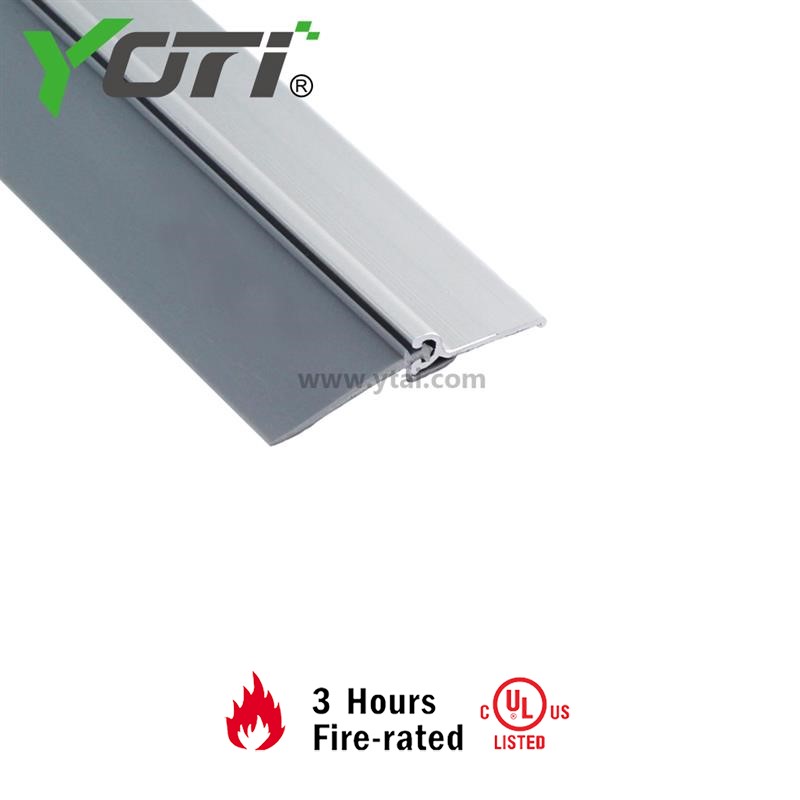

This door sweep can be used to seal up to a 1-3/50" the gap between the door and threshold or to the floor surface. It is fitted with a Vinyl extrusion. Its fire and smoke rated and can be rated for low VOC Emission. Available in choice of aluminum finishes and is custom cut to size.

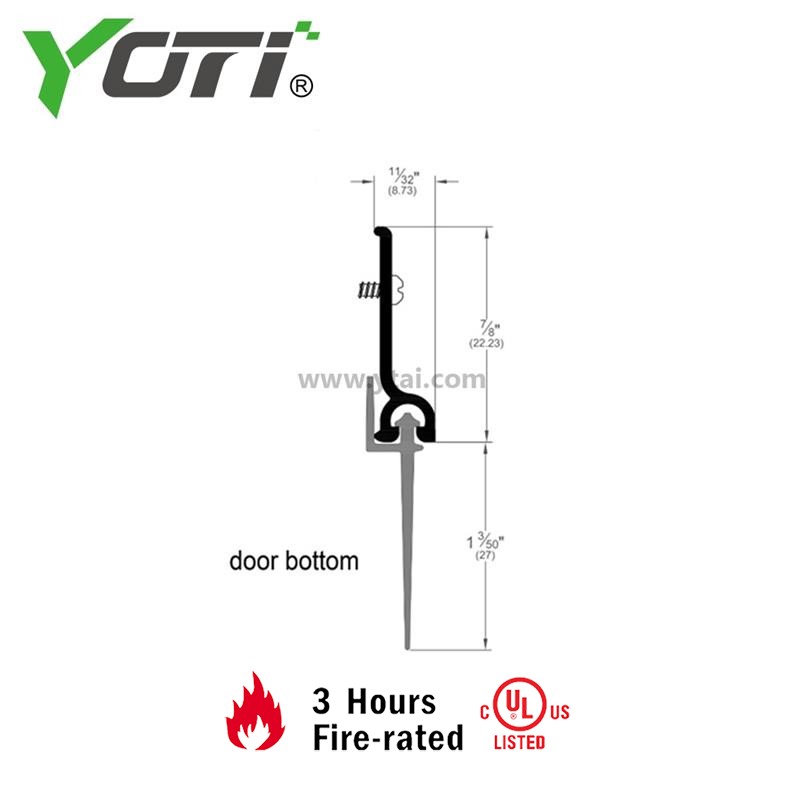

This door bottom is surface mounted to the face of a door. It is used to seal a door to a threshold or the floor surface. The 7/8" aluminum channel is fitted with a Vinyl extrusion that can seal gaps up to 1-3/50".

Retainer Material
Aluminum
Temperature Range
-4°F to 122°F
Door Type
Wooden Door, Metal Door
Seal Type
Vinyl Rubber Seal
Mounting
Surface Mounted
Seal Height
1-3/50" Height
Total Height
1-15/16" Height
Additional Dimensions
Door seal is 11/32" thick
Length
Standard 36", 48"; Custom Cut to Size
Installation
Drill holes are provided
Certificate
Fire Rated - UL 10B/10C
