YDB119

YDB119

Door Shoes and Sweeps

- AVAILABLE FINISHES: A, C, D
- WIDTH: 1/4” (6.4 mm)
- HEIGHT: 1-11/16” (42.9 mm)

Certificate:
- UL

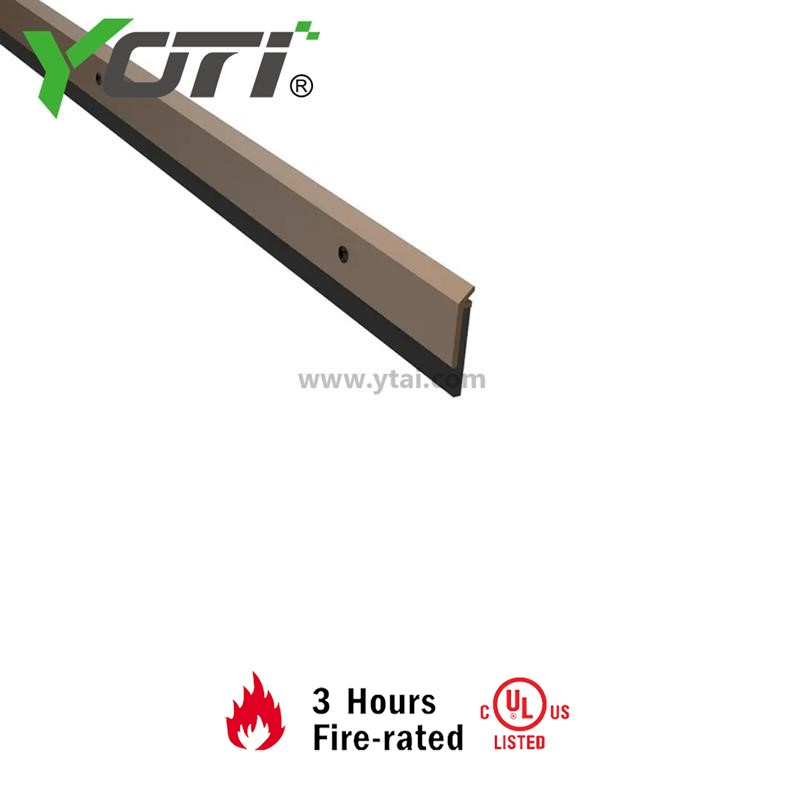

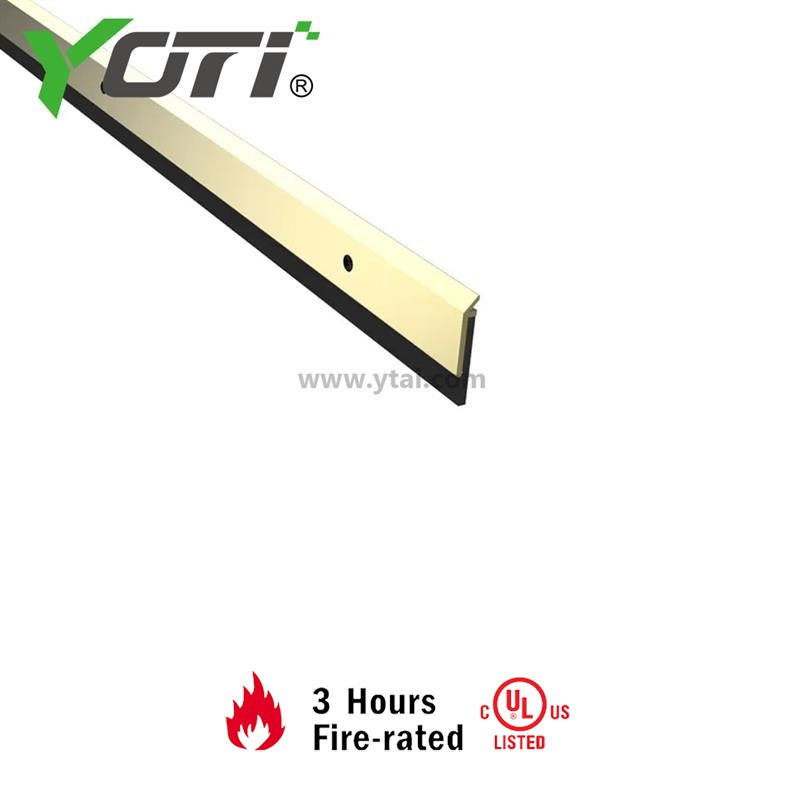

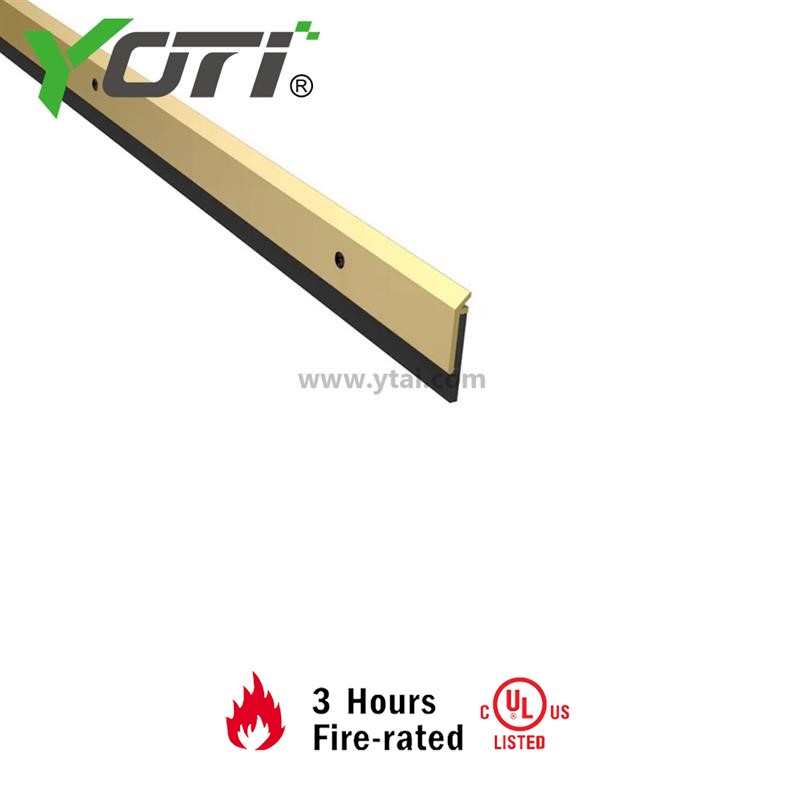

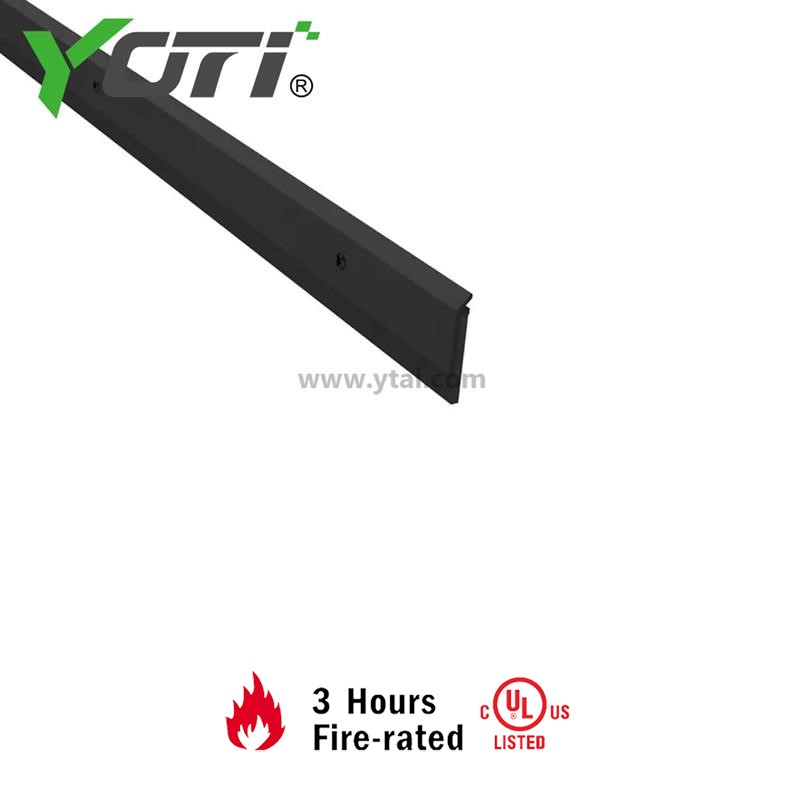

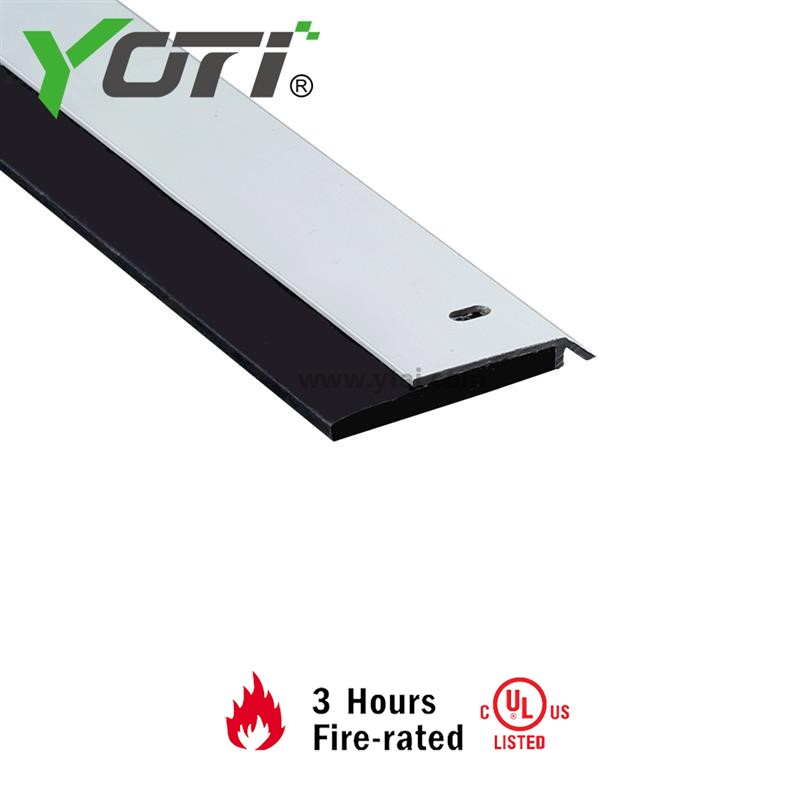

This door bottom, with a 1.25" sleek aluminum casing is fitted with a neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Available in Bronze and various anodized aluminum variations. It is custom cut to size.

Retainer Material
Aluminum
Temperature Range
-4°F to 122°F
Door Type
Wooden Door, Metal Door
Seal Type
Neoprene Rubber Seal
Mounting
Surface Mounted
Seal Height
7/16" Height
Total Height
1-11/16" Height
Additional Dimensions
Door seal is 1/4" thick
Length
Standard 36", 48"; Custom Cut to Size
Installation
Drill holes are provided
Certificate
Fire Rated - UL 10B/10C
