This door sweep can be used to seal up to a 17/25" the gap between the door and threshold or to the floor surface. It is fitted with a Vinyl extrusion. Its fire and smoke rated and can be rated for low VOC Emission. Available in choice of aluminum finishes and is custom cut to size.

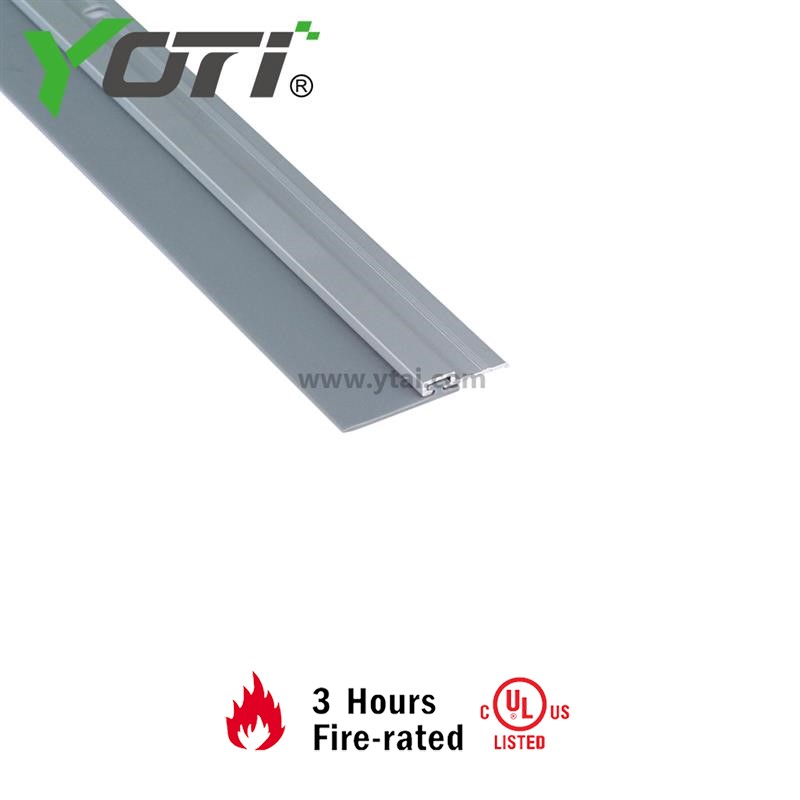

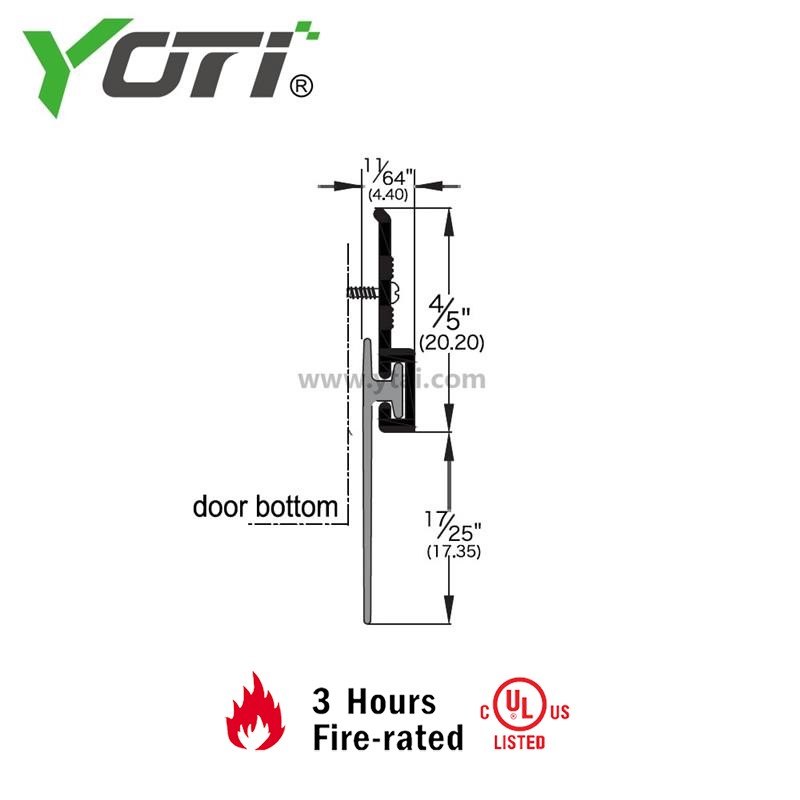

This door bottom is surface mounted to the face of a door. It is used to seal a door to a threshold or the floor surface. The 11/64" aluminum channel is fitted with a Vinyl extrusion that can seal gaps up to 17/25".
|
Retainer Material
|
Aluminum
|
|
Temperature Range
|
-4°F to 122°F
|
|
Door Type
|
Wooden Door, Metal Door
|
|
Seal Type
|
Vinyl Rubber Seal
|
|
Mounting
|
Surface Mounted
|
|
Seal Height
|
17/25" Height
|
|
Total Height
|
1-8/25" Height
|
|
Additional Dimensions
|
Door seal is 11/64" thick
|
|
Length
|
Standard 36", 48"; Custom Cut to Size
|
|
Installation
|
Drill holes are provided
|
|
Certificate
|
Fire Rated - UL 10B/10C
|
