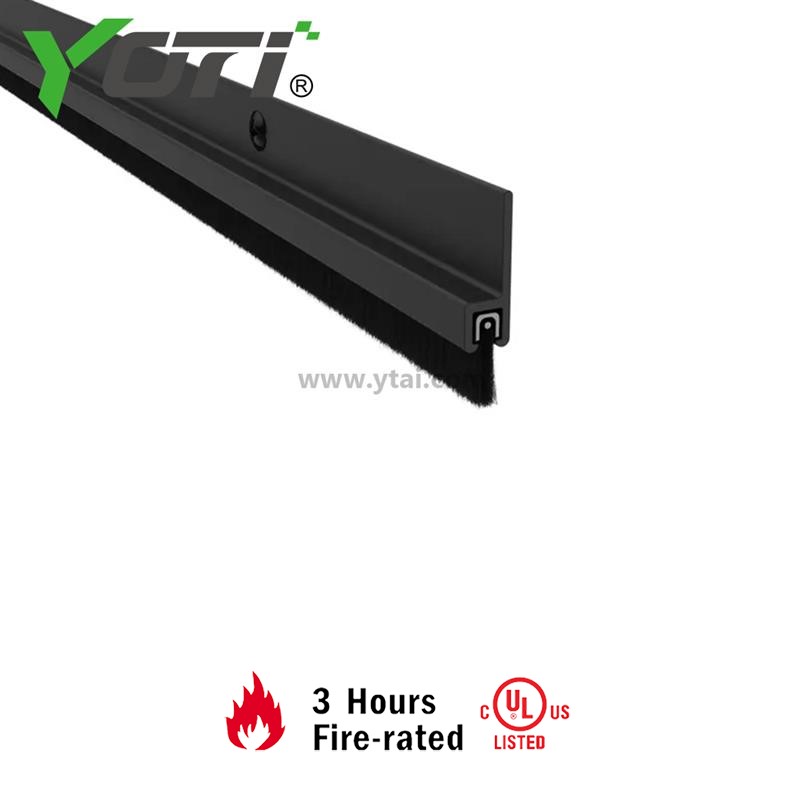

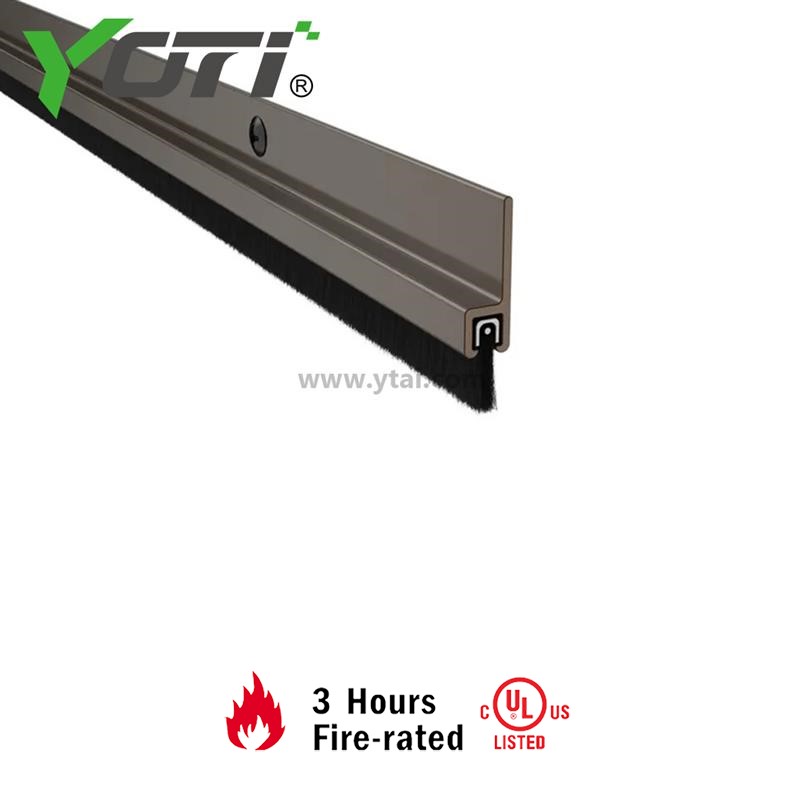

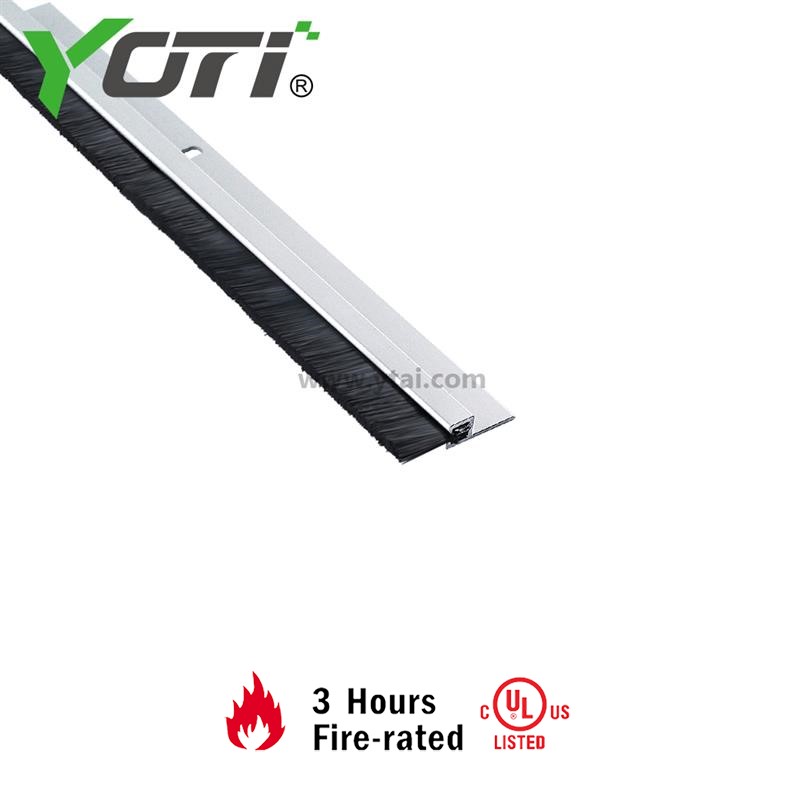

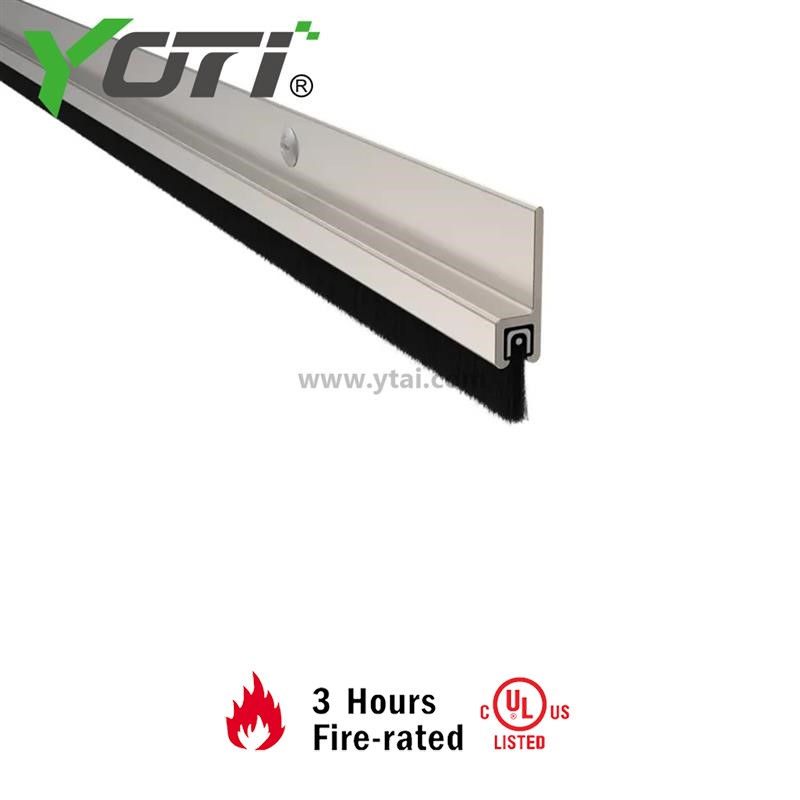

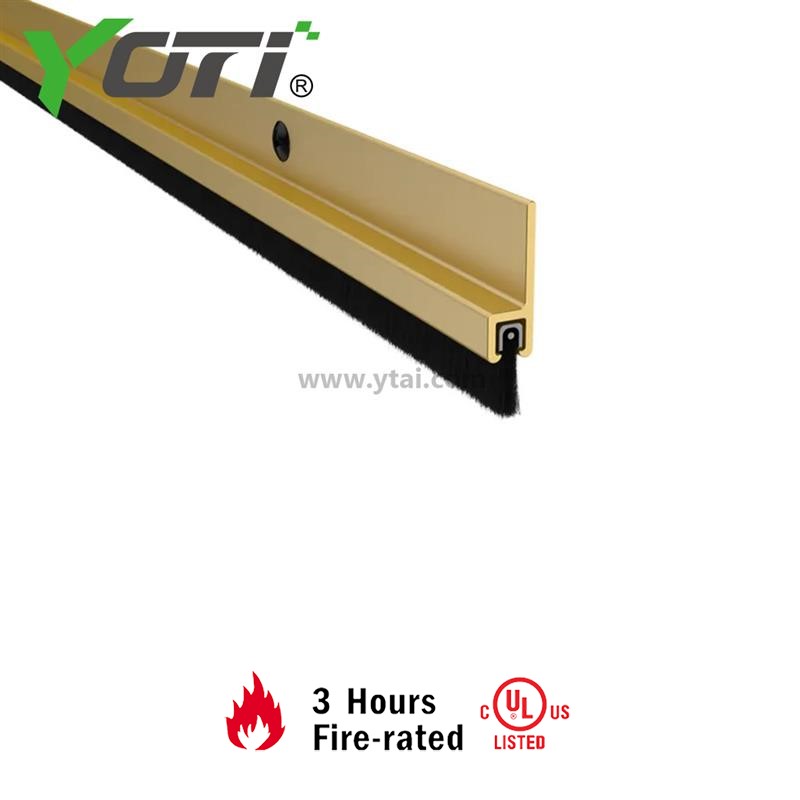

YDS602 meeting stile is designed to be surface mounted to the face of doors to seal a gap between a pair of double active doors. This Meeting Stile has a clear finish, as for the length can be customized. It comes with a nylon brush.
|
Door Brush Retainer Material
|
Aluminum
|
|
Temperature Range
|
Seals remain flexible between -40° F and over 400° F
|
|
Door Type
|
Wooden Door, Metal Door
|
|
Seal Type
|
Nylon Brush Seal
|
|
Mounting
|
Surface Mounted
|
|

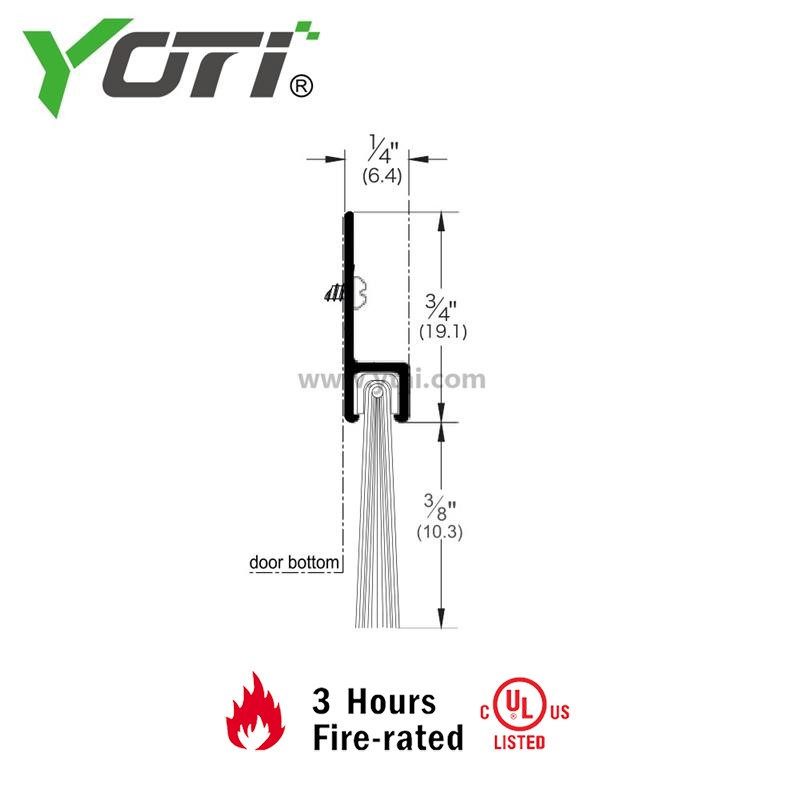

Seal Height
|
3/8" Height
|
|
Total Height
|
1-1/8" Height
|
|
Additional Dimensions
|
Door seal is 1/4" thick
|
|
Length
|
Standard 36",48";Custom Cut to Size
|
|
Finish
|
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized)
BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) PW - (Panited White) |
|
Installation
|
Drill Holes Drill holes are provided
|
|
Certificate
|
Fire Rated - UL 10B/10C
|
