This Door Gasket and Door Bottom Sweep is supplied with an 45° angled flange which provides the best contact between the seal and the floor surface. It has a high quality 0.4375" high brush seal which can seal gaps and greatly reduce infiltration of light, air, wind, rain, and snow; prevents heat loss; and controls the penetration of smoke and fumes. Available in various aluminum anodized finishes and is custom cut to size.
|
Door Brush Retainer Material
|
Aluminum
|
|
Temperature Range
|
Seals remain flexible between -40° F and over 400° F
|
|
Door Type
|
Wooden Door, Metal Door
|
|
Seal Type
|
Nylon Brush Seal
|
|
Mounting
|
Surface Mounted
|
|

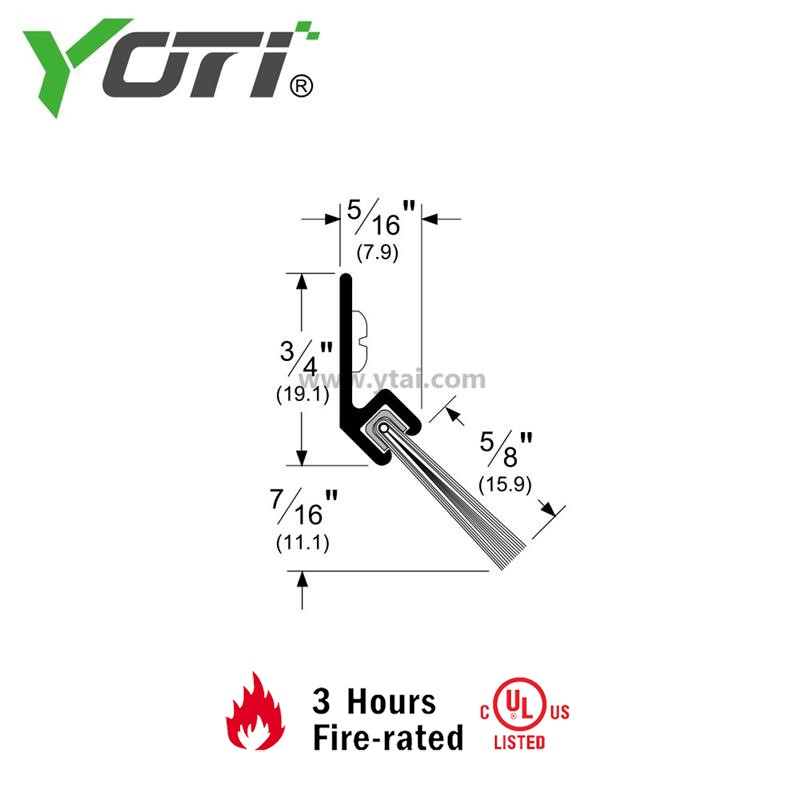

Seal Height
|
7/16" Height
|
|
Total Height
|
1-3/16" Height
|
|
Additional Dimensions
|
Door seal is 5/16" thick
|
|
Length
|
Standard 36",48";Custom Cut to Size
|
|

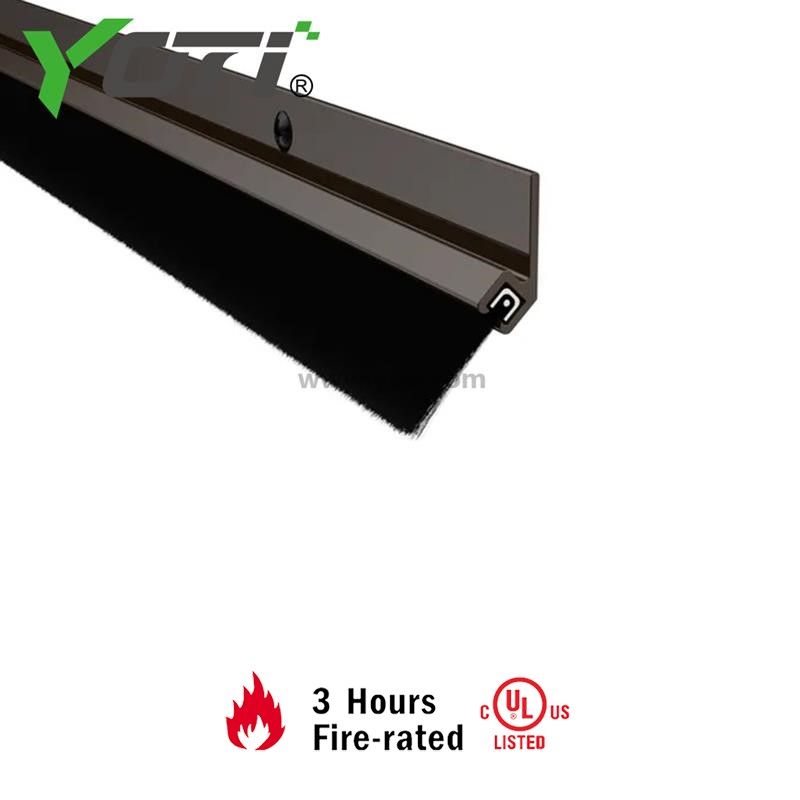

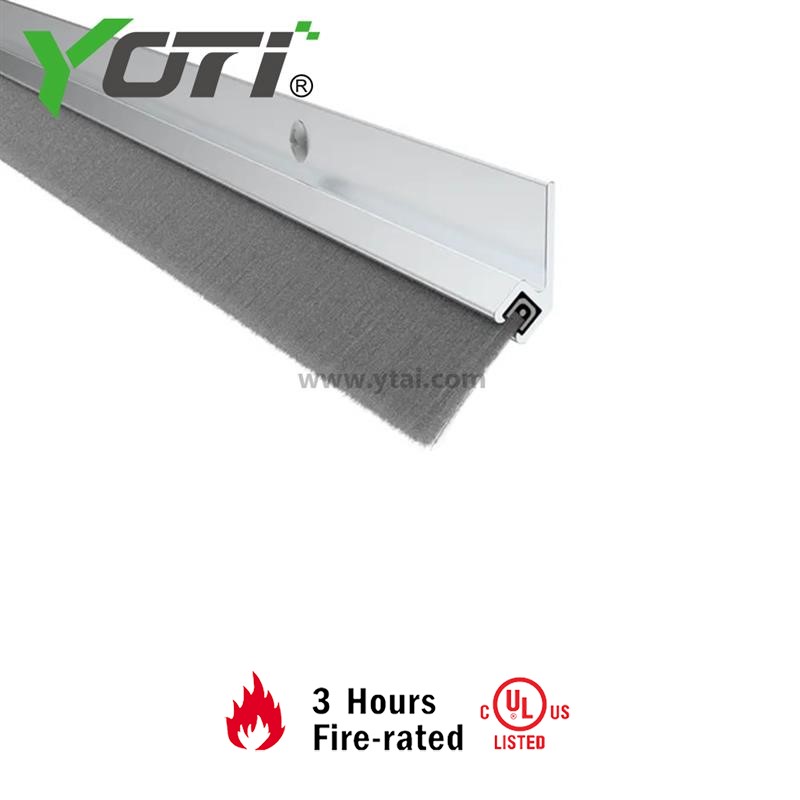

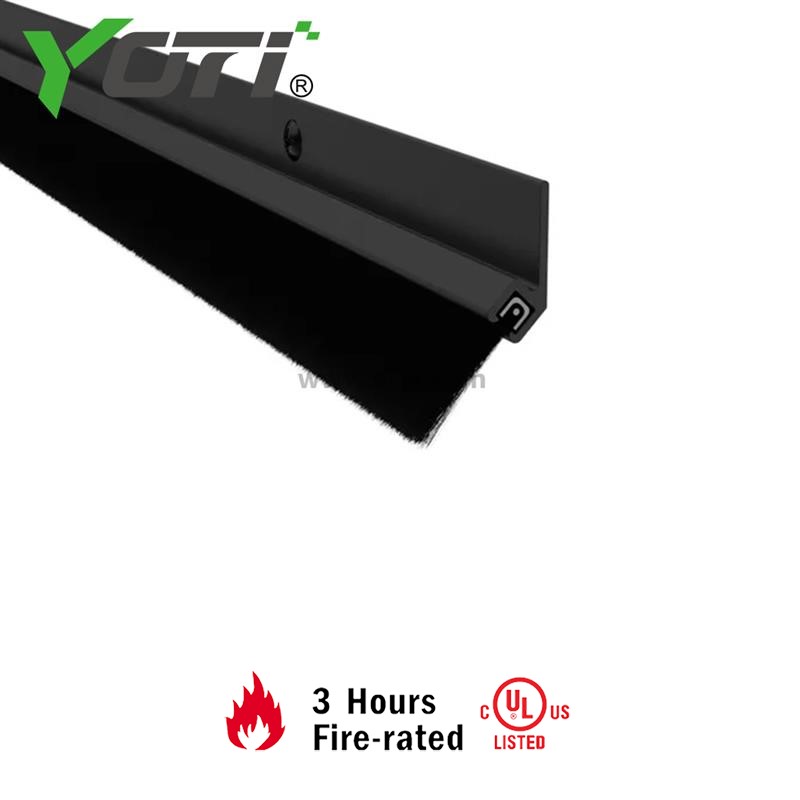

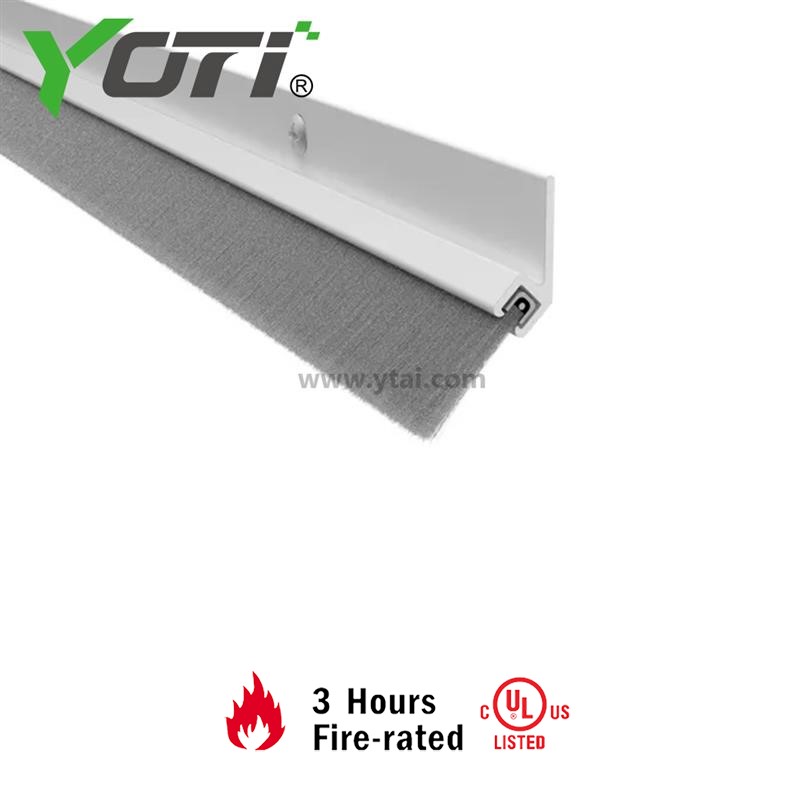

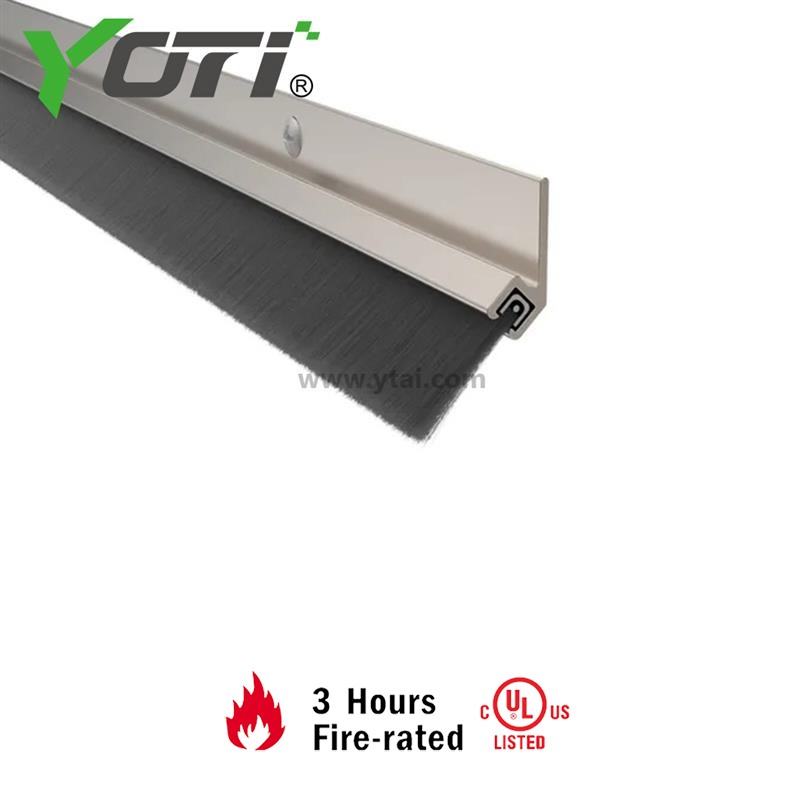

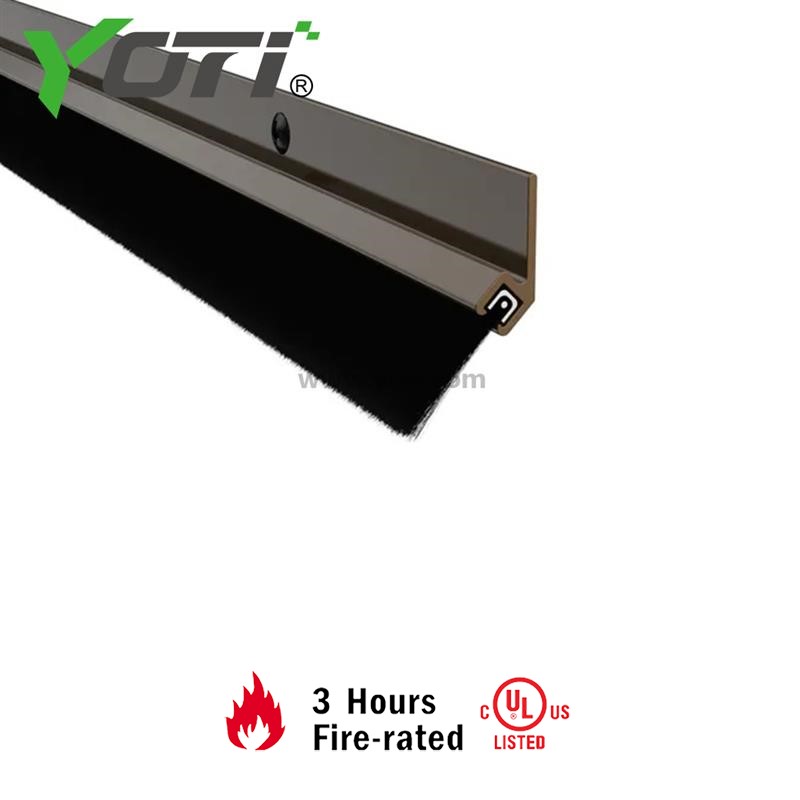

Finish
|
A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized)
|
|
Installation
|
Drill Holes Drill holes are provided
|
|
Certificate
|
Fire Rated - UL 10B/10C
|
