YDW203

YDW203

Perimeter Gaskets

- AVAILABLE FINISHES: A, C, D
- WIDTH: 1/4” (6.4 mm)
- PROFILE HEIGHT: 3/4” (19.1 mm)
- TOTAL HEIGHT WITH INSERT: 1-1/4” (31.8 mm)

Certificate:
- UL

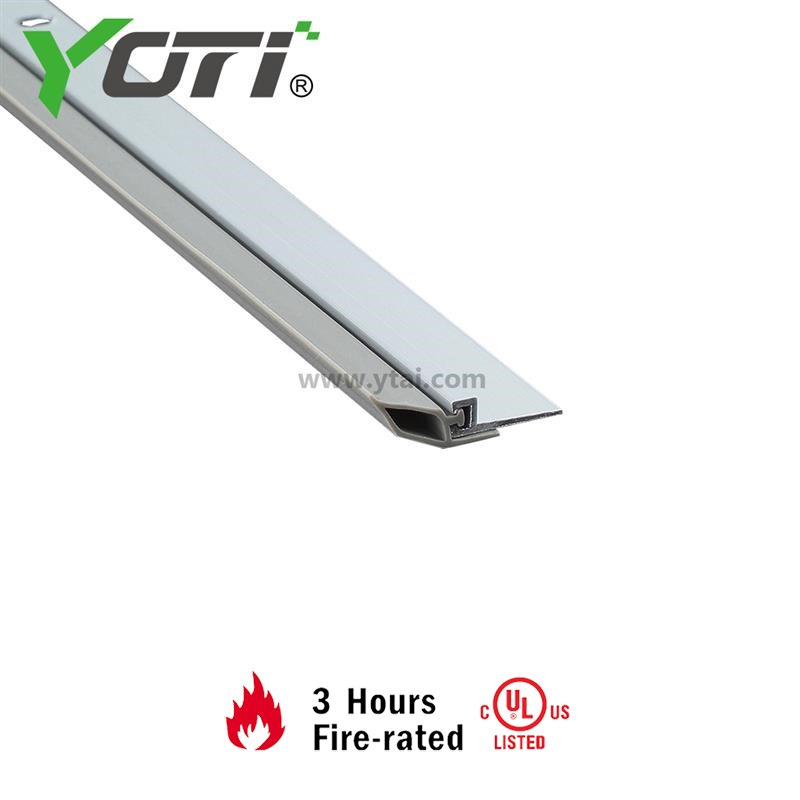

This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. Its 0.5" rubber square will create a seal that will prevent infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes that are guaranteed to blend unobtrusively into your door, and with various rubber seals.

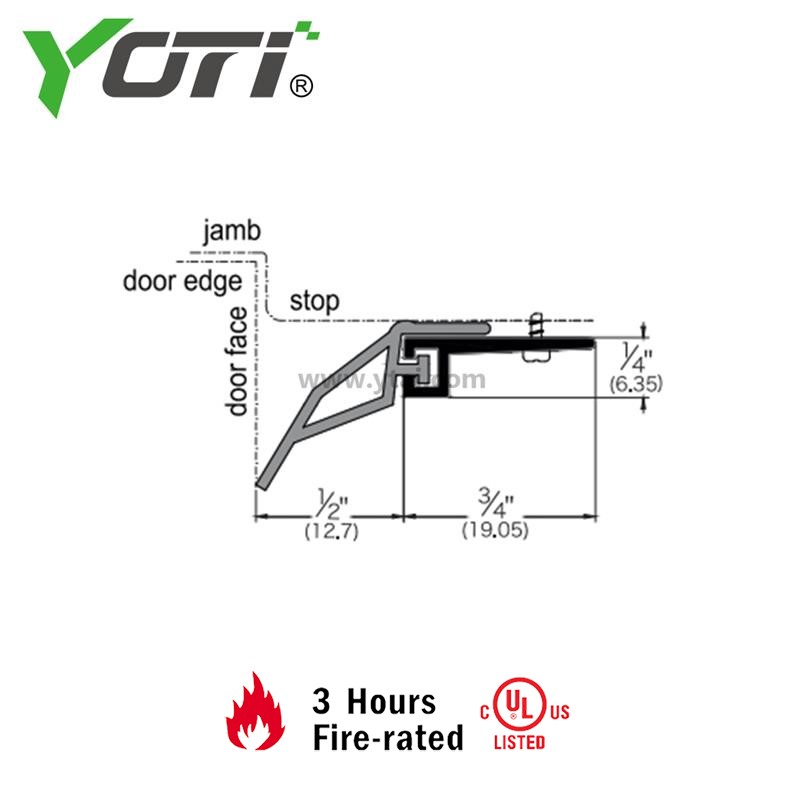

Door Gasket: Applied around the perimeter of the door. The aluminum retainer is surface applied to the stop of the door. When closed, the door compresses the seal to form a solid barrier. It is designed for gaps of 1/16" but can seal up to 1/2".

Meeting Stile: This is designed to be applied to a pair of double active doors. It is installed on the face of the door. It can fill gaps of approximately 1/2".


Feature:
◇Fire, smoke and air infiltration rated
◇Vinyl material is rated for low VOC Emissions
◇Slotted holes for easy adjustment
◇Door gasket or meeting stile application



Type
Weatherstrip/Standard Perimeter Gasketing
Material
6063-T5 Aluminum Alloy and Vinyl/Silicone Insert
Mounting
Surface Mounted
Lengths
Standard 36",48",36x84",48x84"; Custom Cut to Size, Up to 185"
Total Width
1-1/4" (31.8 mm)
Height
1/4" (6.4 mm)
Finishes
A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized)
Installation
Drill holes are provided
Certificate
Fire Rated - UL 10B/ UL 10C
