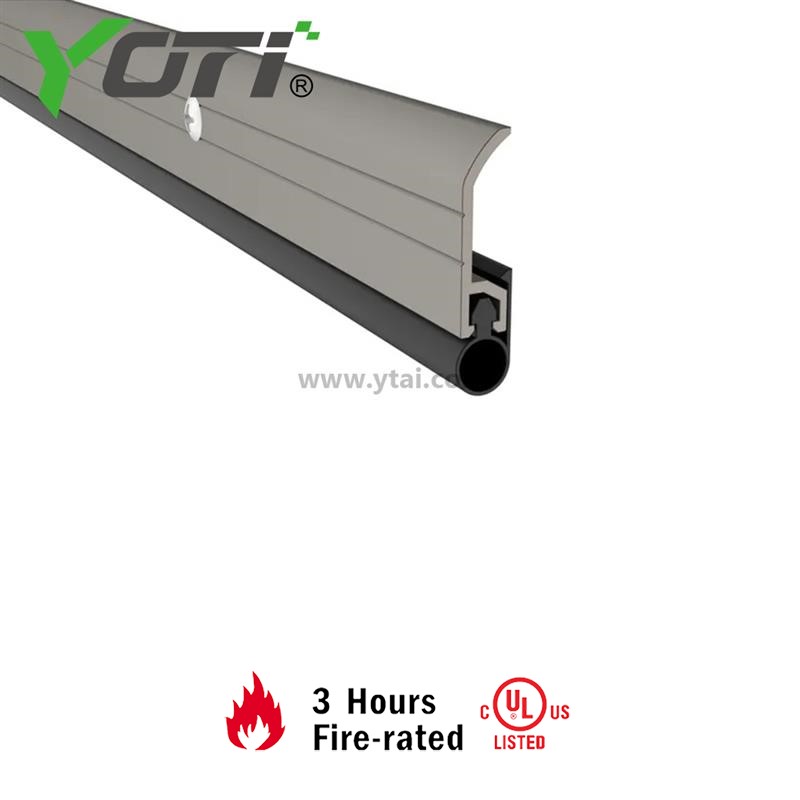

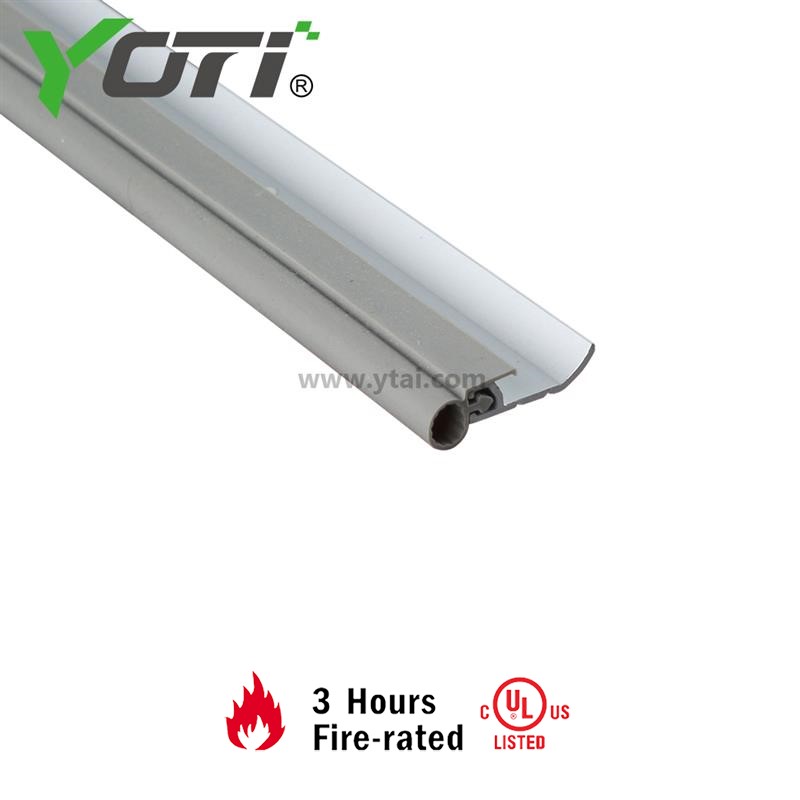

This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. Its 0.25" rubber bulb will create a seal that will prevent infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes that are guaranteed to blend unobtrusively into your door, and with various rubber seals.

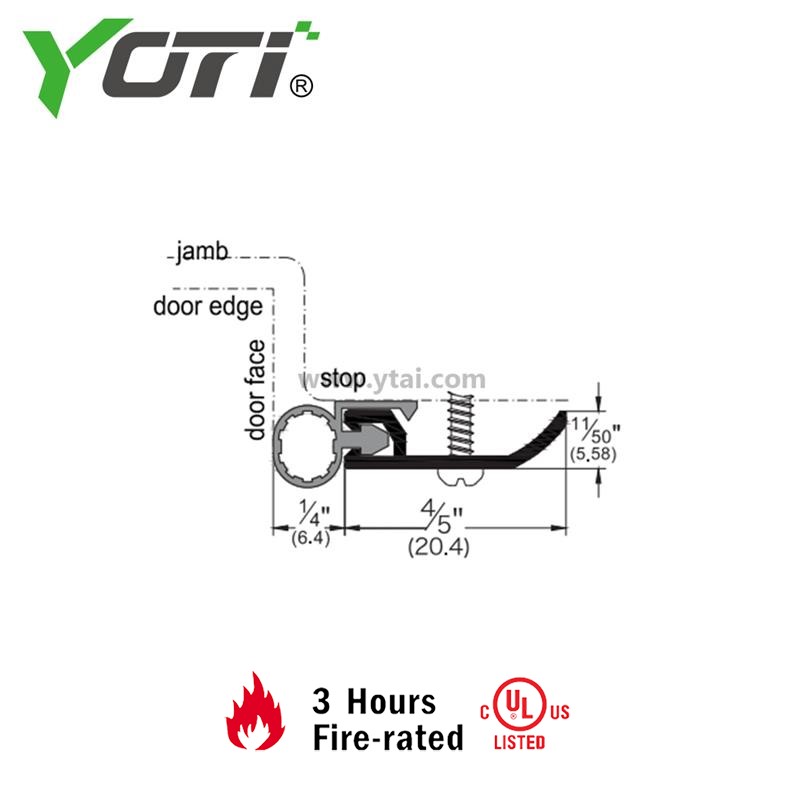

Door Gasket: Applied around the perimeter of the door. The aluminum retainer is surface applied to the stop of the door. When closed, the door compresses the seal to form a solid barrier. It is designed for gaps of 1/16" but can seal up to 1/4".
Meeting Stile: This is designed to be applied to a pair of double active doors. It is installed on the face of the door. It can fill gaps of approximately 1/4".
Feature:
◇Fire, smoke and air infiltration rated
◇Vinyl material is rated for low VOC Emissions
◇Slotted holes for easy adjustment
◇Door gasket or meeting stile application
|
Type
|
Weatherstrip/Standard Perimeter Gasketing
|
|
Material
|
6063-T5 Aluminum Alloy and Vinyl/Silicone Insert
|
|
Mounting
|
Surface Mounted
|
|
Lengths
|
Standard 36",48",36x84",48x84"; Custom Cut to Size, Up to 185"
|
|
Total Width
|
1-1/16" (26.46 mm)
|
|
Height
|
1/4" (6.4 mm)
|
|
Finishes
|

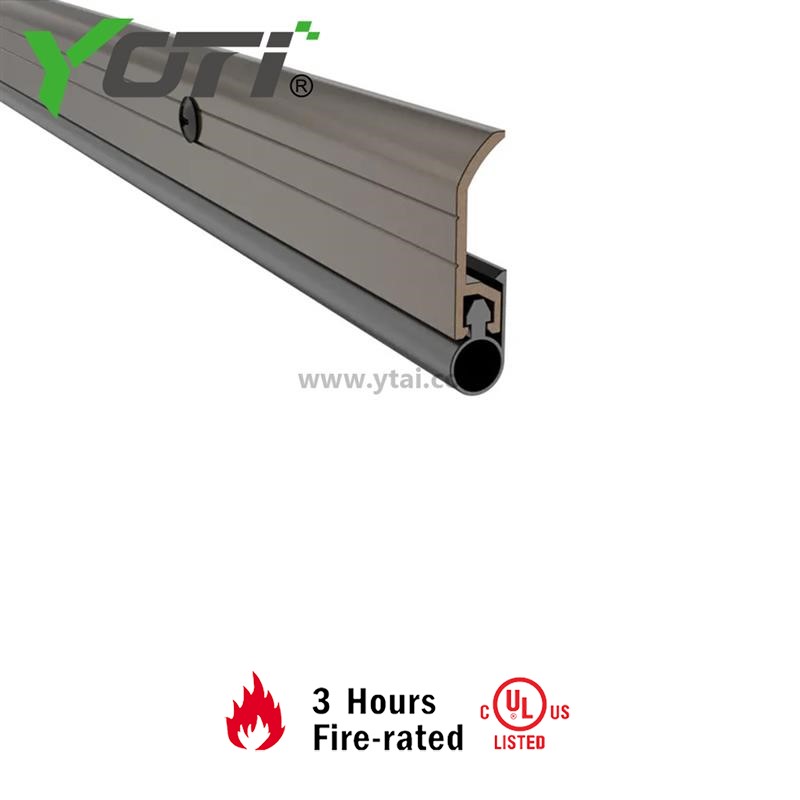

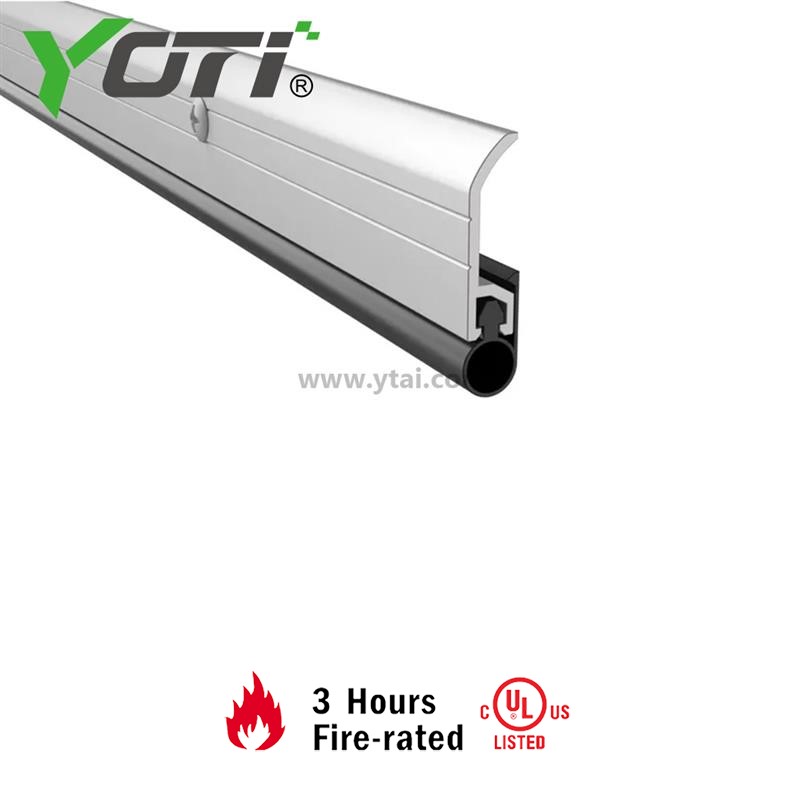

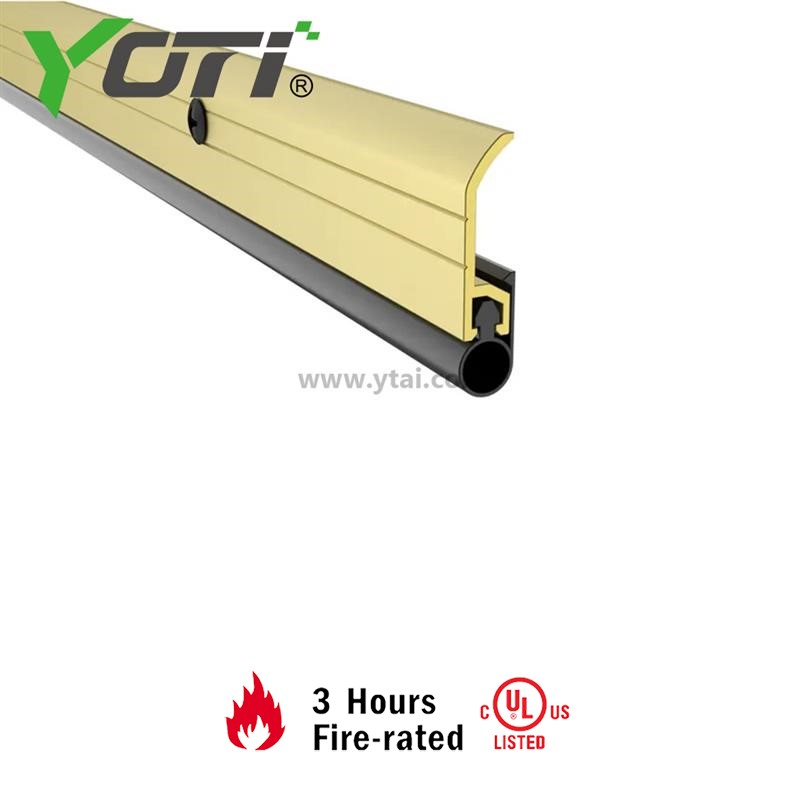

A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized)
|
|
Installation
|
Drill holes are provided
|
|
Certificate
|
Fire Rated - UL 10B/ UL 10C
|
