Electric Strike
Electric strikes are one of several kinds of electrically operated locking devices used to secure both inside and outside doors. Electro mechanical by nature, they provide a cost-effective way to control foot traffic from one side of a door to the other.

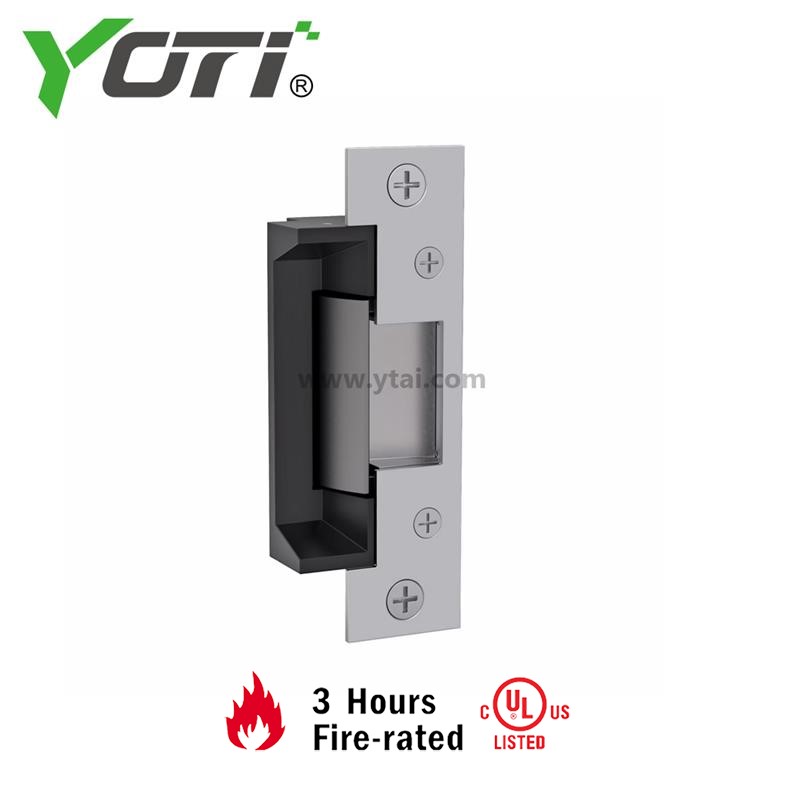

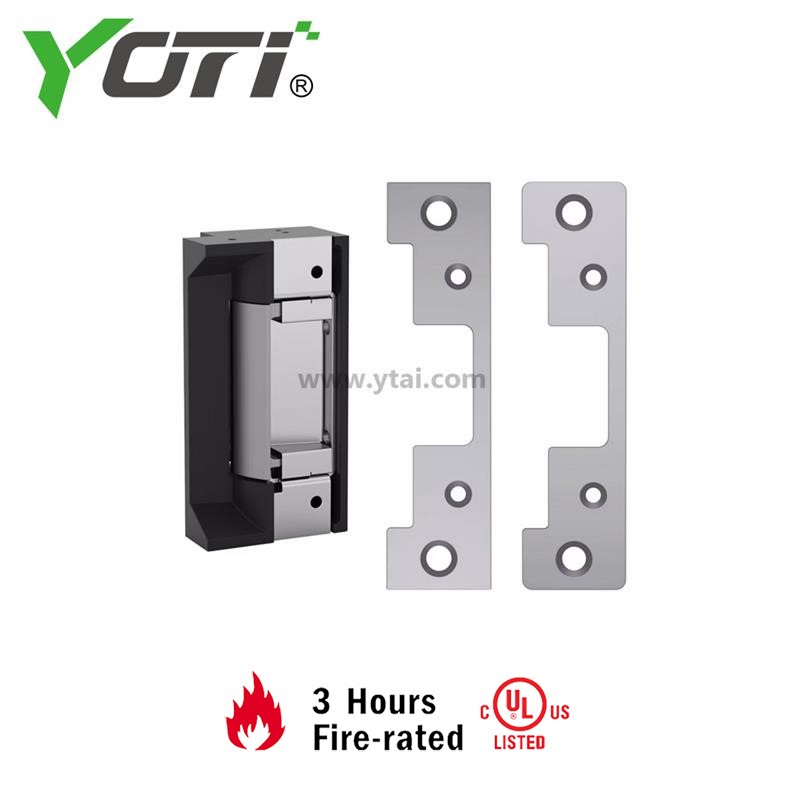

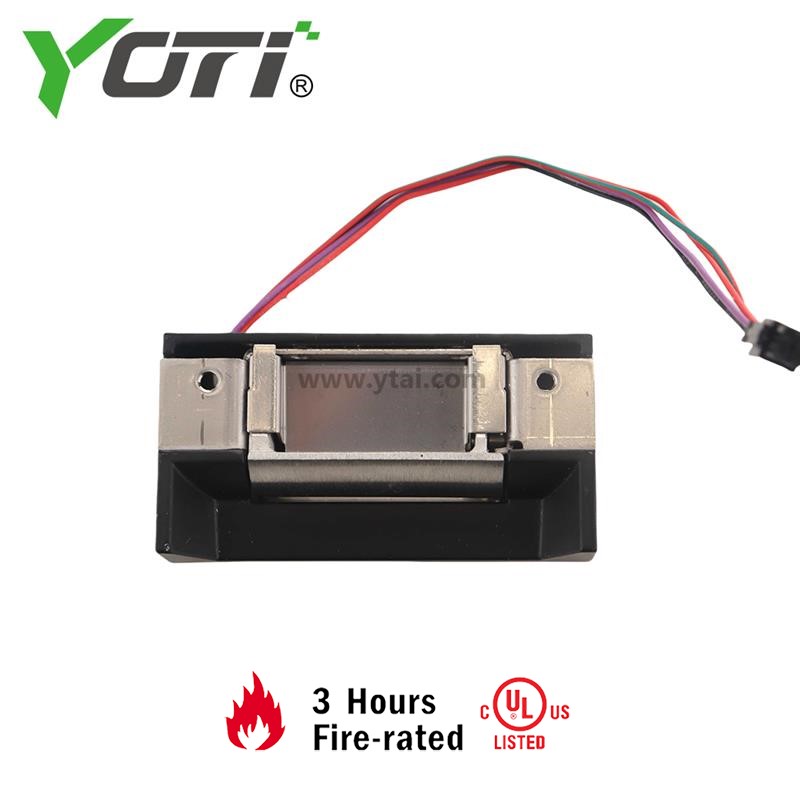

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.
Voltage
DC 12V/DC 24V
Suitable for
Wooden doors, Metal doors, PVC doors
Application
* Adjustability : None
* Surface Mounting : Cutting required
* Frame Material : Metal|Wood
* Shim Type : NA
* Latchbolt Accommodation : 1/2" - 5/8"

Electrical
* Voltage : 12/24
* Monitoring Installation : Factory Configured
* Monitoring Options : Latchbolt Monitoring

Strength & Durability
* Endurance (cycles) : 1,000,000
* Dynamic Strength (ft-lbs) : 70
* Tamper Resistant : Yes
* Fail Safe | Fail Secure : Field selectable fail safe/fail secure
* Grade : Grade 1

General Specifications
* Warranty : SecuriCare five-year, no fault, no questions asked warranty
* Lock Type : Cylindrical Lock

Weights & Dimensions
* Strike Body Depth (in) : 1-11/16"
* Strike Body Height (in) : 4-7/8"
