Electric strikes are one of several kinds of electrically operated locking devices used to secure both inside and outside doors. Electro mechanical by nature, they provide a cost-effective way to control foot traffic from one side of a door to the other.

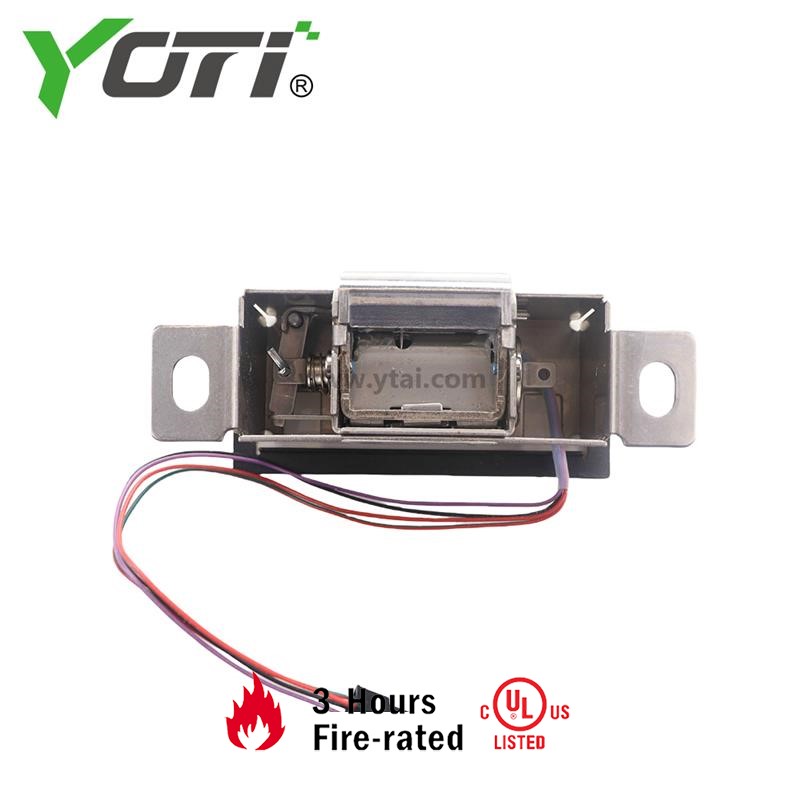

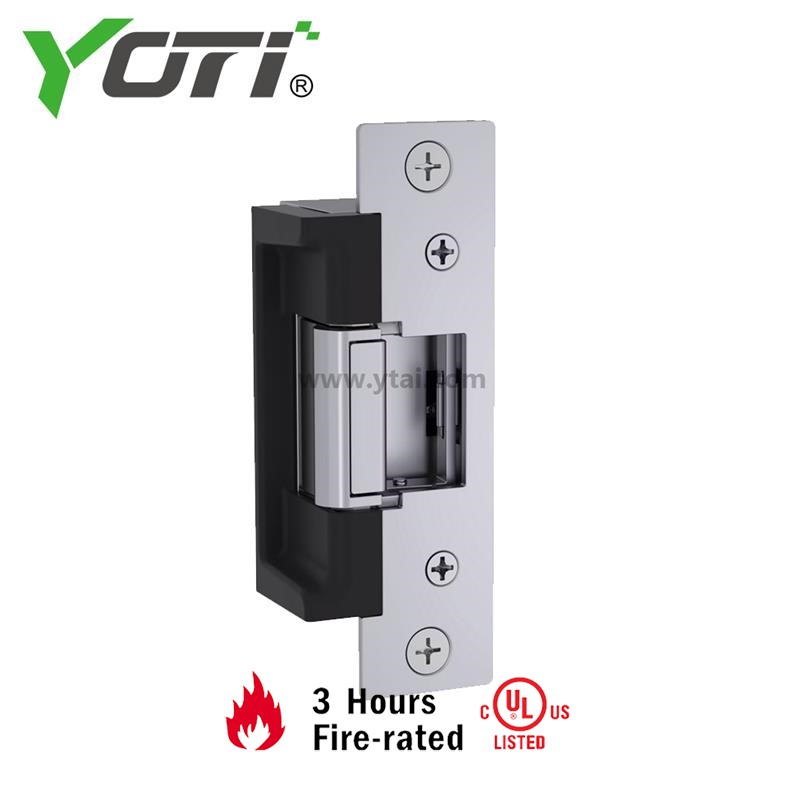

The 7000 Series offers two solutions to address preloaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation. The preload release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric
strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.
strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.
|
Voltage
|
DC 12V/DC 24V
|
|
Suitable for
|
Wooden doors, Metal doors, PVC doors
|
Application
* Adjustability : Horizontal
* Surface Mounting : Cutting required
* Frame Material : Metal|Wood
* Shim Type : NA
* Latchbolt Accommodation : Up to 5/8"
Electrical
* Voltage : 12/24
* Monitoring Installation : Factory Configured
* Monitoring Options : Latchbolt Monitoring
Strength & Durability
* Endurance (cycles) : 1,000,000
* Dynamic Strength (ft-lbs) : 70
* Tamper Resistant : Yes
* Fail Safe | Fail Secure : Field selectable fail safe/fail secure
* Grade : Grade 1
General Specifications
* Warranty : SecuriCare five-year, no fault, no questions asked warranty
* Lock Type : Exit Device|Cylindrical Lock
Weights & Dimensions
* Strike Body Depth (in) : 1-11/16"
* Strike Body Height (in) : 4-87/100"
* Strike Body Width (in) : 1-1/4"
* Adjustability : Horizontal
* Surface Mounting : Cutting required
* Frame Material : Metal|Wood
* Shim Type : NA
* Latchbolt Accommodation : Up to 5/8"
Electrical
* Voltage : 12/24
* Monitoring Installation : Factory Configured
* Monitoring Options : Latchbolt Monitoring
Strength & Durability
* Endurance (cycles) : 1,000,000
* Dynamic Strength (ft-lbs) : 70
* Tamper Resistant : Yes
* Fail Safe | Fail Secure : Field selectable fail safe/fail secure
* Grade : Grade 1
General Specifications
* Warranty : SecuriCare five-year, no fault, no questions asked warranty
* Lock Type : Exit Device|Cylindrical Lock
Weights & Dimensions
* Strike Body Depth (in) : 1-11/16"
* Strike Body Height (in) : 4-87/100"
* Strike Body Width (in) : 1-1/4"
