AS 2519 S
AS 2519 S
AS 2519 S
AS 2519 S

AS 2519 S

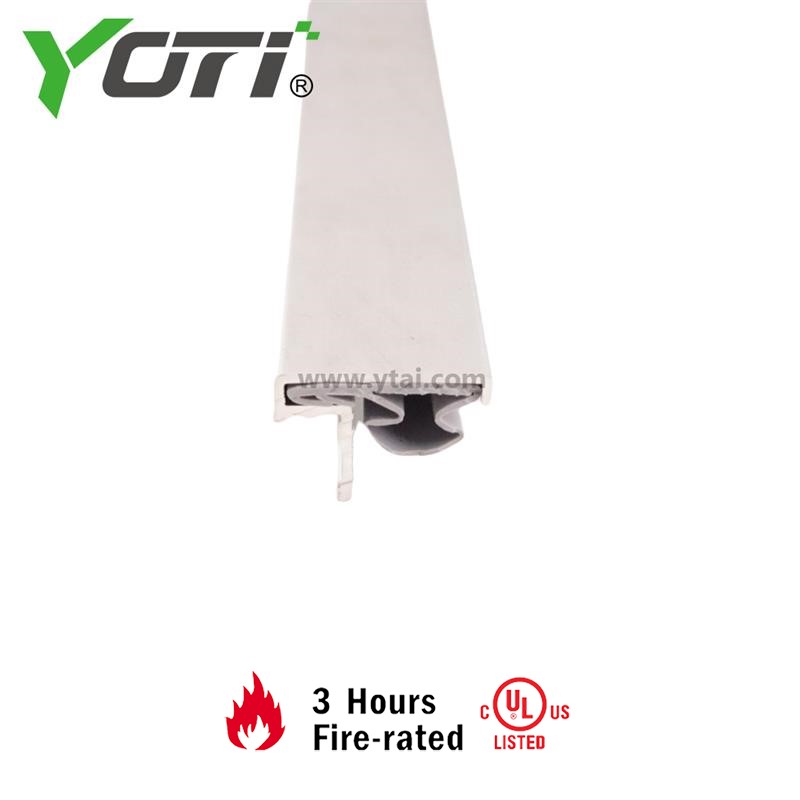

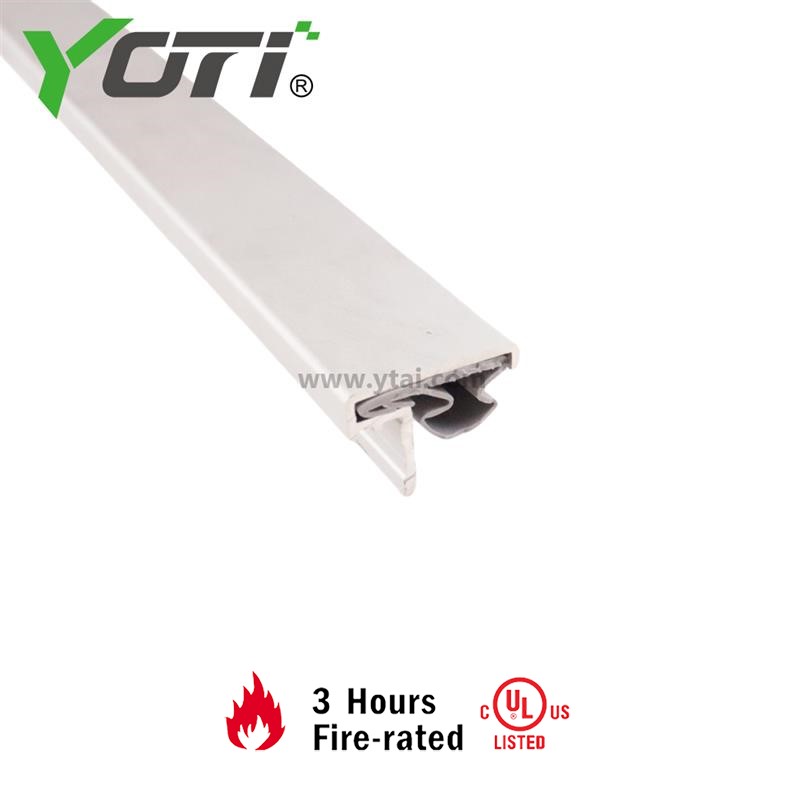

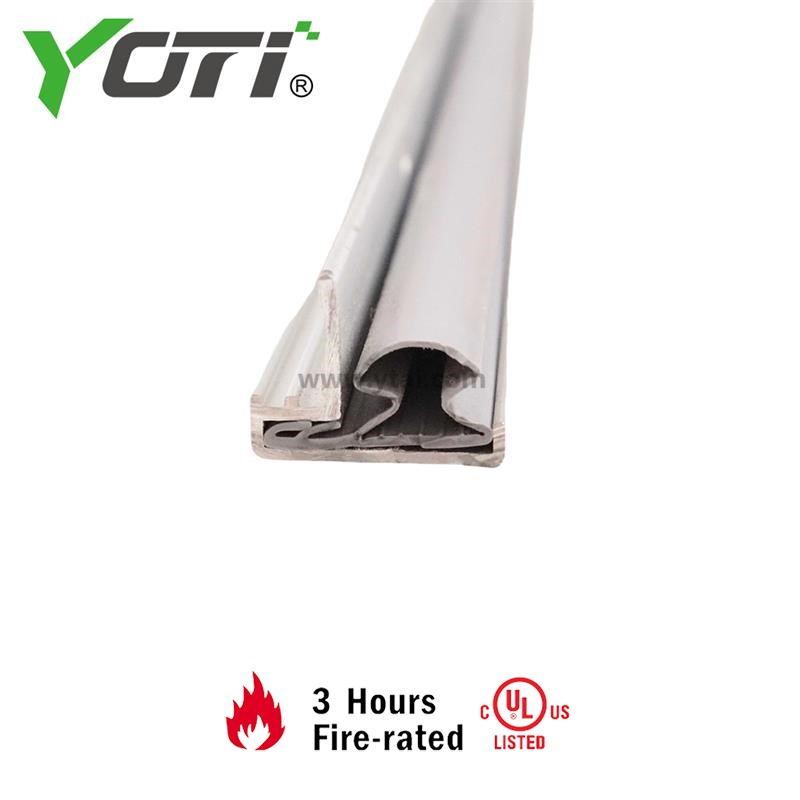

Surface mounted perimeter seals

- also suitable for retro-fit applications
- extremely low compression force for feather-light operation
- wide compression range
- astragal/meeting stile seal

The AS 2519 S is an astragal/meeting stile seal designed for effective sound insulation and smoke sealing. It offers a wide compression range with minimal force, ensuring a light, secure seal. Ideal for timber and metal frames.

door type: double swing door
frame material: metal, timber
carrier material: aluminium
surface: anodised
surface colour: silver
sealing profile material: self-extinguishing silicone
sealing profile colour: grey
temperature: -40°C bis 200°C
length max.: 3000 m

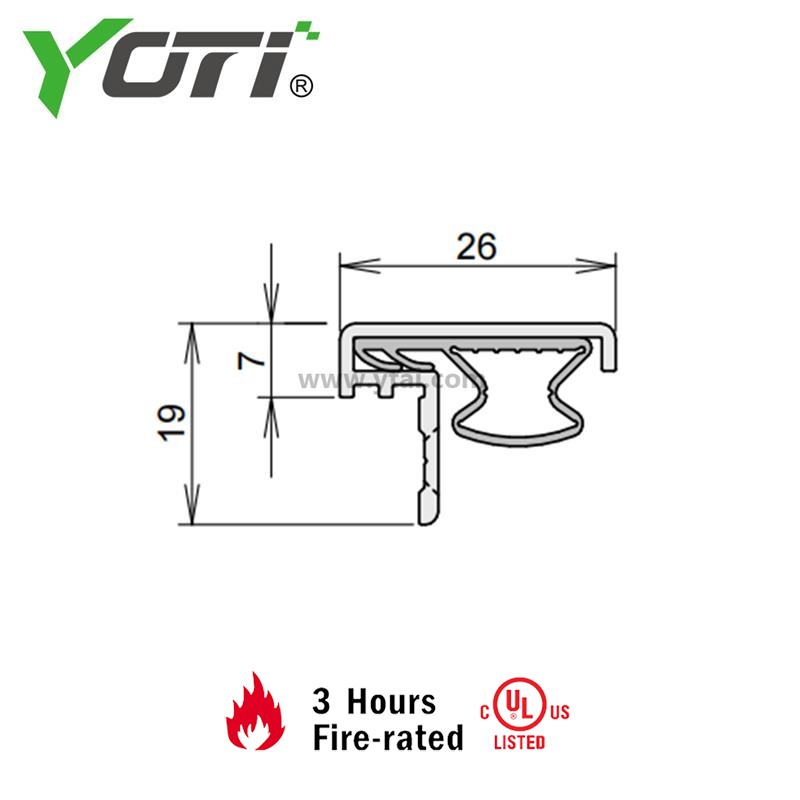

width: 25 mm
standard lengths: 750 mm, 2000 mm, 2250 mm, 2500 mm, 3000 mm
height: 19 mm
shortening: any
note VPE: 20 pcs/ Box
sealing profile tolerance: 0-4,5 mm
