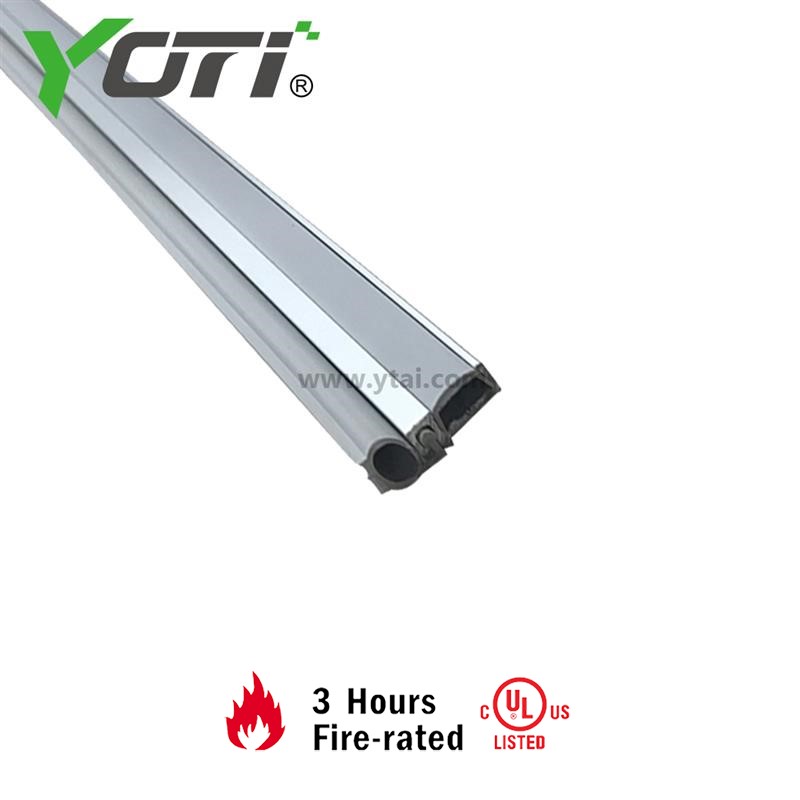

The IS7025si is a popular slim-line, door frame perimeter seal, designed to be fitted to an existing door stop, around the head and jambs of single swing doors. The aluminium carrier has fixing holes pre-drilled and slotted to allow the seals to be adjusted and positioned accurately. A decorative cover strip is supplied to conceal these fixings.
|
Type
|
Weatherstrip/Standard Perimeter Gasketing
|
|
Material
|
6063-T5 Aluminum Alloy and Vinyl Insert
|
|
Mounting
|
Surface Mounted
|
|
Lengths
|
Standard 1000mm, 2500mm, 1000mm×2100mm, 1000mm×2750mm, Custom Cut to Size
|
|

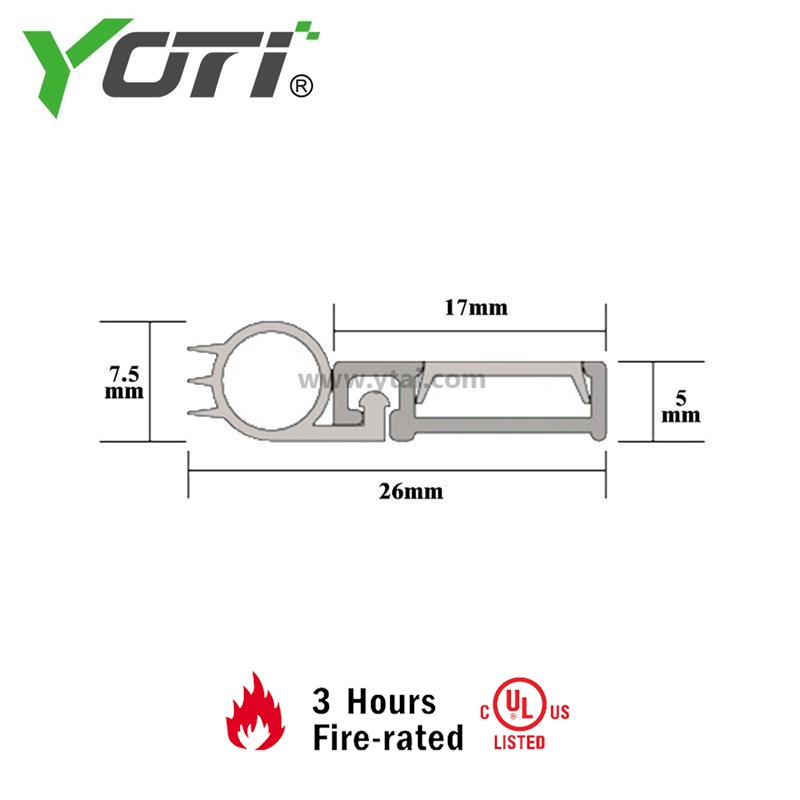

Total Width
|
3/10" (7.5 mm)
|
|
Height
|
1" (26 mm)
|
|
Finishes
|
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized)
BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) PW - (Panited White) |
|
Installation
|
Drill holes are provided
|
