Overview of Advantages
◇ For securing the non-hinge side on the secondary closing edge of swing doors made of wood, metal, PVC or glass
◇ Hard-wearing synthetic fibre fabric: washable, difficult to ignite B1
◇ Concealed housing fixing screws ◇ Fabric profile screws visible
◇ Housing position easy adjustable (elongated holes)
◇ Suitable for almost all doors ◇ Certified and supervised quality (MPA)
Incl. accessories

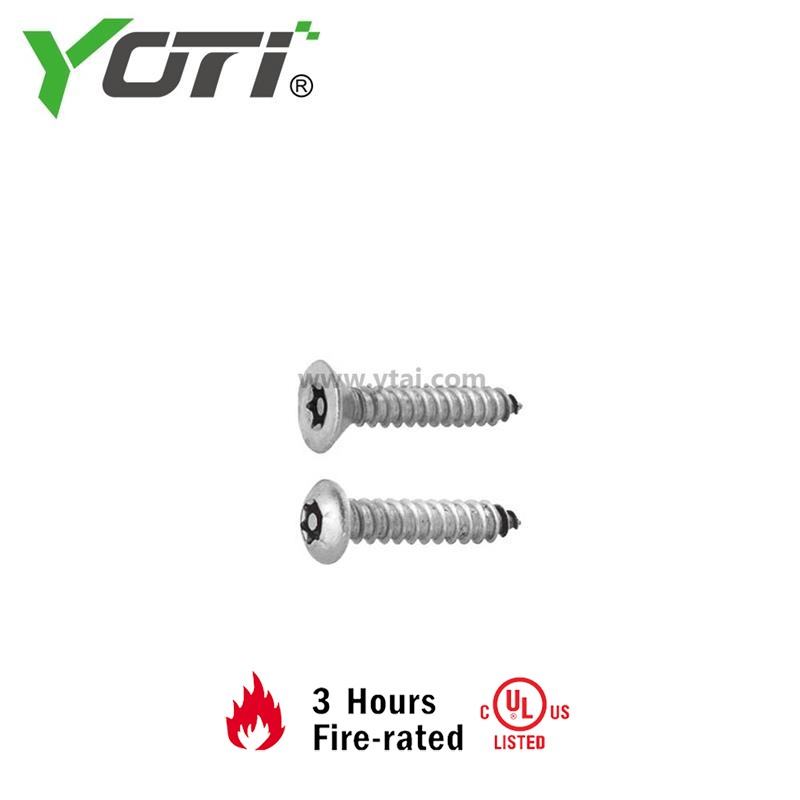

Universal screws
Tender specification

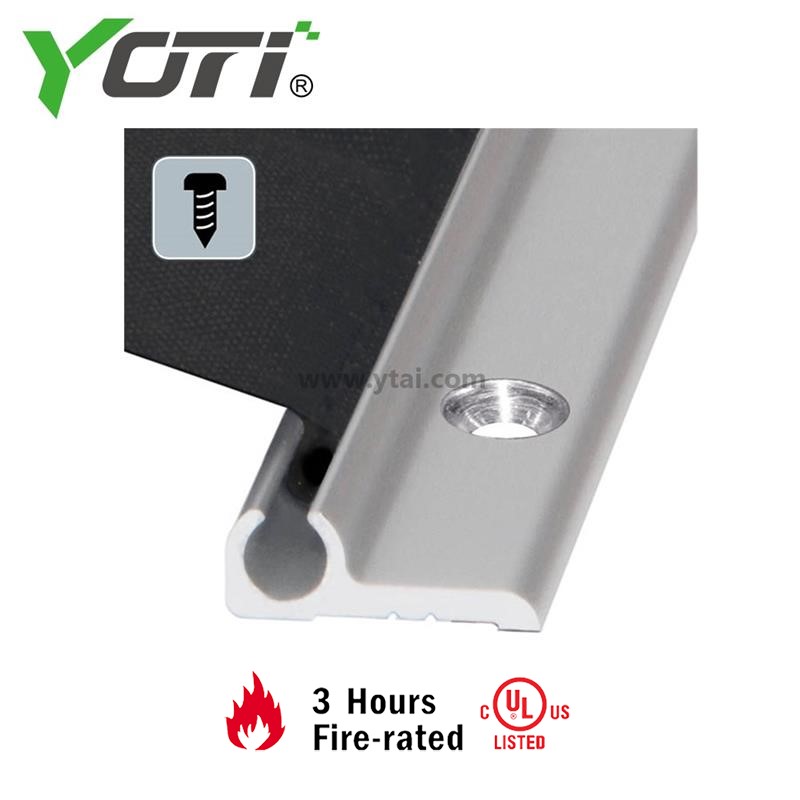

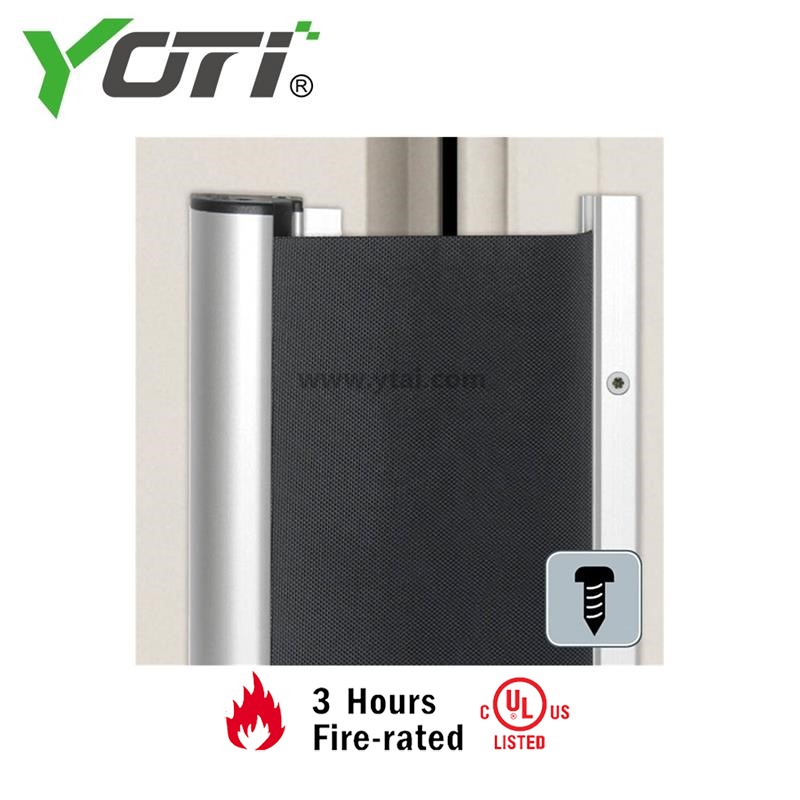

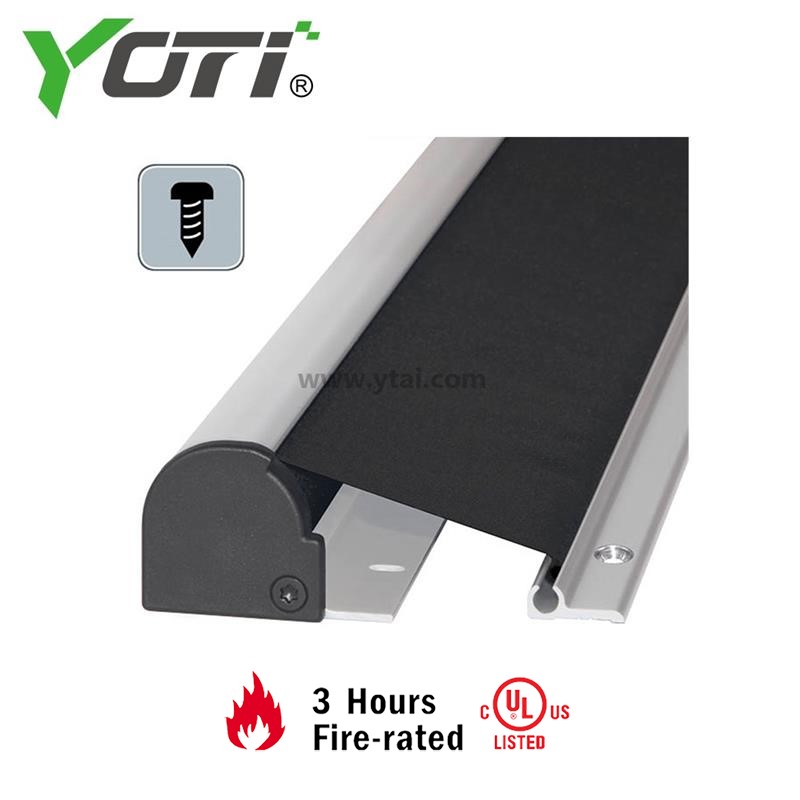

YOTI roller-type finger protector FSR 5000 [Basic] for safeguarding the non-hinge side at the secondary closing edge of swing doors. Roller-type protector that automatically maintains a constant tension. Fixing ele- ments on housing side with oblong holes for re-adjusting the roller protector. Profile made of aluminum. Surface finishes: anodised EV1, anodised stainless steel, powder coated RAL 9016, 9007, 7016 (please select). Cover of synthetic fibre, extended length 260 mm, fire retardant B1 treated, colour black. Standard length 1925 mm (for manually operated doors according to DIN 18101 with BRM 2000). Automatic length 2015 mm (for power operated doors according to DIN EN 16005) or fixed length between 310 mm and 2500 mm. (please select supply length)
