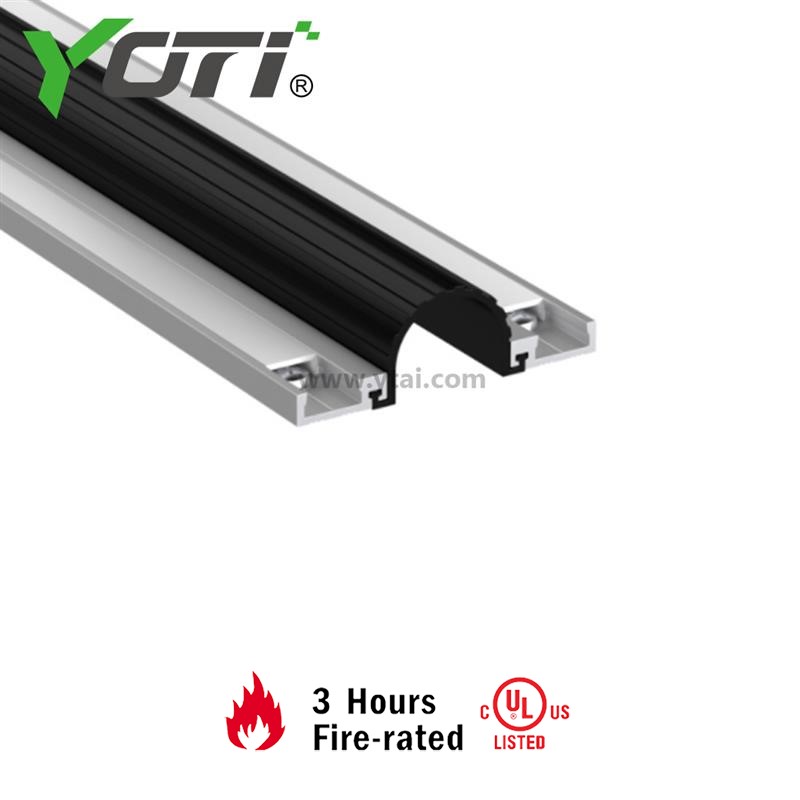

This medium duty finger guard seal for the hinge knuckle side of the door is part of a system that provides a shield to trapping fingers in hinged doors, which can cause horrendous injuries. Combine it with the LAS9070 SI on the hinge cavity side for a complete system.
|
Performance
|
|
Protects against draught and light. Suitable for wheeled traffic.
|
|
Location
|
|
Jambs of hinged doors. LAS9070 si can be used on doors with an opening of 180°.
|
|
Finishes
|
|
·Silver anodised aluminium with grey cover strip and grey gasket.
·Bronze anodised aluminium with black cover strip and black gasket.
|
|
Fixing
|
|
·Self-tapping wood screws are supplied (self-drilling and self-tapping screws for metal construction available on request)
·Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately. PVC cover strips to conceal fixings are supplied.
|
