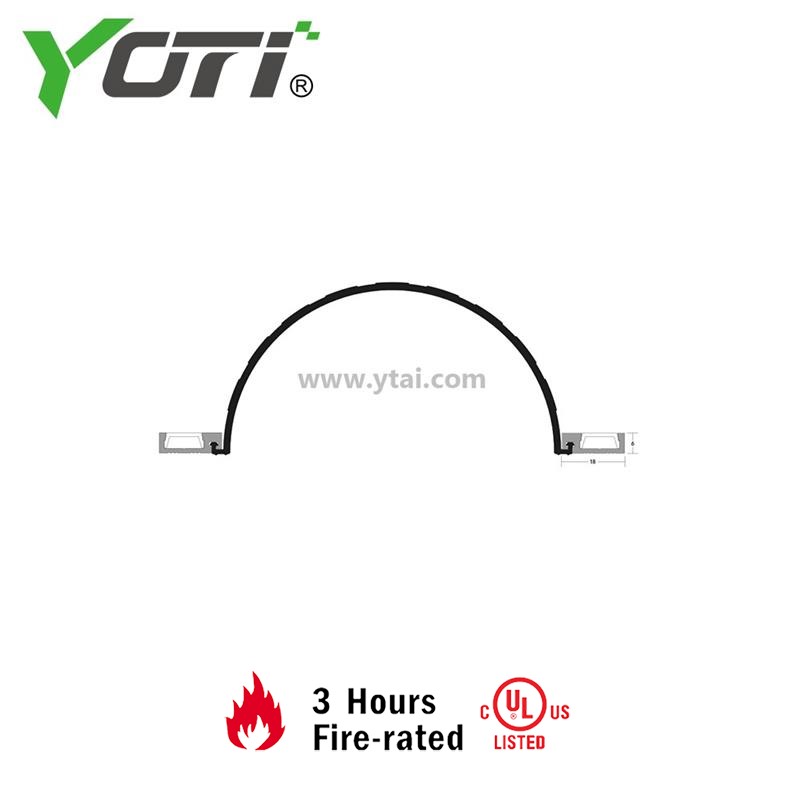

A durable safety finger guard seal, which provides a deterrent to fingers becoming jammed on the hinge cavity side of a door. The product is fixed to the door and the jamb on the hinge cavity side. Trapping fingers in hinged doors can cause horrendous injuries. The riskis especially high in locations where young children are present. To be used in conjunction with LAS9050 si finger guard seal for the hinge knuckle side.
| Performance |
|
Protects against draught and light.
|
|
Location
|
|
Jambs of hinged doors. It can be used on doors with an opening of 170° when used with LAS9050 si. 180° can be obtained when LAS9030 is used on its own.
|
|
Finishes
|
|
·Silver anodised aluminium with grey cover strip and grey gasket.
·Bronze anodised aluminium with black cover strip and black gasket.
|
|
Fixing
|
|
·Self-tapping wood screws are supplied (self-drilling and self-tapping screws for metal construction available on request)
·Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately. PVC cover strips to conceal fixings are supplied.
|
