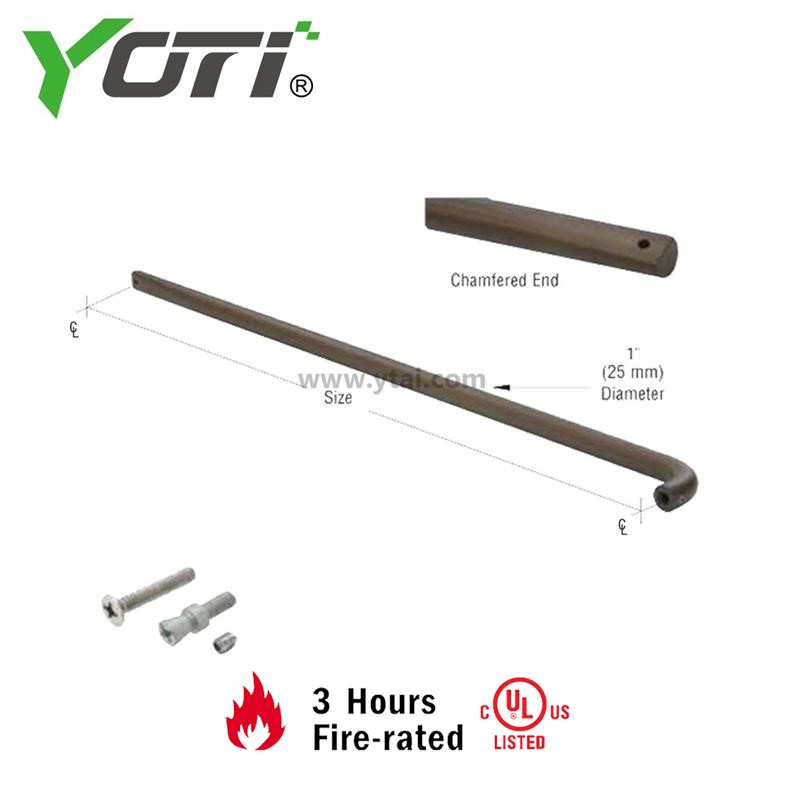

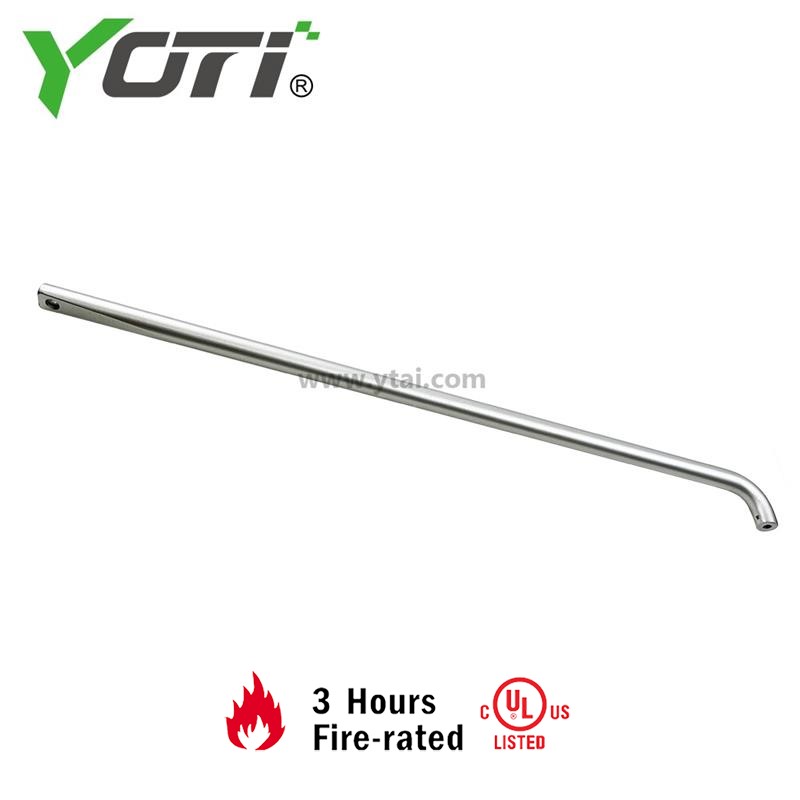

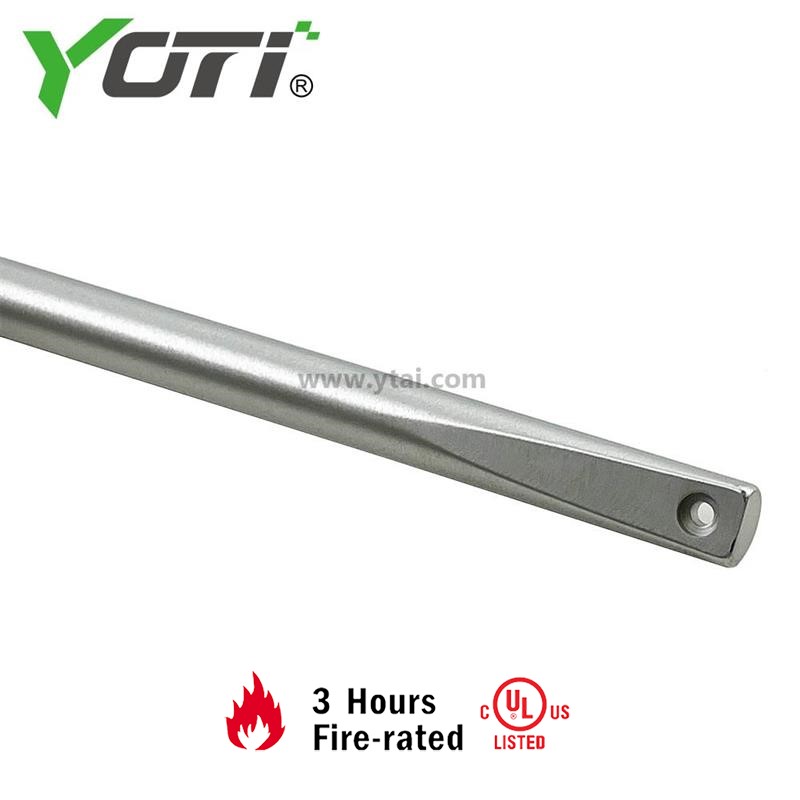

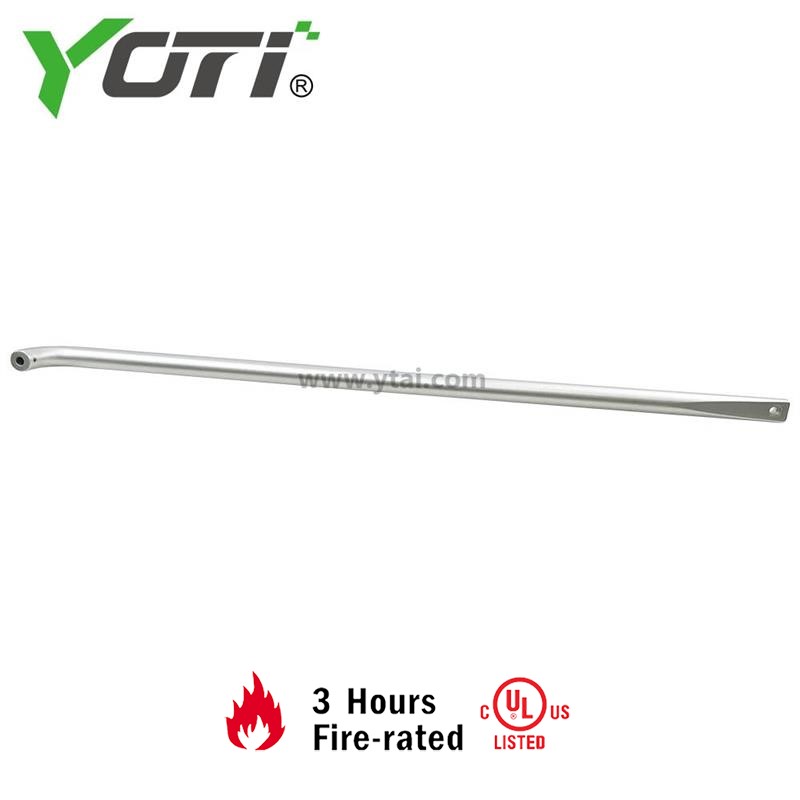

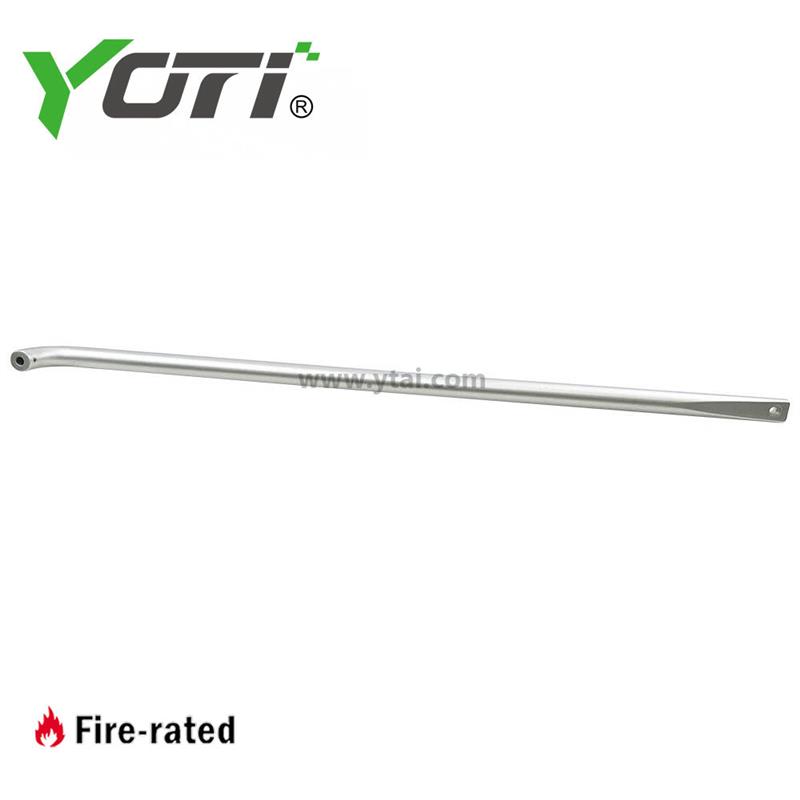

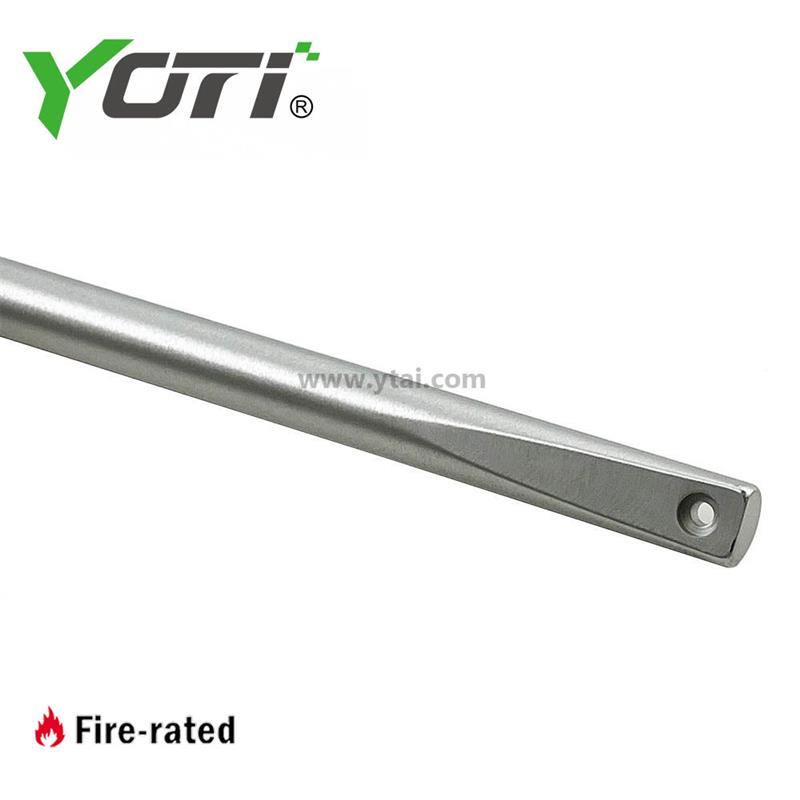

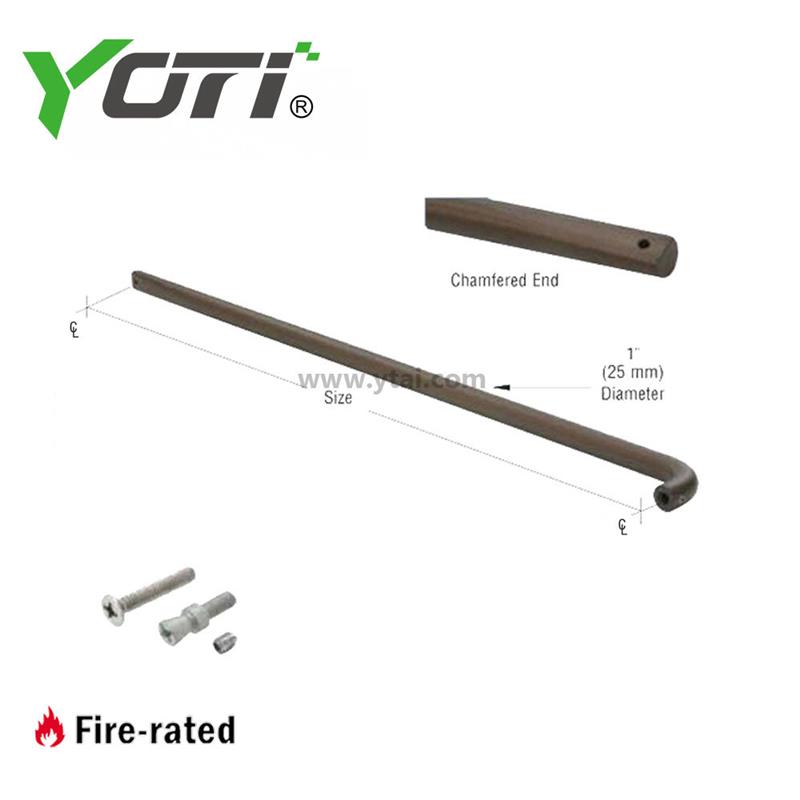

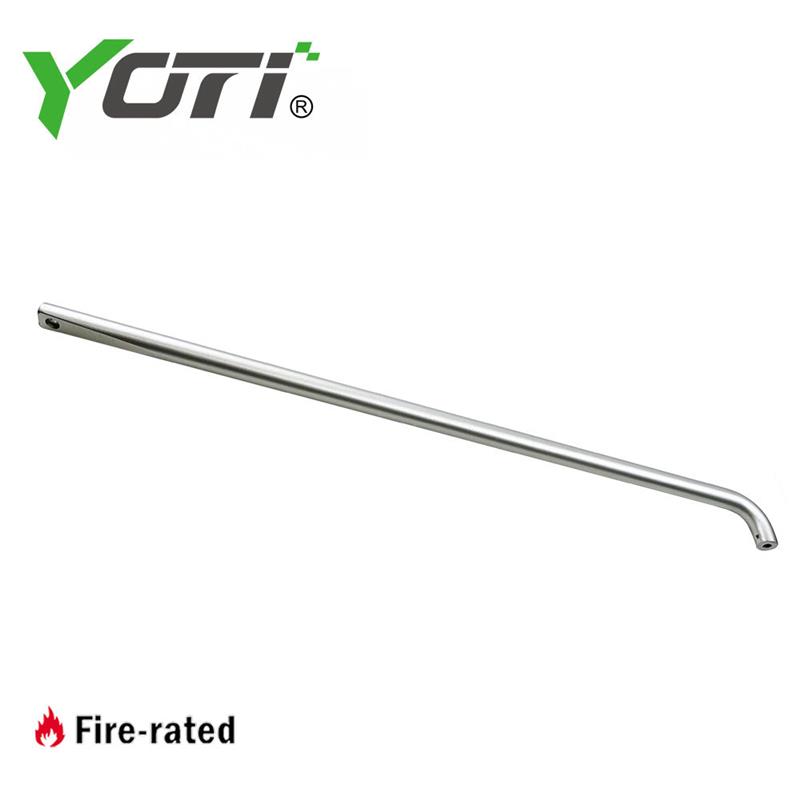

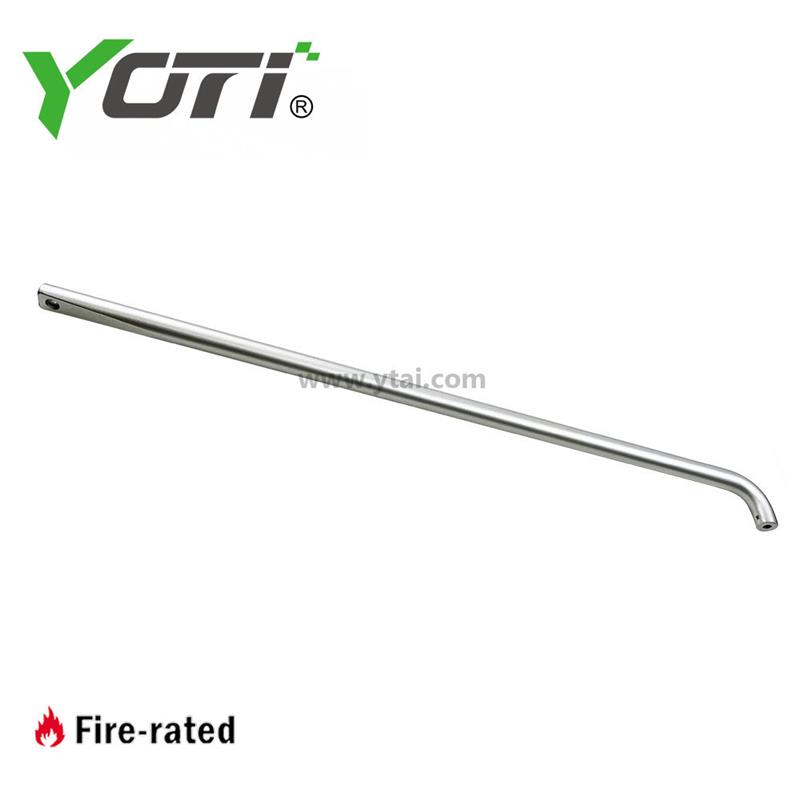

PB033 Series Push Bars for Double Acting Doors are made of 1" (25 mm) diameter solid extruded aluminum. Each Push Bar comes with a smooth chamfer at the hinge side minimizing the projection and allowing for a clear door swing. Push Bars are available for 36", 42", or 48" (914, 1067, or 1219 mm) doors. The projection height is 2-1/2" (63.5 mm) from the face of the door. Packed one each.
NOTE: Must buy two for each double acting door.
|
|
Mounting One 1/4"-20 Phillips Head Machine Screw, One 1/4"-20 Threaded Shoulder Bolt and One Set Screw for Single Mount Application |
PUSH BARS FOR DOUBLE ACTING DOORS
|
Clear Aluminum Anodized |
Dark Bronze Anodized |
Size |
|
PB033C-33" |
PB033D-33" |
33" (838 mm) |
|
PB033C-39" |
PB033D-39" |
39" (991 mm) |
|
PB033C-45" |
PB033D-45" |
45" (1143 mm) |
