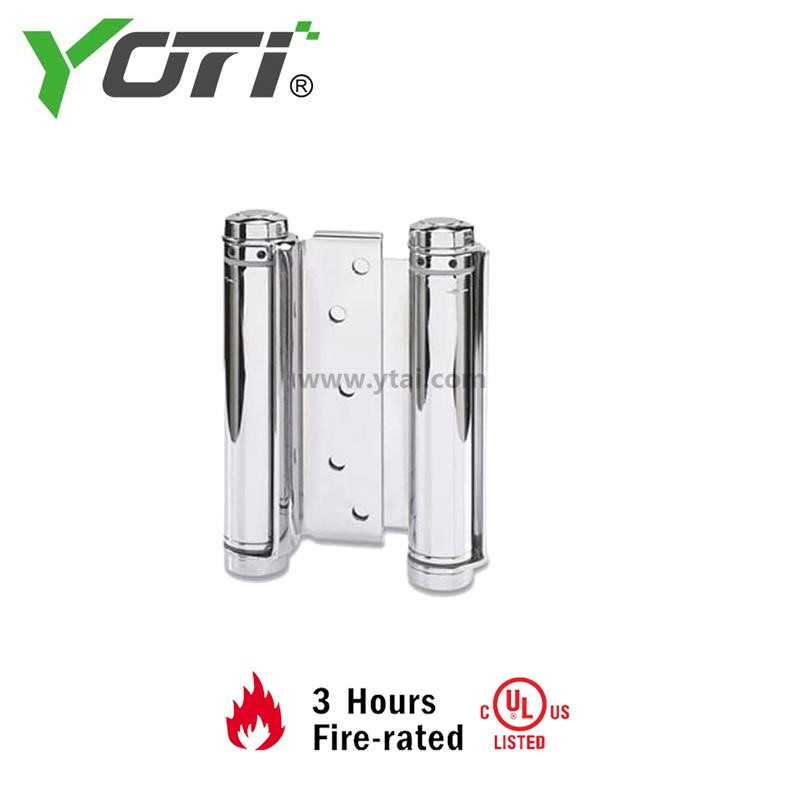

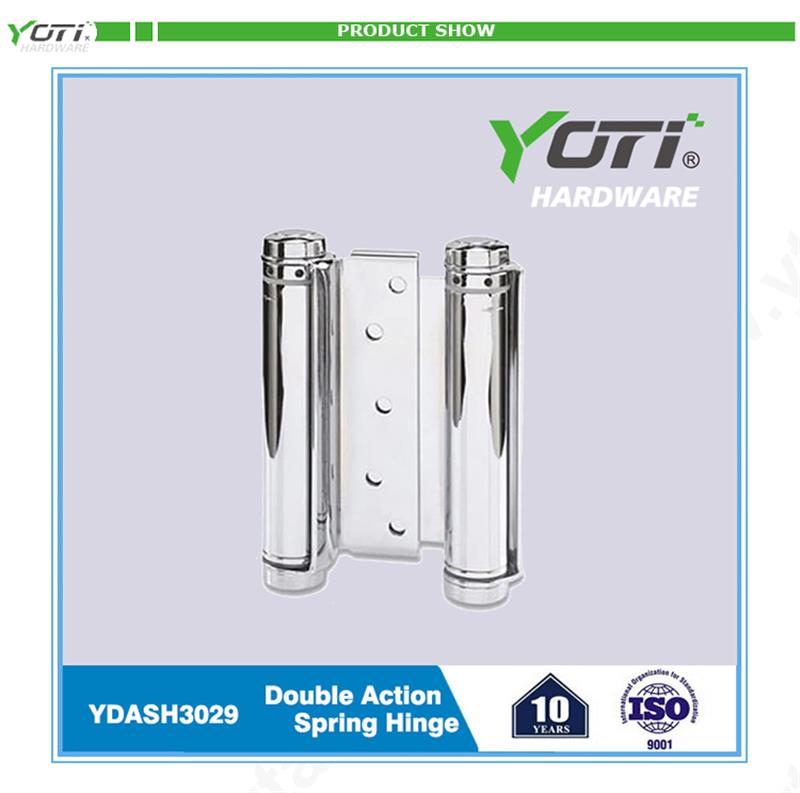

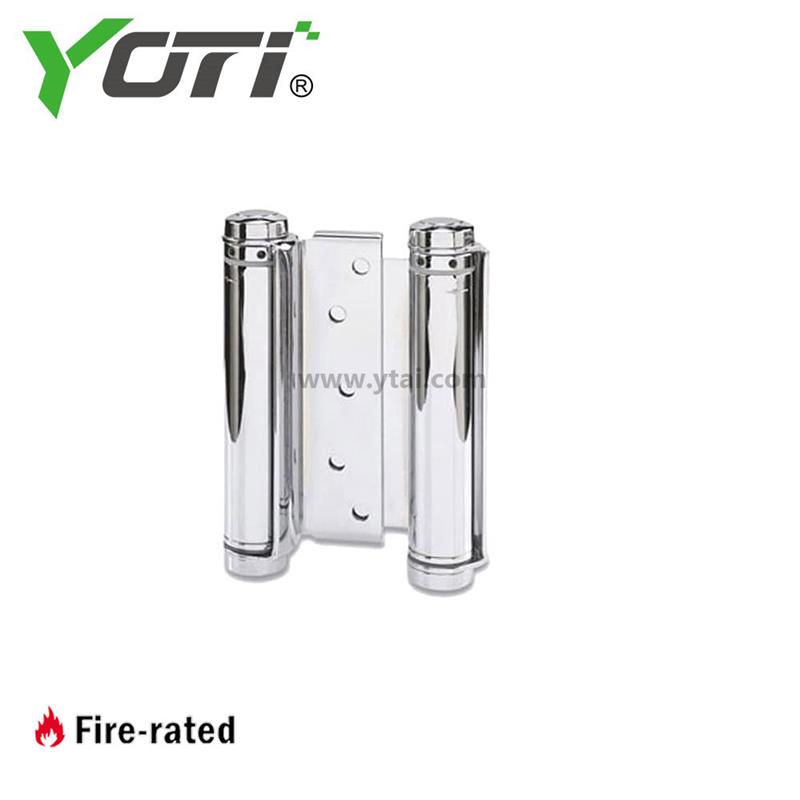

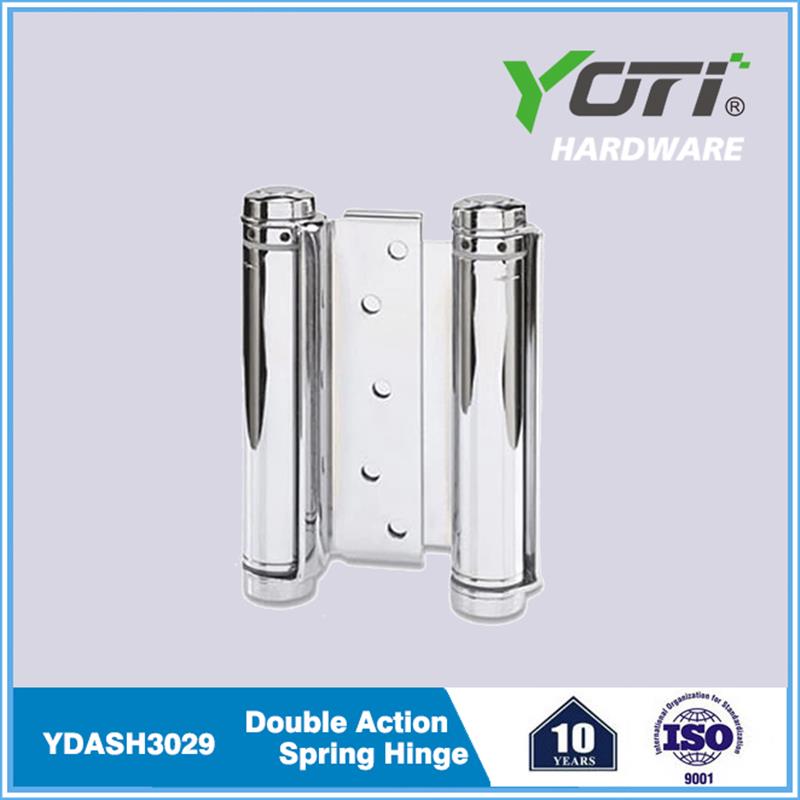

Double Action | Acting Spring Hinge for Cafe | Saloon Doors- All Finishes Available
These hinges are sold individually.
This hinge is a double action hinge that is spring loaded and can be used in many applications such as: a cafe door hinge, swinging door hinge, saloon door hinge or a gate hinge.
Specifications
• 3" to 8" is the height of the flat flange in between the barrels, barrels measure roughly 1" longer
• Double action spring hinge which swings door both directions
• Adjustable spring tension returns doors to center at a desired force
• Non-Hold Open
• Commercial Grade
| Spring Hinge Sizing Guide | |||||
|
Spring Size |
2 Hinges Per Door | 3 Hinges Per Door | |||
|
Max Door Weight |
Max Door Width |
Max Door Weight |
Max Door Width |
Max Door Thickness |
|
| 3" | 35 lbs | 24" | 39 lbs | 32" | 3/4" to 1" |
| 4" | 60 lbs | 30" | 75 lbs | 36" | 3/4" to 1" |
| 5" | 65 lbs | 32" | 93 lbs | 36" |
1-1/8" to 1-1/2" |
| 6" | 75 lbs | 32" | 107 lbs | 36" |
1-1/8" to 1-1/2" |
| 7" | 82 lbs | 36" | 120 lbs | 42" | 1-3/8" to 2" |
| 8" | 103 lbs | 42" | 143 lbs | 48" | 1-3/8" to 2" |
