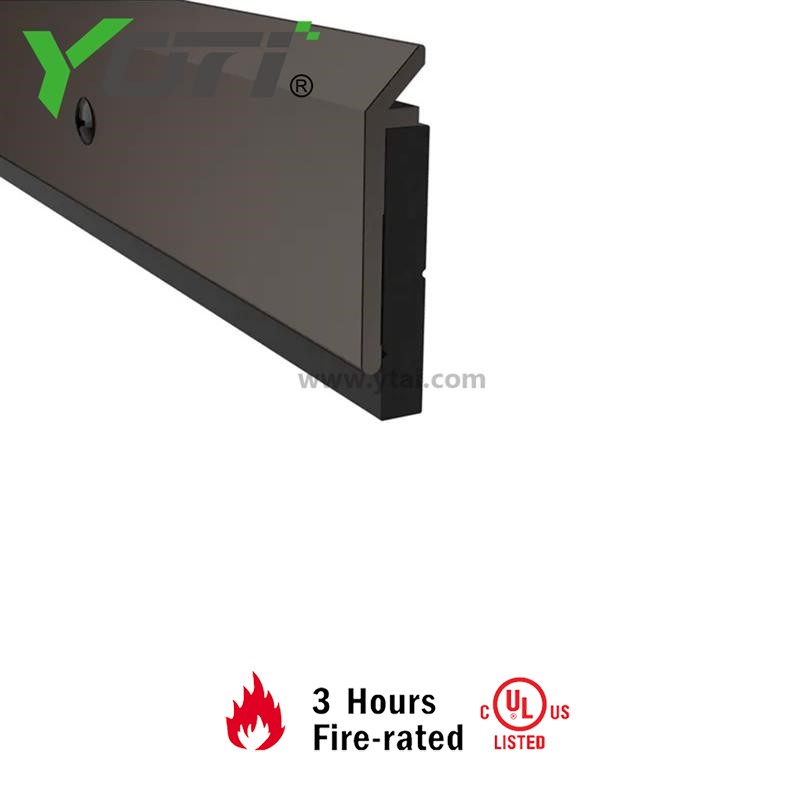

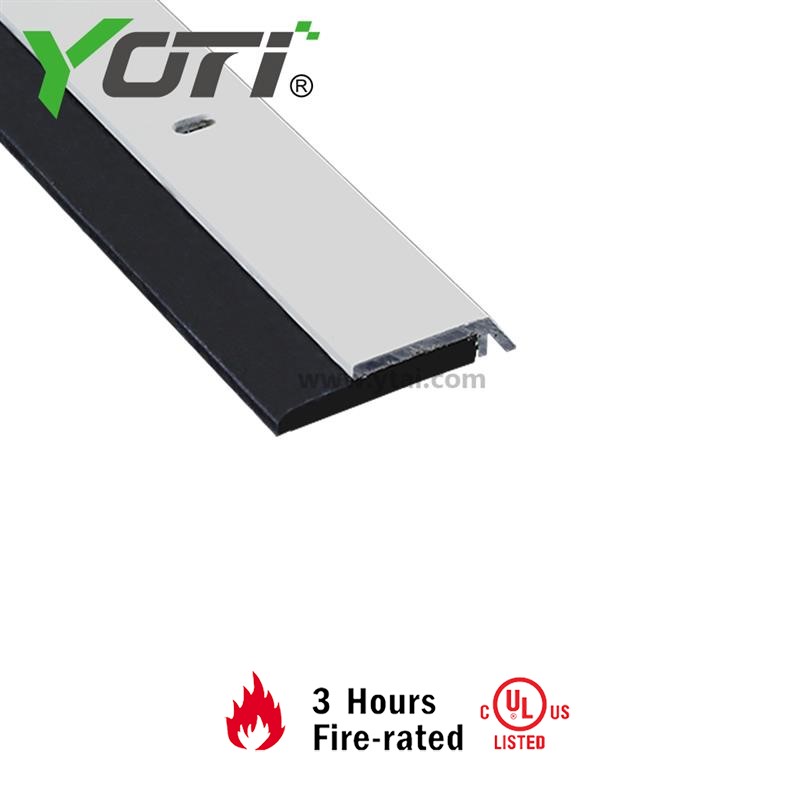

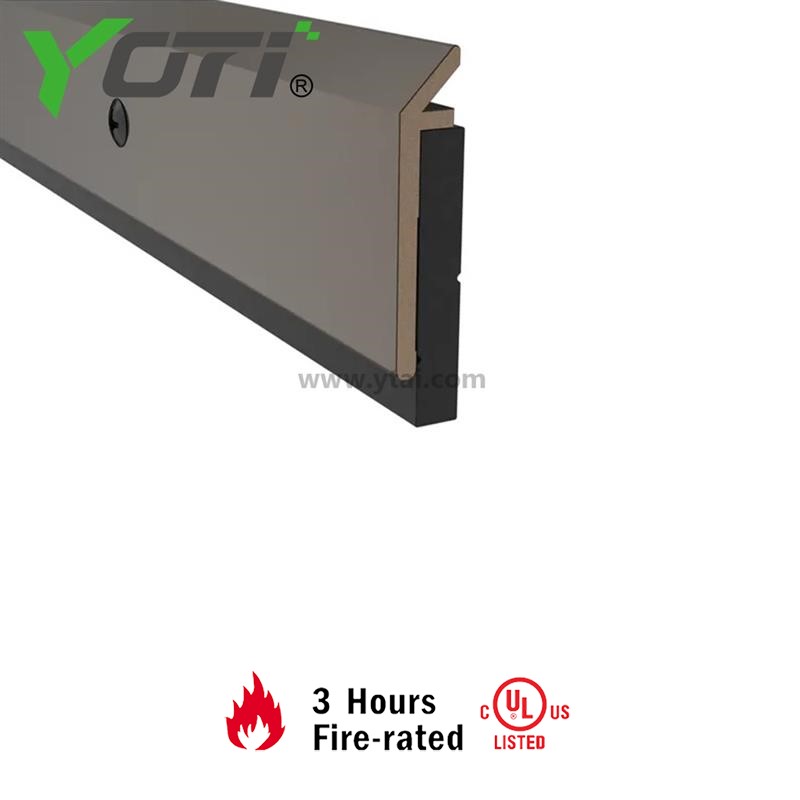

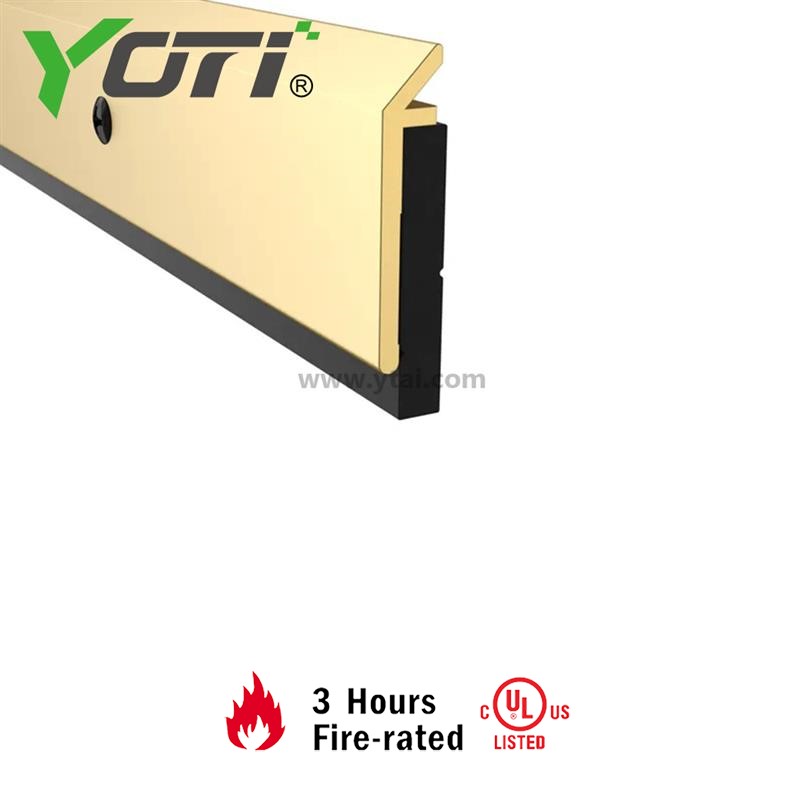

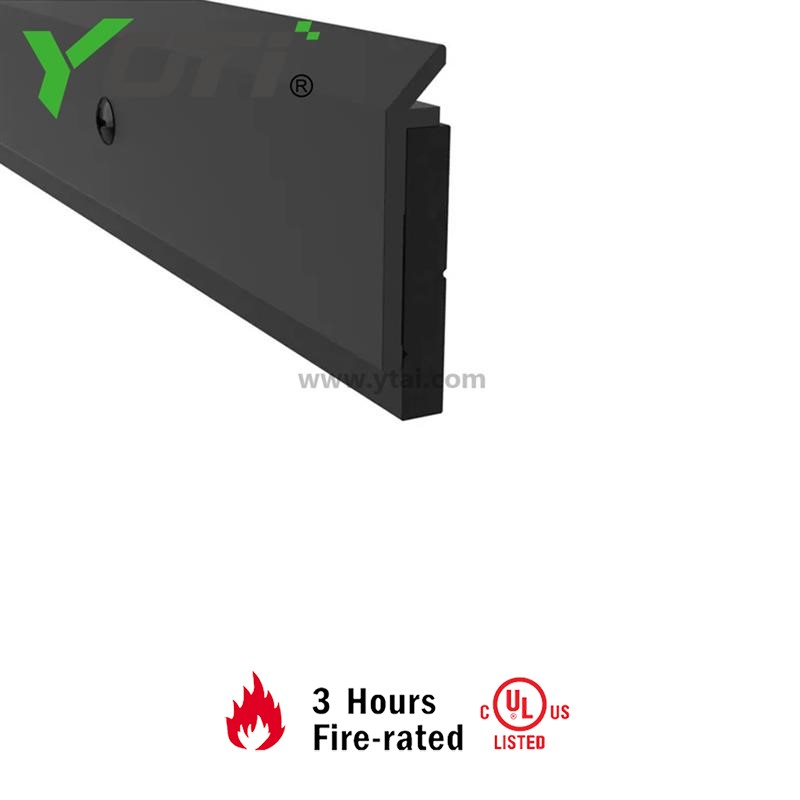

This door bottom, with a 1.25" sleek anodized aluminum casing, is fitted with a 9/16" thick sponge neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface to seal small gaps of approximately 9/16". Available in anodized aluminum and is custom cut to size.
|
Retainer Material
|
Aluminum
|
|
Temperature Range
|
-4°F to 122°F
|
|
Door Type
|
Wooden Door, Metal Door
|
|
Seal Type
|
Neoprene Rubber Seal
|
|
Mounting
|
Surface Mounted
|
|

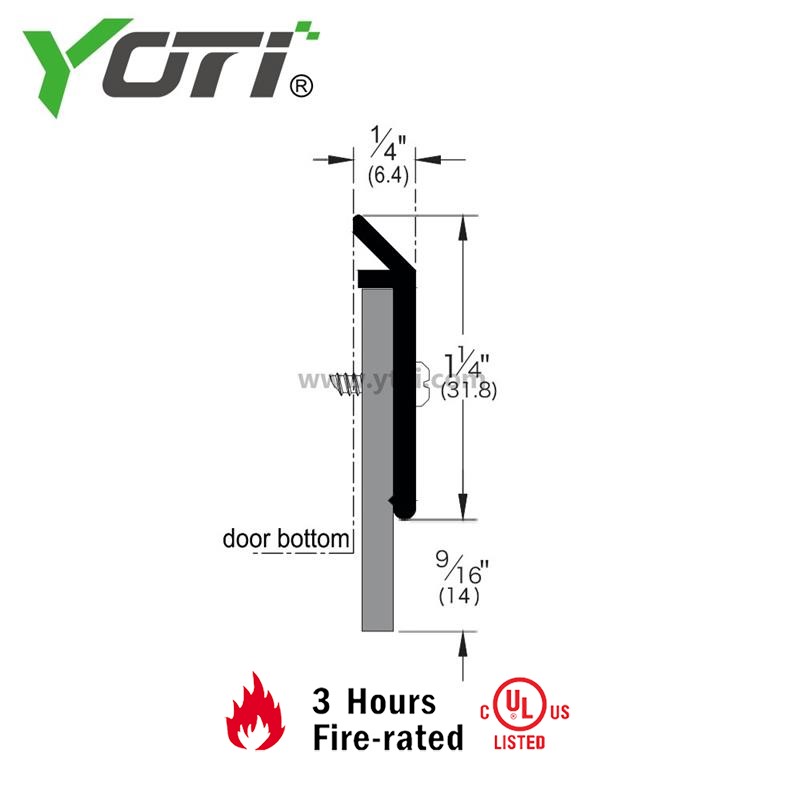

Seal Height
|
9/16" Height
|
|
Total Height
|
1-13/16" Height
|
|
Additional Dimensions
|
Door seal is 1/4" thick
|
|
Length
|
Standard 36", 48"; Custom Cut to Size
|
|
Installation
|
Drill holes are provided
|
|
Certificate
|
Fire Rated - UL 10B/10C
|
