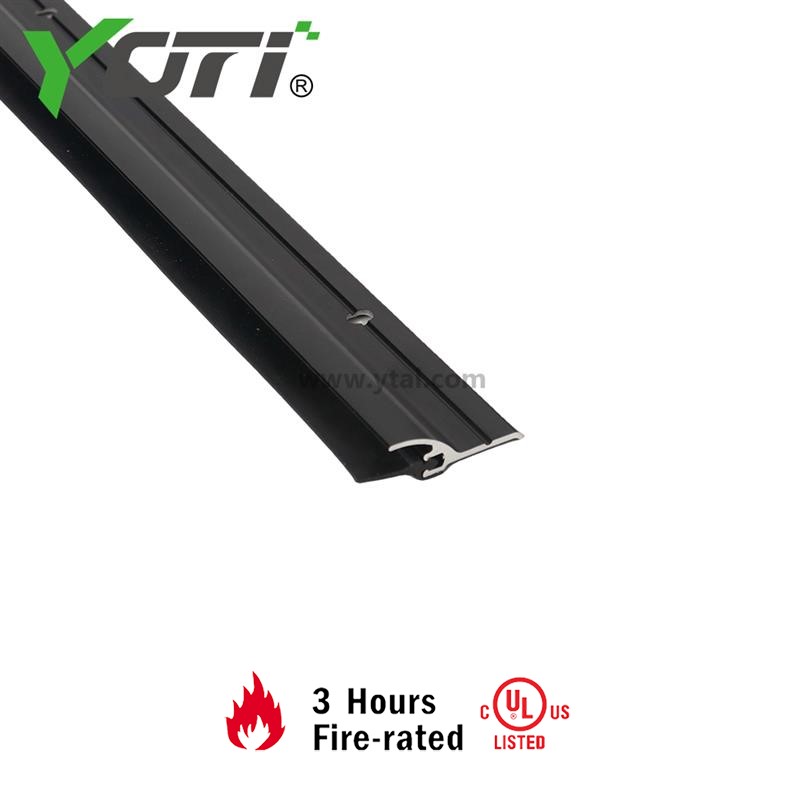

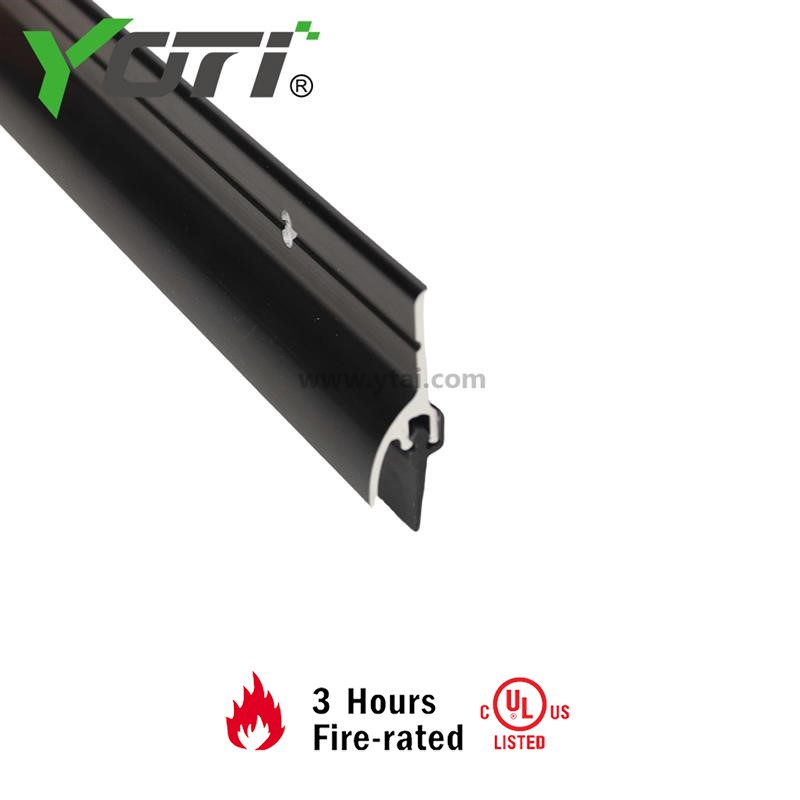

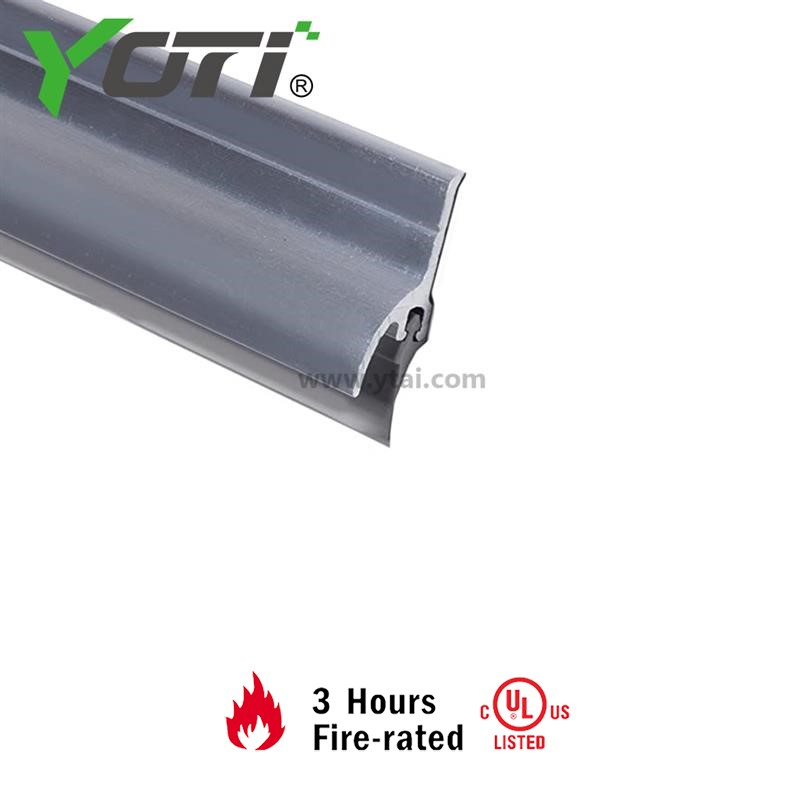

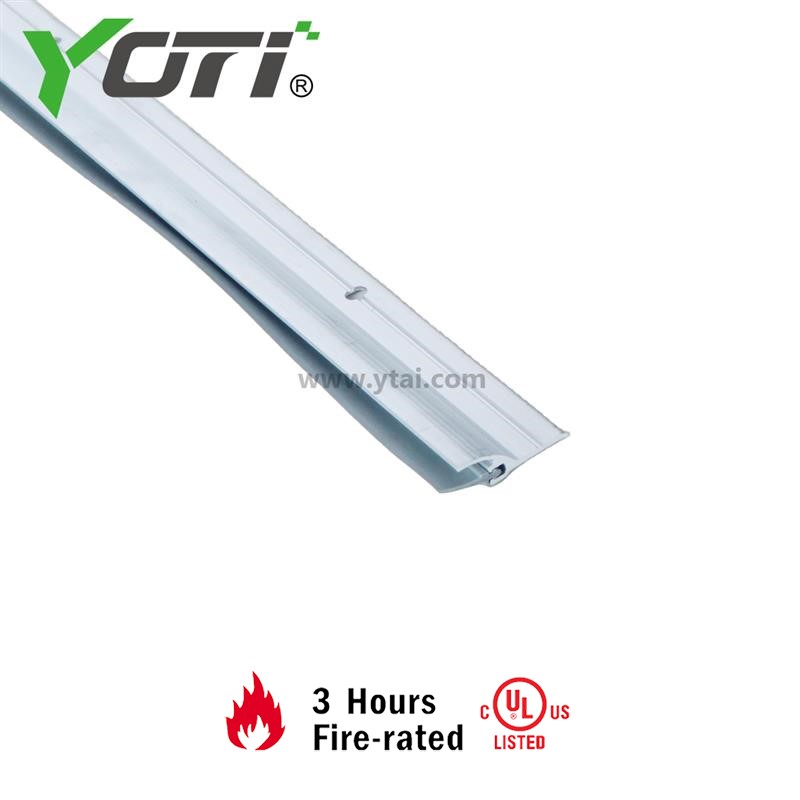

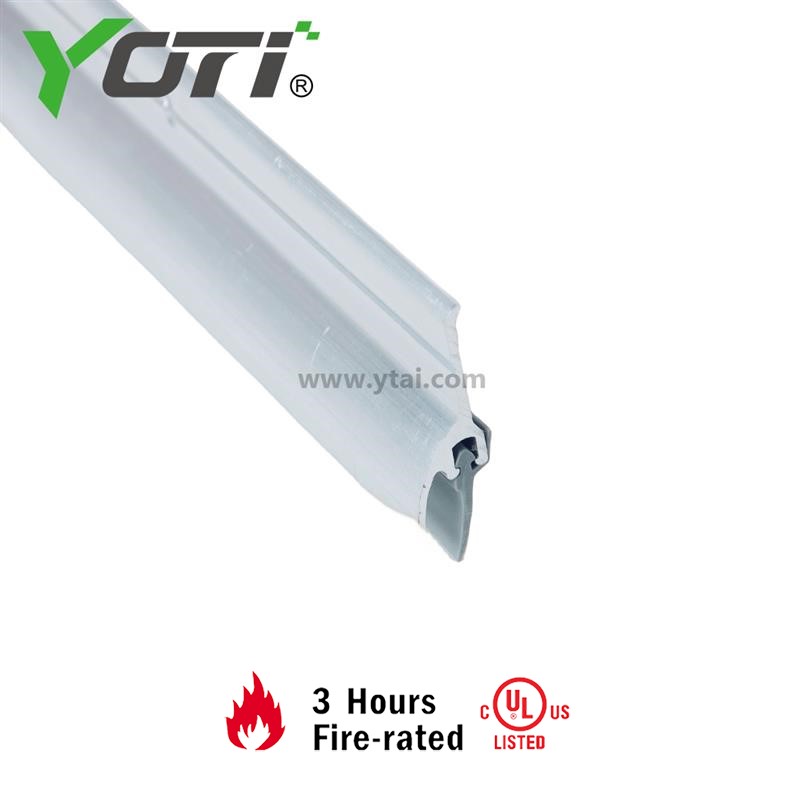

This door bottom sweep is a great addition to seal exterior doors, or to protect the edges of interior doors. The high quality aluminum casing has a Rain Drip Cap which deflects water to prevents seepage through the gap under doors and protect the door from abuse. It is fitted with a Vinyl or PemkoPrene Seal which reduces infiltration of fire, smoke drafts, moisture, air and dust.
|
Retainer Material
|
Aluminum
|
|
Temperature Range
|
-4°F to 122°F
|
|
Door Type
|
Wooden Door, Metal Door
|
|
Seal Type
|
Vinyl Rubber Seal
|
|
Mounting
|
Surface Mounted
|
|

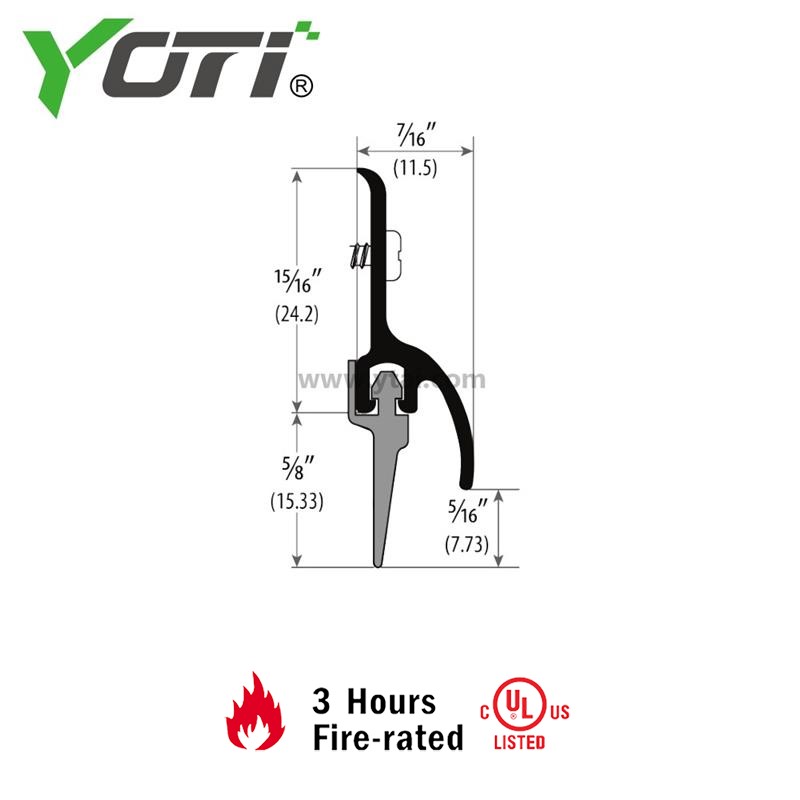

Seal Height
|
5/16" Height
|
|
Total Height
|
1-9/16" Height
|
|
Additional Dimensions
|
Door seal is 7/16" thick
|
|
Length
|
Standard 36", 48"; Custom Cut to Size
|
|
Installation
|
Drill holes are provided
|
|
Certificate
|
Fire Rated - UL 10B/10C
|
