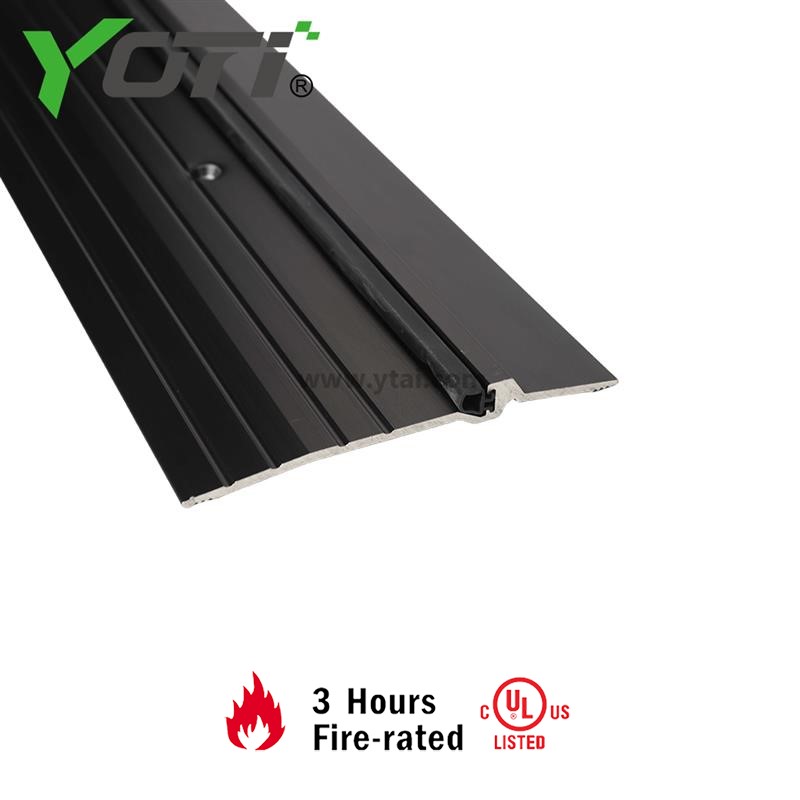

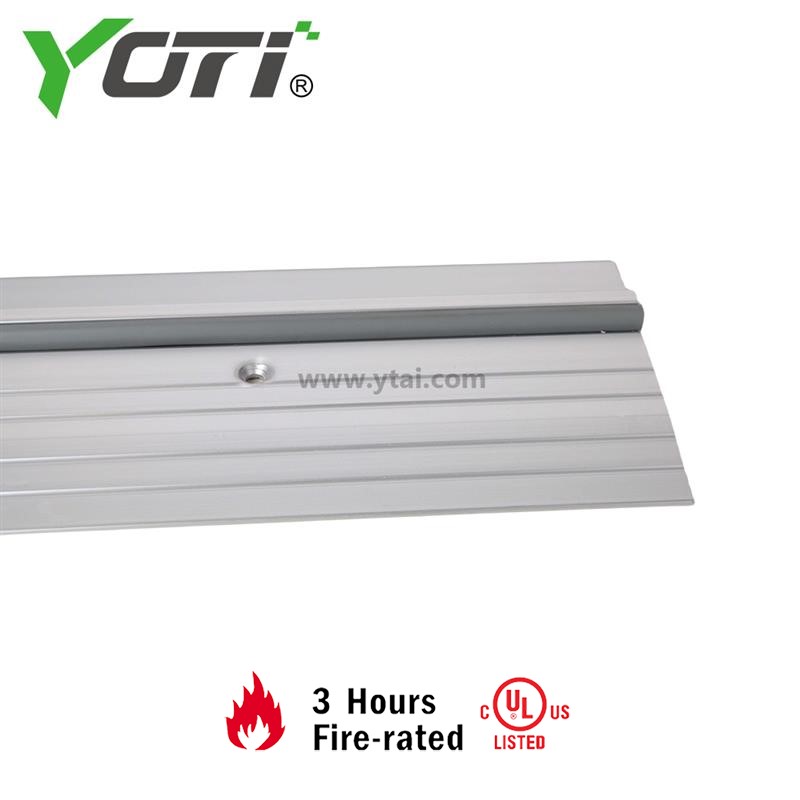

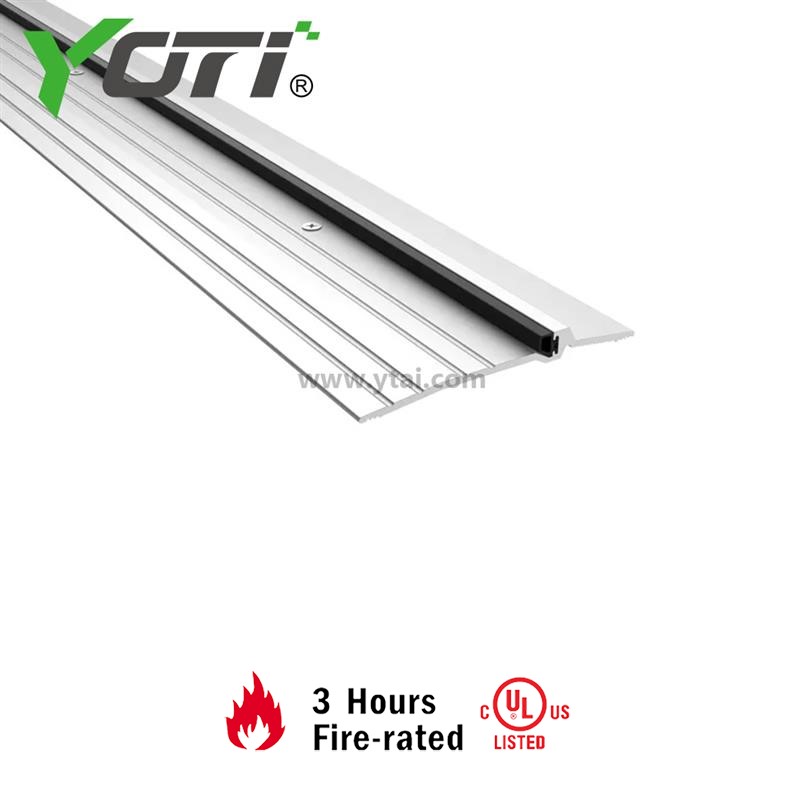

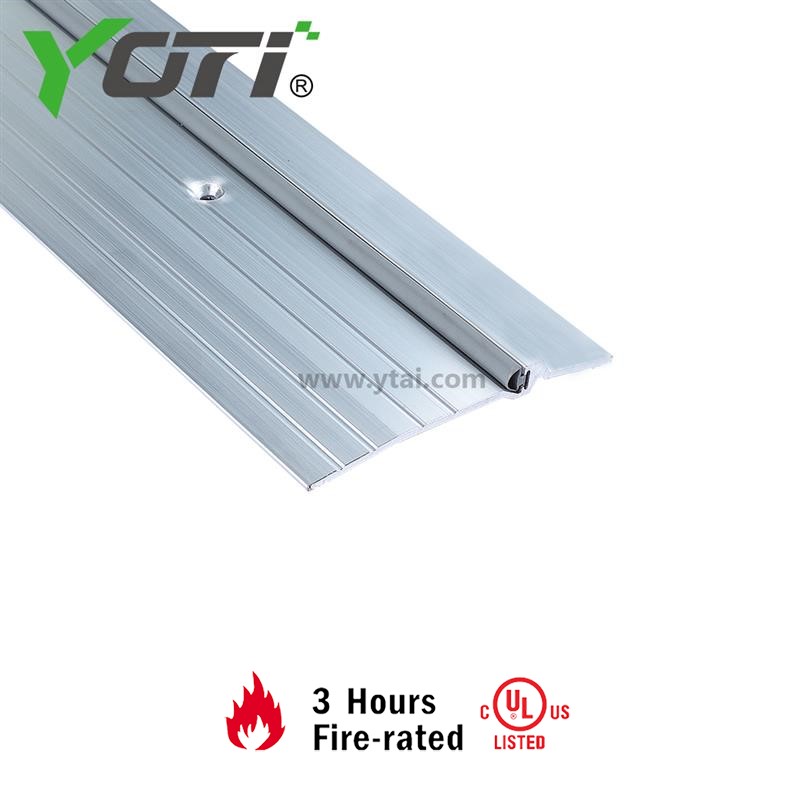

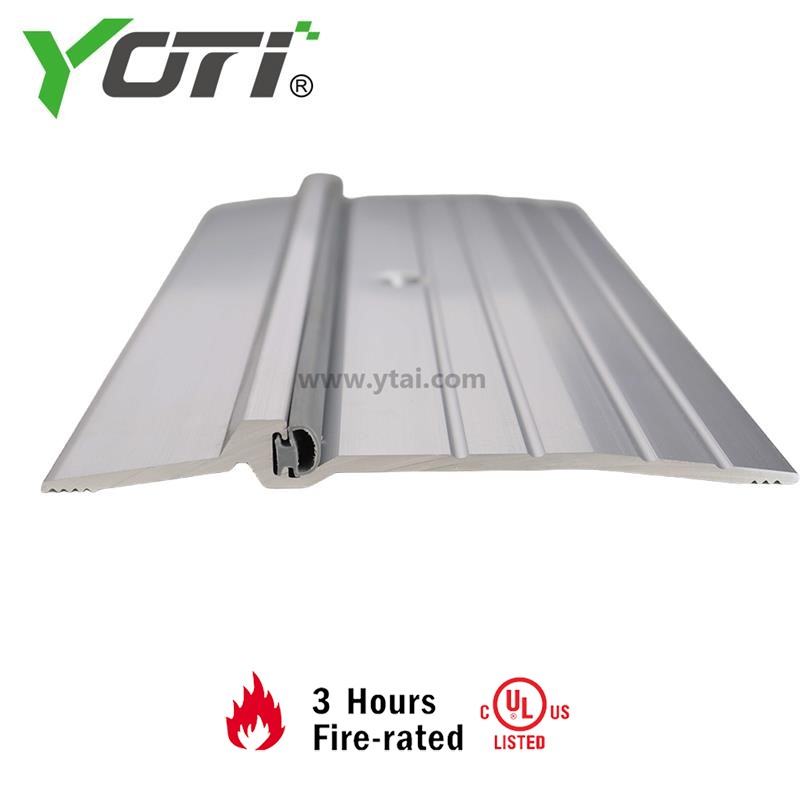

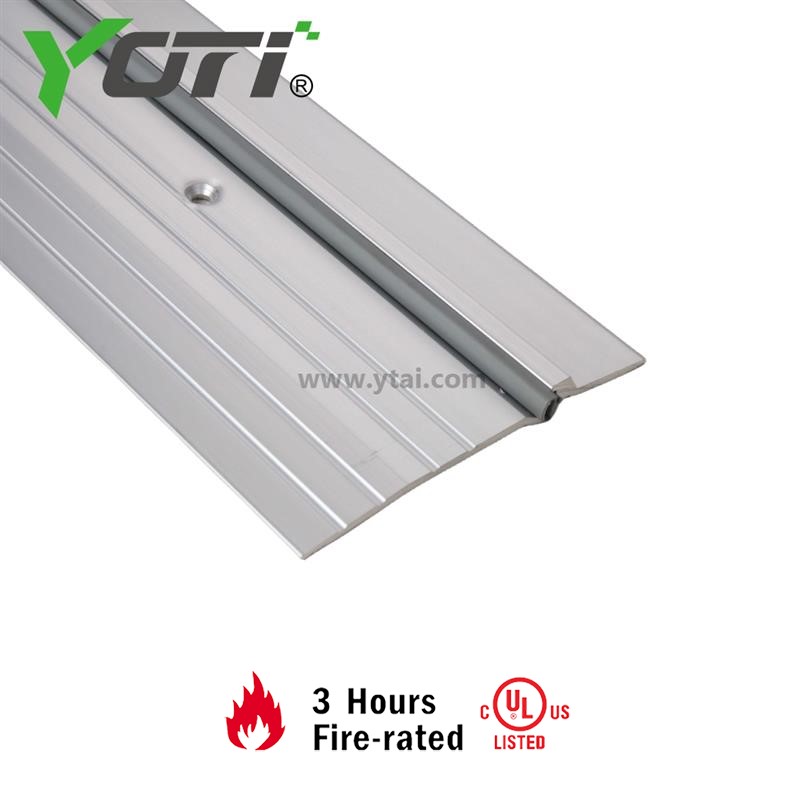

This Latching Panic Exit Saddle is designed to be used with a surface applied vertical rod exit device and as a door stop and rubber seal at the bottom of doors. It is made of high quality material that will ensure long-lasting usage. Available in various different aluminum, anodized, and Bronze Finishes and is custom cut to size.
Acoustic & smoke containment:
Threshold plates provide a firm effective sealing surface for threshold / drop seals to rest against, to help ensure the best possible smoke and acoustic seal.
|
Material
|
Aluminum
|
|
Finish
|
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized)
BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) |
|
Flat Saddle Design
|
Fluted (Grooved) Design
|
|
Threshold Type
|
Latching Panic Exit Threshold
|
|

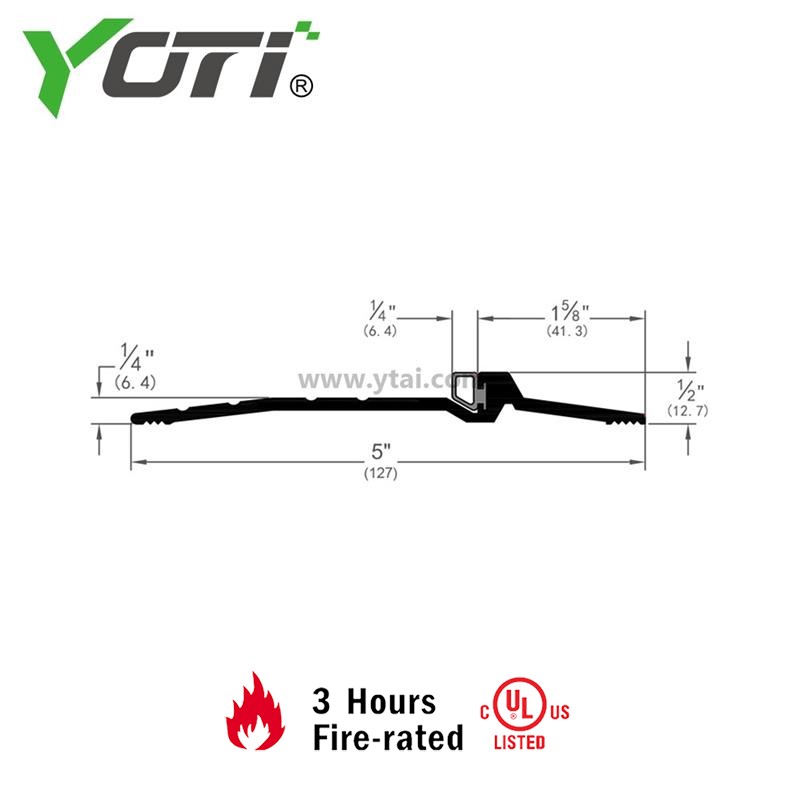

Overall Height
|
0.5" Height
|
|
Overall Width
|
5" Width
|
|
Required Door Clearance
|
0.375" Height
|
|
Length
|
Standard 36", 48"; Custom Cut to Size
|
|
Installation
|
Drilling holes and Fasteners are provided
|
|
Certificate
|
Fire Rated - UL 10B/10C
|
