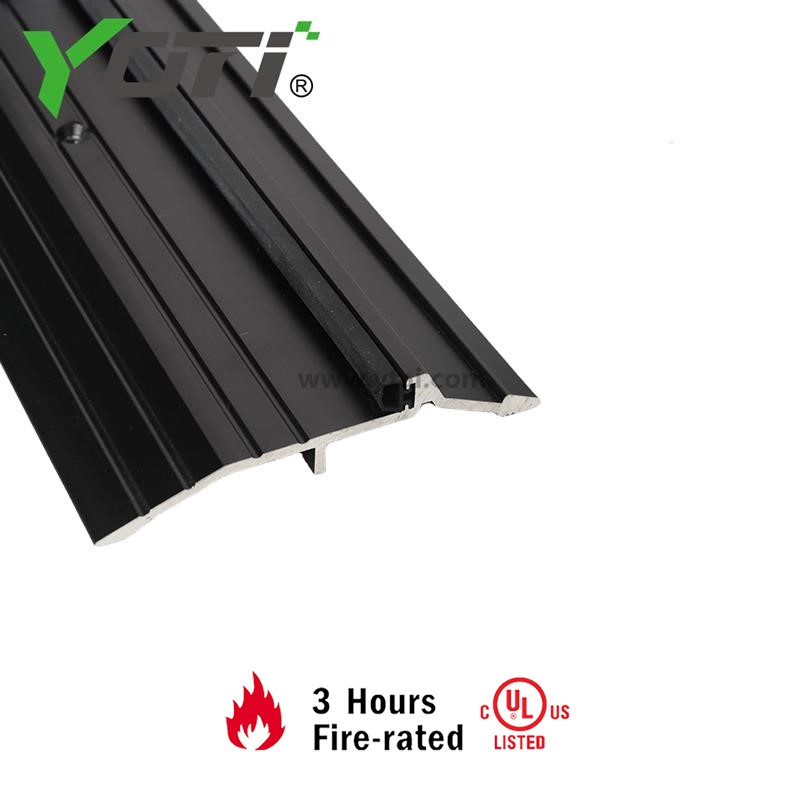

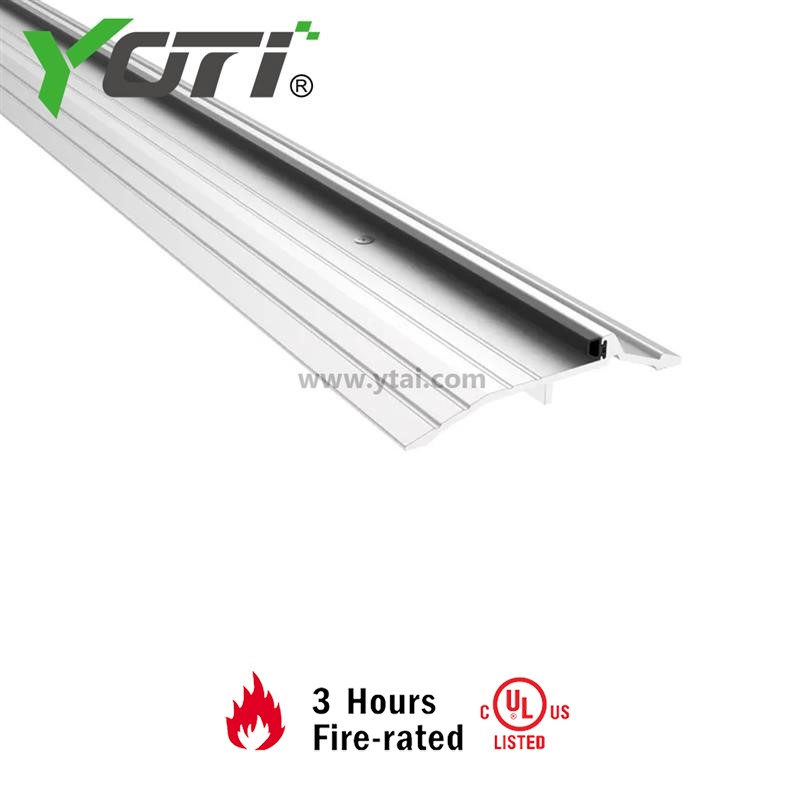

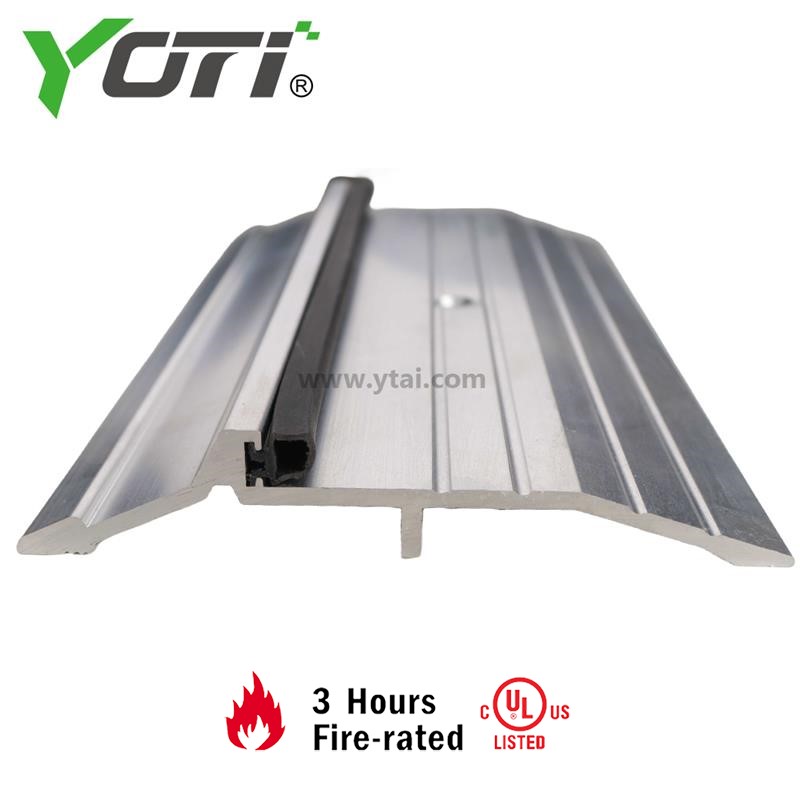

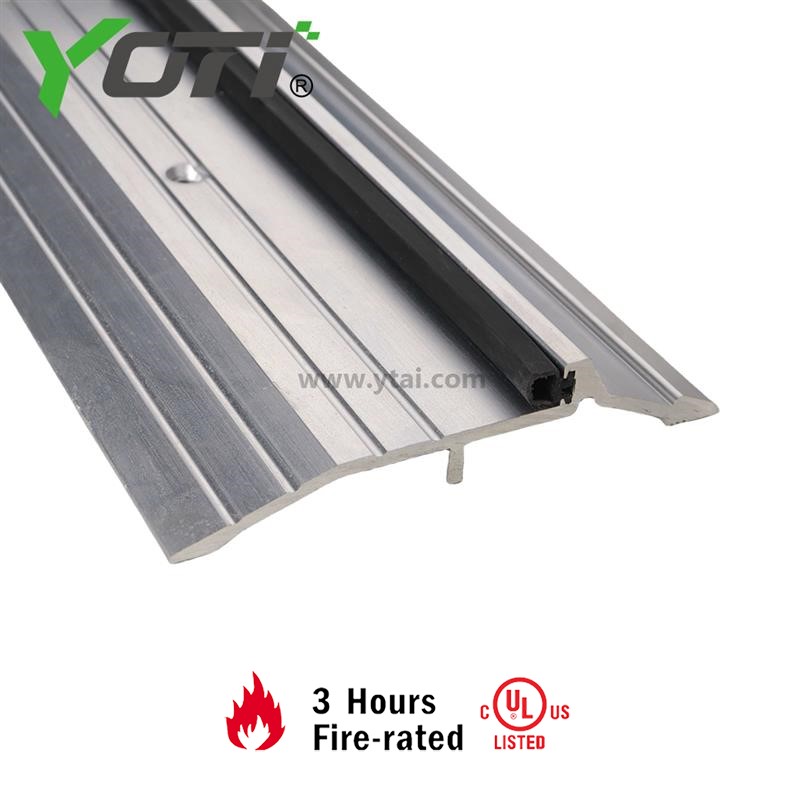

This Latching Panic Exit Saddle is designed to be used with a surface applied vertical rod exit device and as a door bumper with a seal at the bottom of doors. It is made of high quality material that will ensure long-lasting usage. It has a 5" width and a height clearance of 0.5". Available with thermo, vinyl or brush seal, aluminum or bronze variations and is custom cut to size.
|
Material
|
Aluminum
|
|
Finish
|
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized)
BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) |
|
Flat Saddle Design
|
Fluted (Grooved) Design
|
|
Threshold Type
|
Flat Utility Threshold
|
|

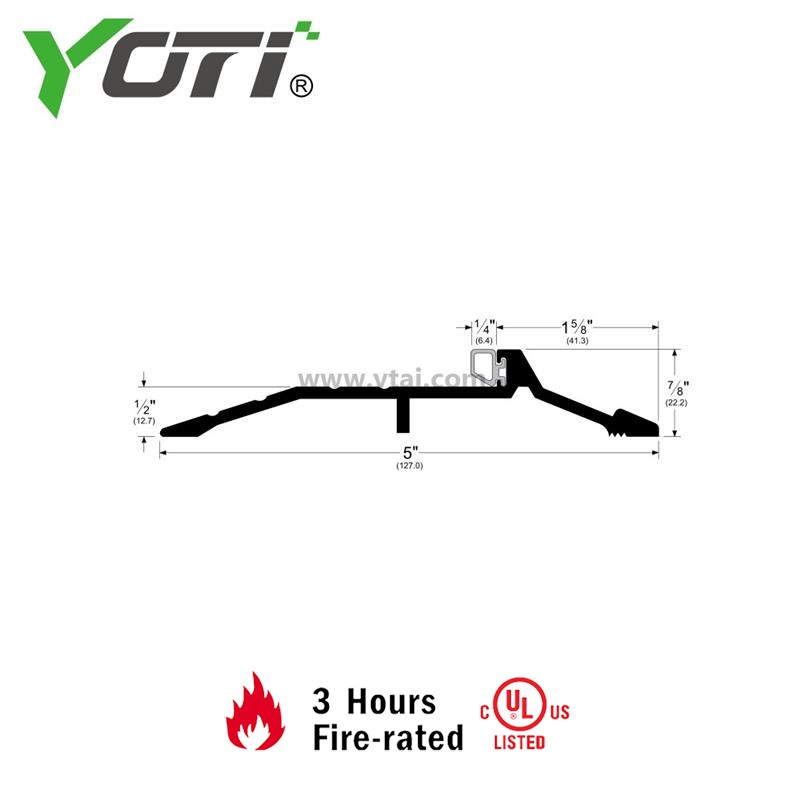

Overall Height
|
0.5" Height
|
|
Overall Width
|
5" Width
|
|
Required Door Clearance
|
0.625" Height
|
|
Length
|
Standard 36", 48"; Custom Cut to Size
|
|
Installation
|
Drilling holes and Fasteners are provided
|
|
Certificate
|
Fire Rated - UL 10B/10C
|
