One Of The Leading Company Of Providing Architectural Hardware In China

HomeProductsThresholdsCommercial ThresholdsFlat Saddle ThresholdsYDT310 Threshold Door Aluminum Extrusion Saddle

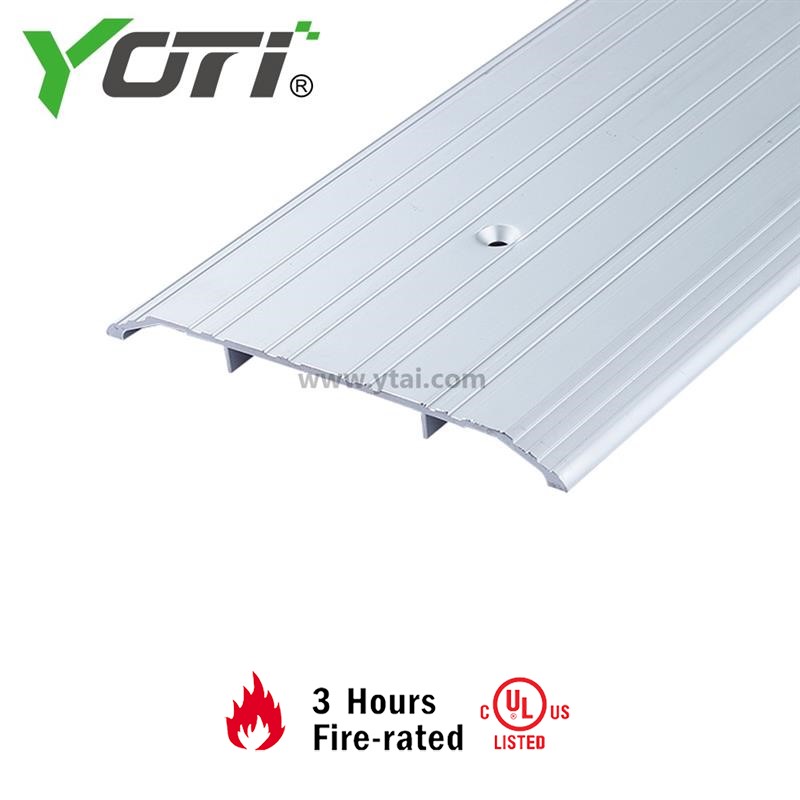

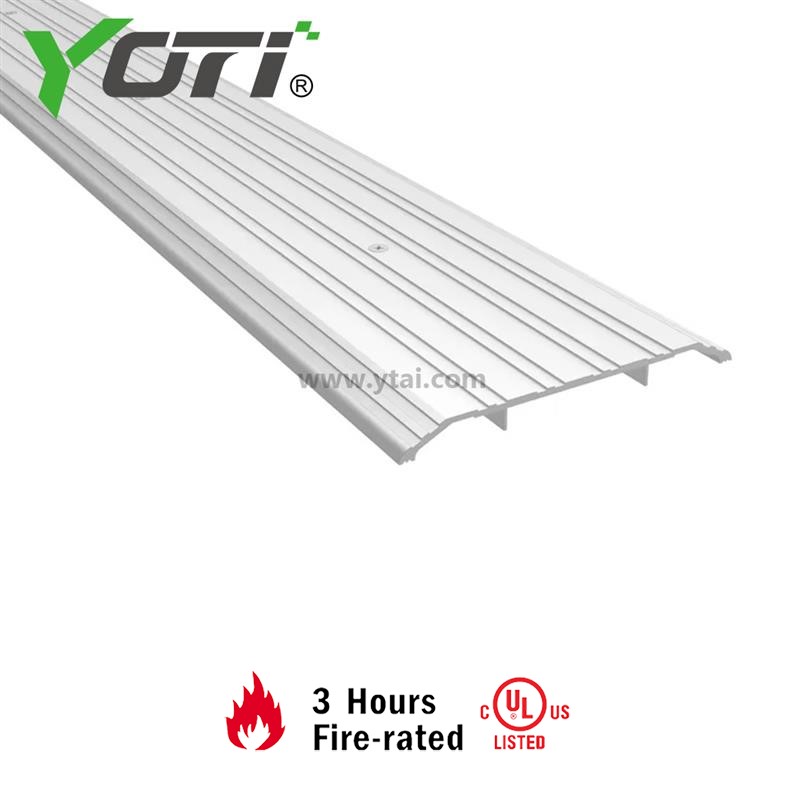

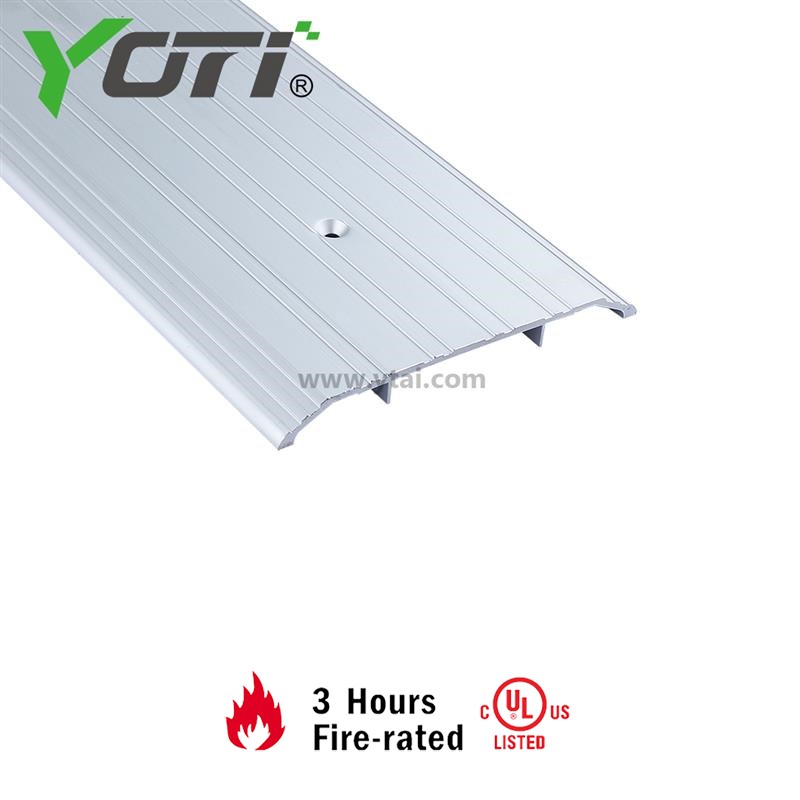

YDT310 Threshold Door Aluminum Extrusion Saddle
YDT310 Threshold Door Aluminum Extrusion Saddle
YDT310 Threshold Door Aluminum Extrusion Saddle
YDT310 Threshold Door Aluminum Extrusion Saddle

YDT310 Threshold Door Aluminum Extrusion Saddle

Flat Saddle Thresholds

- Available Finishes: A, C, D, BL, G, PB, LB

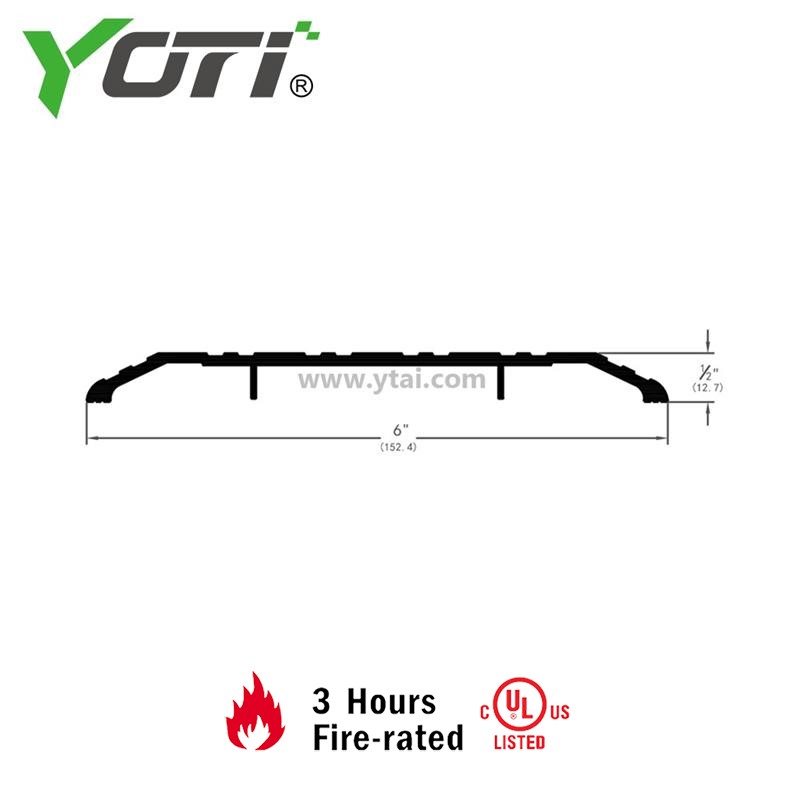

- Width: 6” (152.4 mm)
- Height: 1/2” (12.7 mm)
- Warranty:1 Year

Certificate:
- UL

The practical & decorative benefits of a threshold plate: A threshold plate is usually fitted to the floor immediately under the door leaf in its closed position. It provides a uniform, level surface, and helps to overcome small differences in surface height, or uneven floors. A ramp can be used instead of a plate where there are larger differences in floor heights. The threshold seal fitted into the door leaf can make contact with the plate or ramp, to help ensure the best possible smoke and acoustic seal. Threshold plates are usually formed from an extruded aluminium or brass profile. Pressed stainless steel threshold plates are also used, particularly in areas of high traffic.

This ADA Compliant / Wheelchair Accessible threshold is built to last! It is crafted from fire rated high quality metal that will not buckle over time. It has a width of 6" and height of 0.5".

Material
Aluminum
Finish
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized)
BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized)
Threshold Type
Flat Utility Threshold
Overall Height
0.5" Height
 Overall Width
6" Width
Required Door Clearance
0.625" Height
Length
Standard 36", 48"; Custom Cut to Size
Installation
Drilling holes and Fasteners are provided
Certificate
Fire Rated - UL 10B/10C

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
