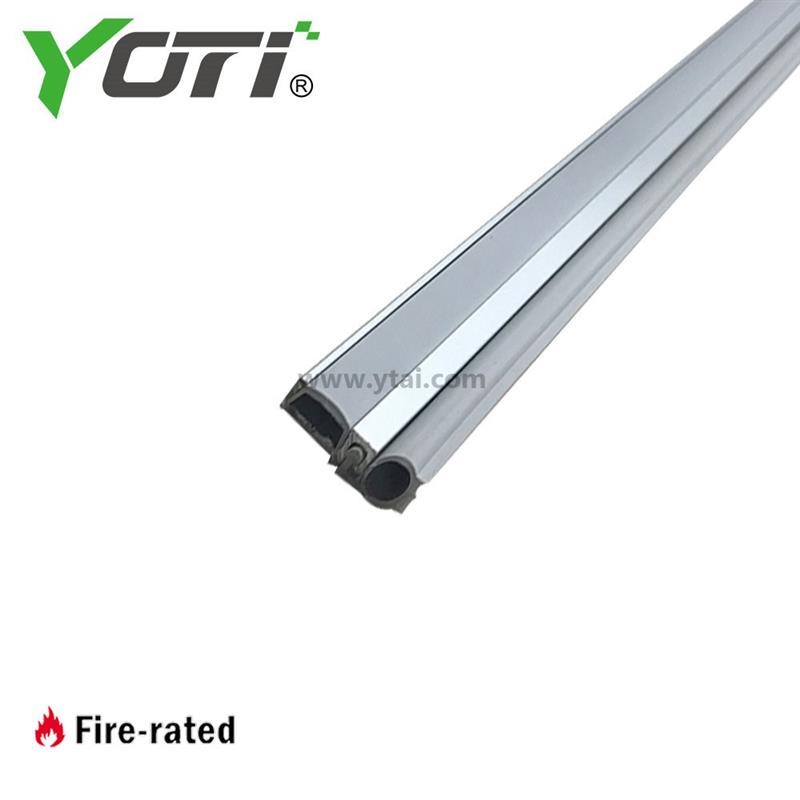

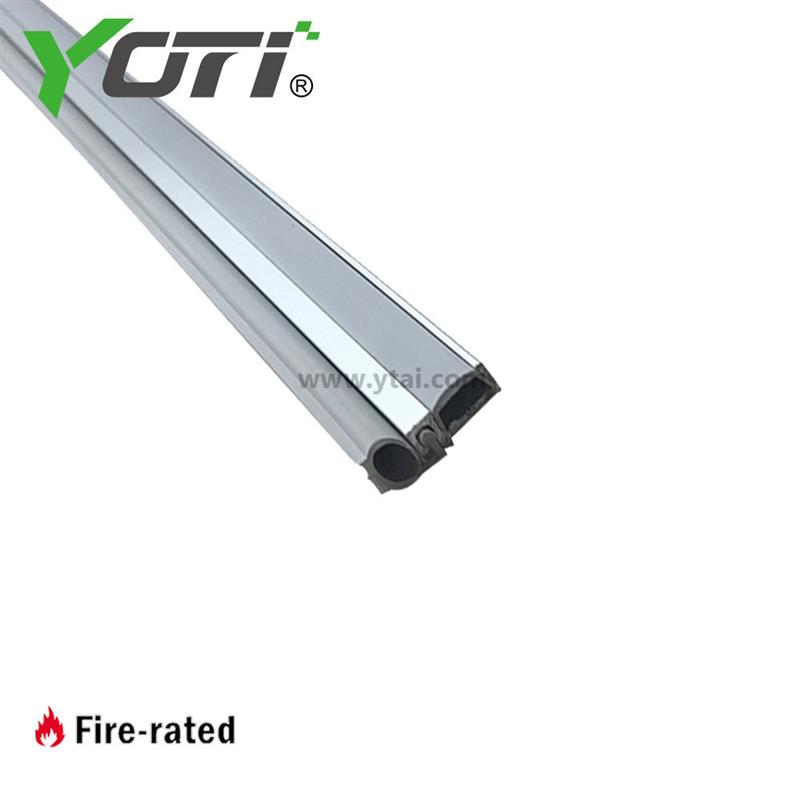

The YDW217 is an astragal/meeting stile seal designed for effective sound insulation and smoke sealing. It offers a wide compression range with minimal force, ensuring a light, secure seal. Ideal for timber and metal frames.
| door type: | double swing door |
|---|---|
| frame material: | metal, timber |
| carrier material: | aluminium |
| surface: | anodised |
| surface colour: | silver |
| sealing profile material: | self-extinguishing silicone |
| sealing profile colour: | grey |
| temperature: | -40°C bis 200°C |
| length max.: | 3000 m |

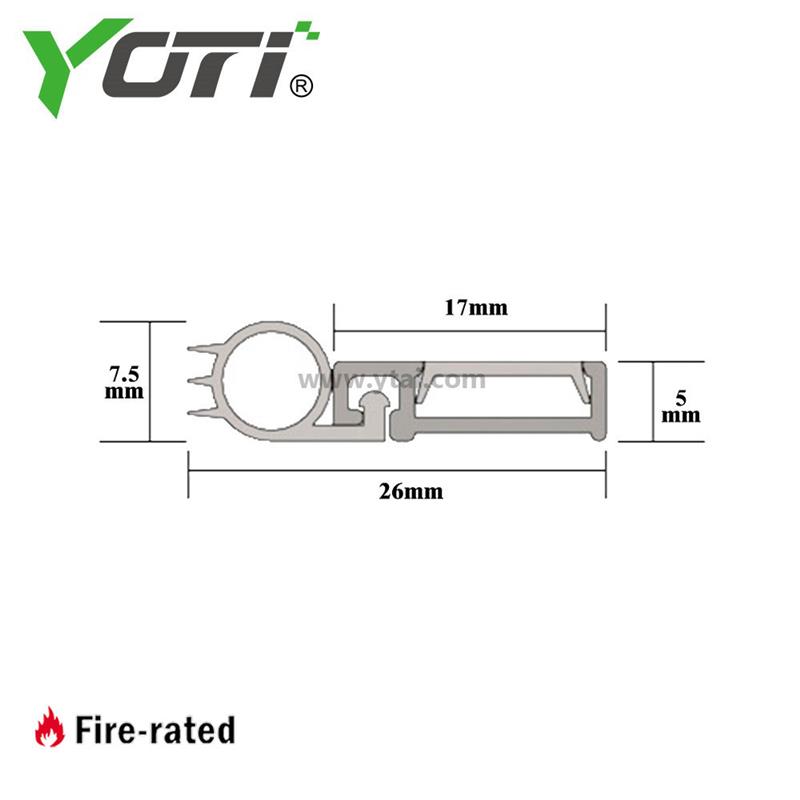

| width: | 25 mm |
| standard lengths: | 750 mm, 2000 mm, 2250 mm, 2500 mm, 3000 mm |
| height: | 19 mm |
| shortening: | any |
| note VPE: | 20 pcs/ Box |
| sealing profile tolerance: | 0-4,5 mm |
