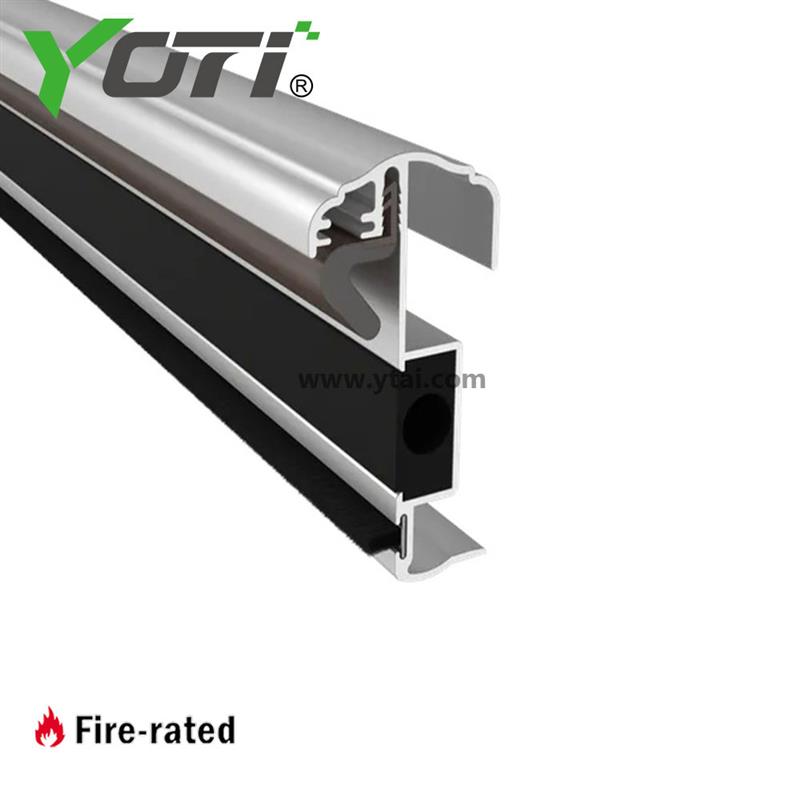

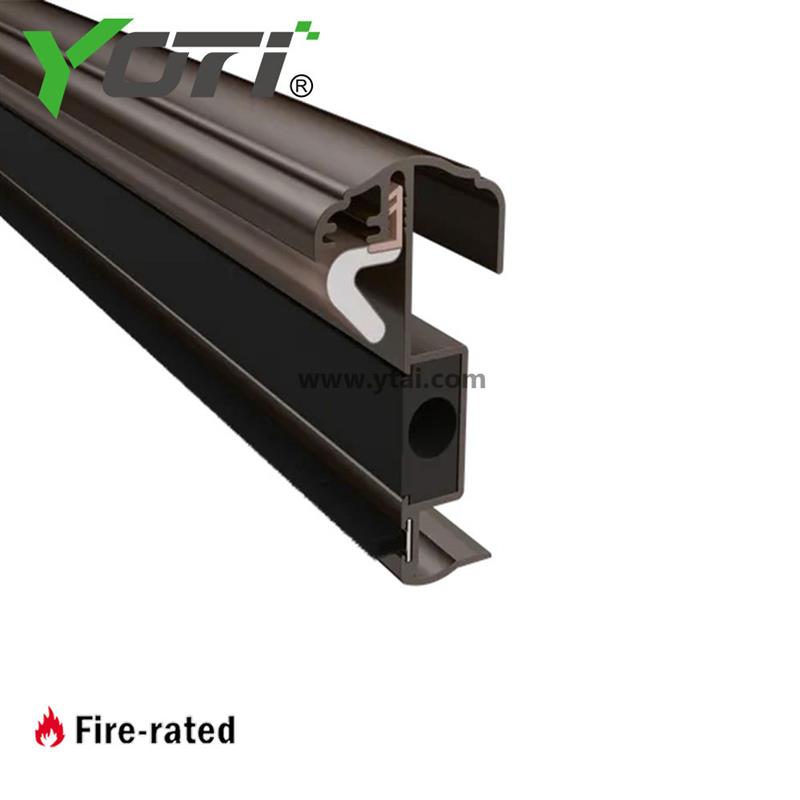

The YDW601 Colonial Style Locking Astragal with Slide Bolt is perfect for 1-3/4" inswing doors. It’s available with Kerf-In Foam inserts and effectively seals the midline gap between doors, preventing drafts, sound, and heat transfer. The magnetic Kerf-in seal and slide bolts provide added security and insulation. Custom cut to size.
Features

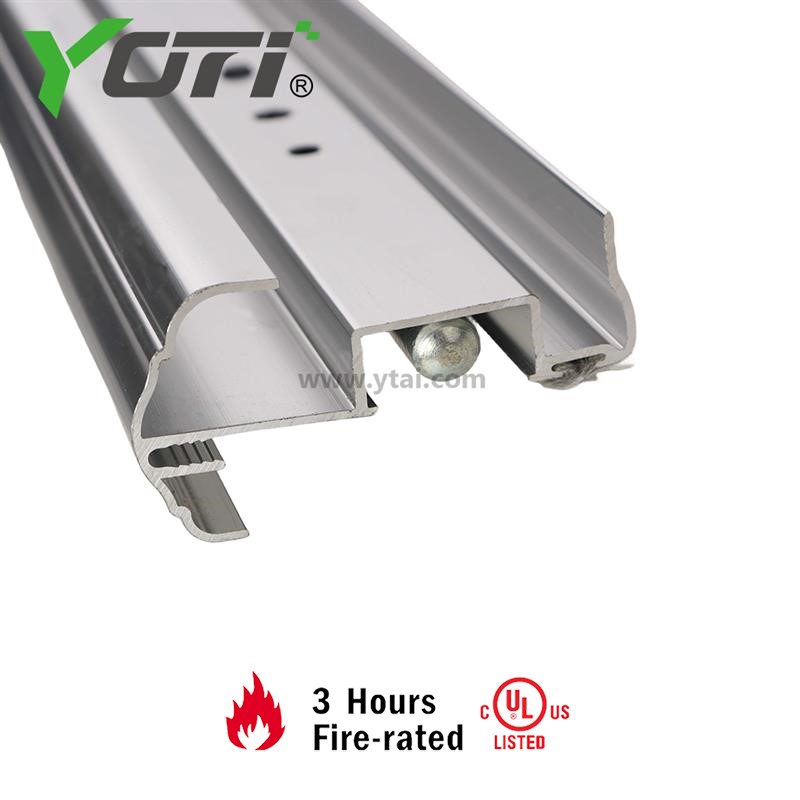

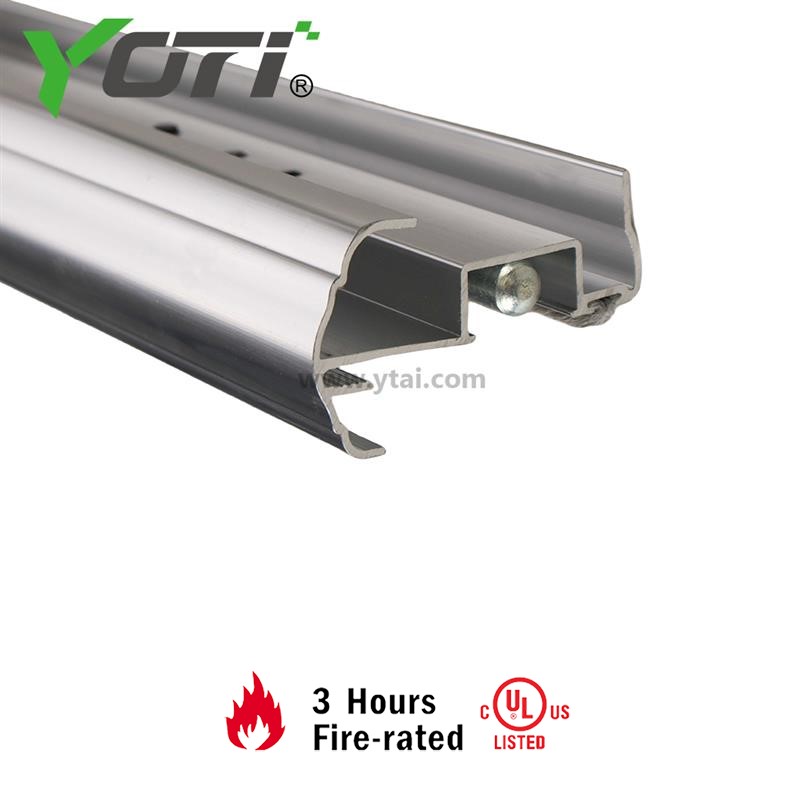

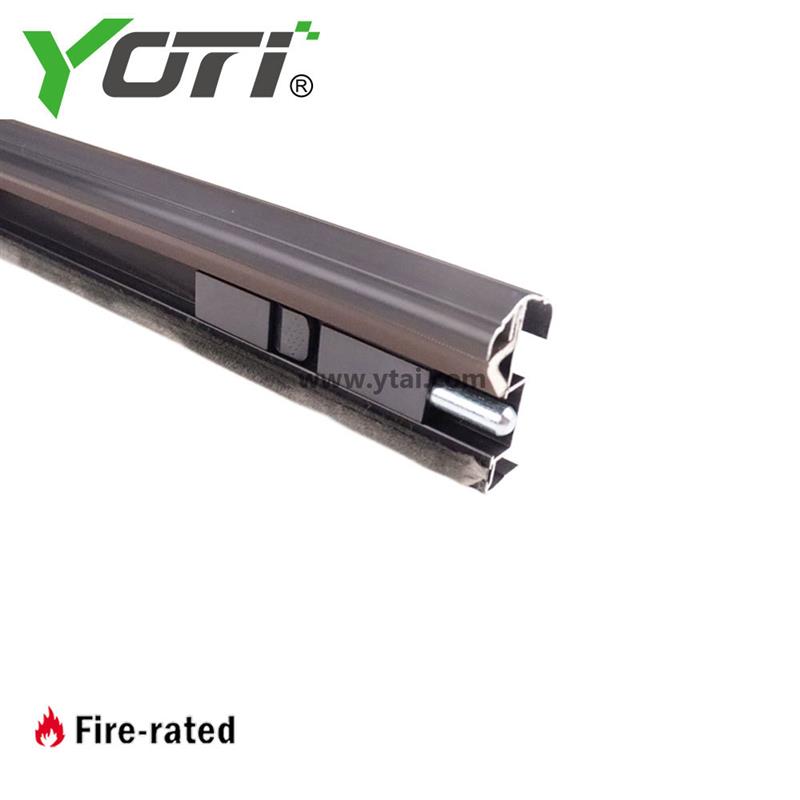

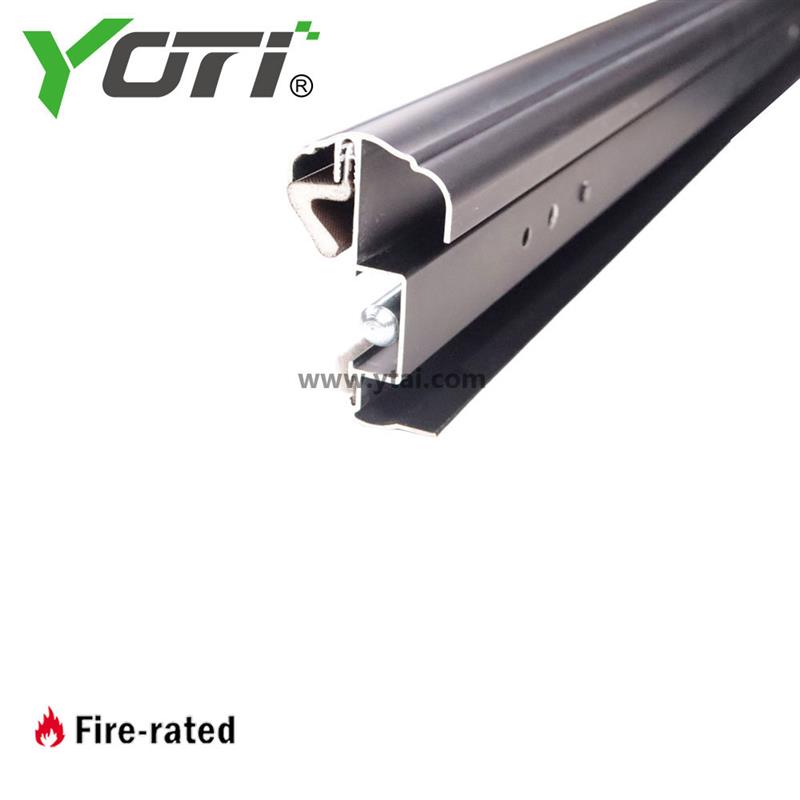

◇ Aluminum astragal/meeting stile with locking slide bolt
◇ Installed along middle gap of doors

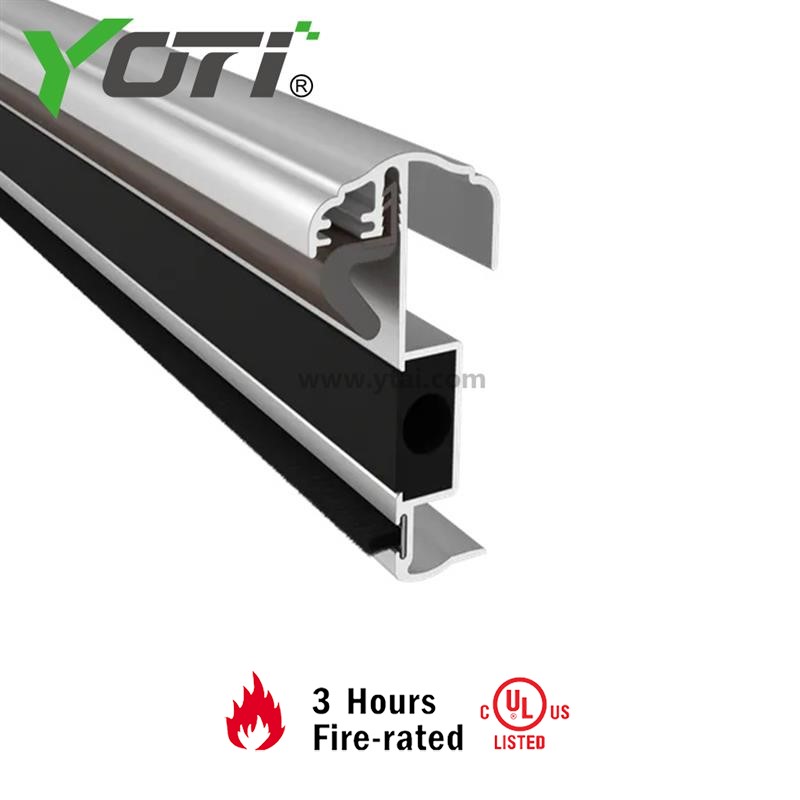

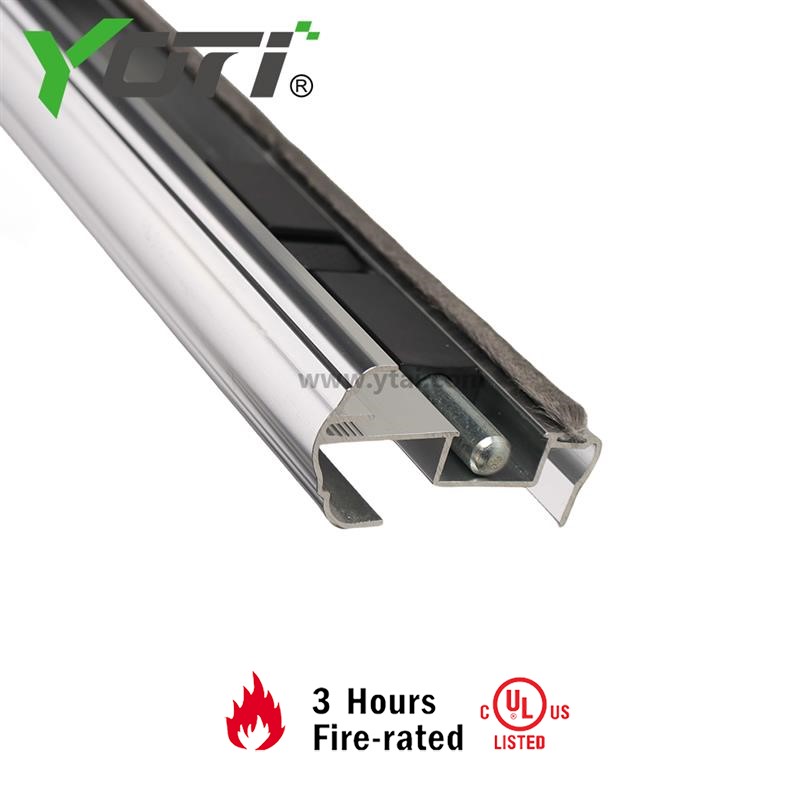

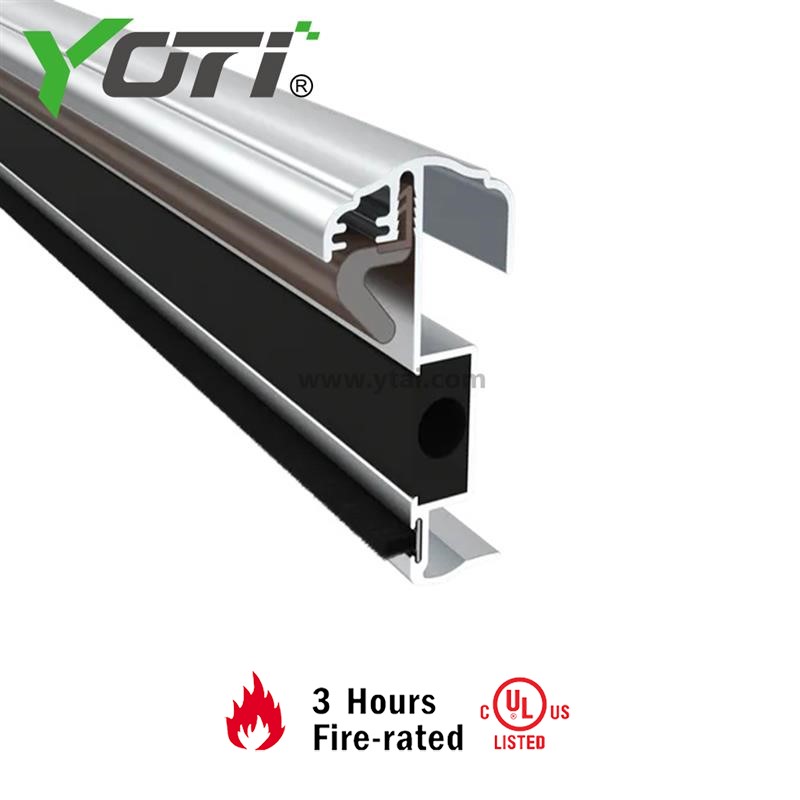

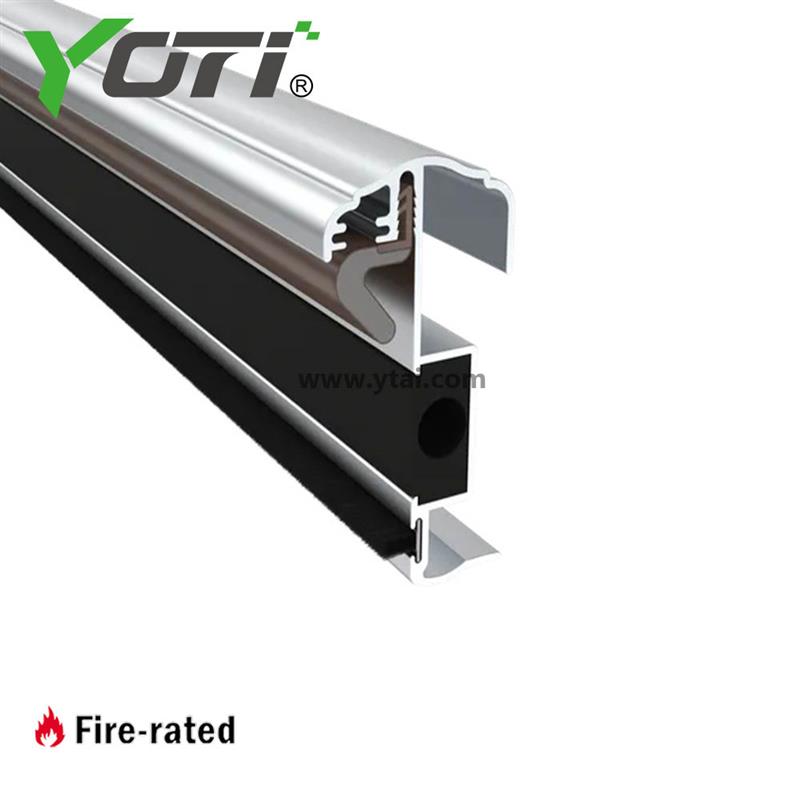

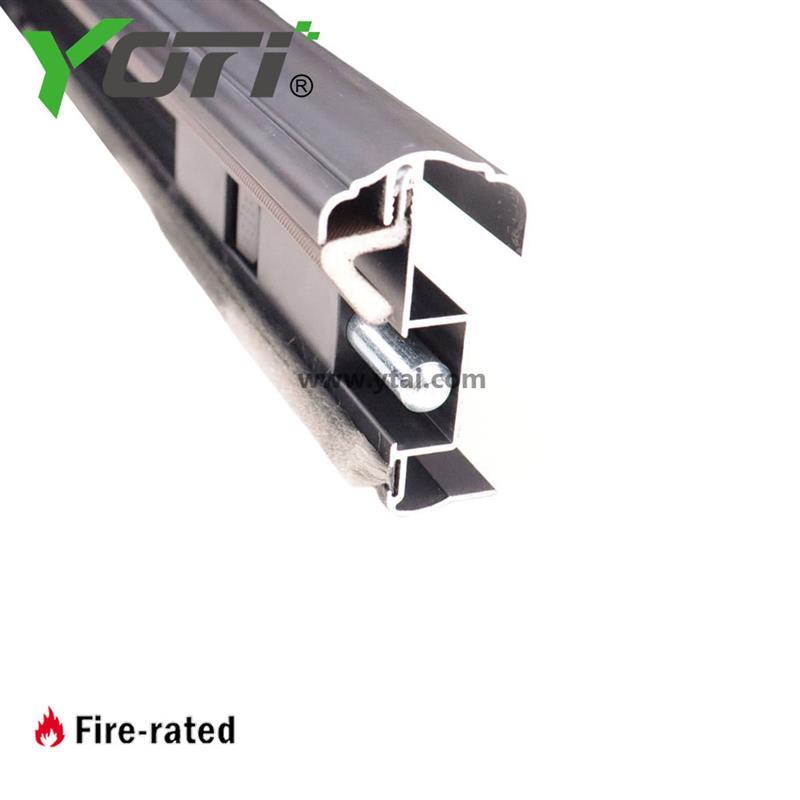

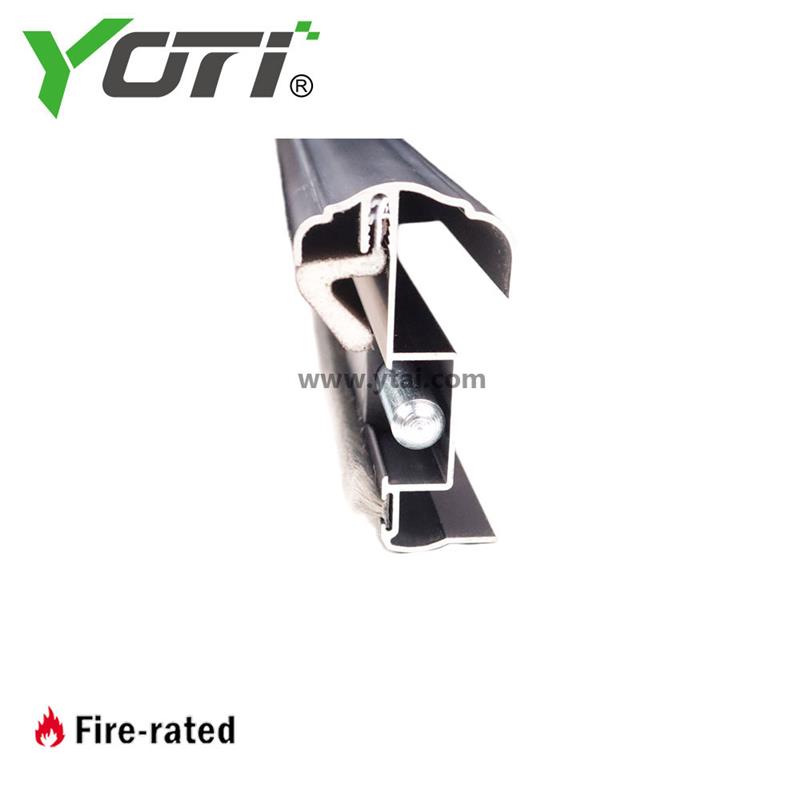

◇ Meeting stile has two seals - magnetic kerf-in seal and a pile brush seal
◇ For metal doors, select the aluminum locking slide bolt with the magnetic
◇ Aluminum locking slide bolt with foam Kerf-in seal for inswing doors

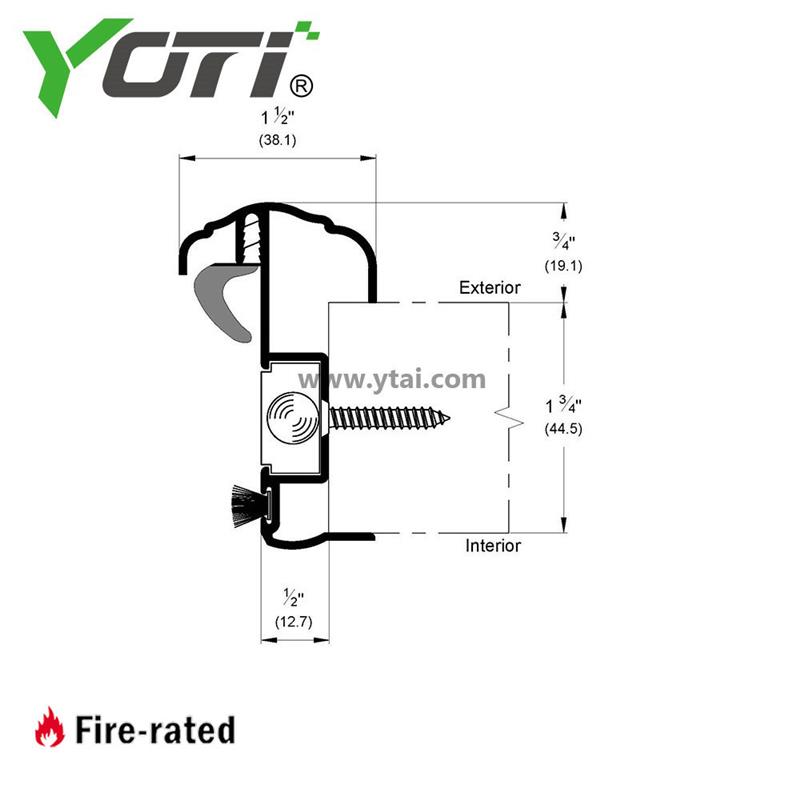

◇ For 1-3/4" thick single active, double in-swing doors with midline gap sealing and slide bolts for locking one door in place
◇ Available with Standard 4" throw bolt, or Easy Access 18" throw bolt
◇ Midline gap must exceed 1/2" for surface mounted installation

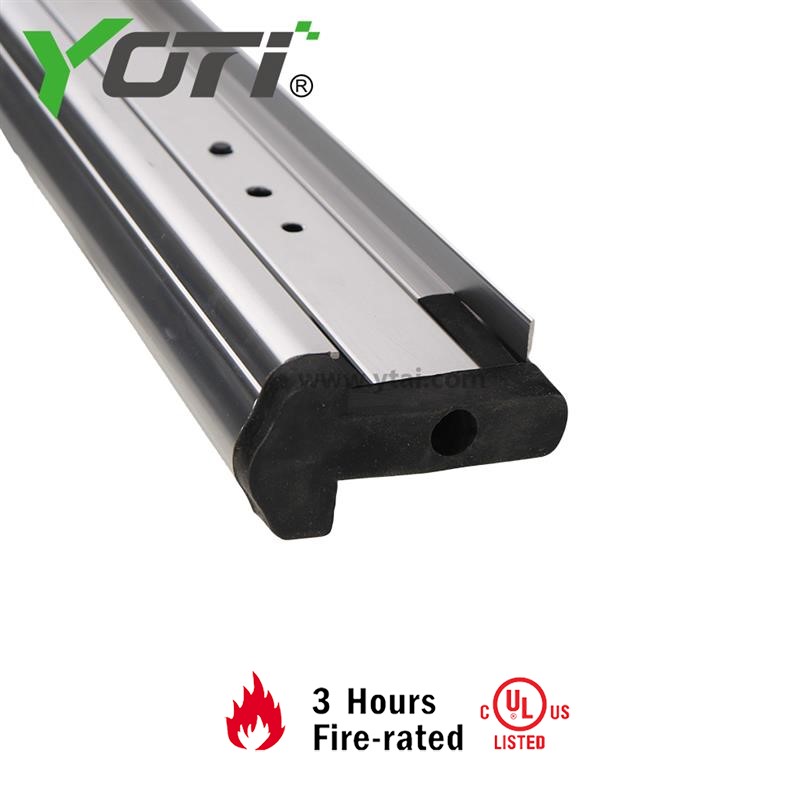

◇ Supplied with molded sponge neoprene bottom seal

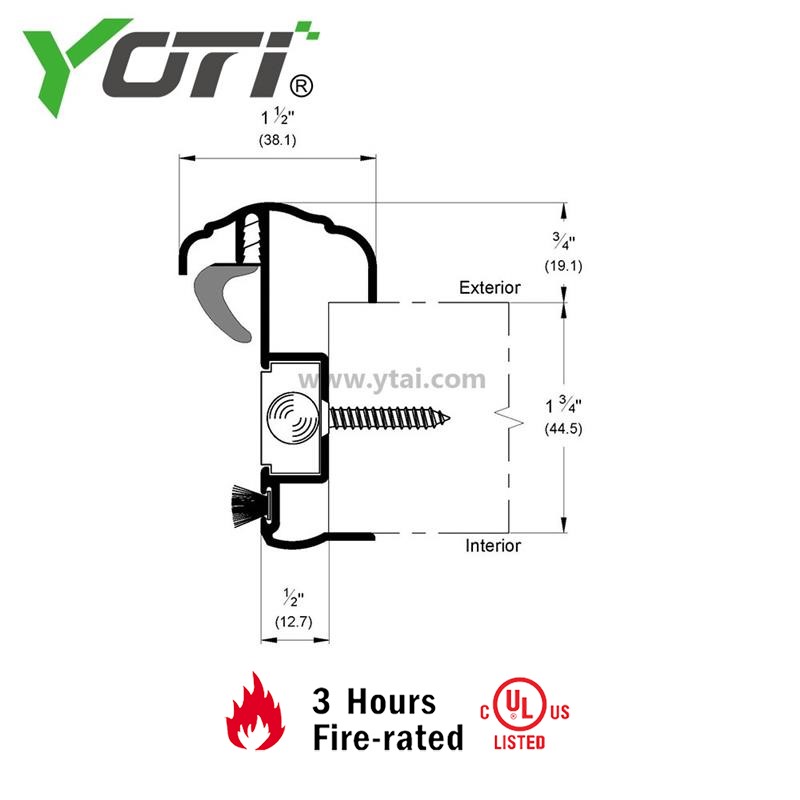

Specifications
◇ Base Material: Aluminum
◇ Door Edge: Square
◇ Fasteners: Sheet Metal Screw #8 x 1"
◇ Maximum Length: 120"
◇ Minimum Length: 24"
◇ Overall Height: 2 1/2"
