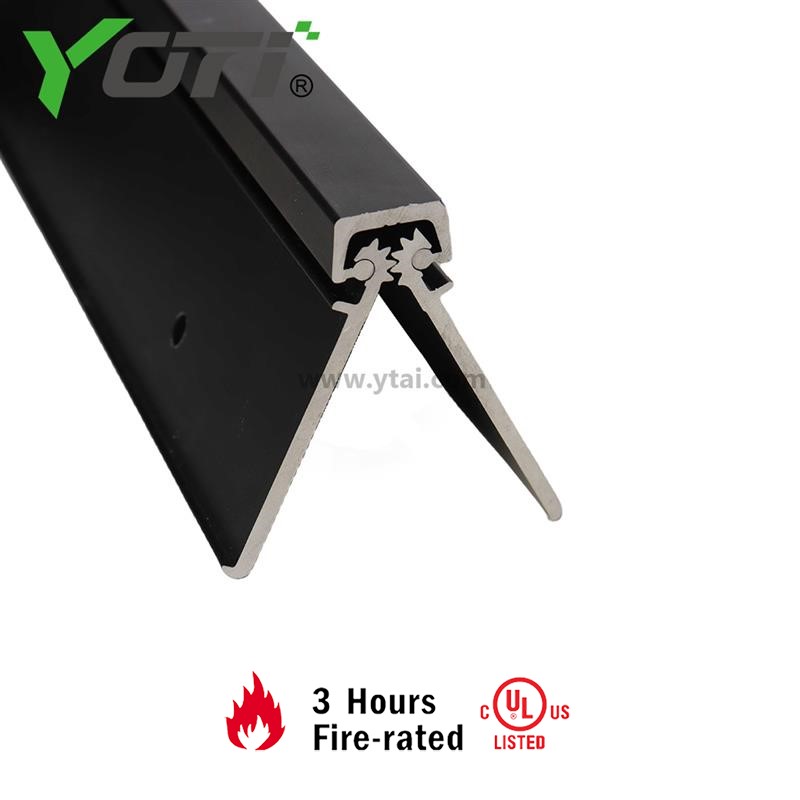

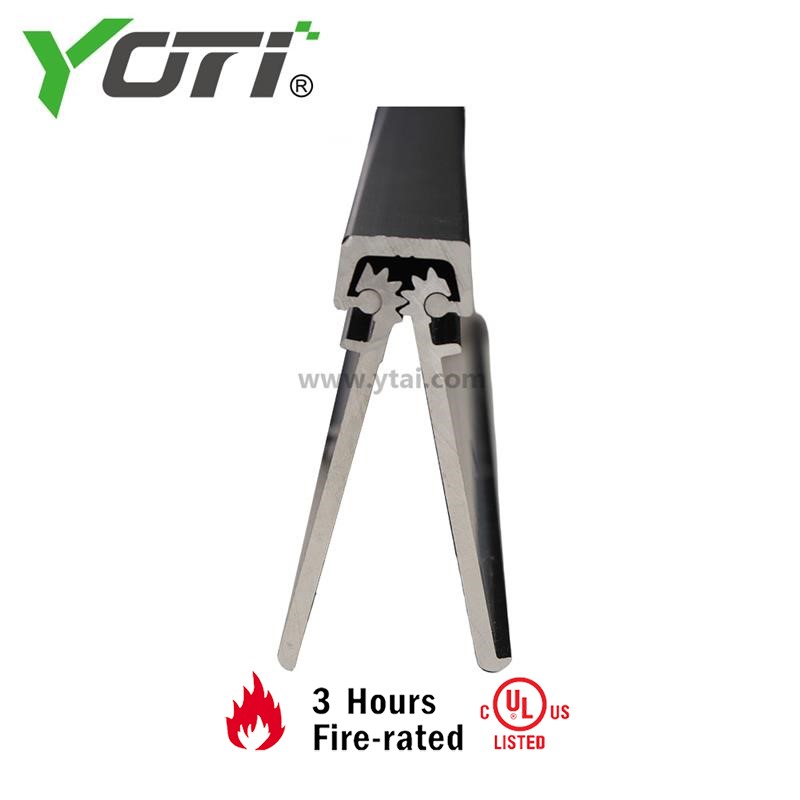

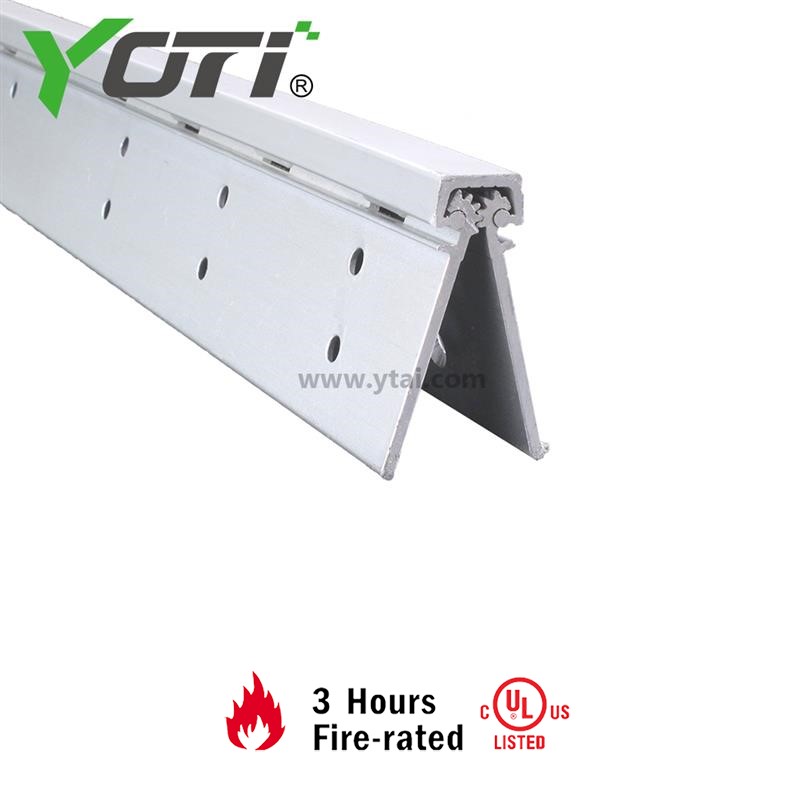

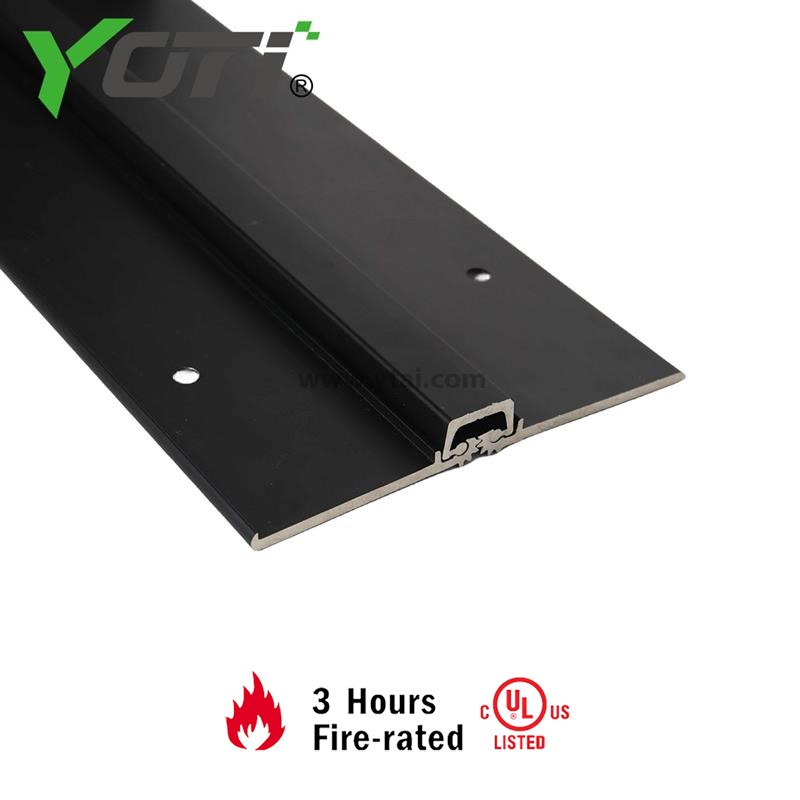

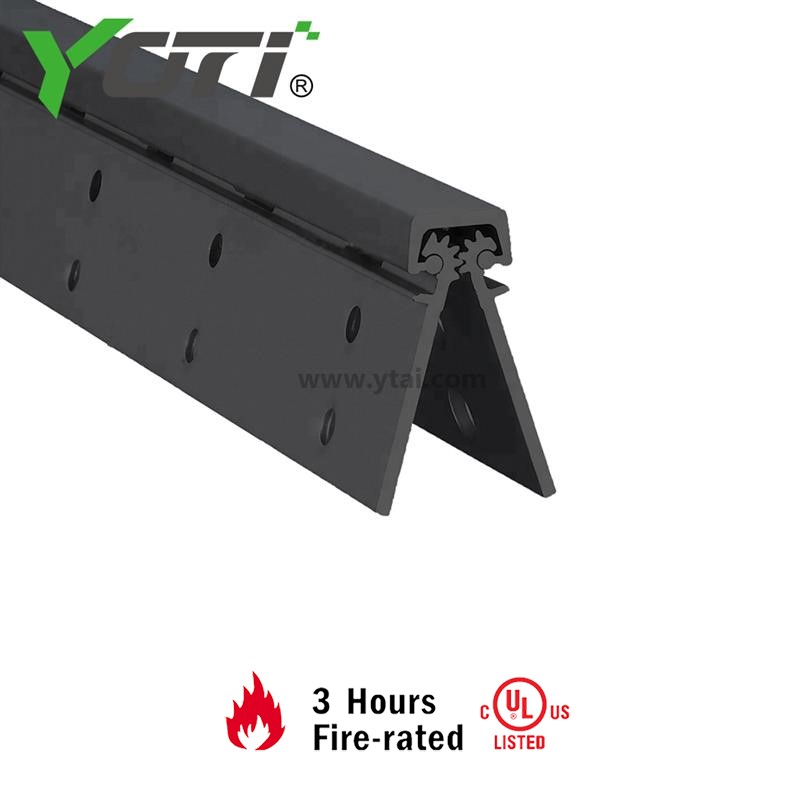

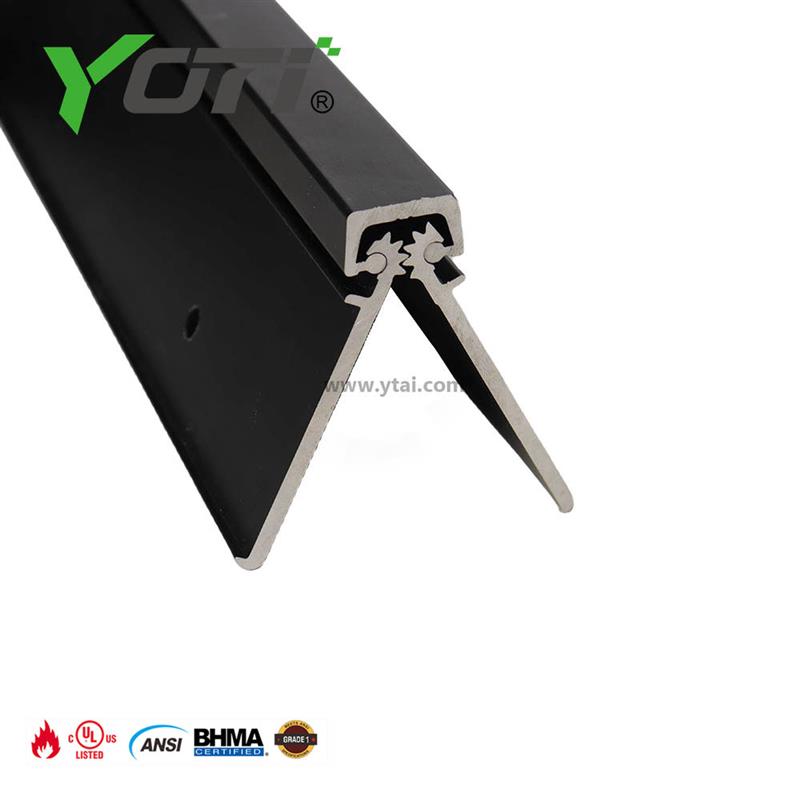

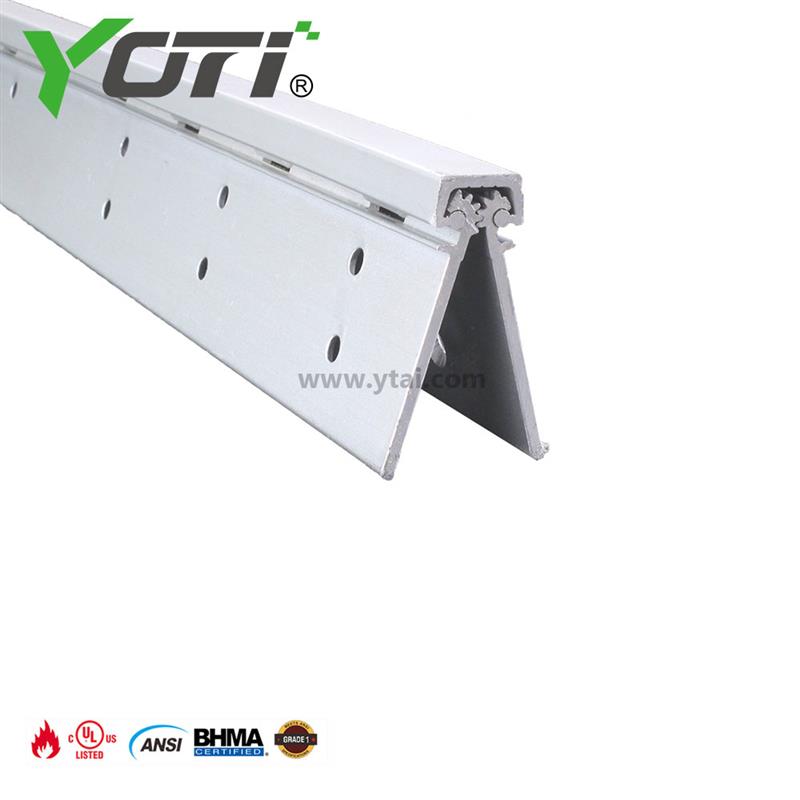

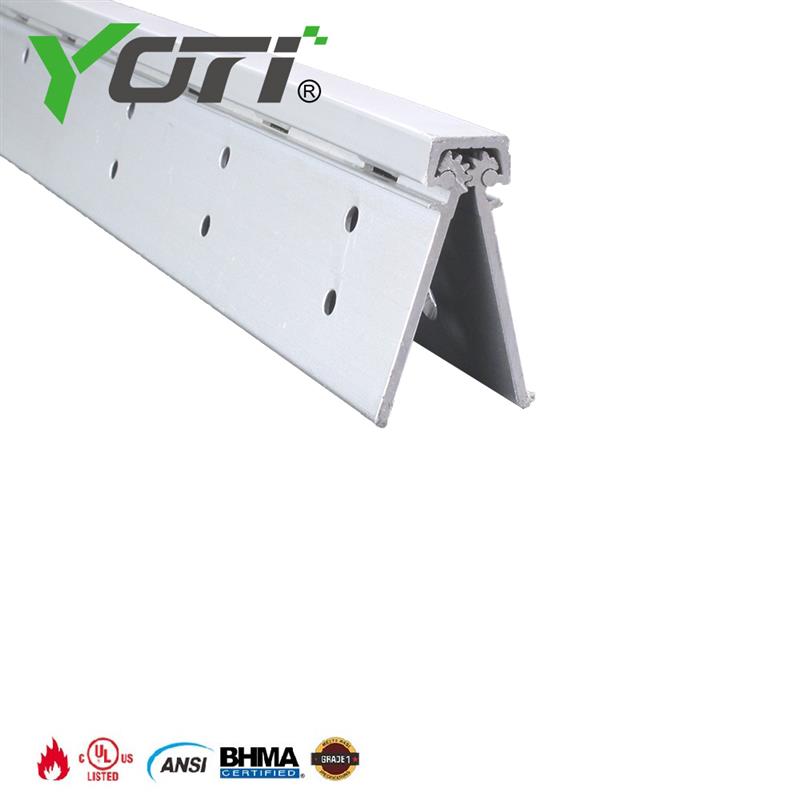

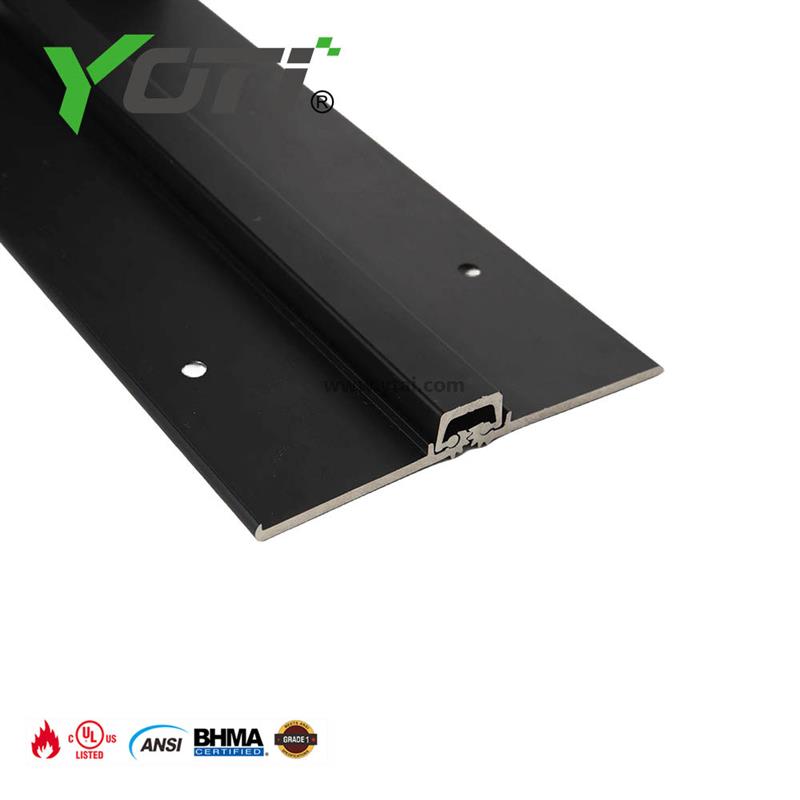

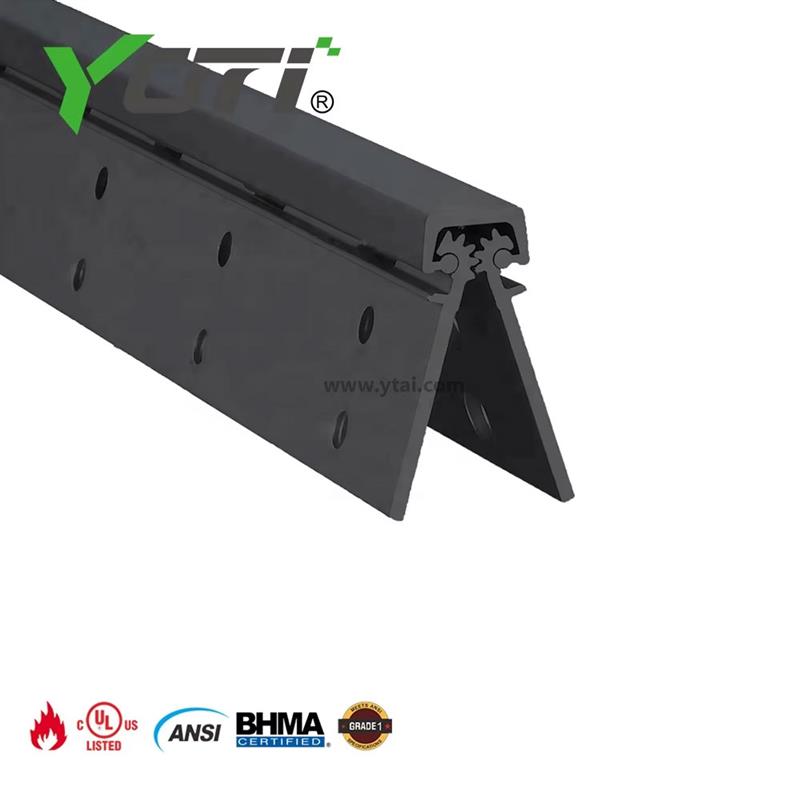

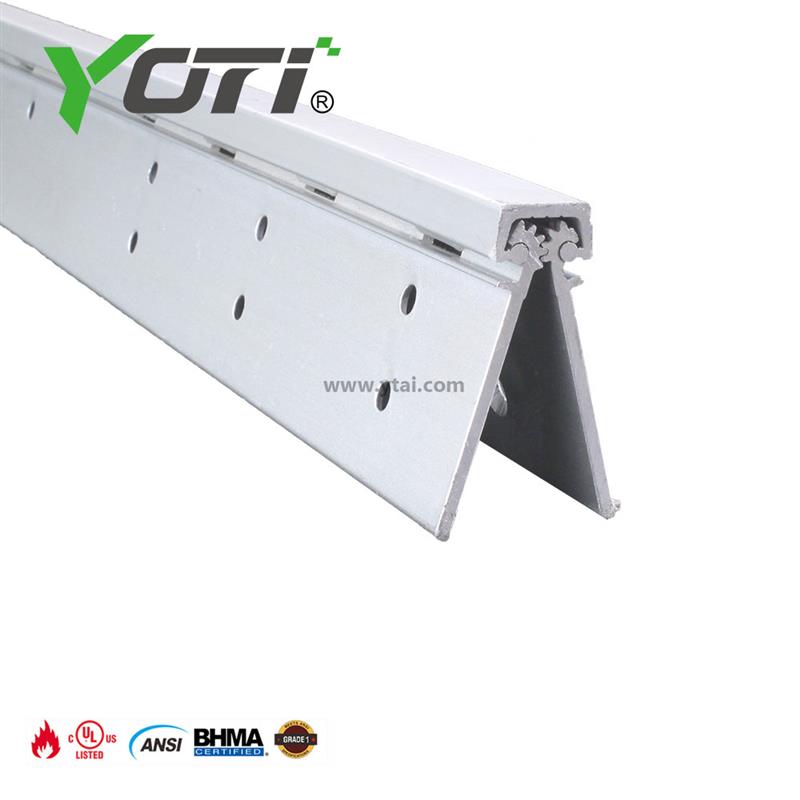

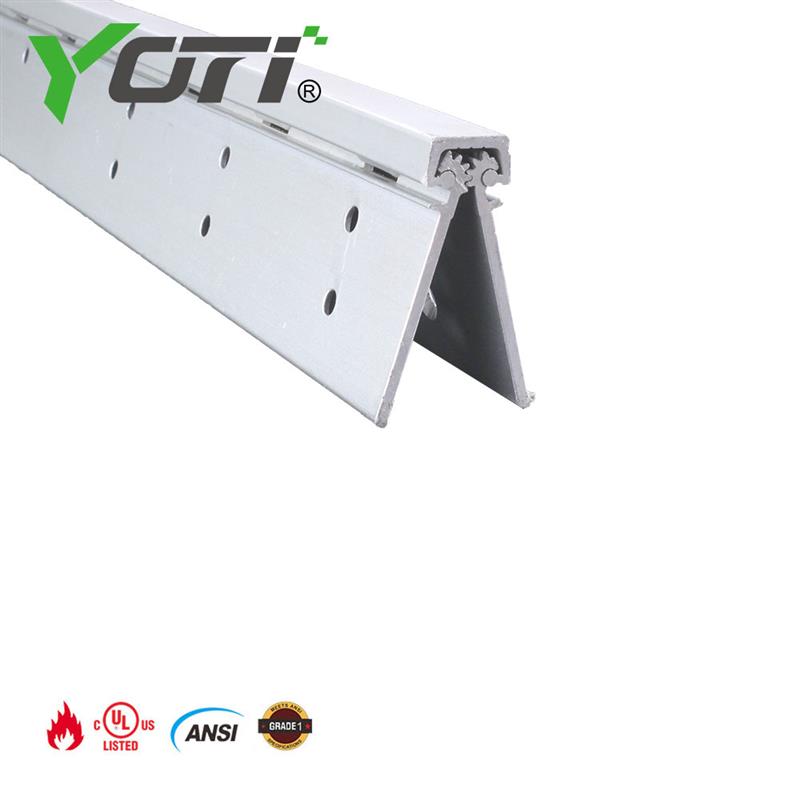

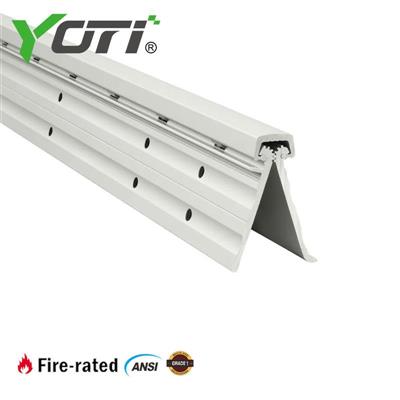

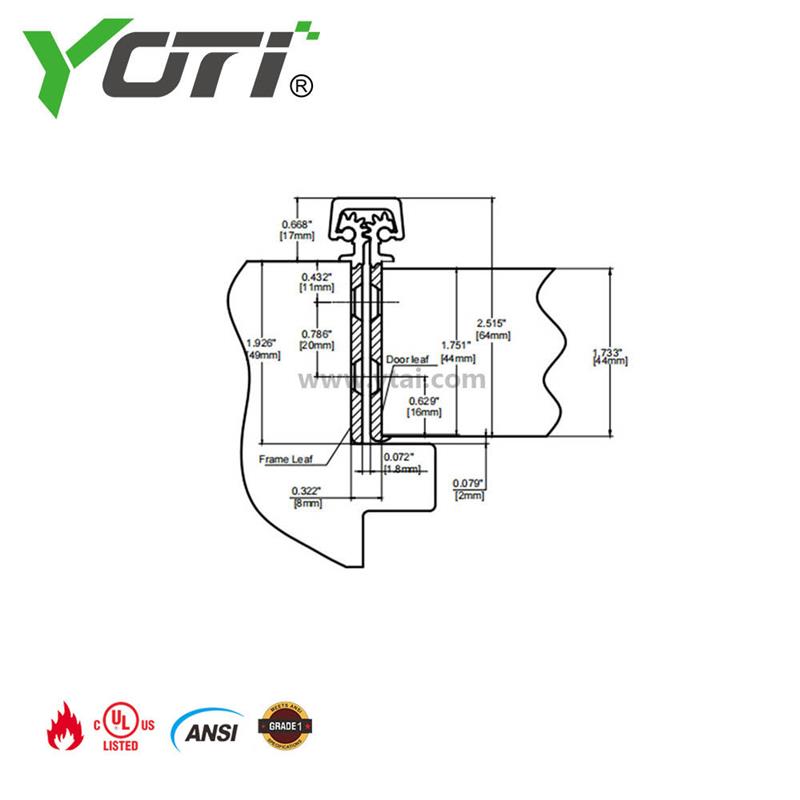

Concealed Leaf Continuous Geared Hinges

Application:
- Lead lined model for hospital x-ray room doors with double row of screws to straddle lead (specify "LL")
- Door edge protection lip

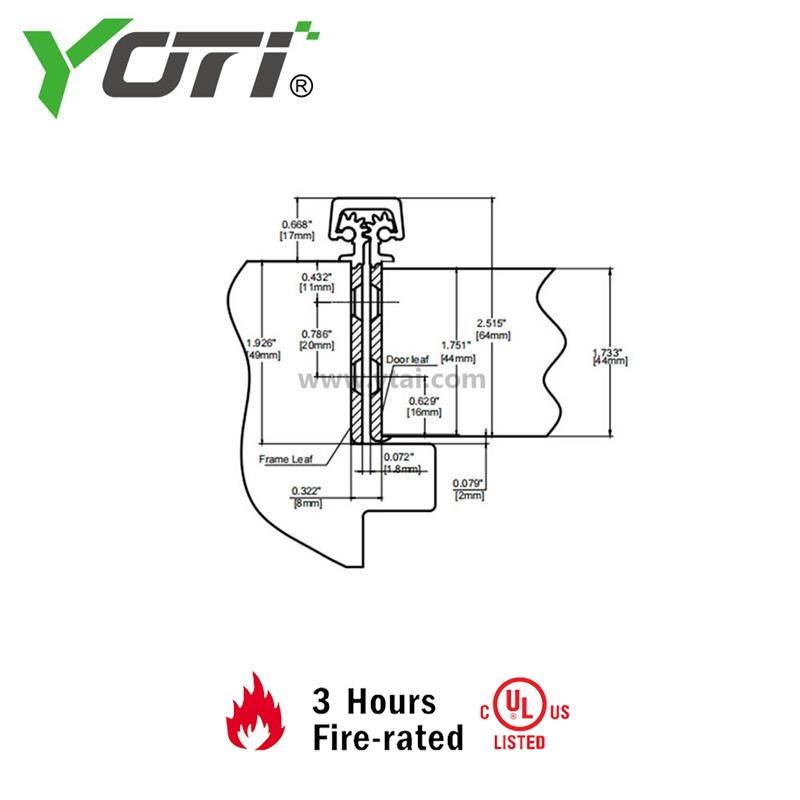

- Frame and door leaf alignment ribs for proper hinge and door location
- 3/32" (2 mm) inset

Certificate:
- BHMA & UL

Yoti Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.



Length (inches)

Length (mm)

Hole Count (Door)

Hole Count (Jamb)

83

2108

19

19

95

2413

20

20

119

3023

23

23


◇CLEARANCE:                                              - 5/16" (8 mm) hinge side

                                                                        - Plus standard lockside clearance




◇FASTENER:                                                 - #12-24 X 11/16" Flat Head Self-Drill Screws



◇FINISH OPTIONS:                                      - Standard Finished - Stocked:
                                                                       C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
                                                                       - Optional Finished - Custom:
                                                                       G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized




◇LENGTH OPITIONS:                                    - 83" & 95" & 119" & Custom



◇DOOR REINFORCEMENT:                          - None needed to 200 lbs

                                                                        - Use 16 gauge channel over 200 lbs



◇FRAME REINFORCEMENT:                       - None needed to 200 lbs
                                                                       - Use 16 gauge channel over 200 lbs



◇FIRE RATING:                                             - Up to 3 Hours metal and 90minute wood composite.


◇SPECIAL FEATURES:                               - For renovation with new door and / or frames
                                                                      - No mortising of doors or frame required
                                                                      - Will cover hinge cut outs in frames
                                                                      - Flush mount no inset
                                                                      - Frame and door leaf alignment ribs for proper hinge location

◇OPTIONS:                                                 - Hospital Tip

                                                                   - Electrified Modual
