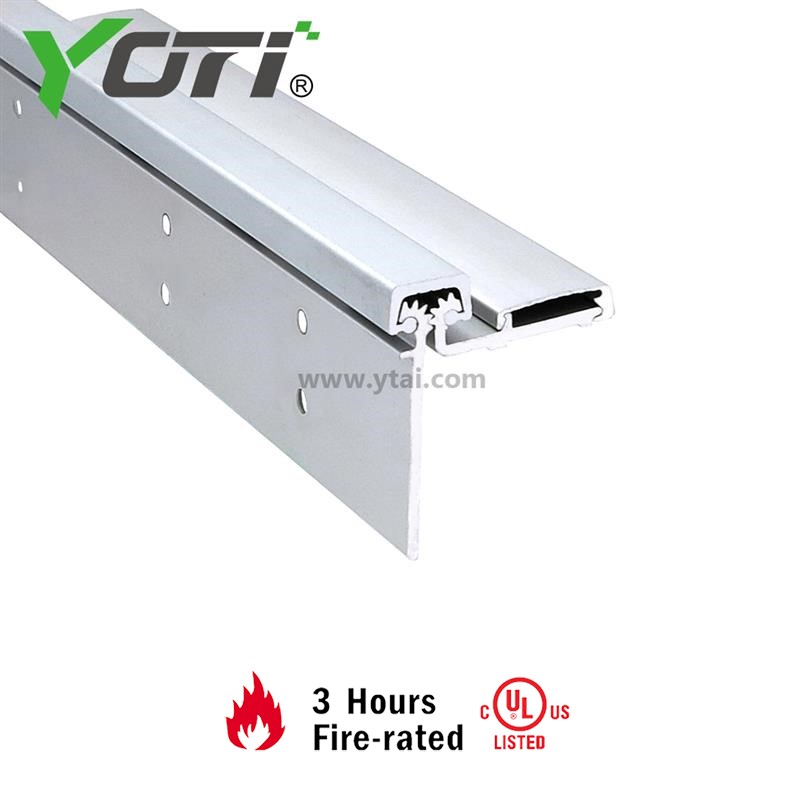

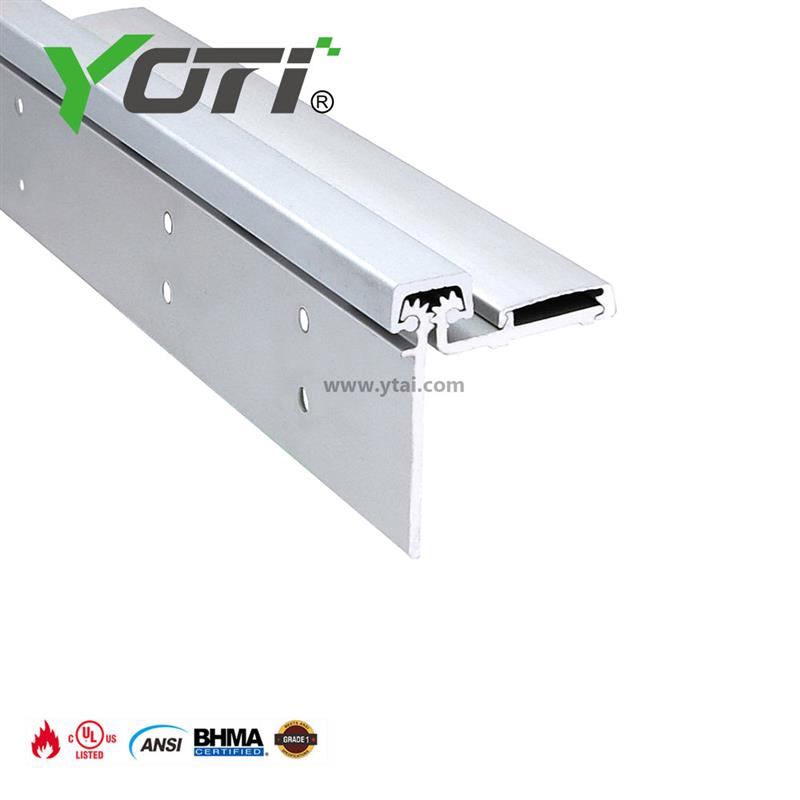

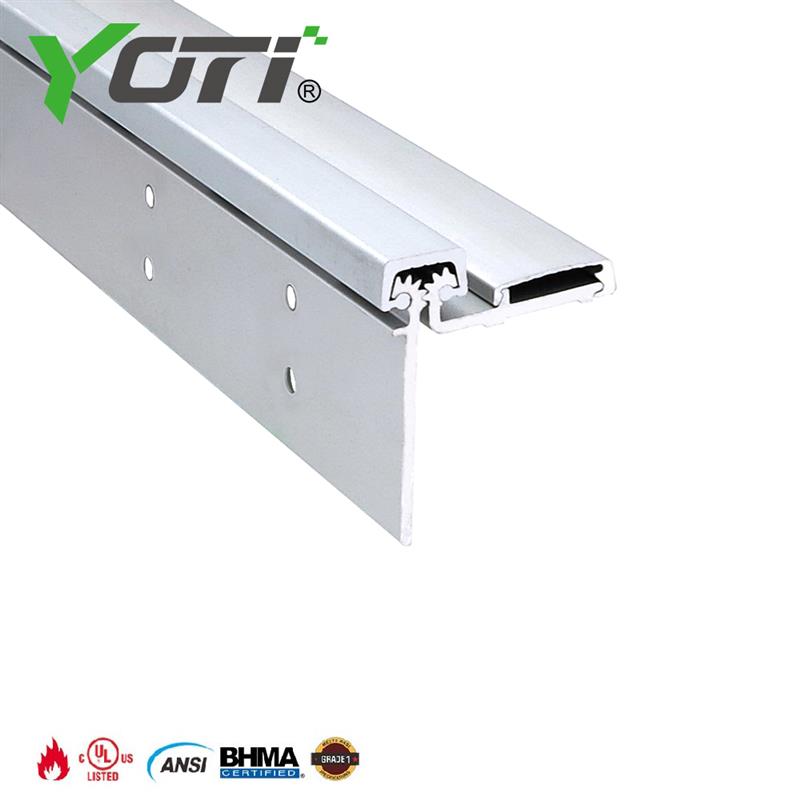

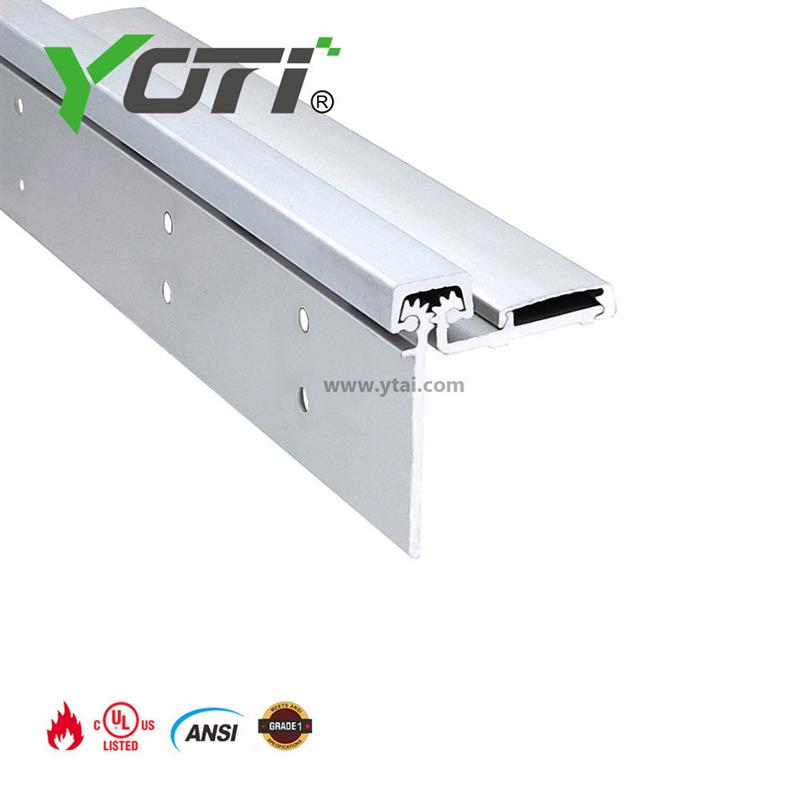

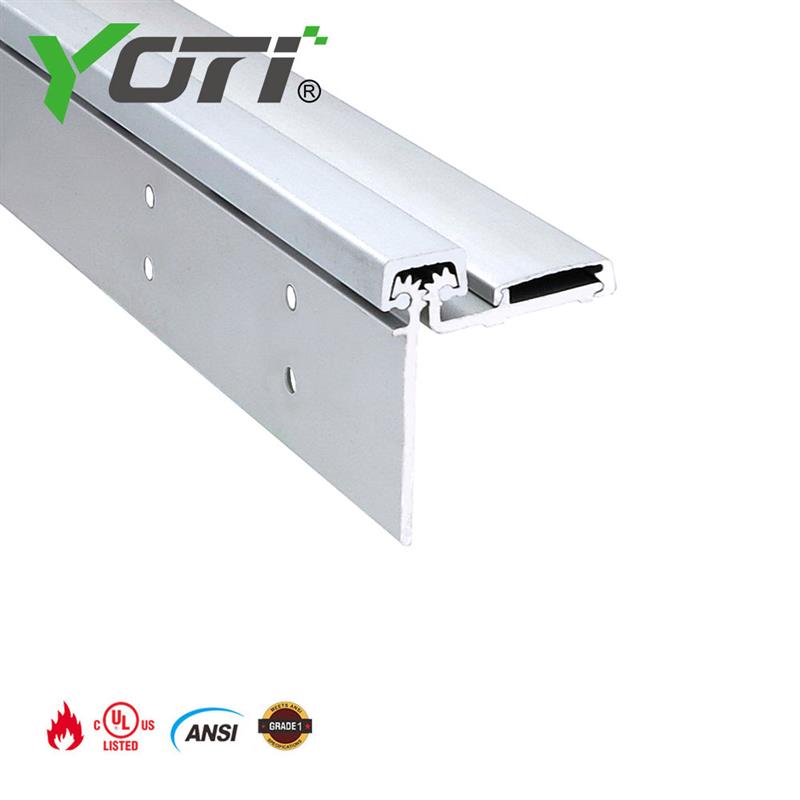

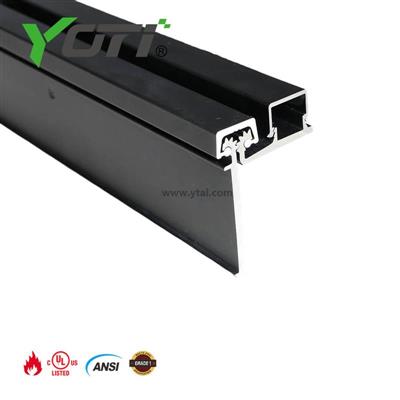

Yoti Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
|
Length (inches) |
Length (mm) |
Sex Bolts(Door) |
Pan Head (Door) |
Screws (Jamb) |
|
83 |
2108 |
8 |
19 |
19 |
|
95 |
2413 |
10 |
19 |
20 |
|
119 |
3023 |
12 |
23 |
23 |

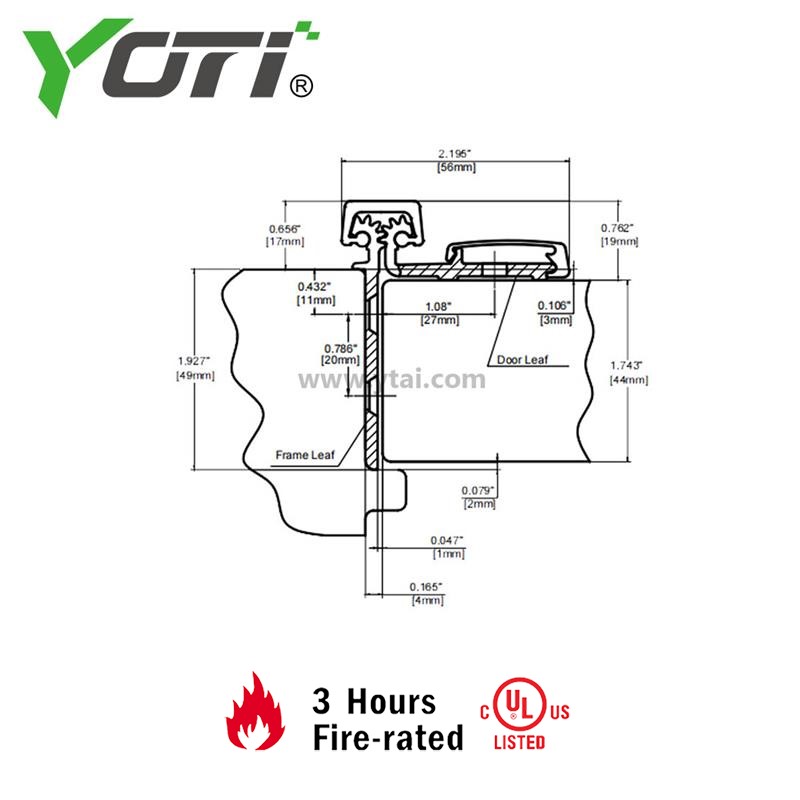

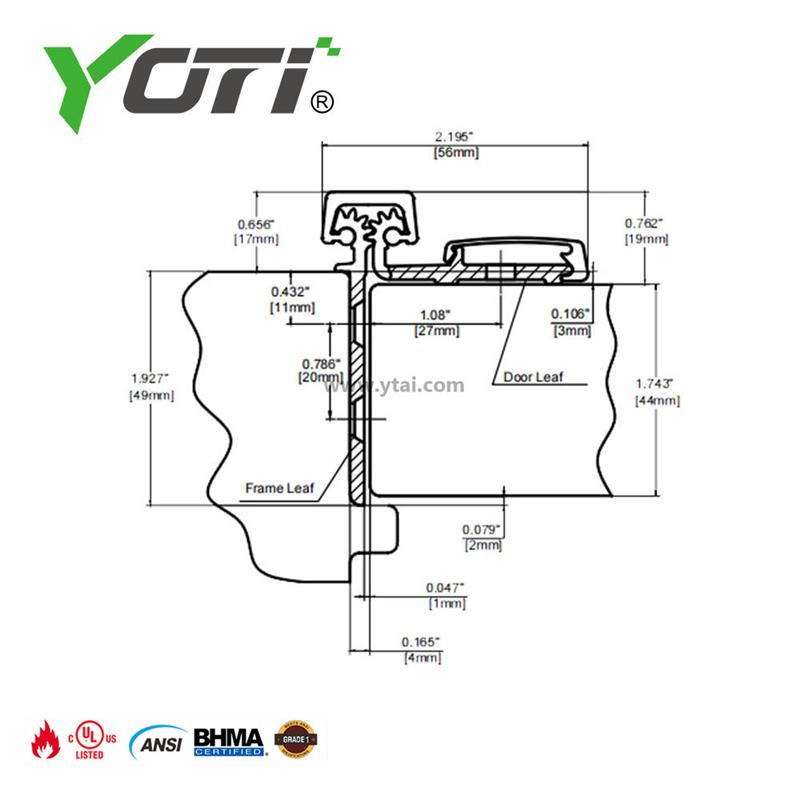

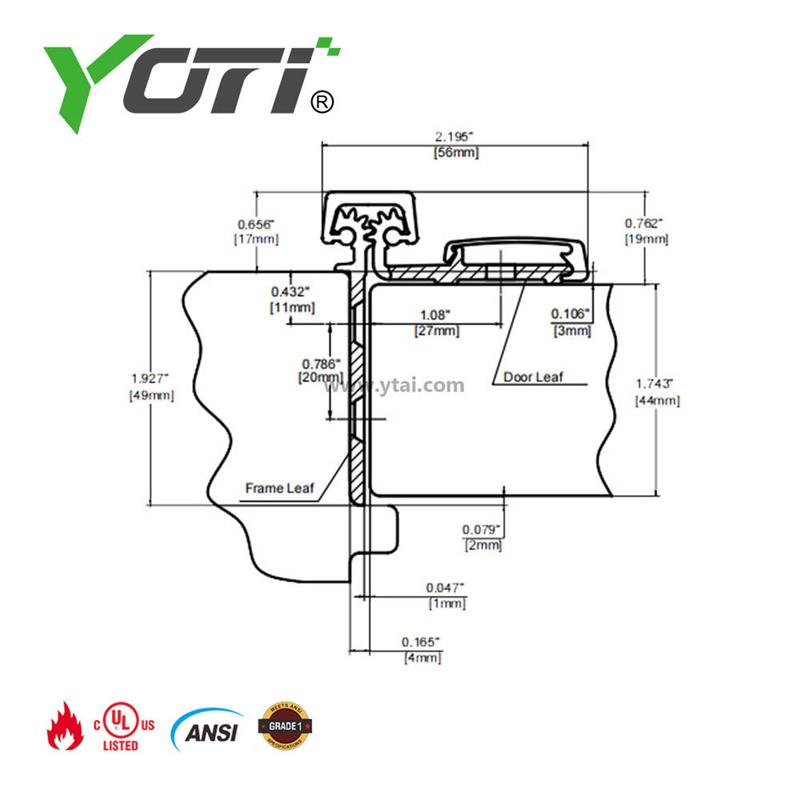

◇CLEARANCE: - 5/32" (4 mm) minimum recommended hinge side
- Plus standard lockside clearance
◇FASTENER: - 1/4-20 x 1-1/4" Sexbolt (Screw Post)
- #12-24 X 11/16" Flat Head Self-Drill Screws
◇FINISH OPTIONS: - Clear Anodized Aluminum
- Dark Bronze Anodized Aluminum
◇LENGTH OPITIONS: - 83" & 95" & 119" & Custom
◇DOOR REINFORCEMENT: - None required
◇FRAME REINFORCEMENT: - None required to 200 lbs.
- Heavier weight use 16-gauge channel.
◇FIRE RATING: - Up to 3 hours.
◇SPECIAL FEATURES: - For renovation with new door and / or frames
- No mortising of doors or frame required
- Will cover hinge cut outs in frames
- Flush mount no inset
- Frame and door leaf alignment ribs for proper hinge location
