SPECIFICATIONS:
For Use With:
3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets

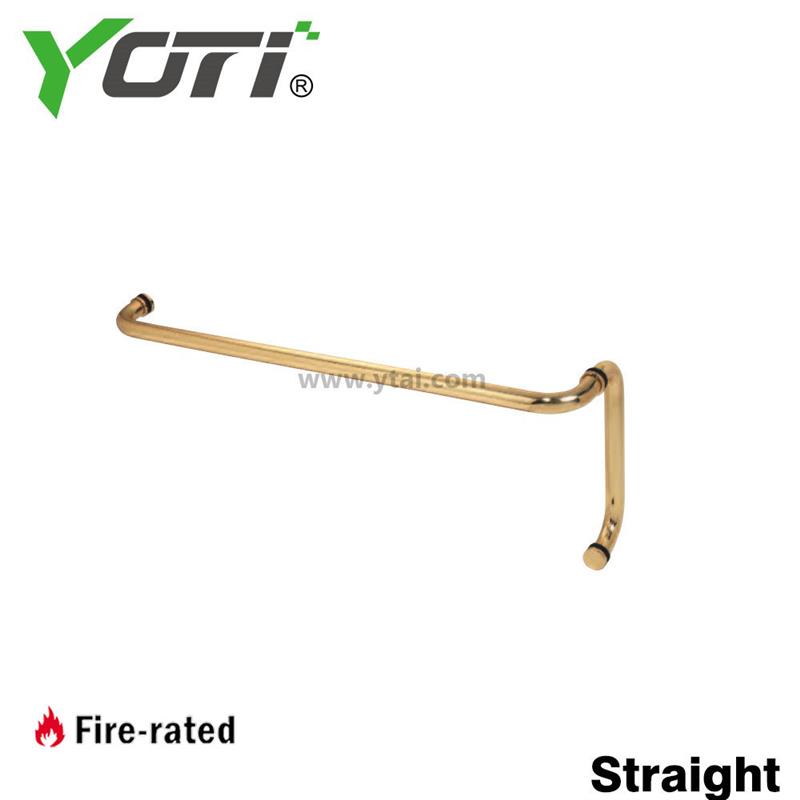

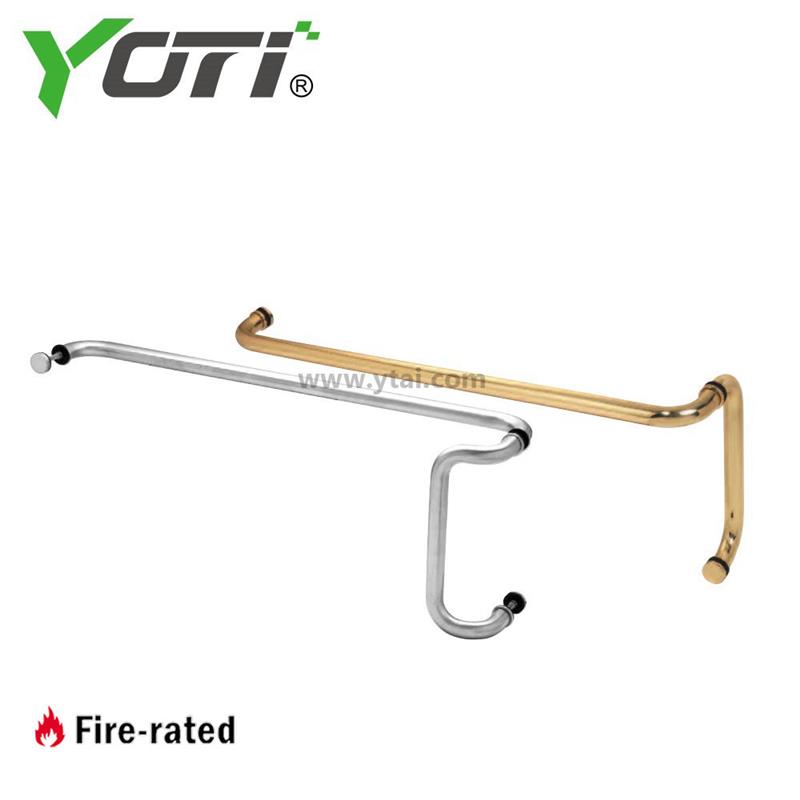

STRAIGHT COMBINATION PUSH AND PULL HANDLES
|
YOTI P.N. |
SIZE |
FINISH |
|
YTCMP10X28BS |
10"x28" |
Brushed Stainless |
|
YTCMP10X28PS |
10"x28" |
Polished Stainless |
|
YTCMP10X28BR |
10"x28" |
Polished Brass |
|
YTCMP10X28SA |
10"x28" |
Satin Anodized |
|
YTCMP10X28DU |
10"x28" |
Dark Bronze Anodized |
|
YTCMP12X28BS |
12"x28" |
Brushed Stainless |
|
YTCMP12X28PS |
12"x28" |
Polished Stainless |
|
YTCMP12X28BR |
12"x28" |
Polished Brass |
|
YTCMP12X28SA |
12"x28" |
Satin Anodized |
|
YTCMP12X28DU |
12"x28" |
Dark Bronze Anodized |

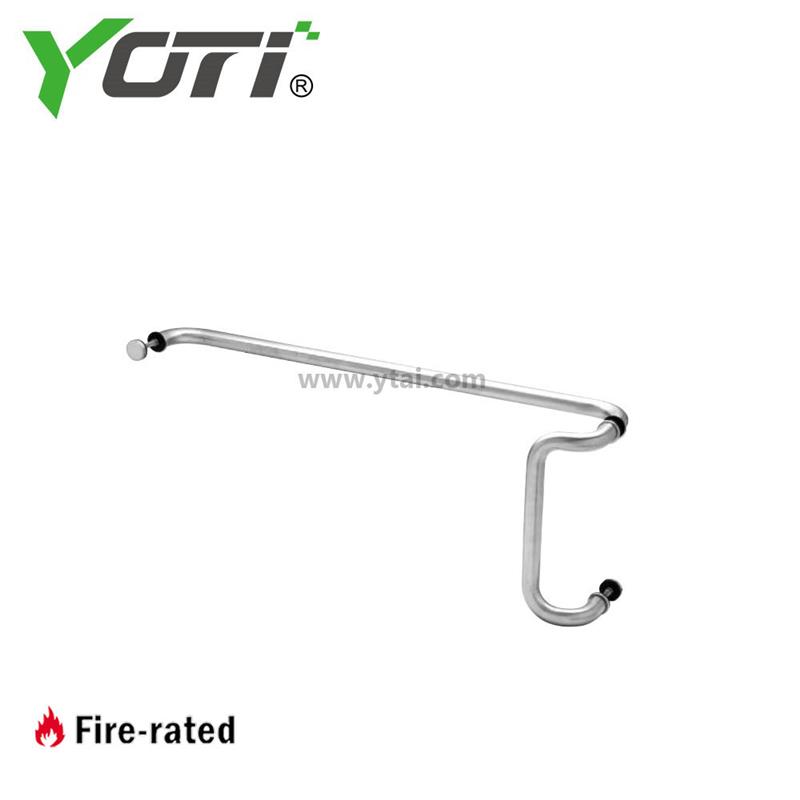

OFFSET COMBINATION PUSH AND PULL HANDLES
|
YOTI P.N. |
SIZE |
FINISH |
|
YTCDP10X28BS |
10"x28" |
Brushed Stainless |
|
YTCDP10X28PS |
10"x28" |
Polished Stainless |
|
YTCDP10X28BR |
10"x28" |
Polished Brass |
|
YTCDP10X28SA |
10"x28" |
Satin Anodized |
|
YTCDP10X28DU |
10"x28" |
Dark Bronze Anodized |
|
YTCDP12X28BS |
12"x28" |
Brushed Stainless |
|
YTCDP12X28PS |
12"x28" |
Polished Stainless |
|
YTCDP12X28BR |
12"x28" |
Polished Brass |
|
YTCDP12X28SA |
12"x28" |
Satin Anodized |
|
YTCDP12X28DU |
12"x28" |
Dark Bronze Anodized |
