• Three Sizes in Two Popular Finishes for 3/8" to 3/4" (10 to 19 mm) Glass
• Designer Left and Right Hand Models Available
• 1-1/4" (32 mm) Diameter Heavy Wall 304 Alloy Stainless Steel Tubing
• Custom Finishes and Sizes Available
SPECIFICATIONS:
For Use With:3/8" to 3/4" (10 to 19 mm) Glass
Construction:1-1/4" (32 mm) Diameter Stainless Steel Tubing.
Glass Fabrication Required:Two 5/8" (16 mm) Diameter Holes

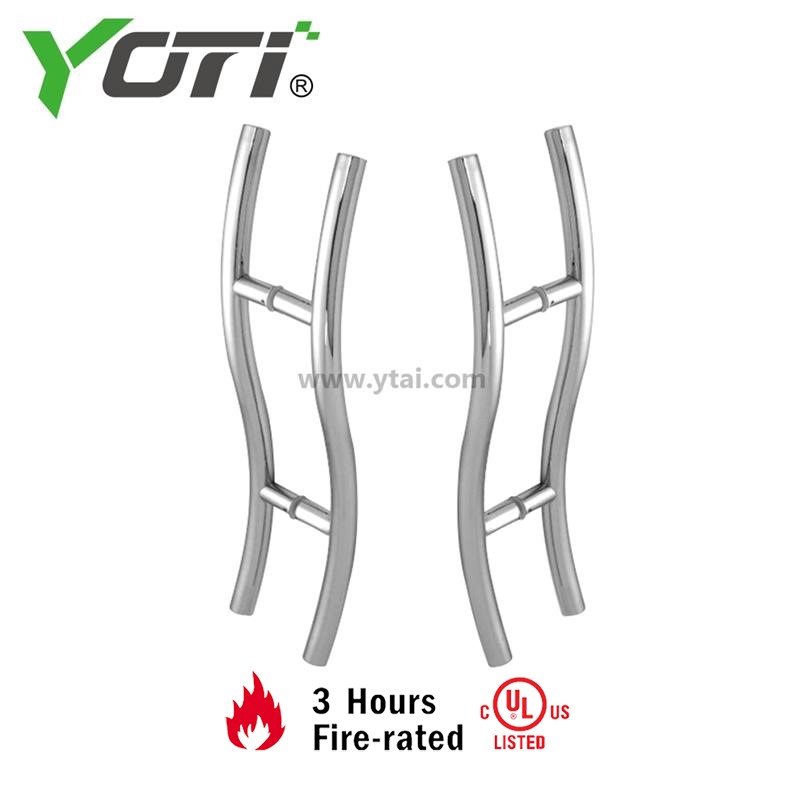

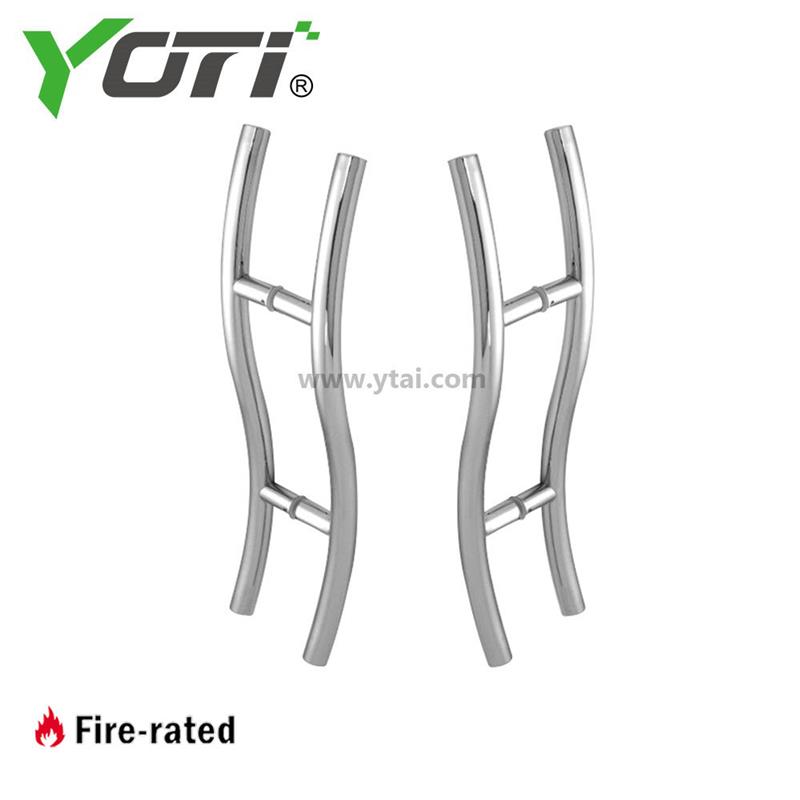

YOTI "S" Style Ladder Pull Handles are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" (10 to 19 mm) thick tempered glass. Stock sizes range from 24" to 48" (610 to 1219 mm) overall height. Standard finishes are polished stainless and brushed stainless. The Pulls are handed left and right to ensure the exposed set-screws are always on the interior side of the door. Handing is determined from the exterior side looking in. Custom sizes and finishes are available to meet architectural specifications.
