SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass Tubing.
*1-1/4" (32 mm) Diameter Stainless
Steel (YTCD24X24BS125 Model only).
Offset: 3" (76 mm) Center-to-Center
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets

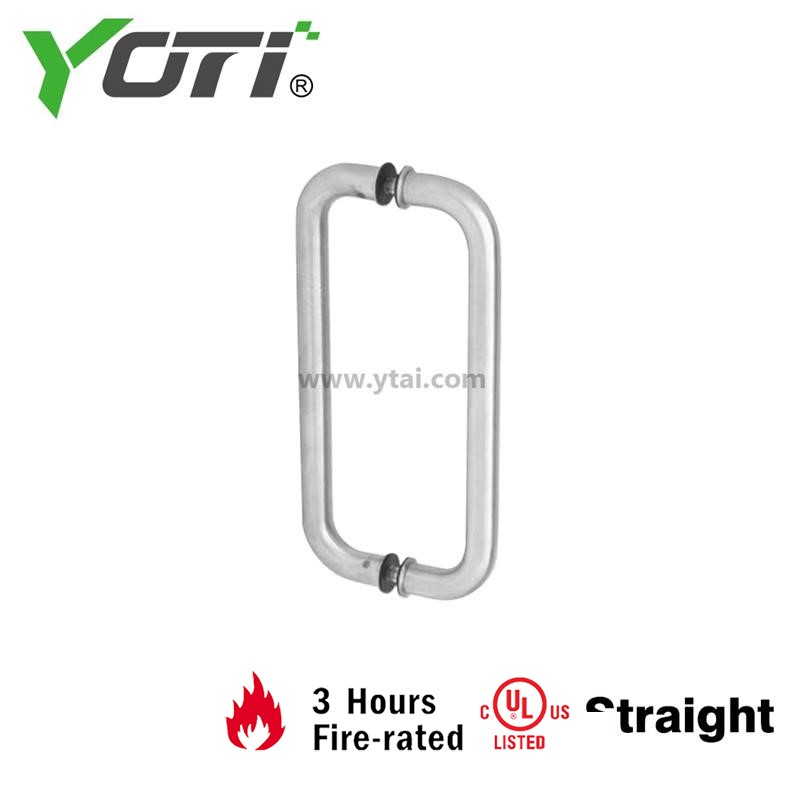

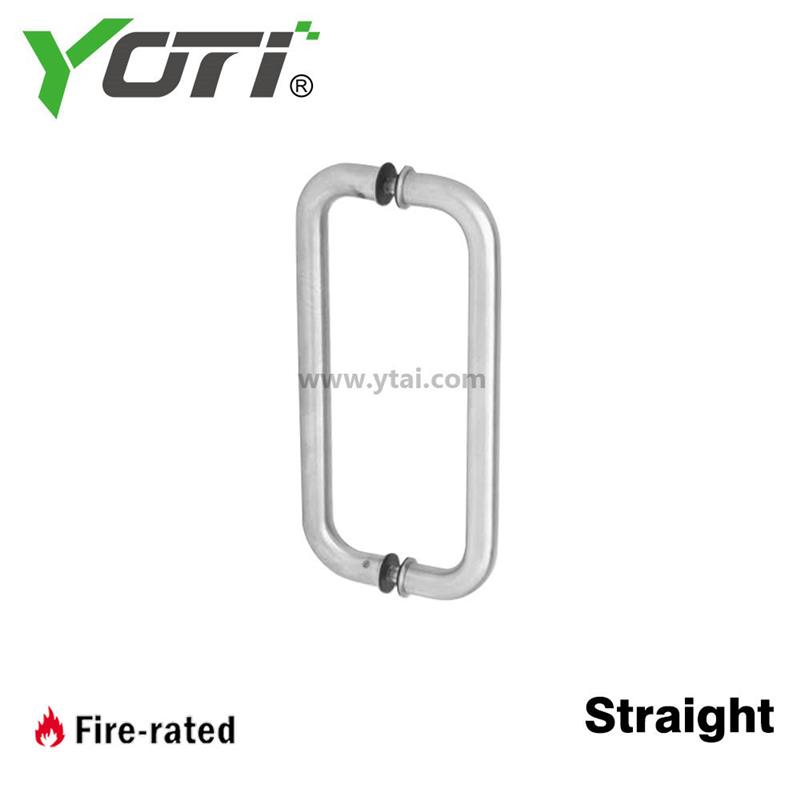

STRAIGHT BACK-TO-BACK PULL HANDLES
|
YOTI P.N.
|
SIZE
|
FINISH
|
|
YTCM10X10BS
|
10" (254mm)
|
Brushed Stainless
|
|
YTCM10X10PS
|
10" (254mm)
|
Polished Stainless
|
|
YTCM10X10BR
|
10" (254mm)
|
Polished Brass
|
|
YTCM10X10SA
|
10" (254mm)
|
Satin Anodized
|
|
YTCM10X10DU
|
10" (254mm)
|
Dark Bronze Anodized
|
|
YTCM12X12BS
|
12" (305mm)
|
Brushed Stainless
|
|
YTCM12X12PS
|
12" (305mm)
|
Polished Stainless
|
|
YTCM12X12BR
|
12" (305mm)
|
Polished Brass
|
|
YTCM12X12SA
|
12" (305mm)
|
Satin Anodized
|
|
YTCM12X12DU
|
12" (305mm)
|
Dark Bronze Anodized
|
|
YTCM18X18BS
|
18" (457mm)
|
Brushed Stainless
|
|
YTCM18X18PS
|
18" (457mm)
|
Polished Stainless
|
|
YTCM18X18BR
|
18" (457mm)
|
Polised Brass
|
|
YTCM24X24BS
|
24" (610mm)
|
Brushed Stainless
|
|
YTCM24X24PS
|
24" (610mm)
|
Polished Stainless
|
|
YTCM24X24BR
|
24" (610mm)
|
Polised Brass
|

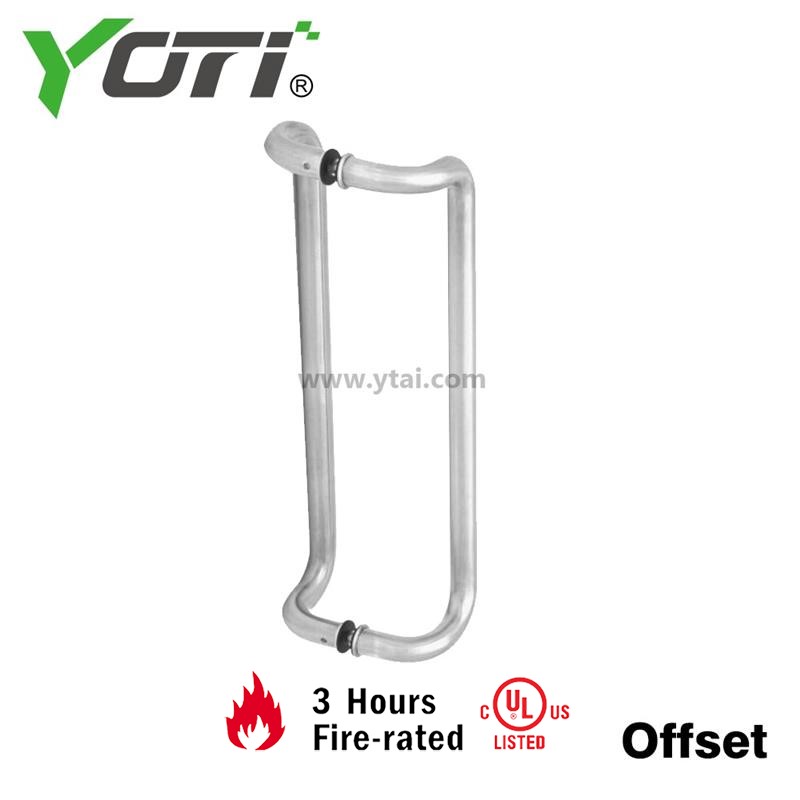

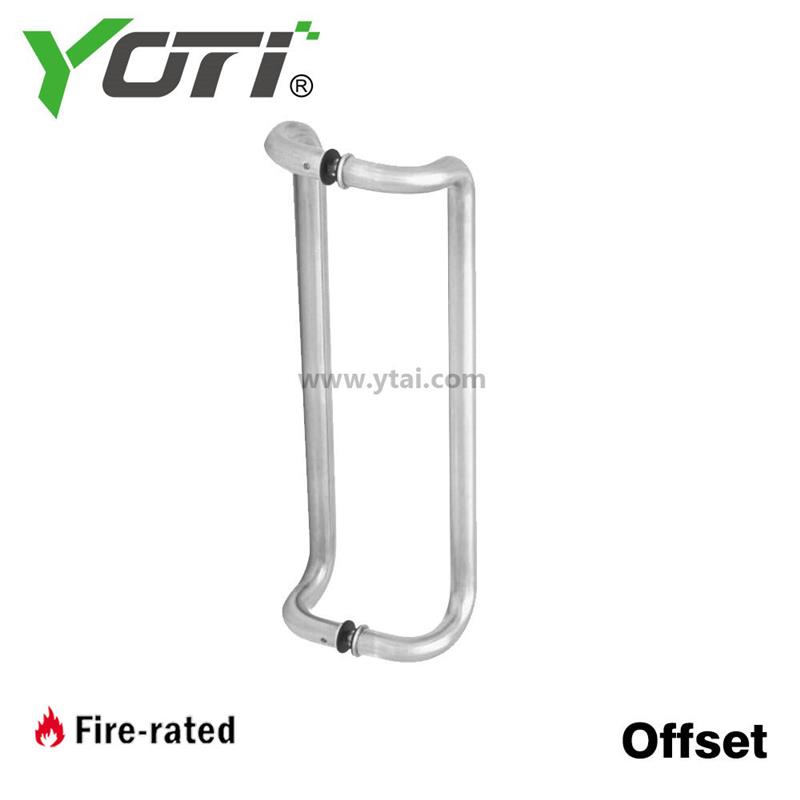

OFFSET BACK-TO-BACK PULL HANDLES
|
YOTI P.N.
|
SIZE
|
FINISH
|
|
YTCD10X10BS
|
10" (254mm)
|
Brushed Stainless
|
|
YTCD10X10PS
|
10" (254mm)
|
Polished Stainless
|
|
YTCD10X10BR
|
10" (254mm)
|
Polished Brass
|
|
YTCD10X10SA
|
10" (254mm)
|
Satin Anodized
|
|
YTCD10X10DU
|
10" (254mm)
|
Dark Bronze Anodized
|
|
YTCD12X12BS
|
12" (305mm)
|
Brushed Stainless
|
|
YTCD12X12PS
|
12" (305mm)
|
Polished Stainless
|
|
YTCD12X12BR
|
12" (305mm)
|
Polished Brass
|
|
YTCD12X12SA
|
12" (305mm)
|
Satin Anodized
|
|
YTCD12X12DU
|
12" (305mm)
|
Dark Bronze Anodized
|
|
YTCD18X18BS
|
18" (457mm)
|
Brushed Stainless
|
|
YTCD18X18PS
|
18" (457mm)
|
Polished Stainless
|
|
YTCD18X18BR
|
18" (457mm)
|
Polised Brass
|
|
YTCD24X24BS125"
|
24" (610mm)
|
Brushed Stainless
|
