One Of The Leading Company Of Providing Architectural Hardware In China

YDS615

YDS615

Brush Weatherstripping

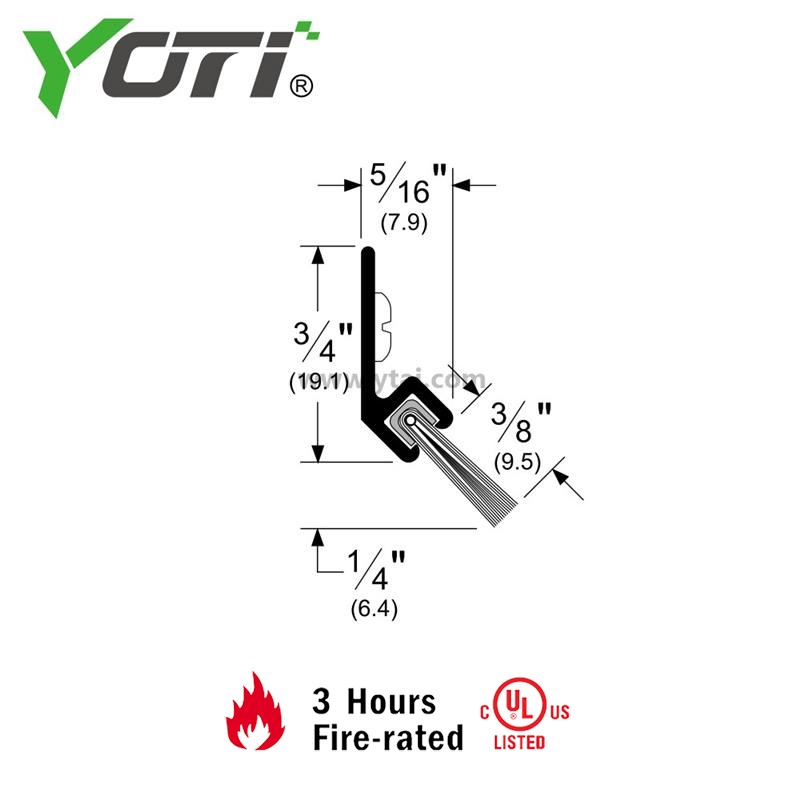

- AVAILABLE FINISHES: A, C, D
- WIDTH: 5/16” (7.9 mm)
- PROFILE HEIGHT: 3/4” (19.1 mm)
- HEIGHT INCLUDING BRUSH: 1” (25.4 mm)

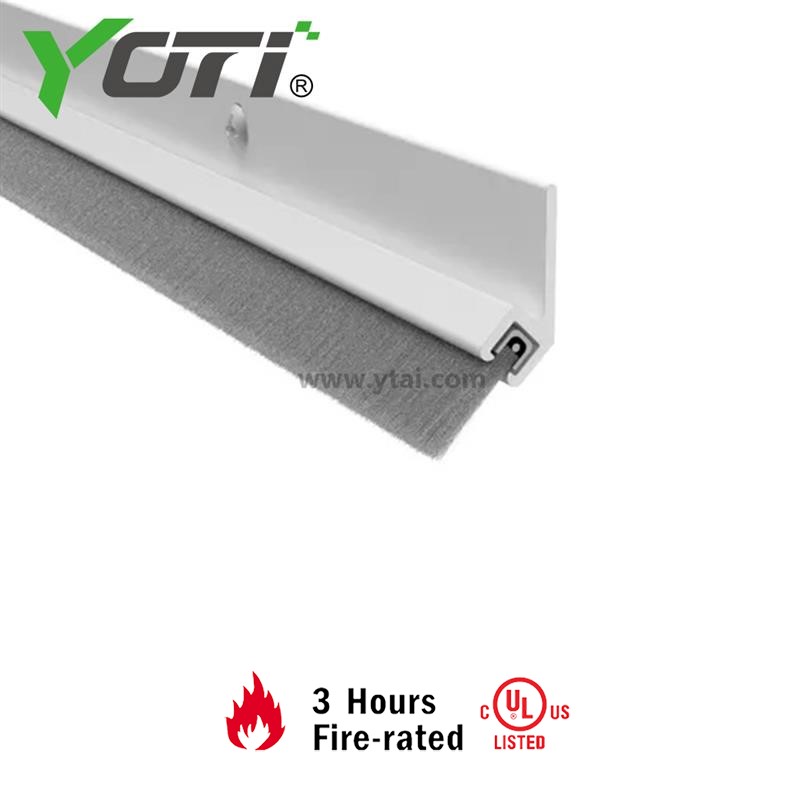

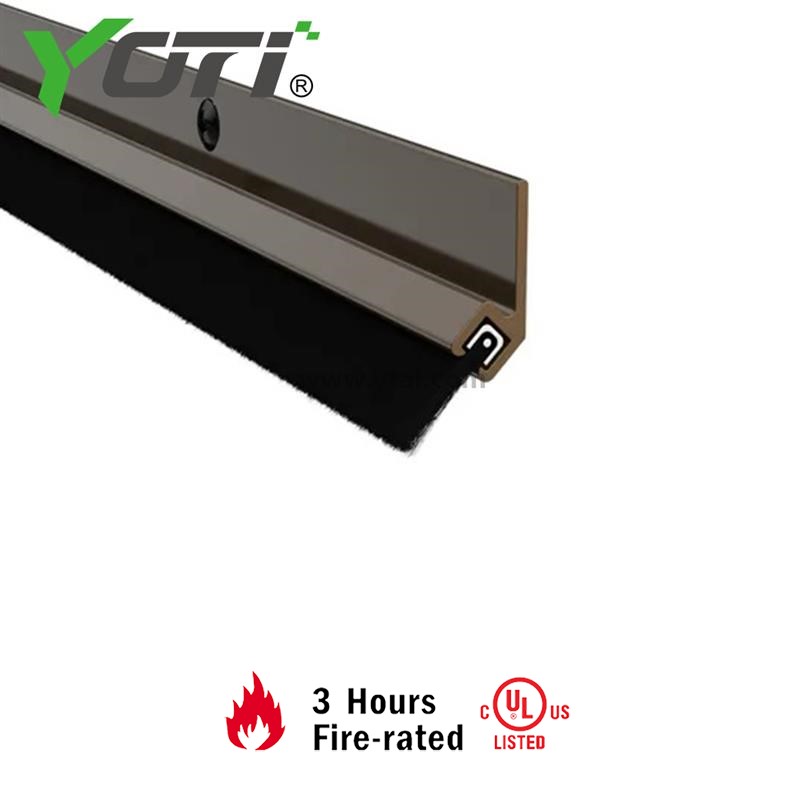

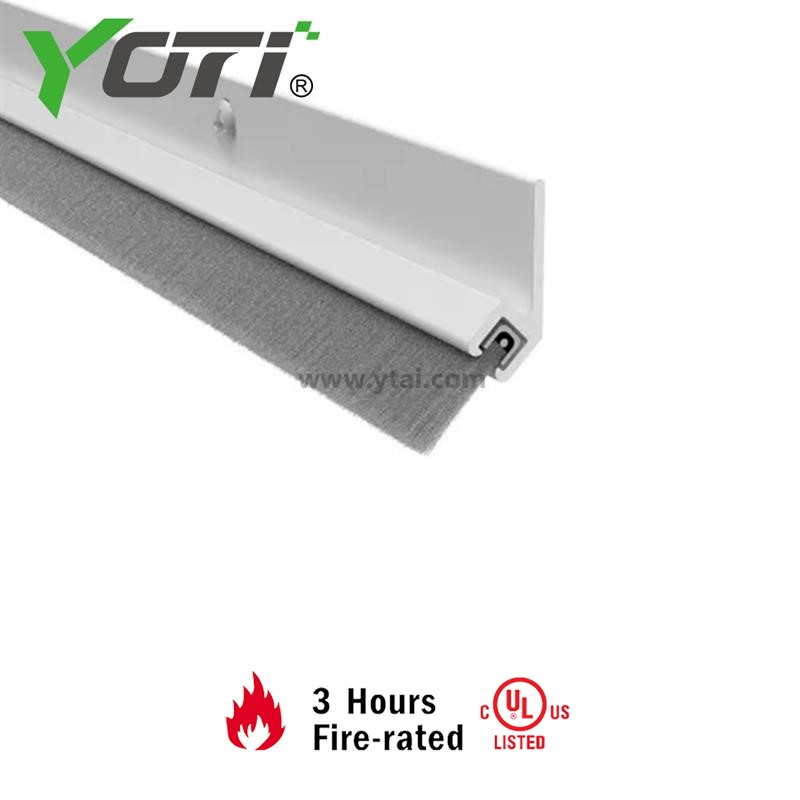

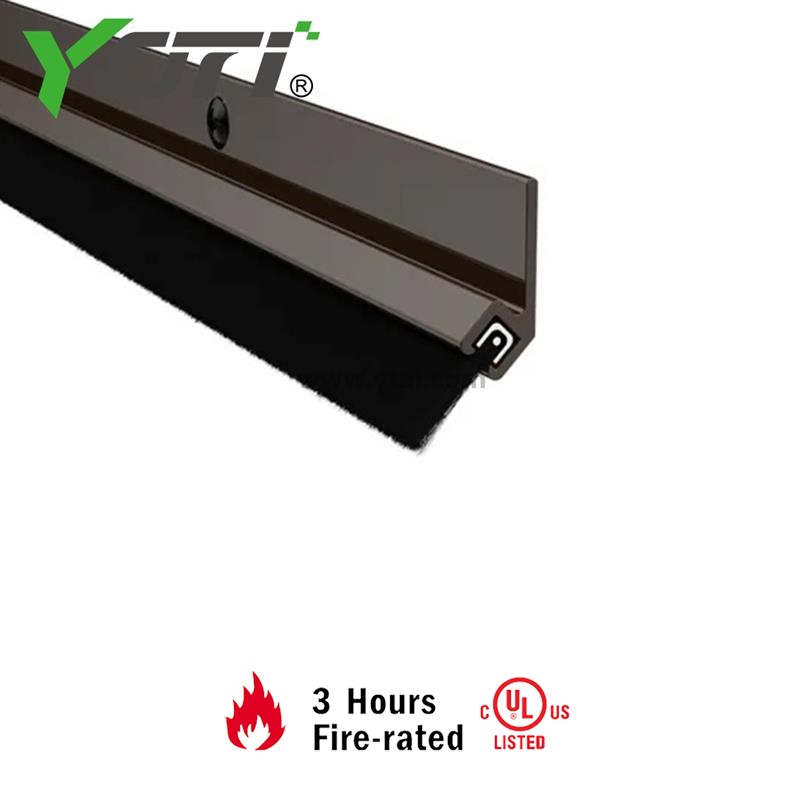

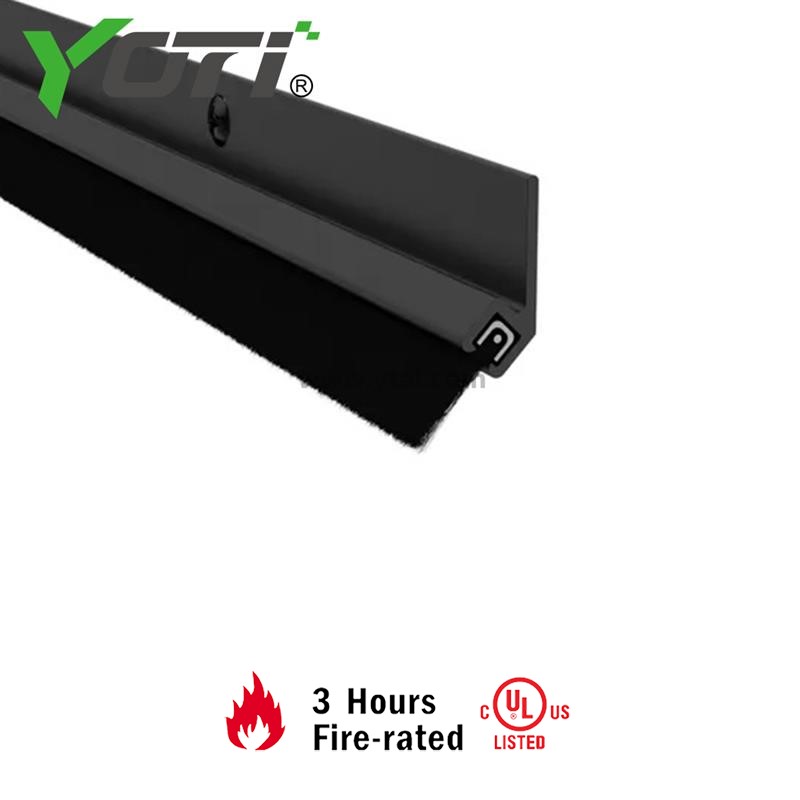

This brush door seal is supplied with an 45° angled flange which provides the best contact between the seal and the floor surface or door jamb. It can seal up to 0.25” gaps and greatly reduce infiltration of light, air, wind, rain, and snow; prevents heat loss; and controls the penetration of smoke and fumes. Available in various aluminum finishes, with two brush insert options, and is custom cut to size.



Door Brush Retainer Material
Aluminum
Temperature Range
Seals remain flexible between -40° F and over 400° F
Door Type
Wooden Door, Metal Door
Seal Type
Nylon Brush Seal
Mounting
Surface Mounted
Seal Height
1/4" Height
Total Height
1" Height
Additional Dimensions
Door seal is 5/16" thick
Length
Standard 36",48";Custom Cut to Size
Finish
A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized)
Installation
Drill Holes Drill holes are provided
Certificate
Fire Rated - UL 10B/10C

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
