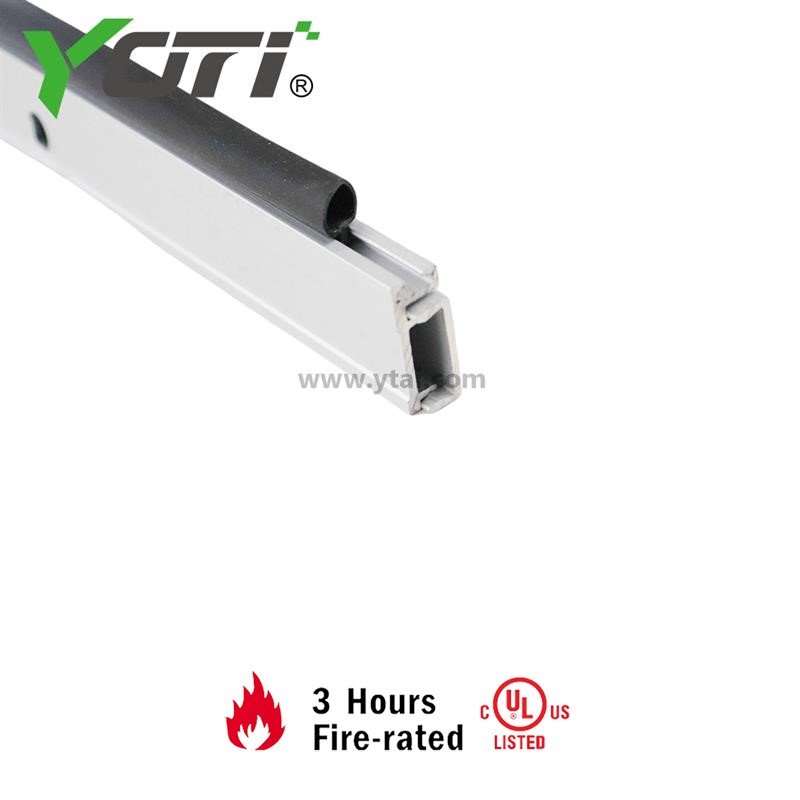

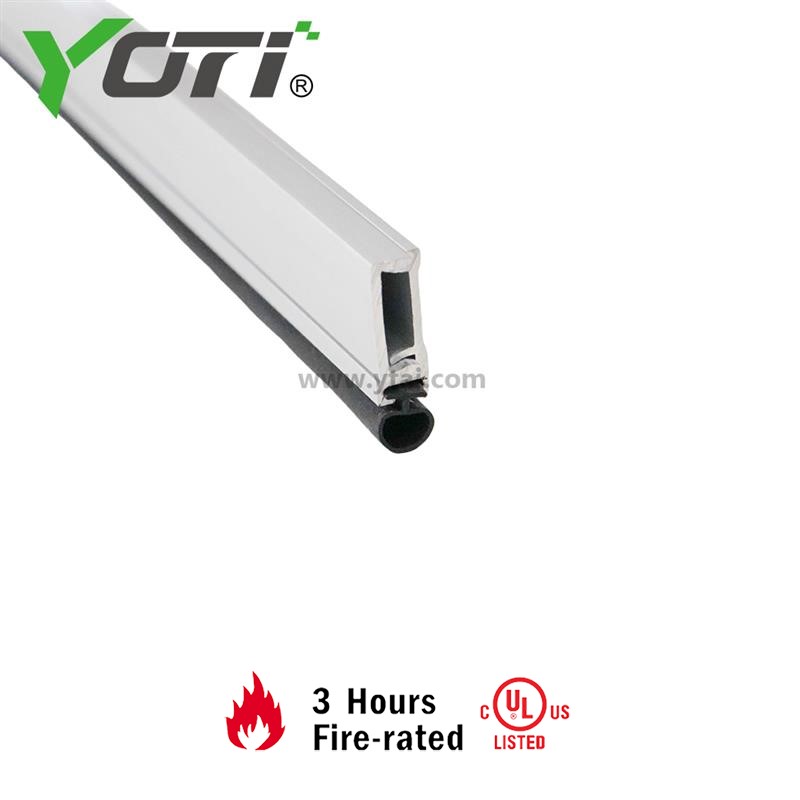

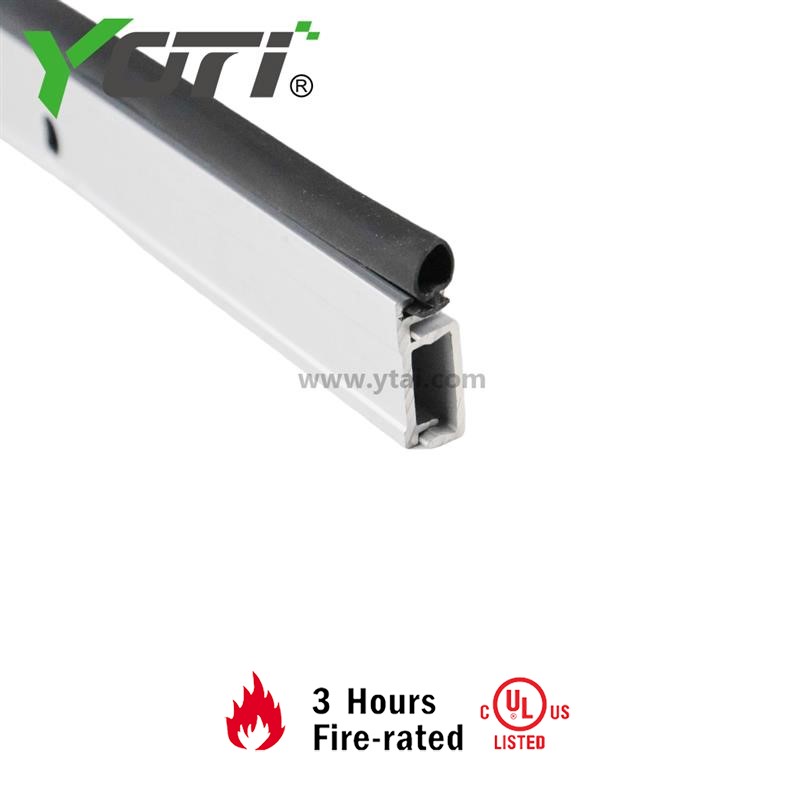

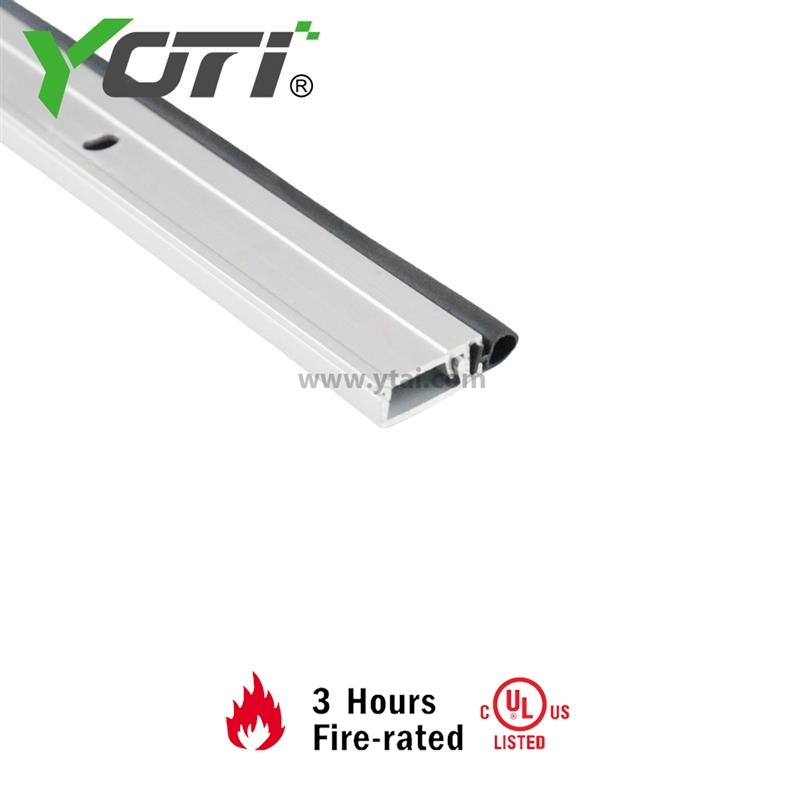

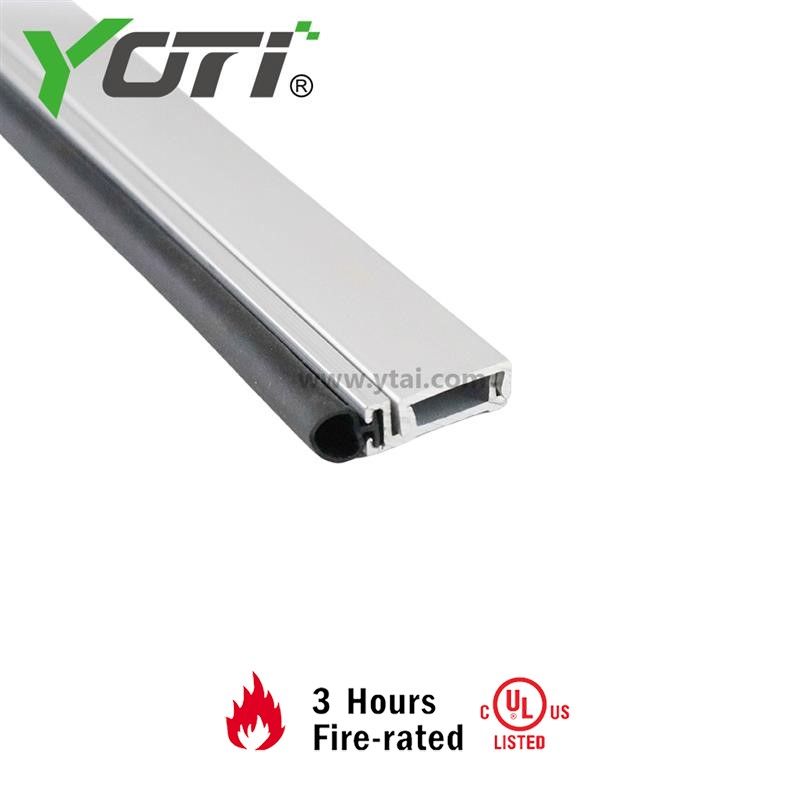

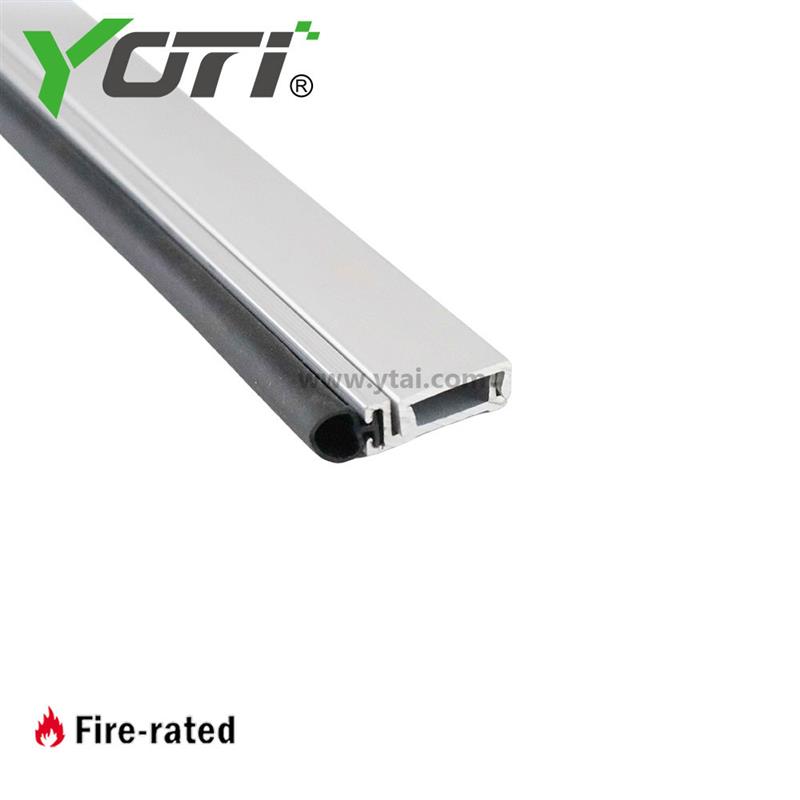

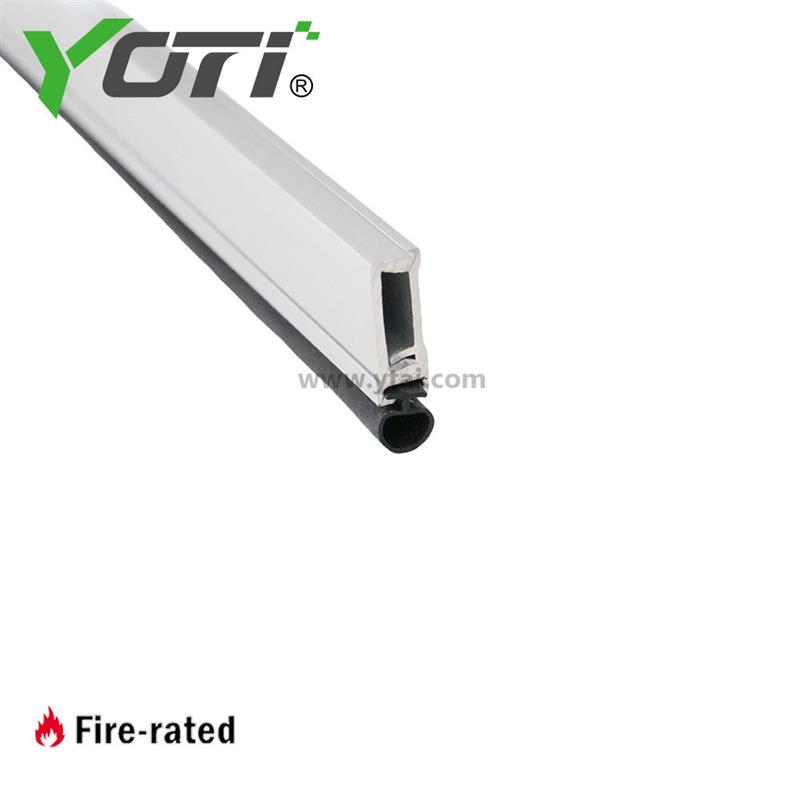

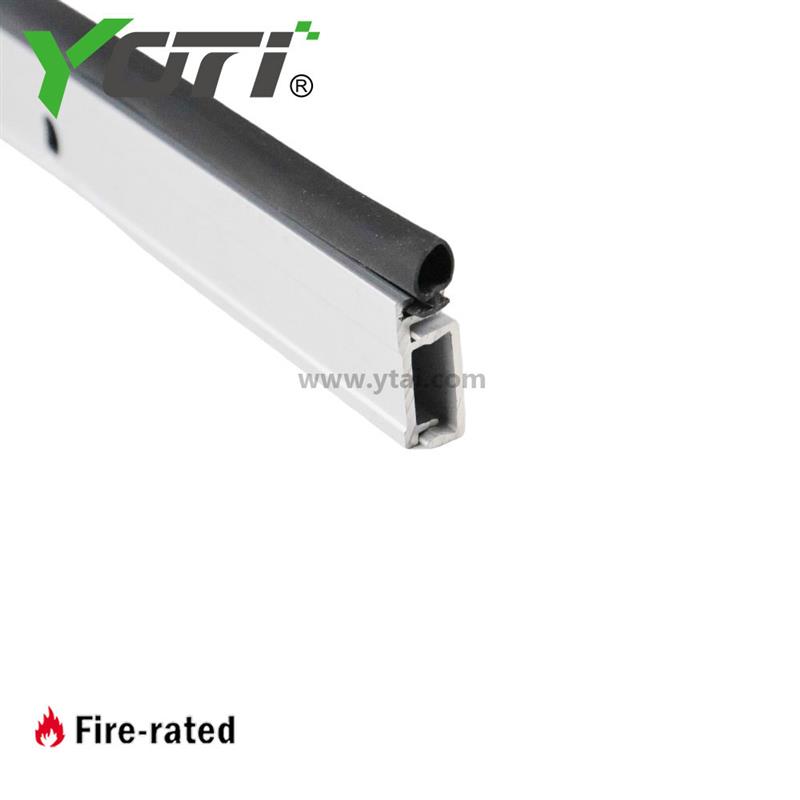

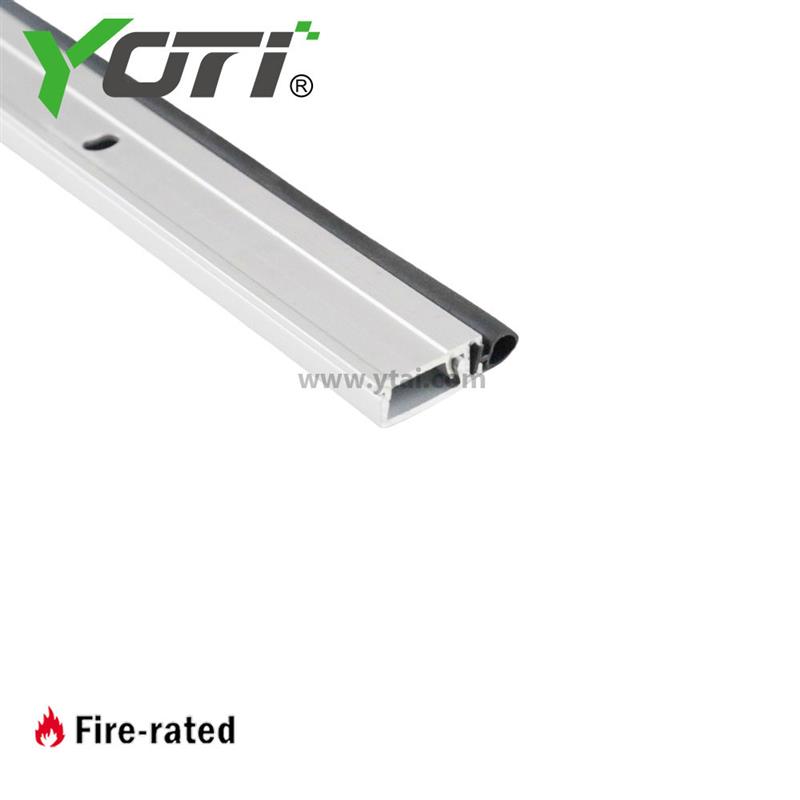

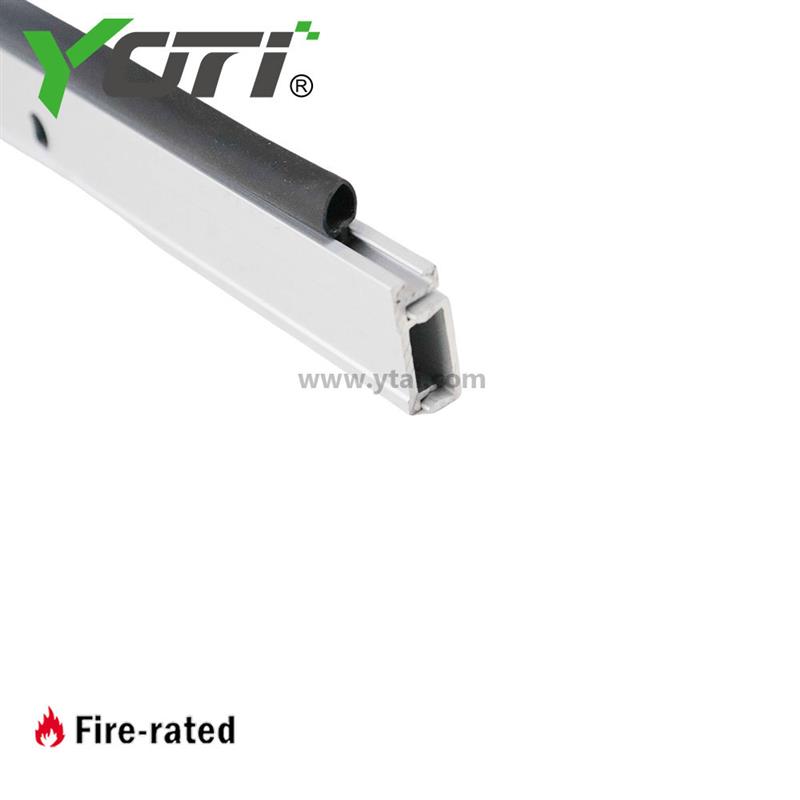

This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. Its 0.25" rubber Fin will create a seal that will prevent infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes that are guaranteed to blend unobtrusively into your door, and with various rubber seals.

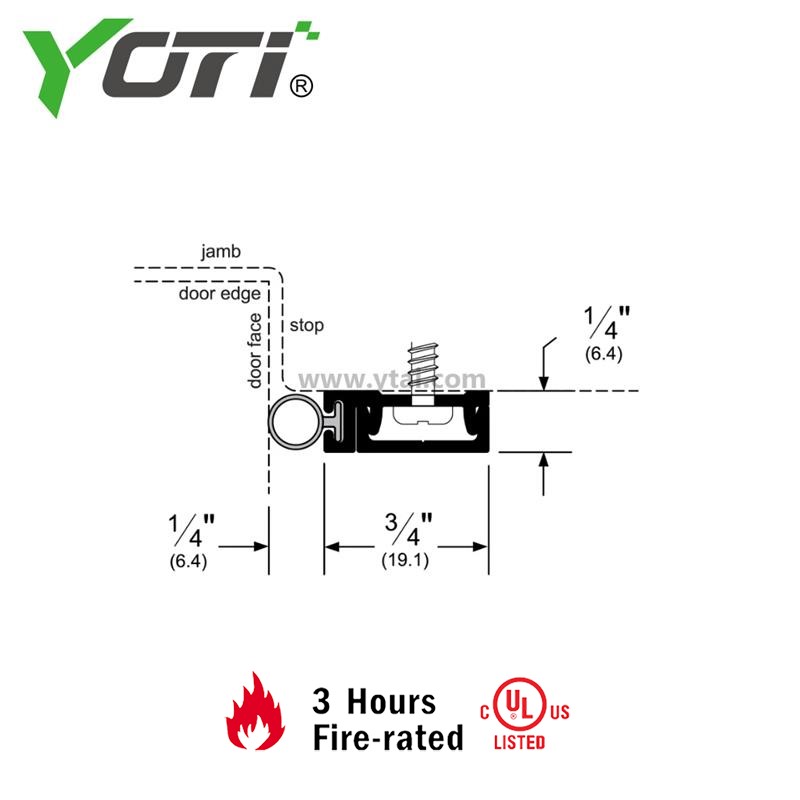

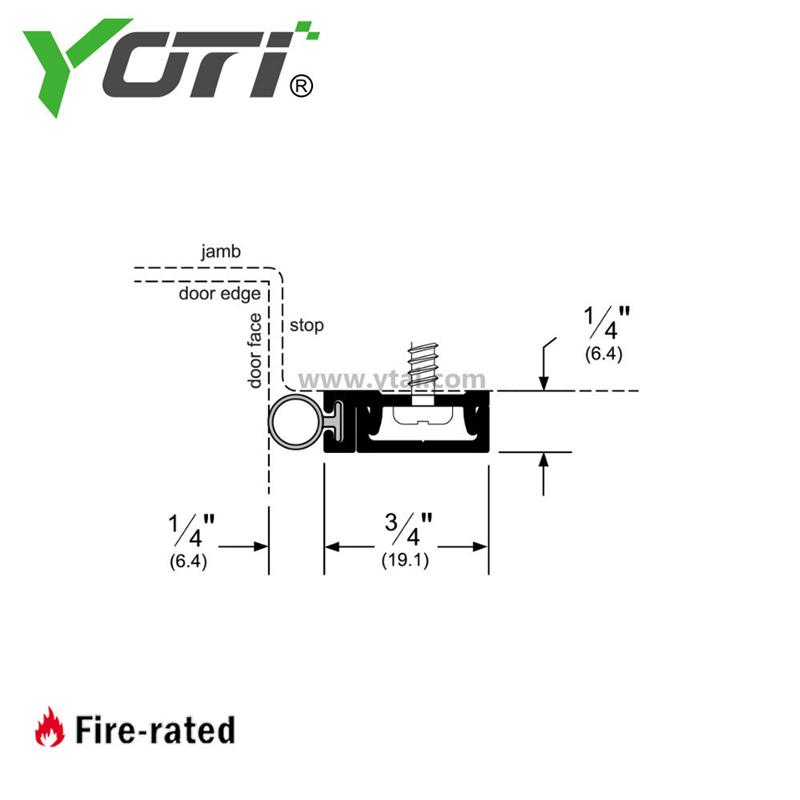

Door Gasket: Applied around the perimeter of the door. The aluminum retainer is surface applied to the stop of the door. When closed, the door compresses the seal to form a solid barrier.
Features
- Low-profile snap cover
Benefits
- Snap cover conceals mounting screws to prevent vandalism and adds an attractive finished look
Specifications
- Base Material: Aluminum
-Fasteners: PHSMS #6 x 5/8"
-Gasketing Material: PemkoPrene
-Height: 1/4"
-Maximum Length: 185"
-Minimum Length: 2'
-Mounting Location: Side of Frame
-Mounting Type: Screw applied
-Overall Height: 1/4"
-Profile Height: 3/4"
-Weight: 0.14 lbs
