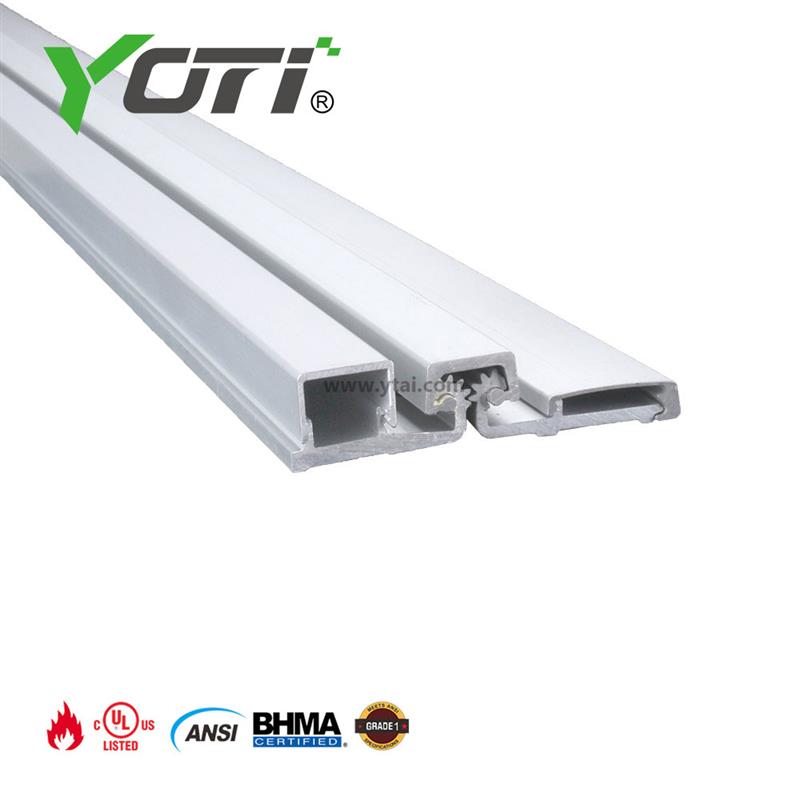

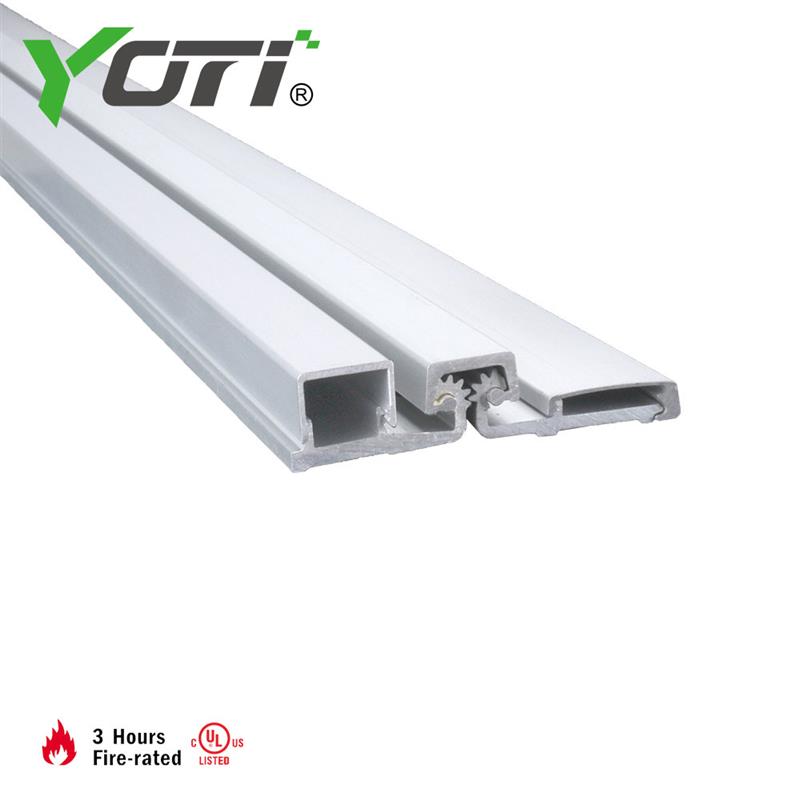

Yoti Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
|
Length (inches) |
Length (mm) |
Sex Bolts (Door) |
Screws (Jamb) |
|
83 |
2108 |
8 |
38 |
|
95 |
2413 |
10 |
38 |
|
119 |
3023 |
12 |
46 |

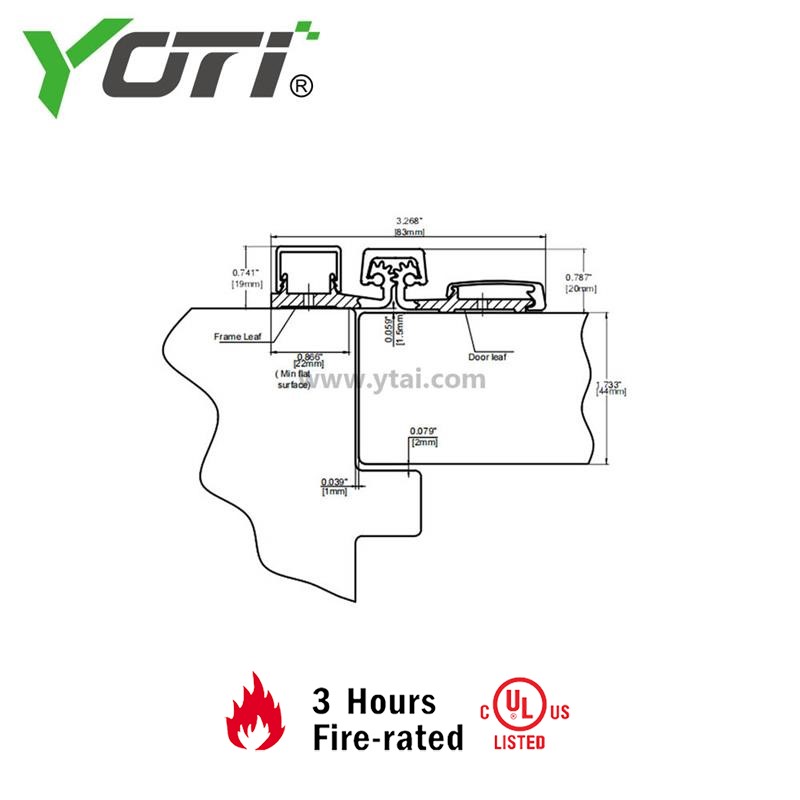

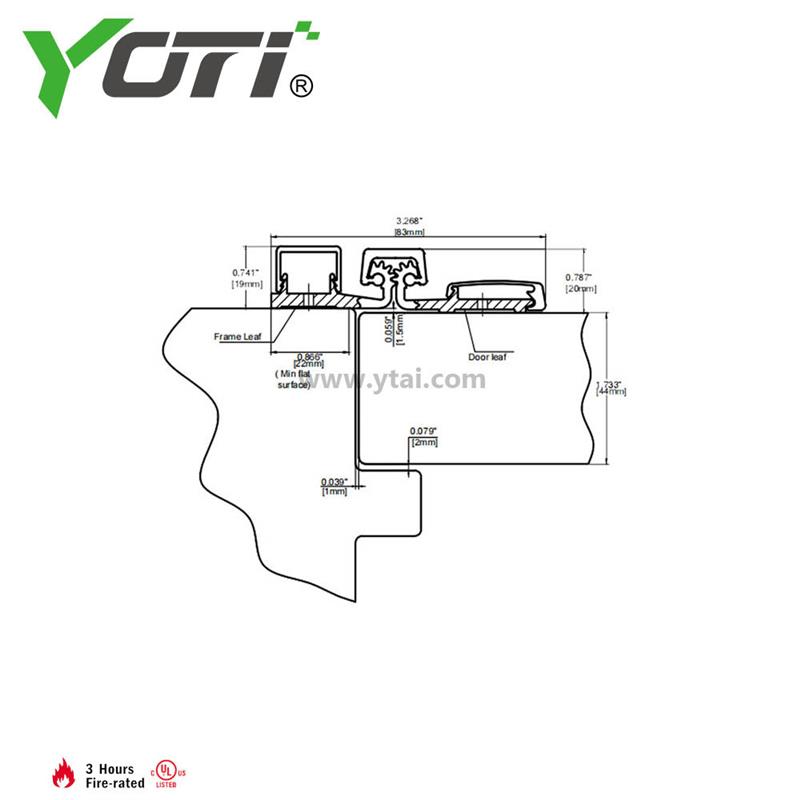

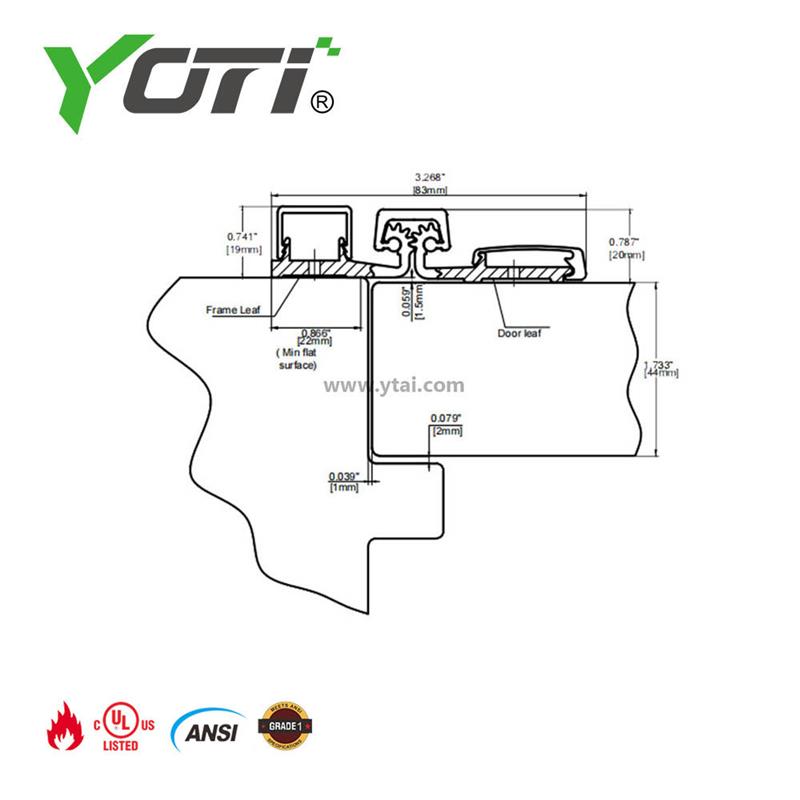

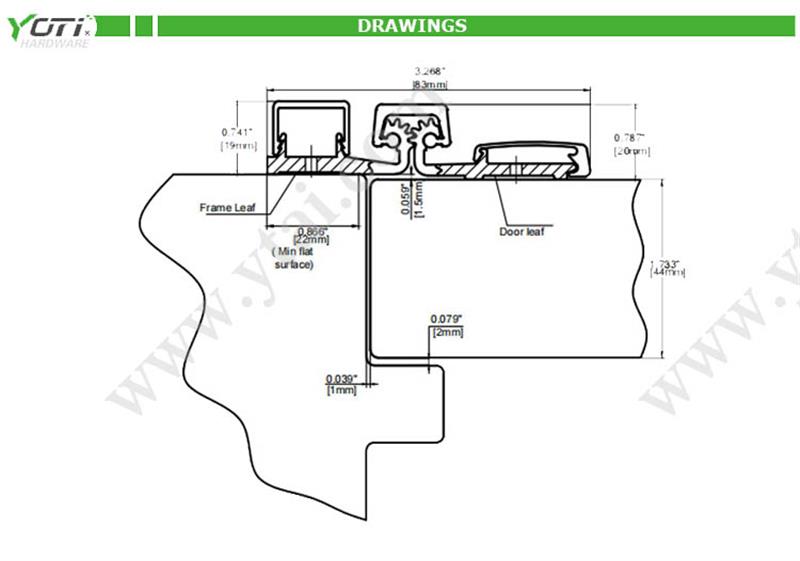

◇CLEARANCE: - 1/32" (1 mm) minimum recommended for hinge side
- Plus standard lockside clearance
- 1-5/8" (41 mm) minimum frame face required plus
3/16"(5 mm) rotational clearance
- #12-24 X 11/16" Flat Head Self-Drill Screws

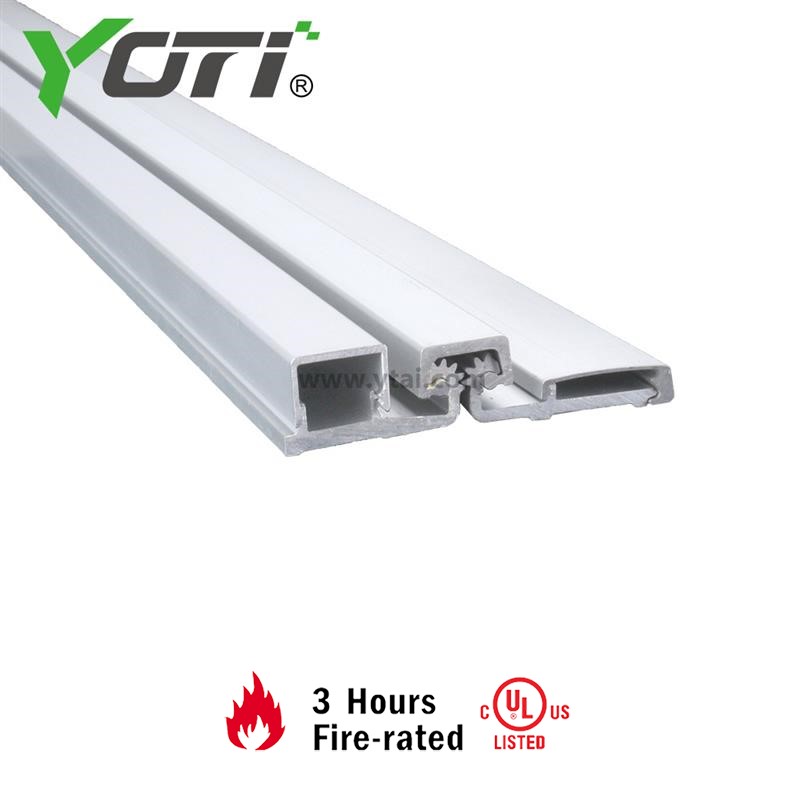

◇FINISH OPTIONS: - Clear Anodized Aluminum

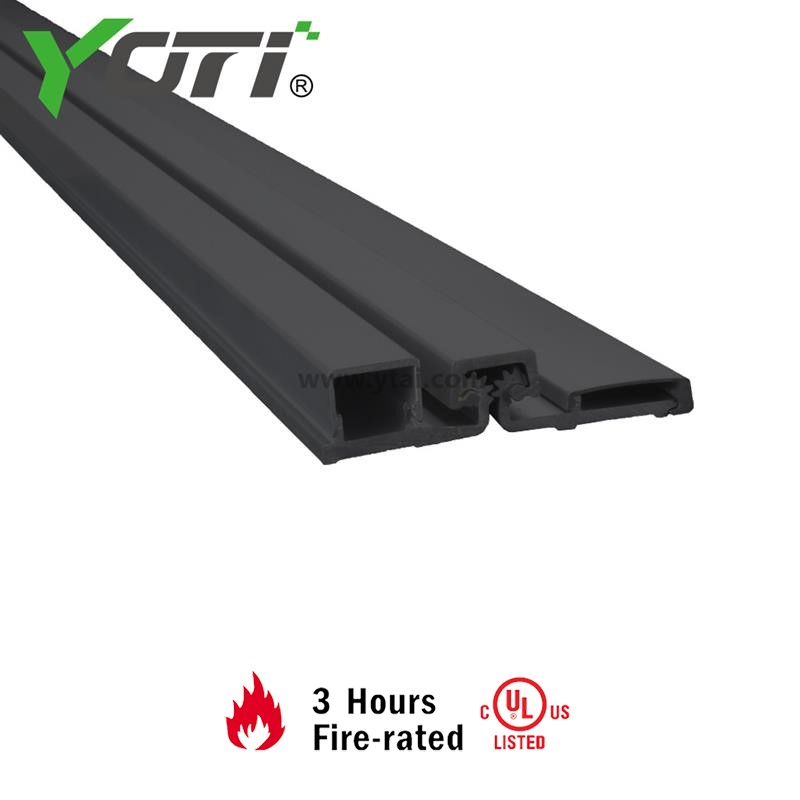

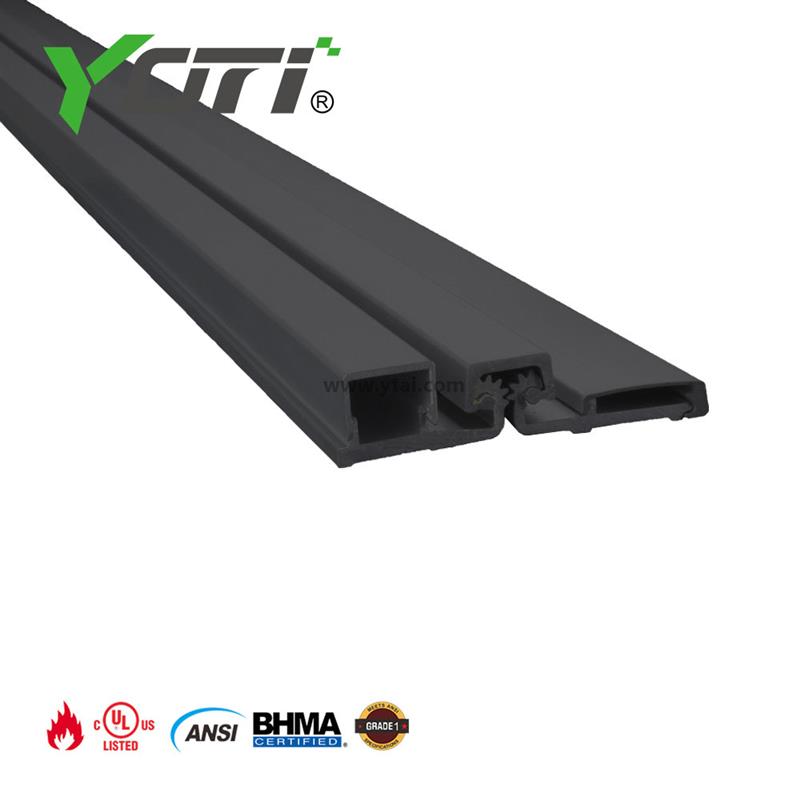

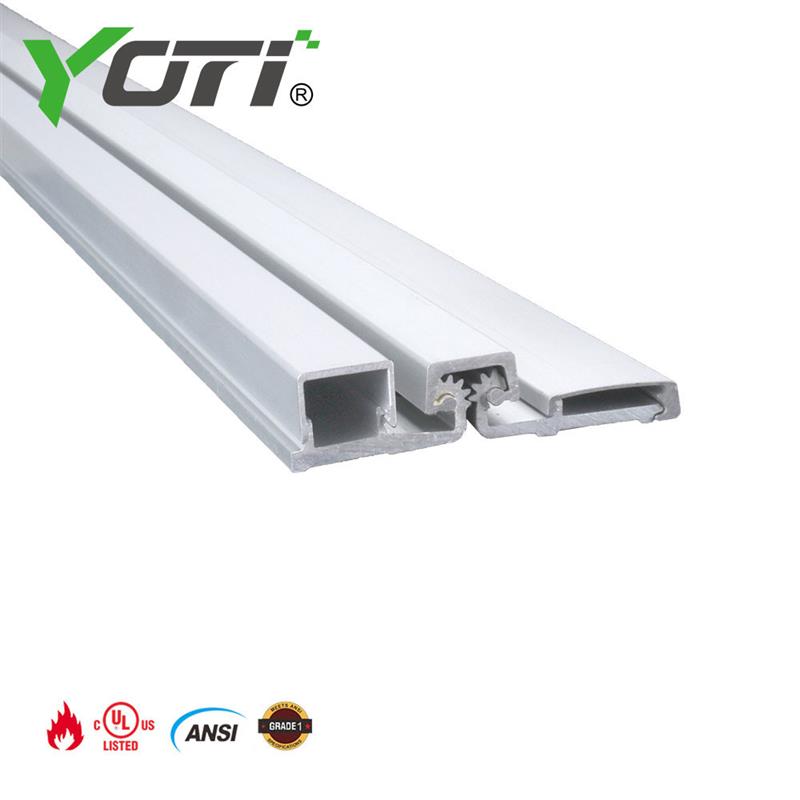

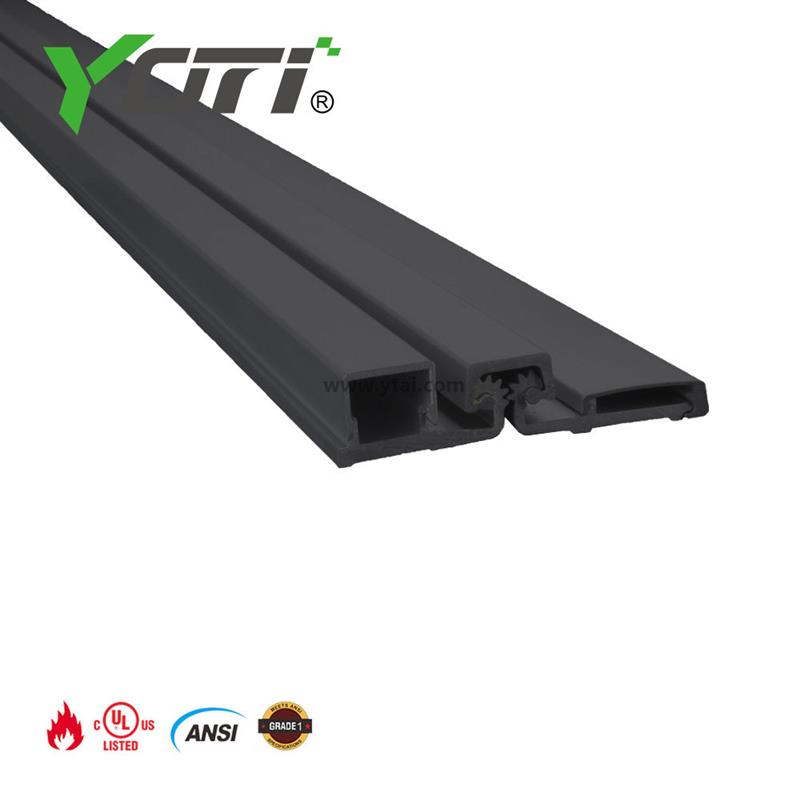

- Dark Bronze Anodized Aluminum
◇LENGTH OPTIONS: - 83" & 95" & 119" & Custom
◇DOOR REINFORCEMENT: - None needed
◇FRAME REINFORCEMENT: - None needed to 200 lbs.
- Use 16 gauge channel over 200 lbs
◇FIRERATING: - Up to 3 hours.
◇SPECIAL FEATURES: - Replacement for existing doors and frames
- 7/8" minimum frame
- 1/16" inset
