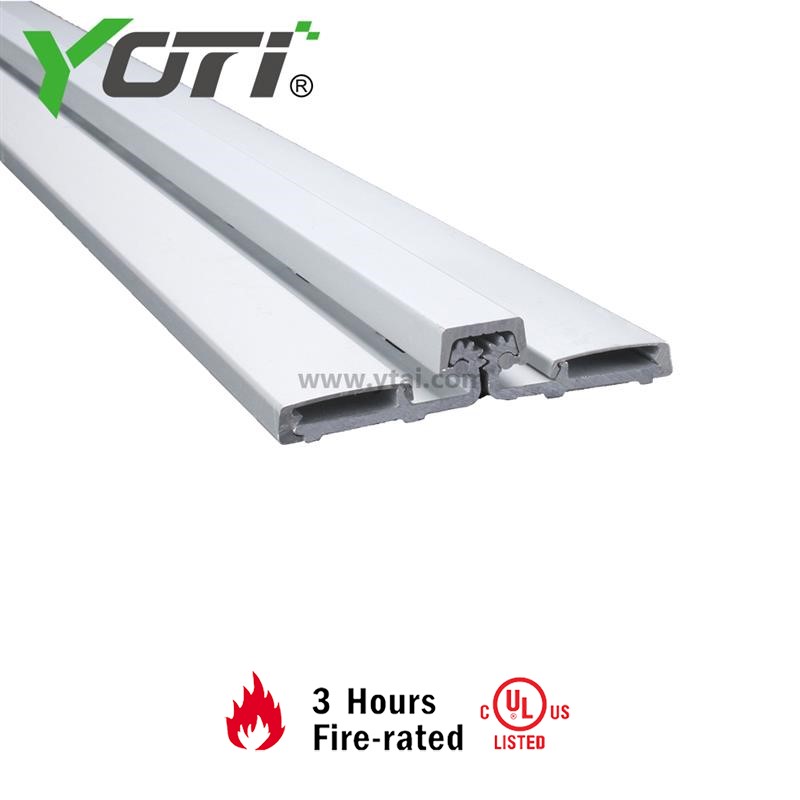

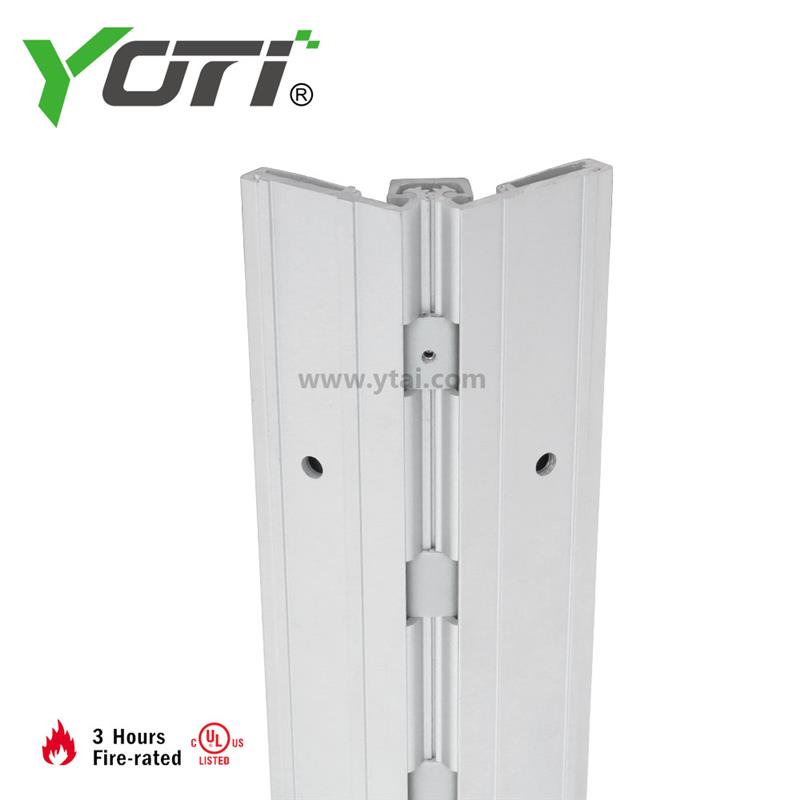

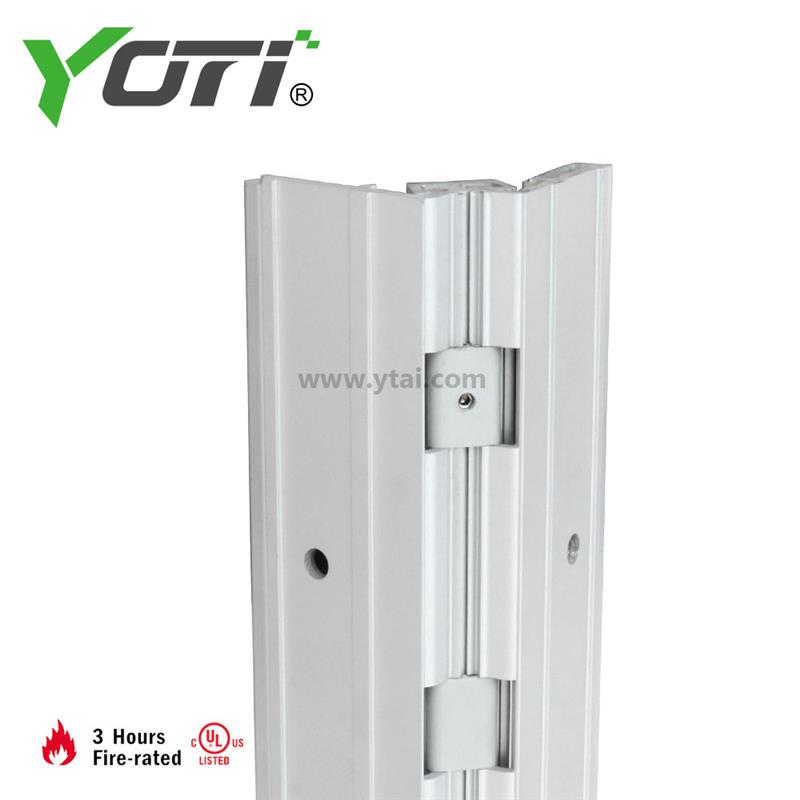

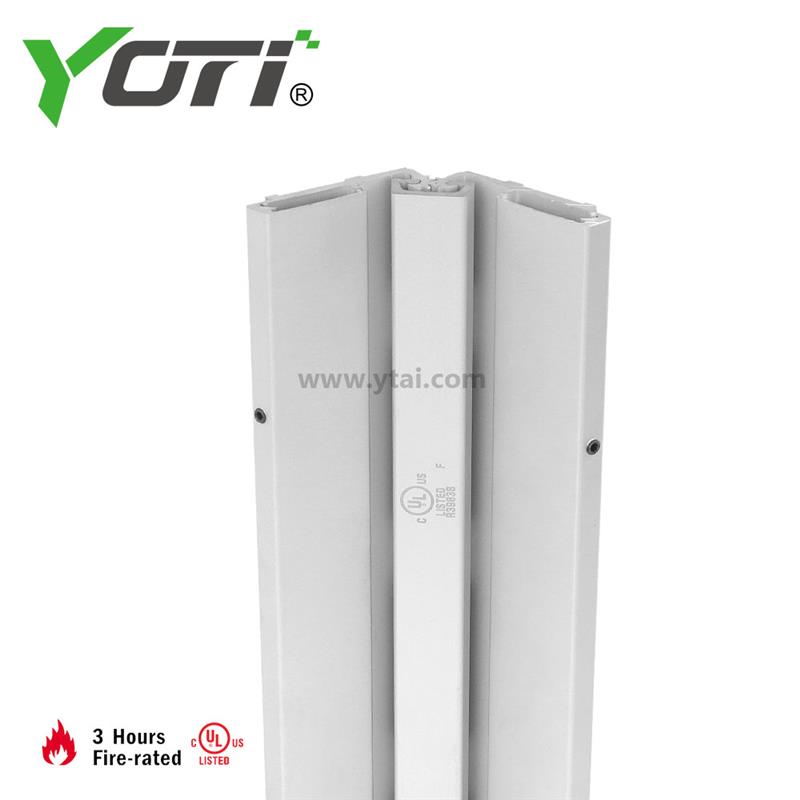

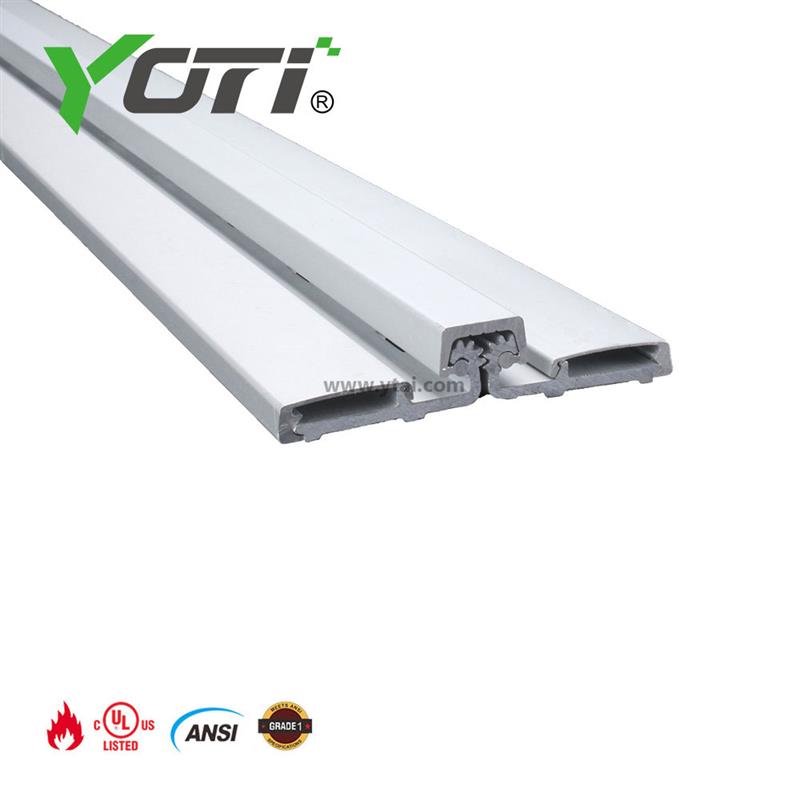

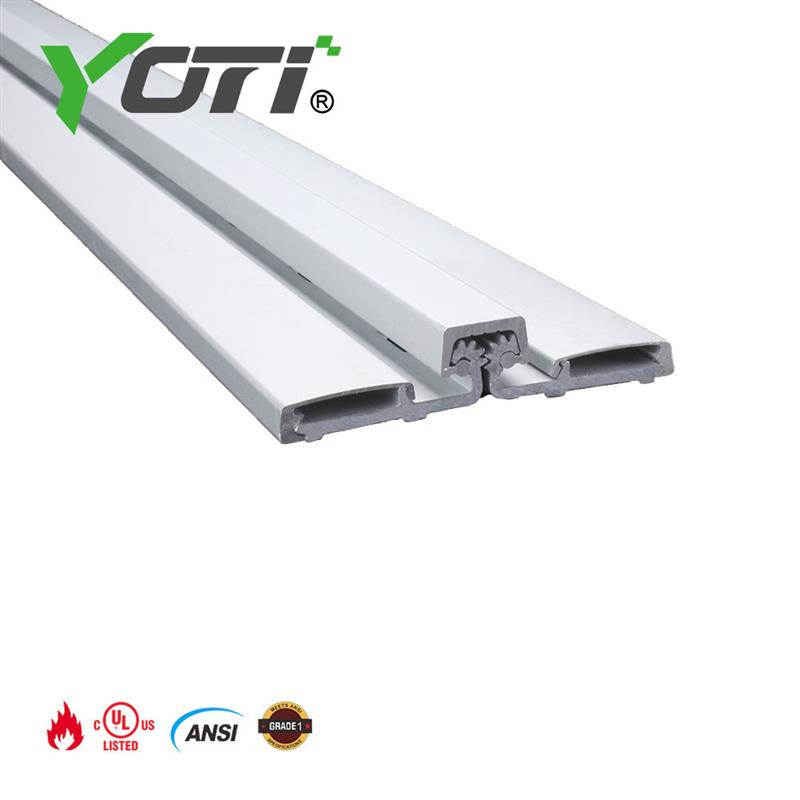

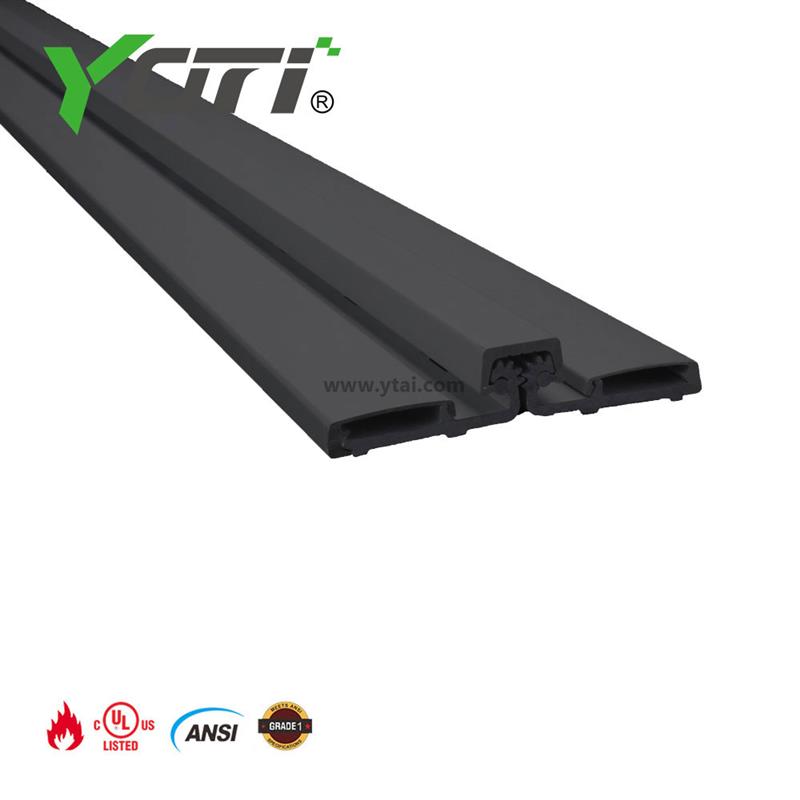

Yoti Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
|
Length (inches) |
Length (mm) |
Sex Bolts (Door) |
Screws (Jamb) |
|
83 |
2108 |
16 |
38 |
|
95 |
2413 |
20 |
38 |
|
119 |
3023 |
24 |
46 |

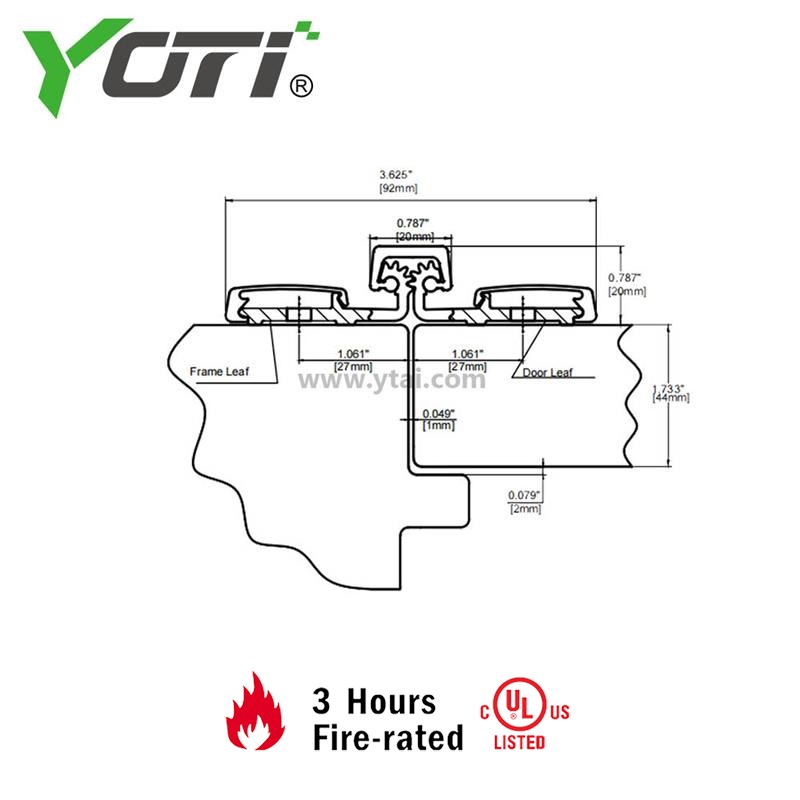

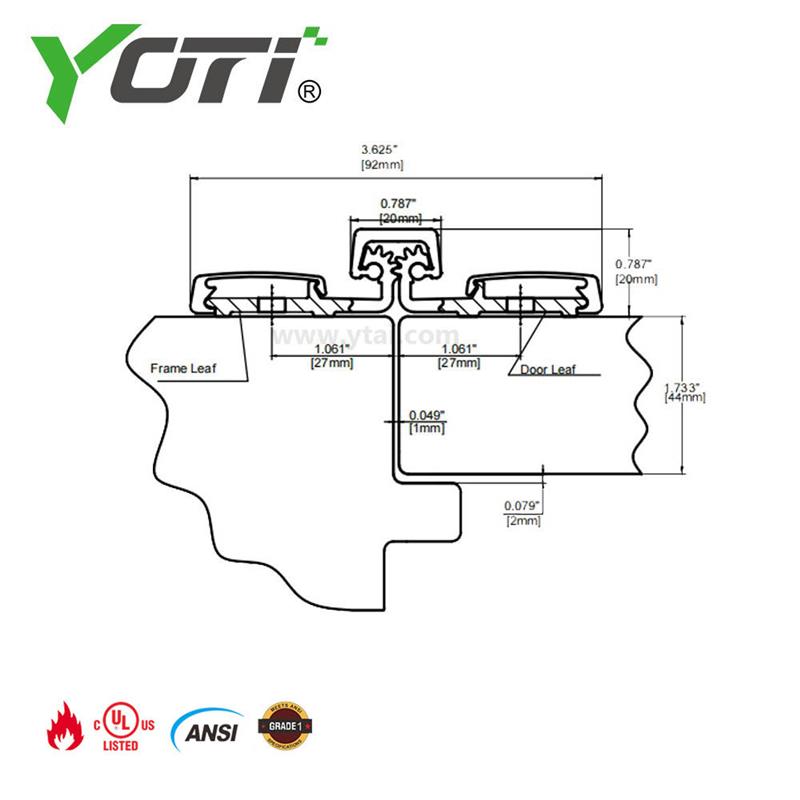

◇CLEARANCE: - 1/32" (1 mm) minimum recommended between doors
- Plus standard lockside clearance
- Refer to Door and Frame Dimensioning in the General
Information section for further details
- #12-24 X 11/16" Flat Head Self-Drill Screws

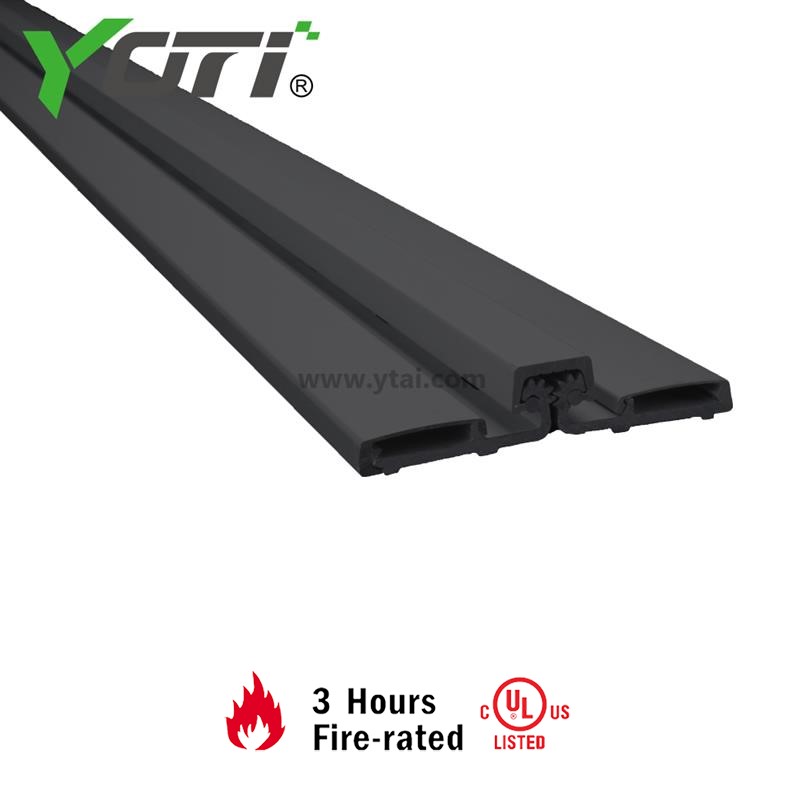

- Dark Bronze Anodized Aluminum
◇LENGTH OPTIONS: - 83" & 95" & 119" & Cutsom
◇DOOR REINFORCEMENT: - None needed
◇FRAME REINFORCEMENT: - None needed to 200 lbs.
- Use 16 gauge channel over 200 lbs
◇FIRERATING: - Up to 3 Hours.
