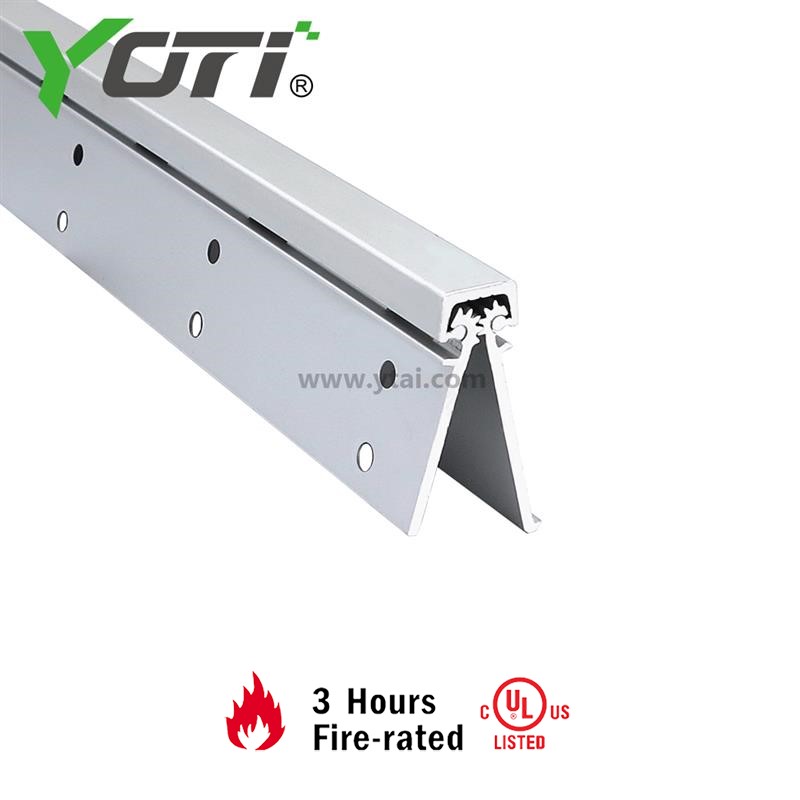

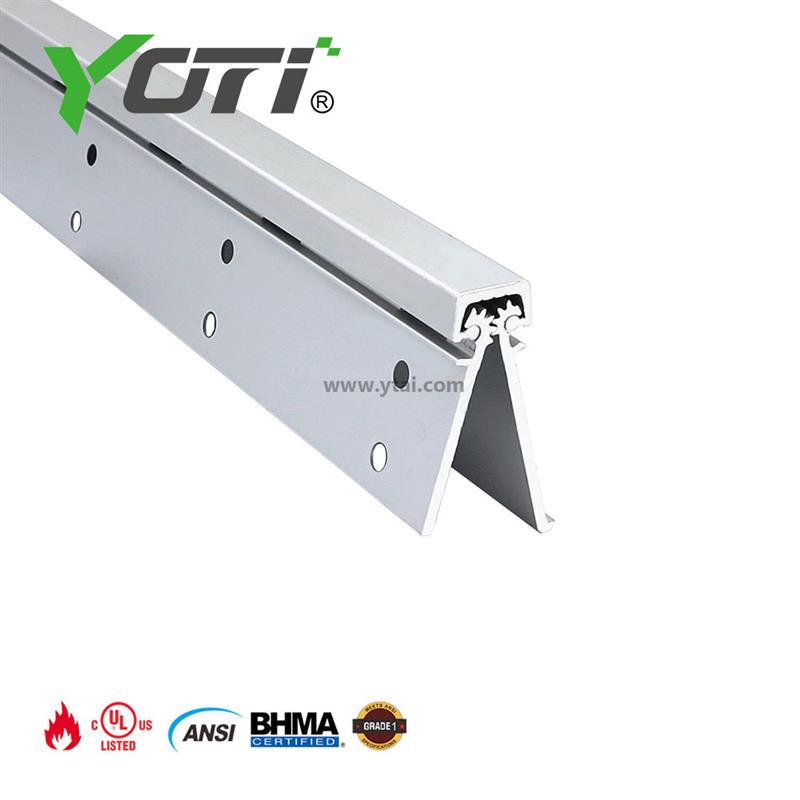

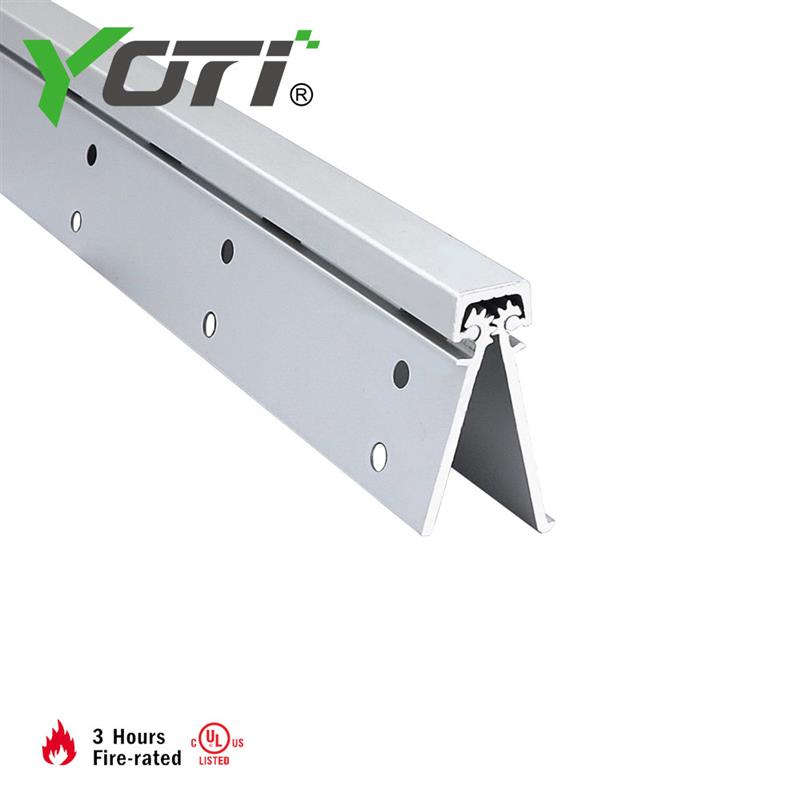

Yoti Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
|
Length (inches) |
Length (mm) |
Hole Count (Door) |
Hole Count (Jamb) |
|
83 |
2108 |
19 |
19 |
|
95 |
2413 |
20 |
20 |
|
119 |
3023 |
23 |
23 |

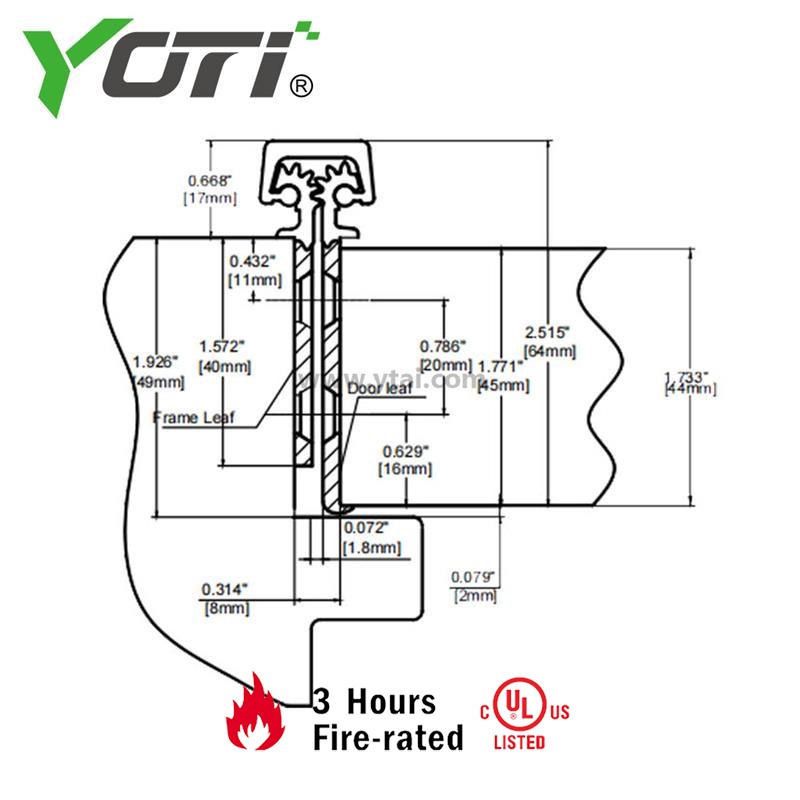

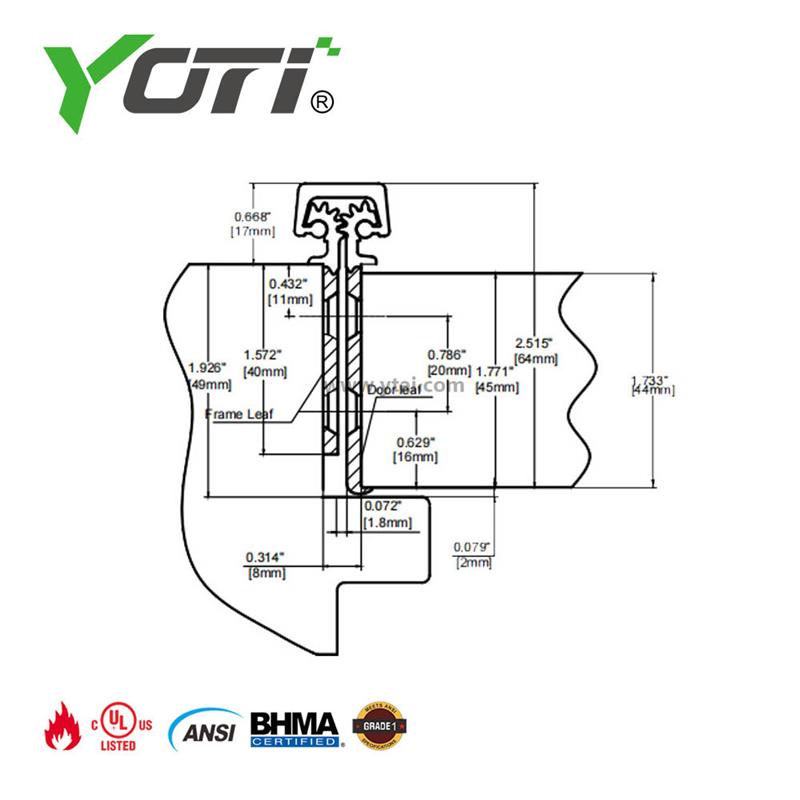

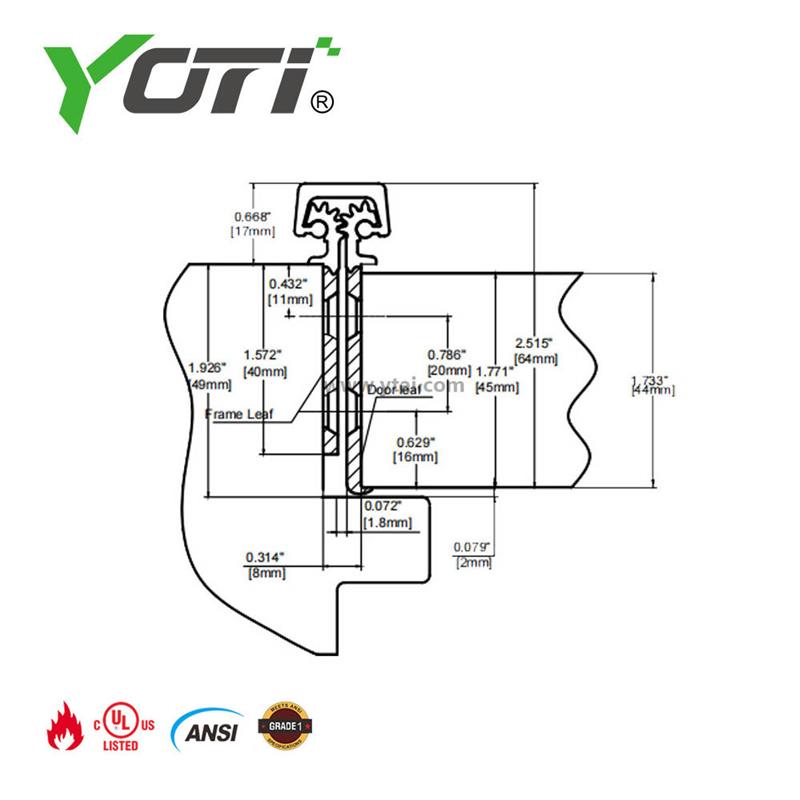

◇CLEARANCE: - 5/16" (8 mm) hinge side plus standard lockside clearance
◇FASTENER: - Dril-Kwik screws
◇FINISH OPTIONS: - Standard Finished - Stocked:
C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
- Optional Finished - Custom:
G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized
◇LENGTH OPITIONS: - 83" & 95"& 119" & Custom
◇DOOR REINFORCEMENT: - None required
◇FRAME REINFORCEMENT: - None required to 200 lbs.
- Heavier weight use 16-gauge channel.
◇FIRE RATING: - Up to 3-hour metal and 90 minute wood composite
◇SPECIAL FEATURES: - Frame alignment rib for proper hinge and door location
- Door edge protection lip
◇OPTIONS: - Hospital Tip
- Electrified Modual
