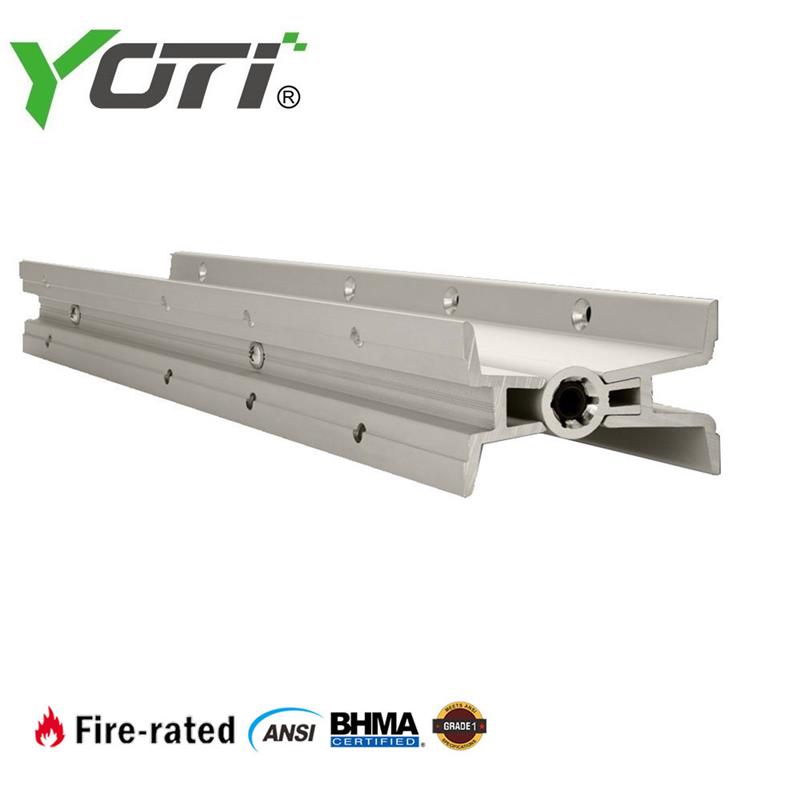

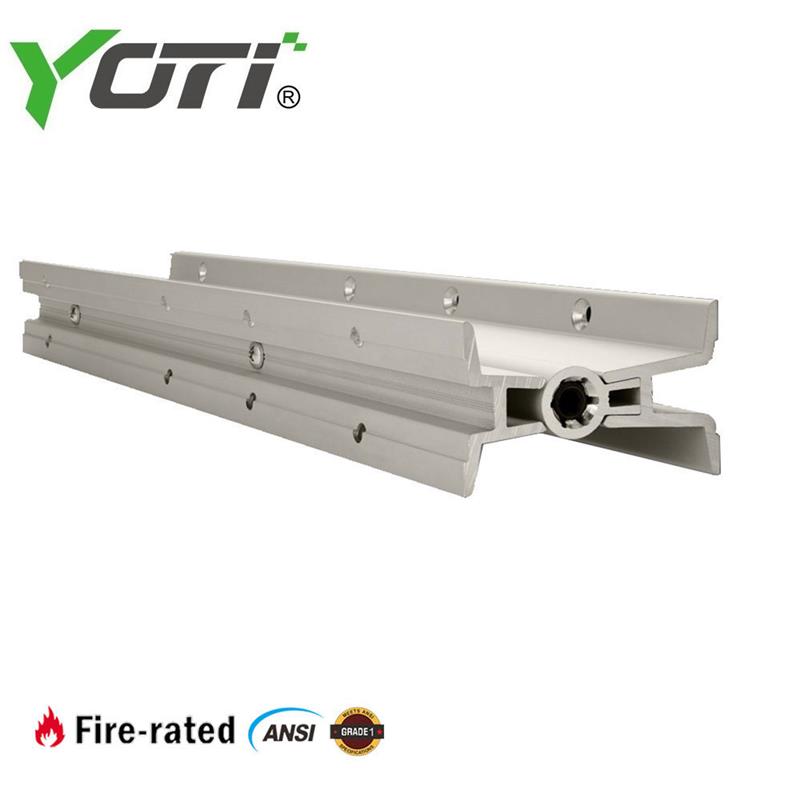

The Double Swing Hinge with Emergency Release Stop is an innovative healthcare solution that permits quick door opening in an emergency situation. A double swing continuous hinge is combined with an emergency release stop to provide additional safety features that are easy to use and help minimize risk.
◇ Continous pin & barrel hinge

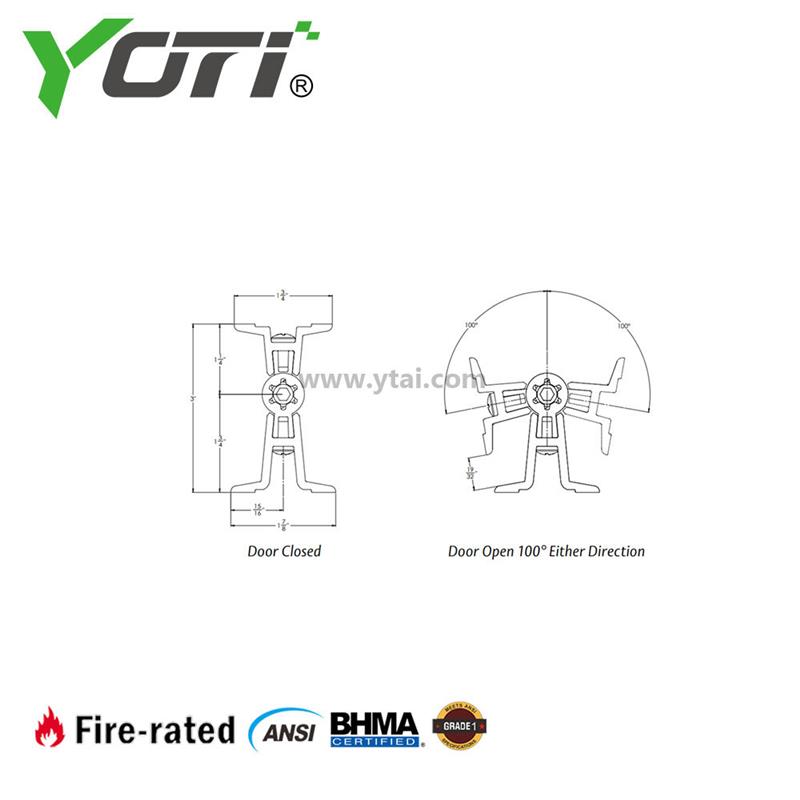

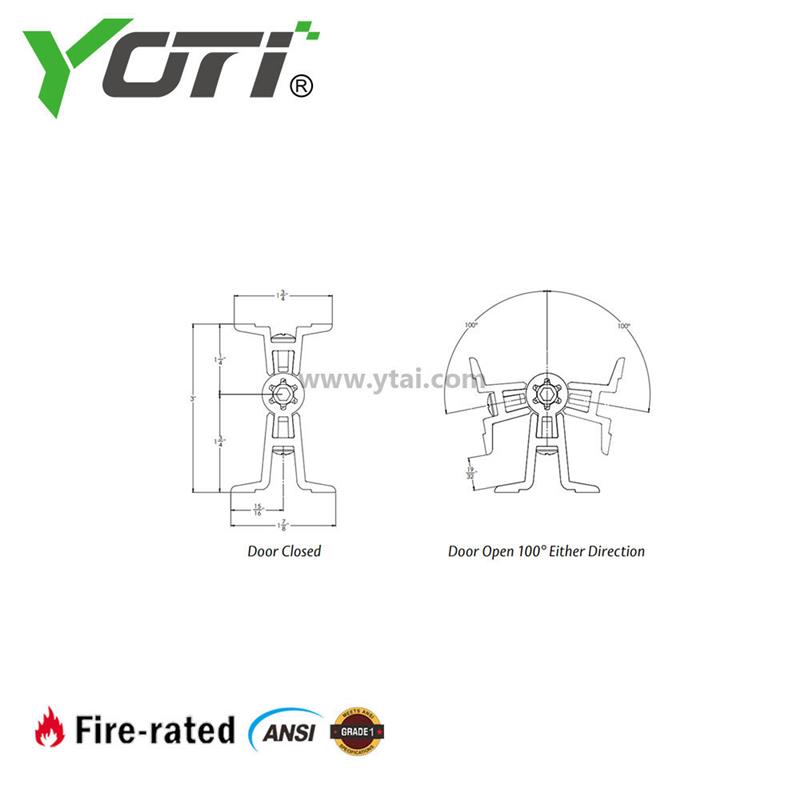

◇ Swings 100-degrees maximum in either direction
◇ Hard stop to eliminate finger pinching
|
Key Feature
|
Benefit
|
|
Pin & Barrel Design
|
Continuous hinge design reduces stress on frame
|
|
6063-T5 Aluminum Alloy/Temper
|
Strong, heavy-duty and durable grade aluminum
|
|
¼" Diameter Stainless Steel Rod L
|
Large diameter rod supports large and heavy doors
|
|
UHMW-PE Thrust Bearings
|
High quality bearing improves life and overall hinge function
|
Supports door weights up to 600 lbs.
