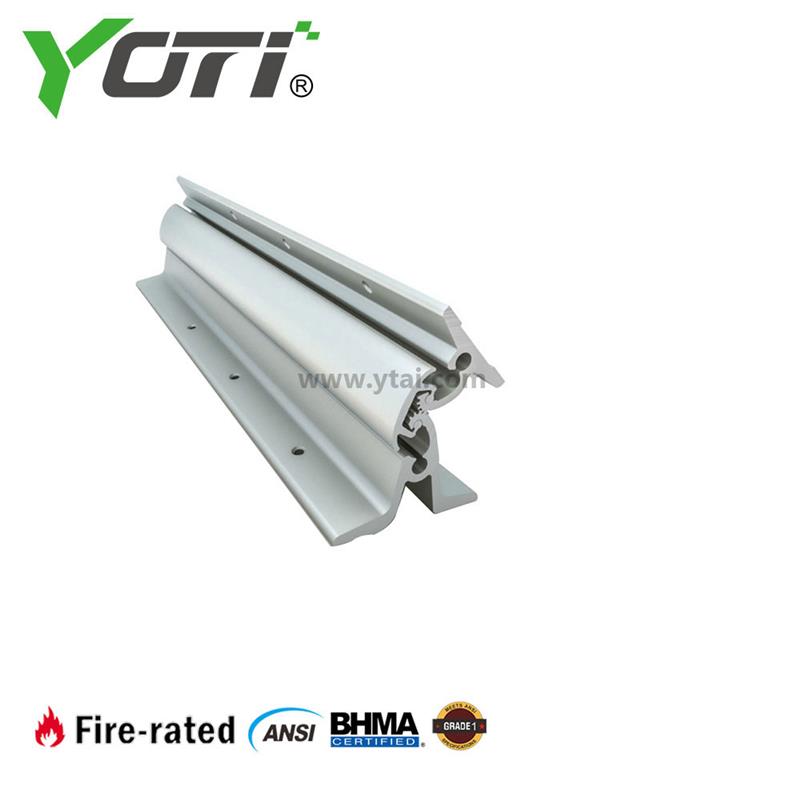

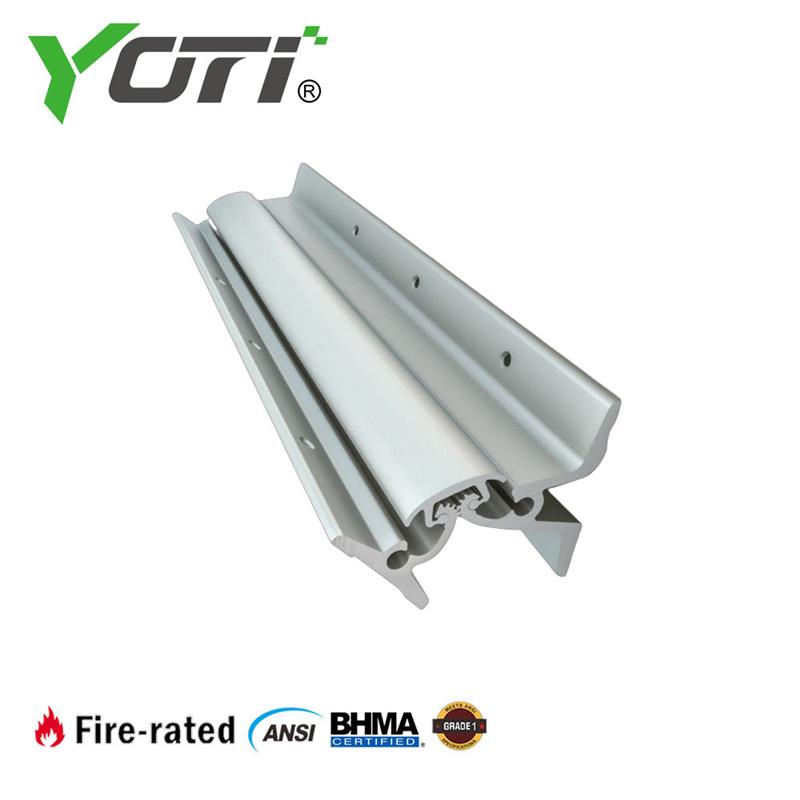

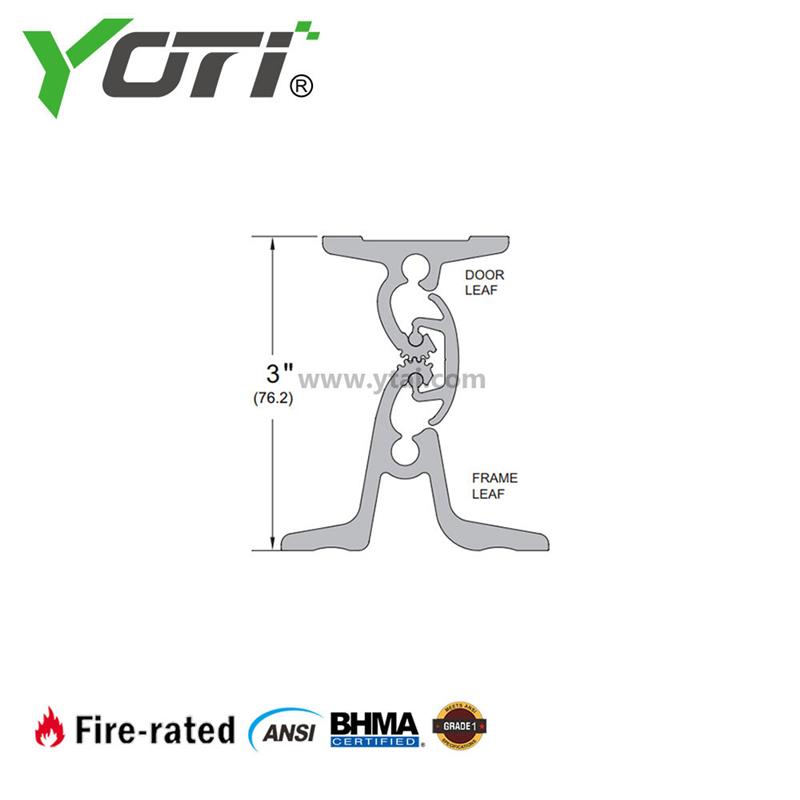

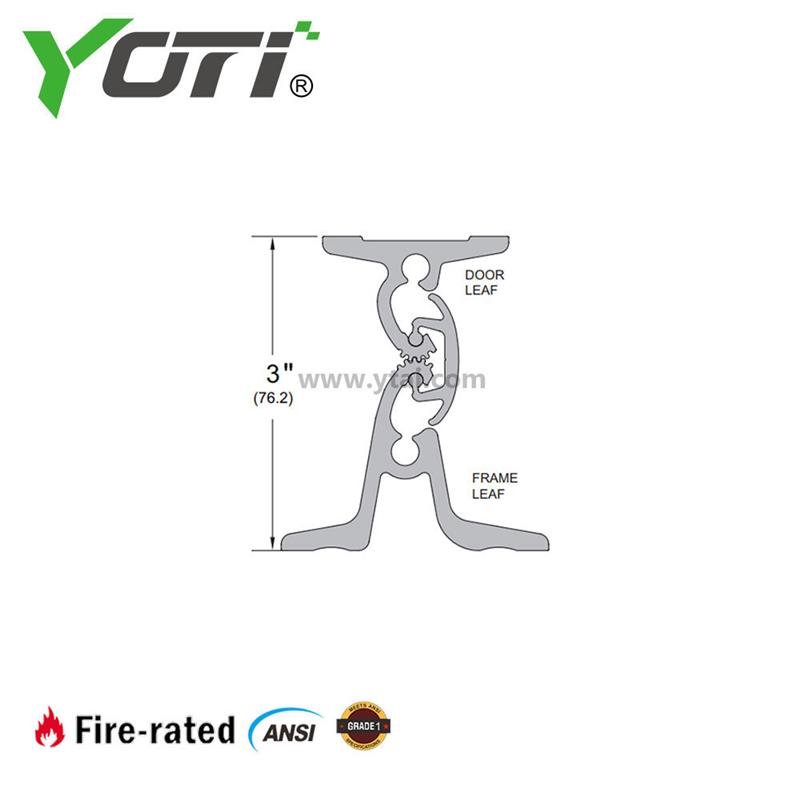

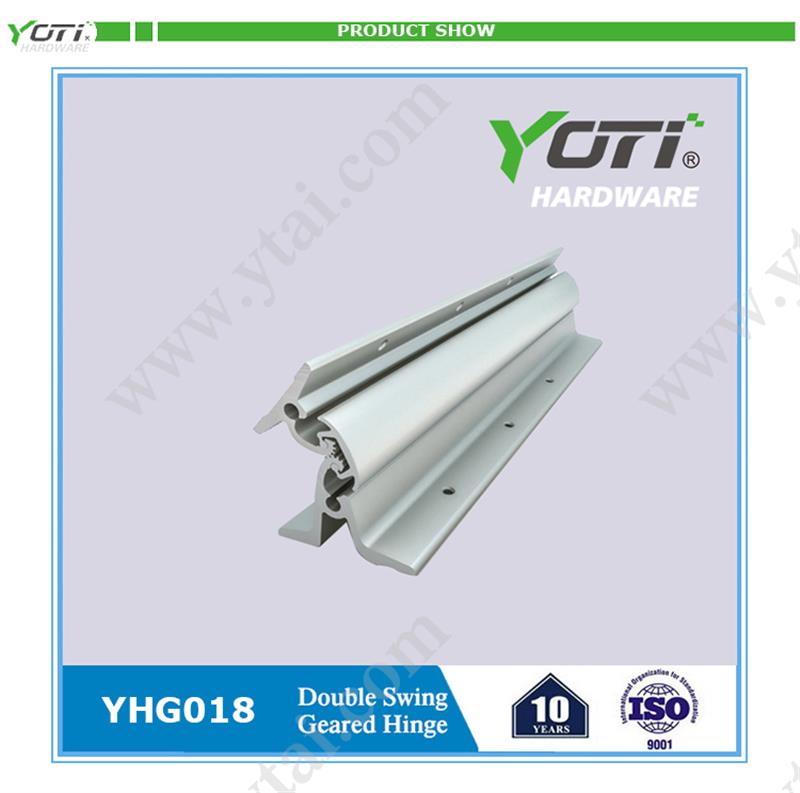

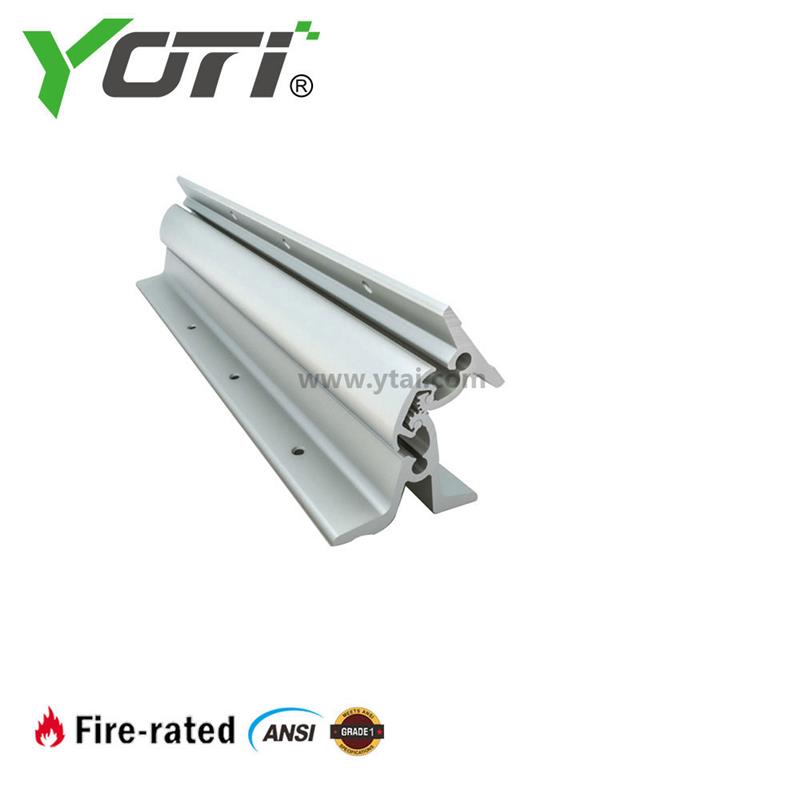

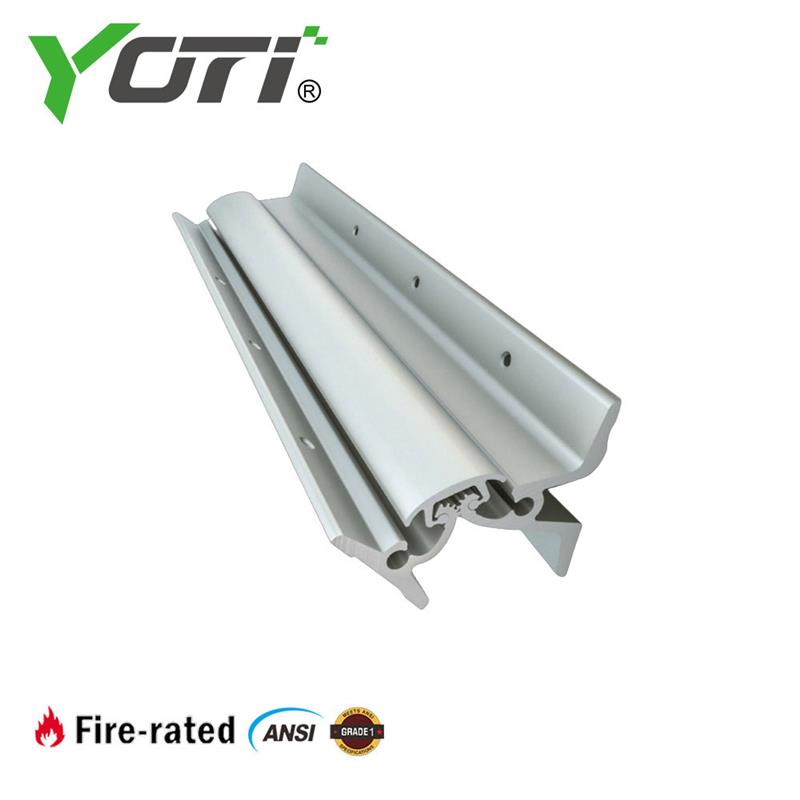

The Double Swing Hinge with Emergency Release Stop is an innovative healthcare solution that permits quick door opening in an emergency situation. A double swing continuous hinge is combined with an emergency release stop to provide additional safety features that are easy to use and help minimize risk.
◇ Swings 100-degrees maximum in both directions
◇ Combined with the Emergency Release Stop (ERS) this hinge is ideal for Behavioral Health applications.
◇ Designed to be used in a cased opening
|
Key Feature |
Benefit |
|
Geared Hinge Design |
Distributes load stress uniformly along the full length of door and frame |
|
6063-T5 Aluminum Alloy/Temper |
Strong, heavy-duty and durable grade aluminum |
|
UHMW-PE Thrust Bearings |
Eliminates premature wear and supports more weight |
Supports door weights up to 300 lbs.
