YDS605

YDS605

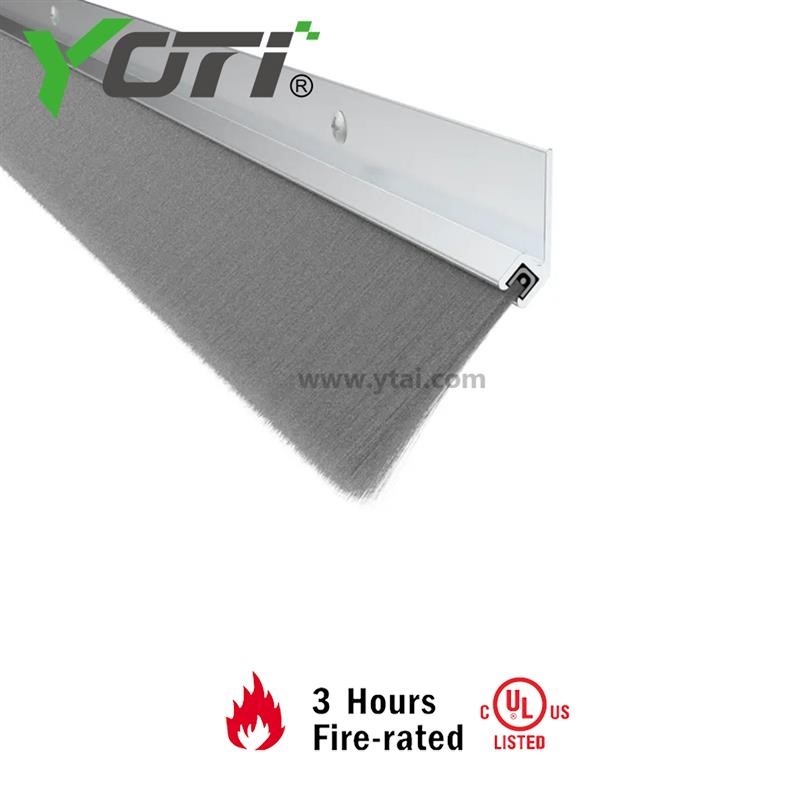

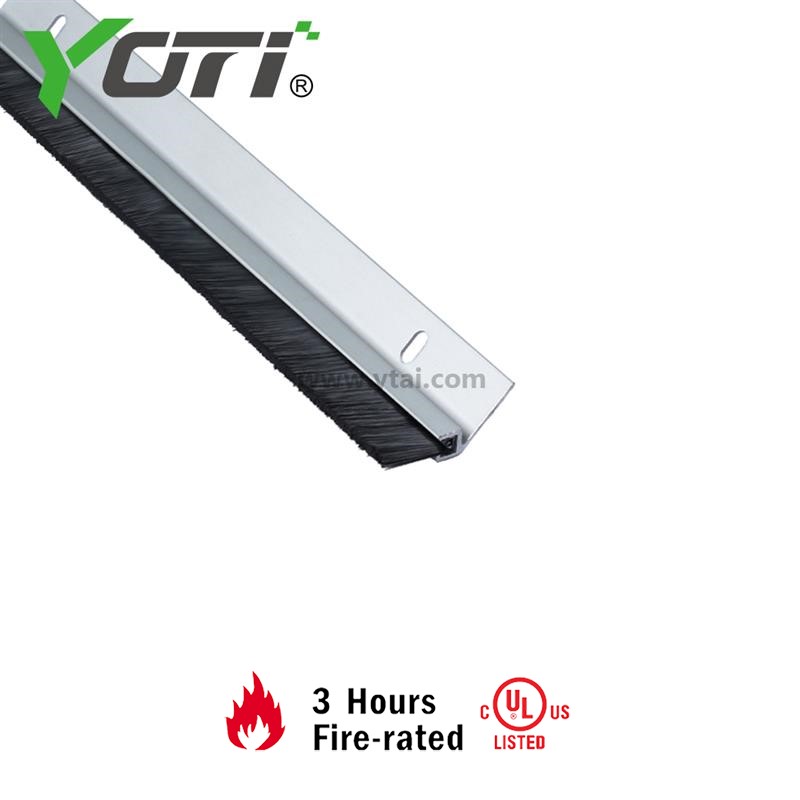

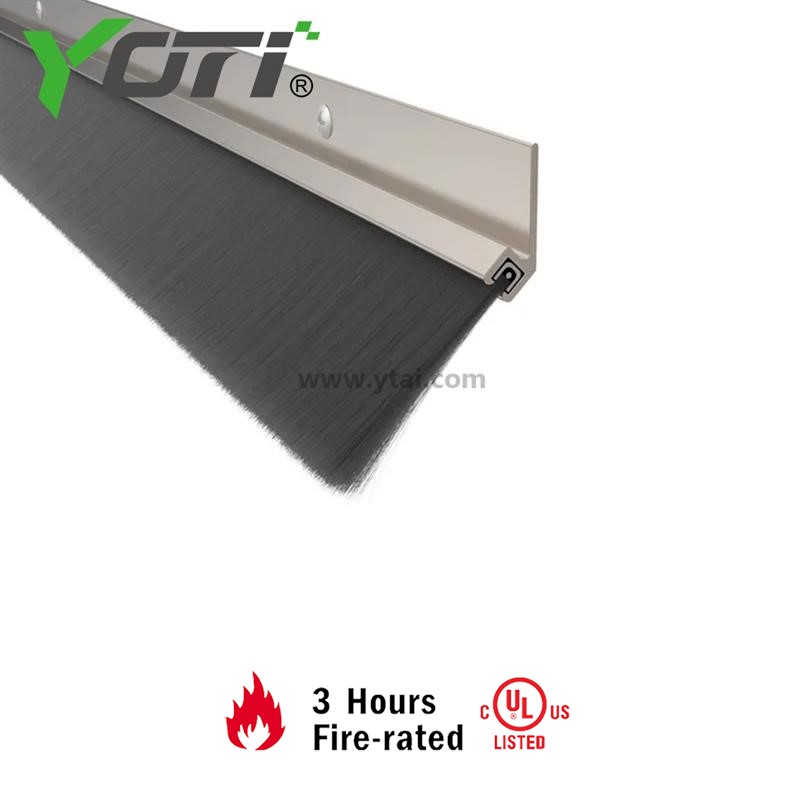

Brush Weatherstripping

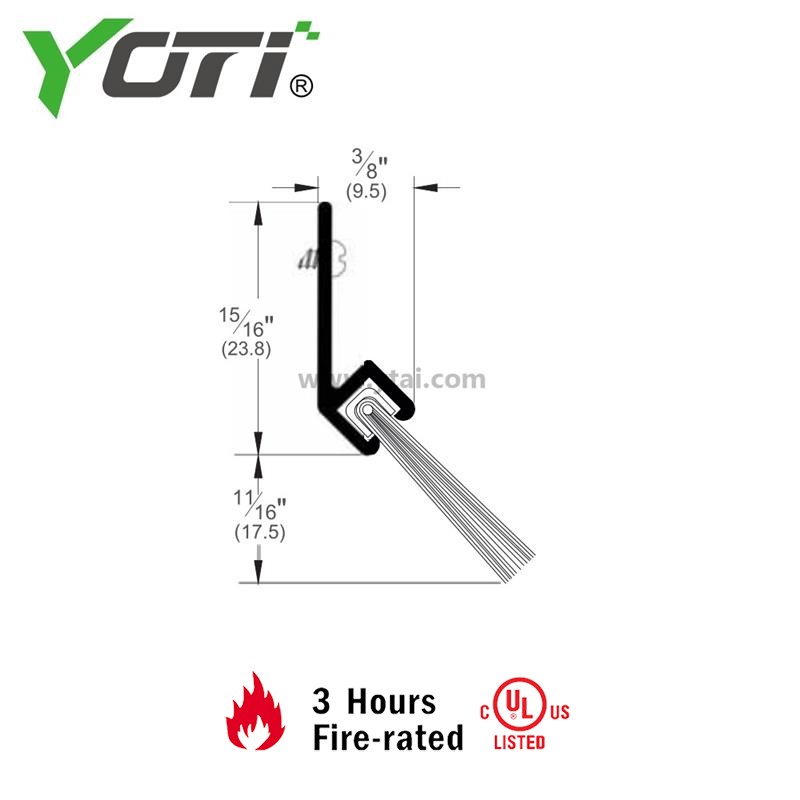

- AVAILABLE FINISHES: A, C, D
- WIDTH: 5/16” (7.9 mm)
- PROFILE HEIGHT: 3/4” (19.1 mm)
- HEIGHT INCLUDING BRUSH: 1-3/16” (30.2 mm)

This Door Gasket and Door Bottom Sweep is supplied with an 45° angled flange which provides the best contact between the seal and the floor surface or door jamb. It has a high quality 0.6875" brush seal which can seal up to 0.375” gaps and greatly reduce infiltration of light, air, wind, rain, and snow; prevents heat loss; and controls the penetration of smoke and fumes. Available in various aluminum finishes and is custom cut to size.



Door Brush Retainer Material
Aluminum
Temperature Range
Seals remain flexible between -40° F and over 400° F
Door Type
Wooden Door, Metal Door
Seal Type
Nylon Brush Seal
Mounting
Surface Mounted
Seal Height
11/16" Height
Total Height
1-5/8" Height
Additional Dimensions
Door seal is 3/8" thick
Length
Standard 36",48";Custom Cut to Size
Finish

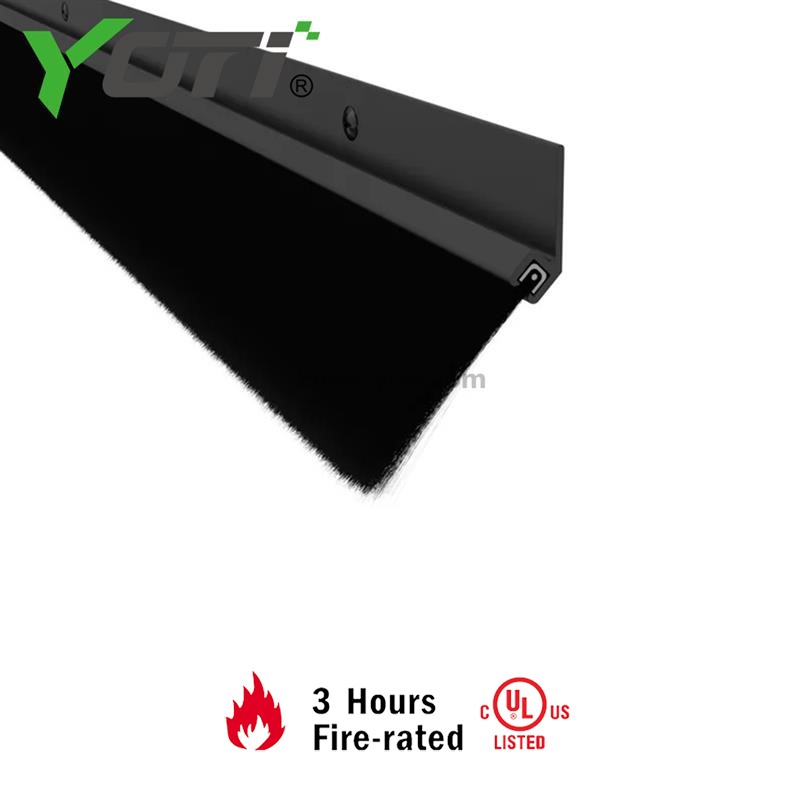

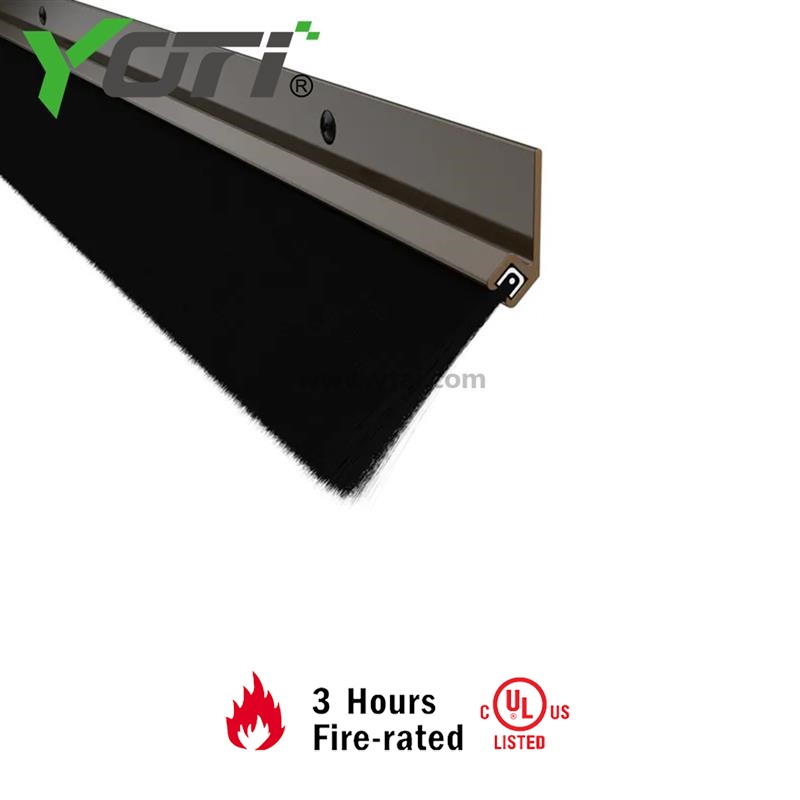

A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized)
Installation
Drill Holes Drill holes are provided
Certificate
Fire Rated - UL 10B/10C
